Copper patch cable Cat 6 A F/FTP Folding FlexiBoot Slim Black 1,5 m - Intellinet ICOC F 6 A-BD- 015 B

€5.69
Tax included €4.70 excl. VAT

Cat patch cable 6 A F/FTP copper, length 1,5 meters, color black. Cat. 6 class EA with 10 G and 500 MHz. LSZH sheath, RJ 45 connectors with gold contacts 50 micro-inch. Ideal for HDBaseT and PoE++.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Certificate Cat. 6 EA Class with 10 G and 500 MHz as per ISO/IEC 11801 and EN 50173 - 1

  • Pure copper conductor for maximum conductivity;

  • F/FTP with aluminium foil shielding to wrap all pairs and aluminium foil shielding on each pair

  • Low Smoke Zero Halogen sheath (LSZH/LS 0 H) compliant with IEC 60754 - 2 to reduce the emission of harmful gases in case of fire

  • Micro-inch 50 gold contacts for connections not subject to corrosion

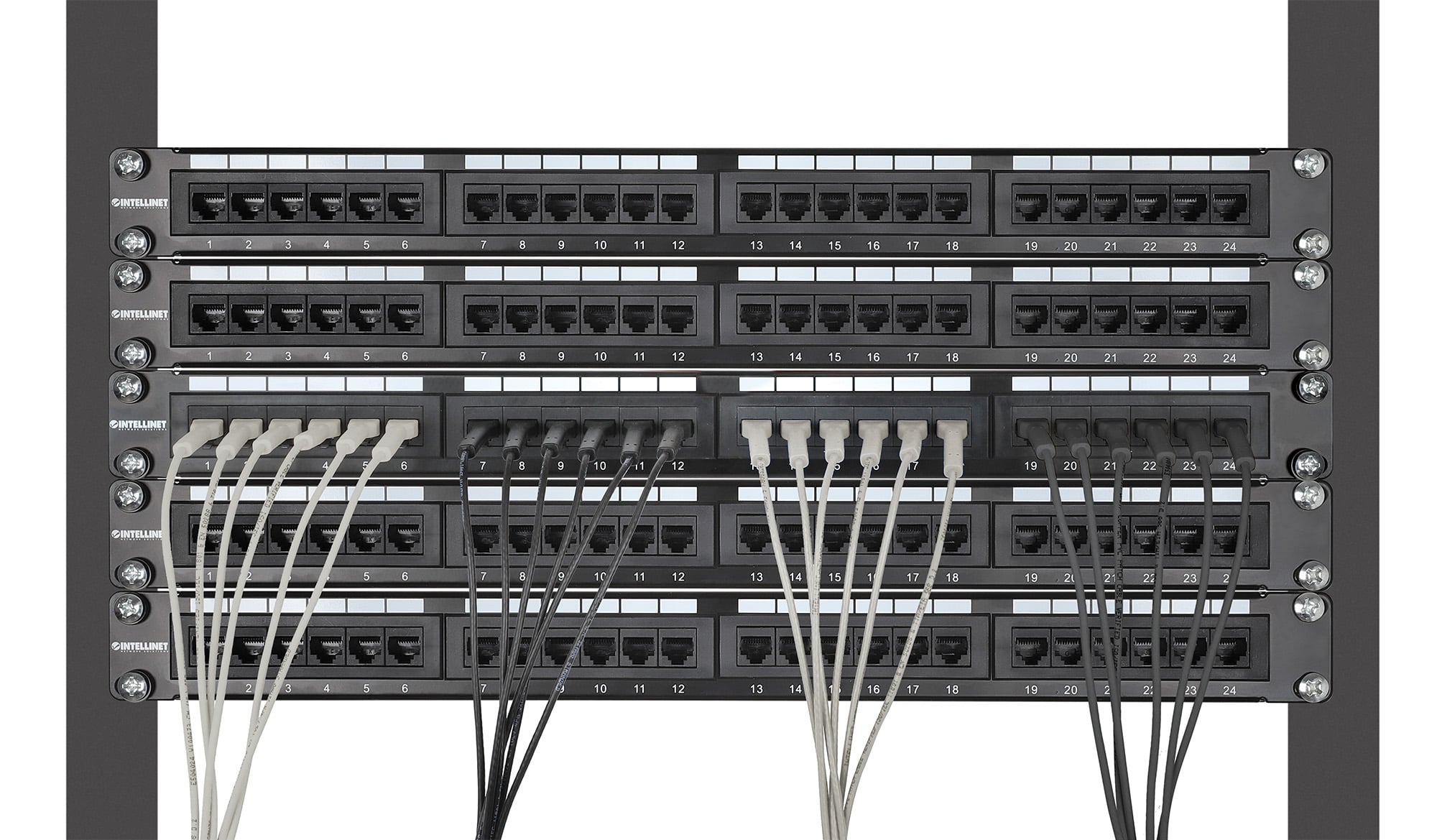

  • Ultra thin and foldable format for greater flexibility à and simple cable management in very dense installations

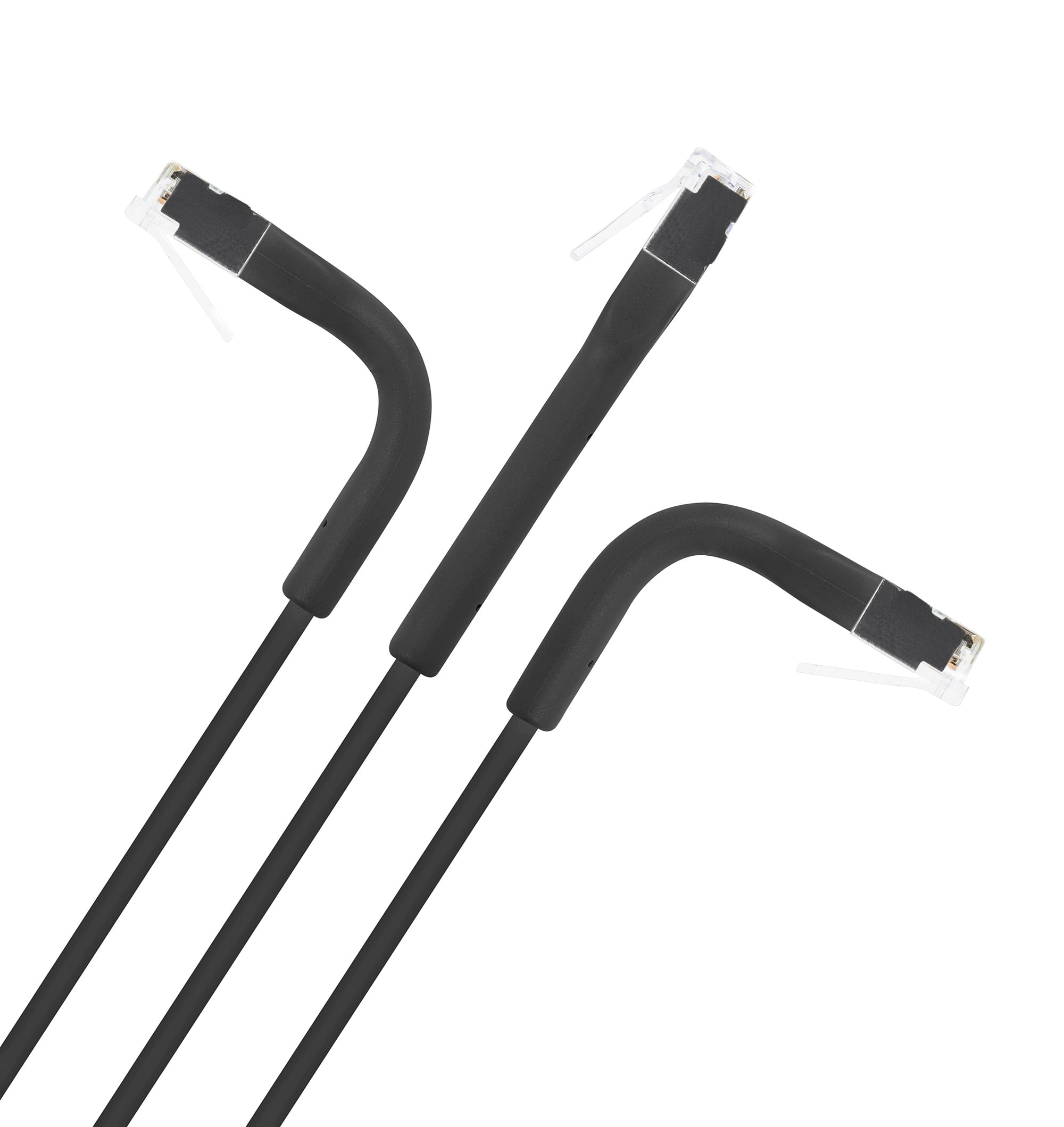

  • A flexible connector protects RJ 45 plugins and allows you to easily fold the cable creating the desired angle

  • Ideal for HDBaseT and PoE applications up to IEEE 802.3 bt / PoE++ / 4 PPoE / Ultra PoE

  • Robust tear protection

  • Compatible with color coding T 568 A and T 568 B

  • Design 8 P 8 C standard, compatible with all network connections RJ 45

  • Fully compatible with all previous cable categories, including 6 , 5 E and 5



Standards and certifications

  • ISO/IEC 11801

  • EN 50173 - 1

  • UL

  • CE

  • RoHS

  • REACH

  • IEEE 802.3 an (10 GBase-T)

  • Cat 6 a (ANSI/TIA- 568.2 -D)



General information

  • Supports fast à transfer: up to 10 Gbps

  • Maximum operating frequency: 500 MHz

  • Supports all PoE standards up to IEEE 802.3 bt / PoE++ / 4 PPoE / Ultra PoE

  • Coupling cycles: ≥ 750



Connectors

  • Two male RJ 45

  • Golden contacts 50 micro-inch



Cable

  • 32 AWG

  • Screenplay: F/FTP with full screen + sheet screen for each pair

  • LSZH sheath

  • Cable: 100 % pure copper (Cu)

  • Shape diameter: 4.0 mm ± 0.3 mm

  • Conductor type: flexible

  • Cable type: round

  • Length: 1.5 m

  • Net weight: 36 g

  • Gross weight: 41 g



Electrical information

  • Insulation resistance: ≥ 500 MOhm

  • Contact resistance: 30 MOhm max.

  • Dielectric sealing voltage: 2500 VDC



Environmental information

  • Operating temperature: - 10 ° to 60 °C

  • Storage temperature: from - 40 ° to 70 °C

  • Operative (non-condensed) humidit&agrave: 10 - 90 % RH



Package contents

  • Cat 6 patch cable to F/FTP FlexiBoot Slim, 1.5 m, Black

  • Brand
  • Reference
    ICOC F6A-BD-015B
  • In stock
    406 Items
  • EAN13
    0766623745093
