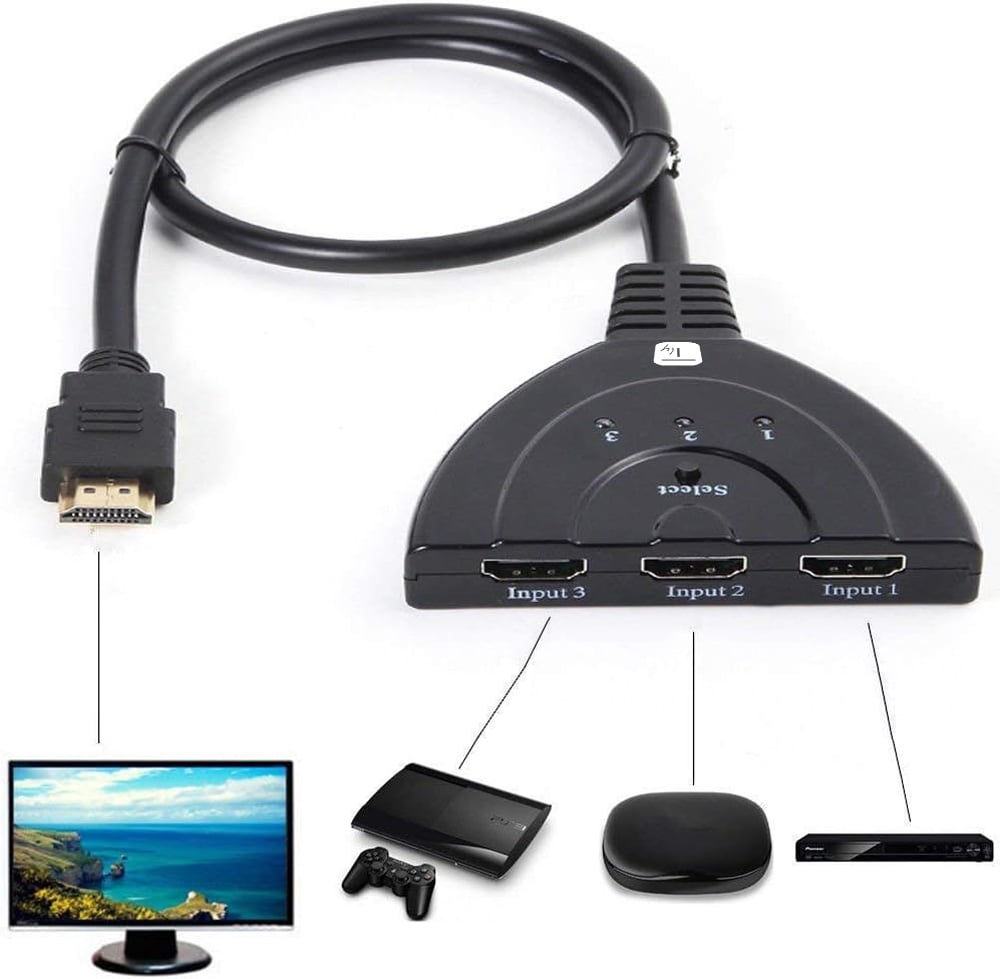

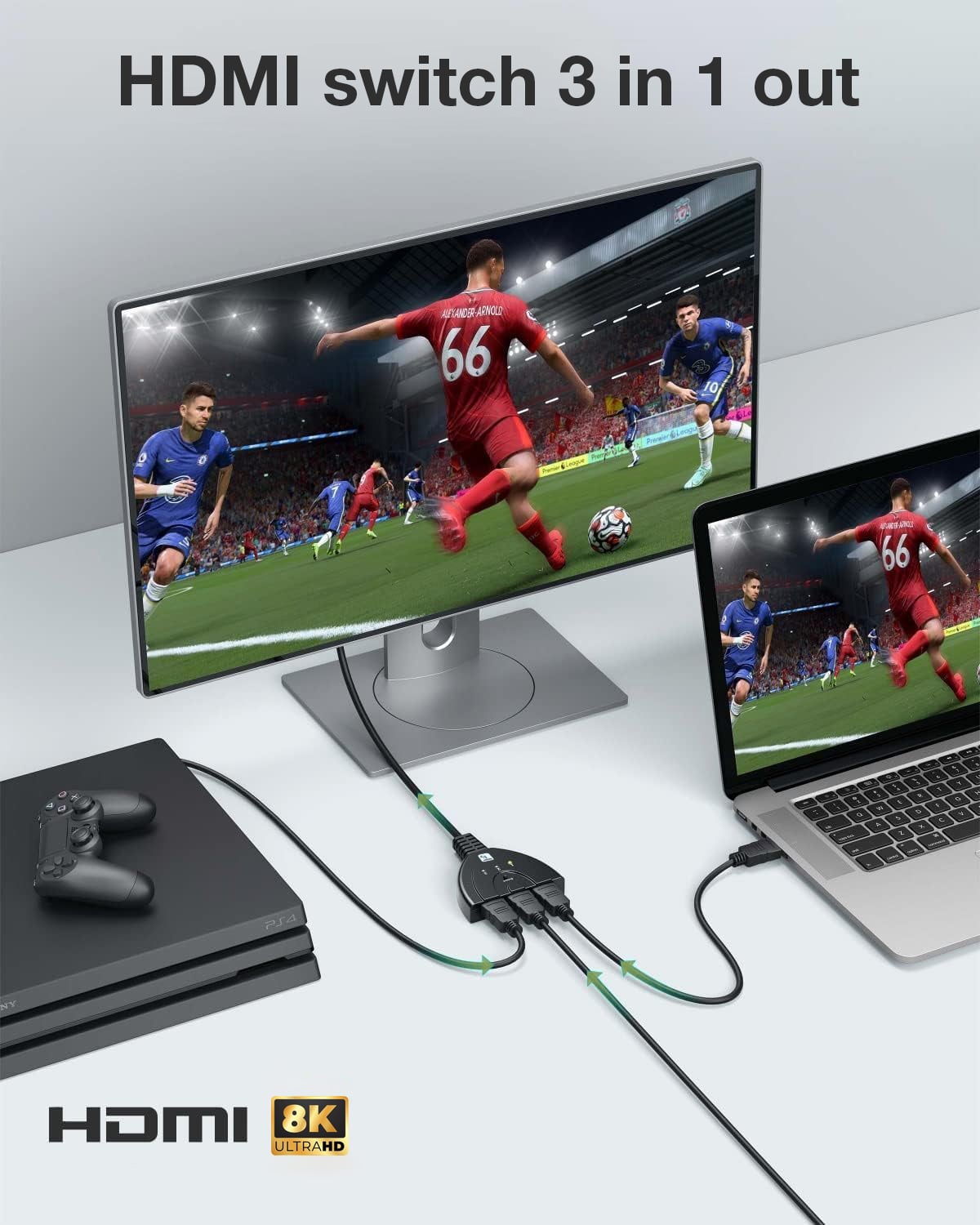

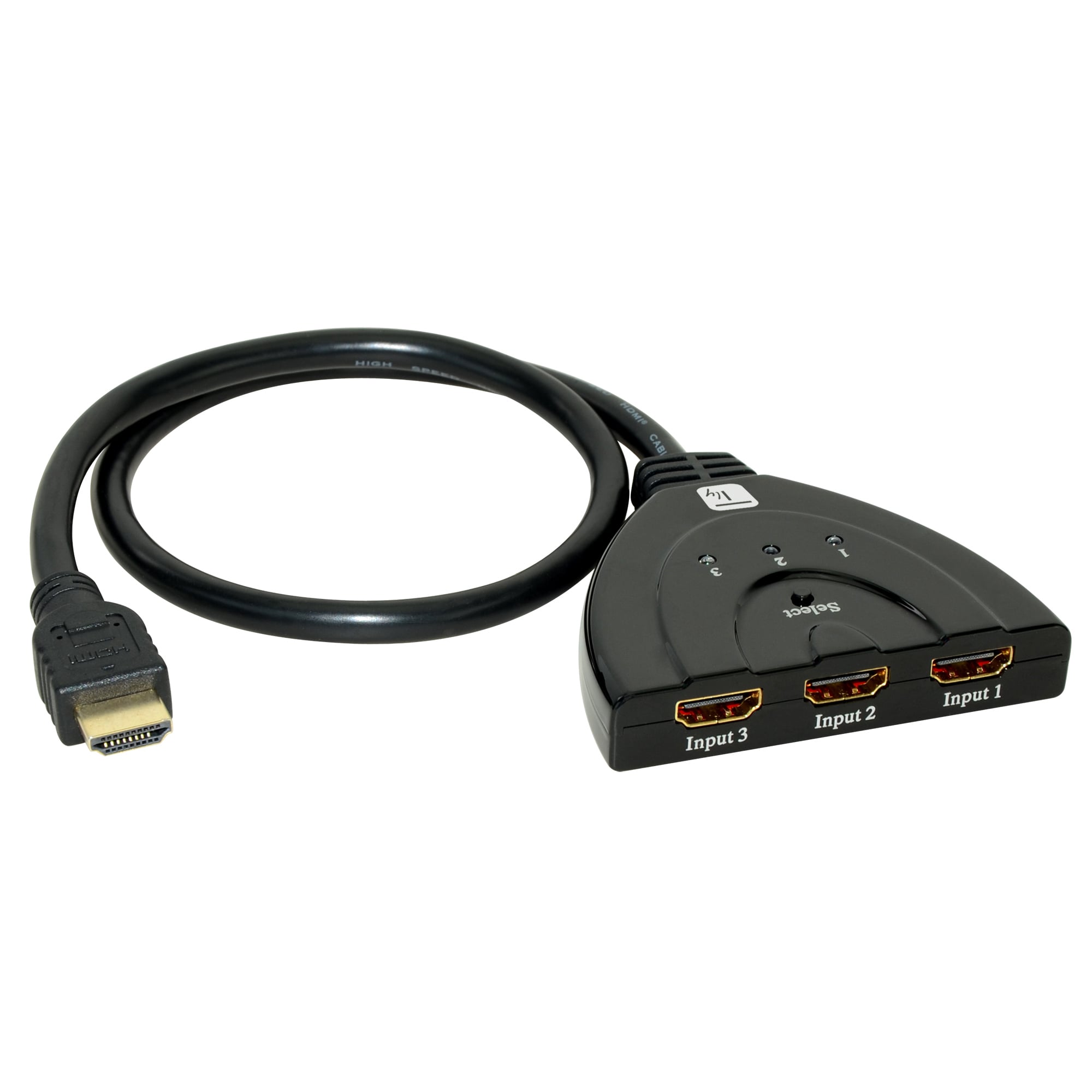

High-performance HDMI switches can connect three devices to a monitor and select which device to display on the monitor.
Thanks to the built-in HDMI cable, it not only reduces costs but also saves the user time.
Supports maximum resolution of 8 K.
FeaturesThis HDMI Switch has many features that give it superior performance, including:

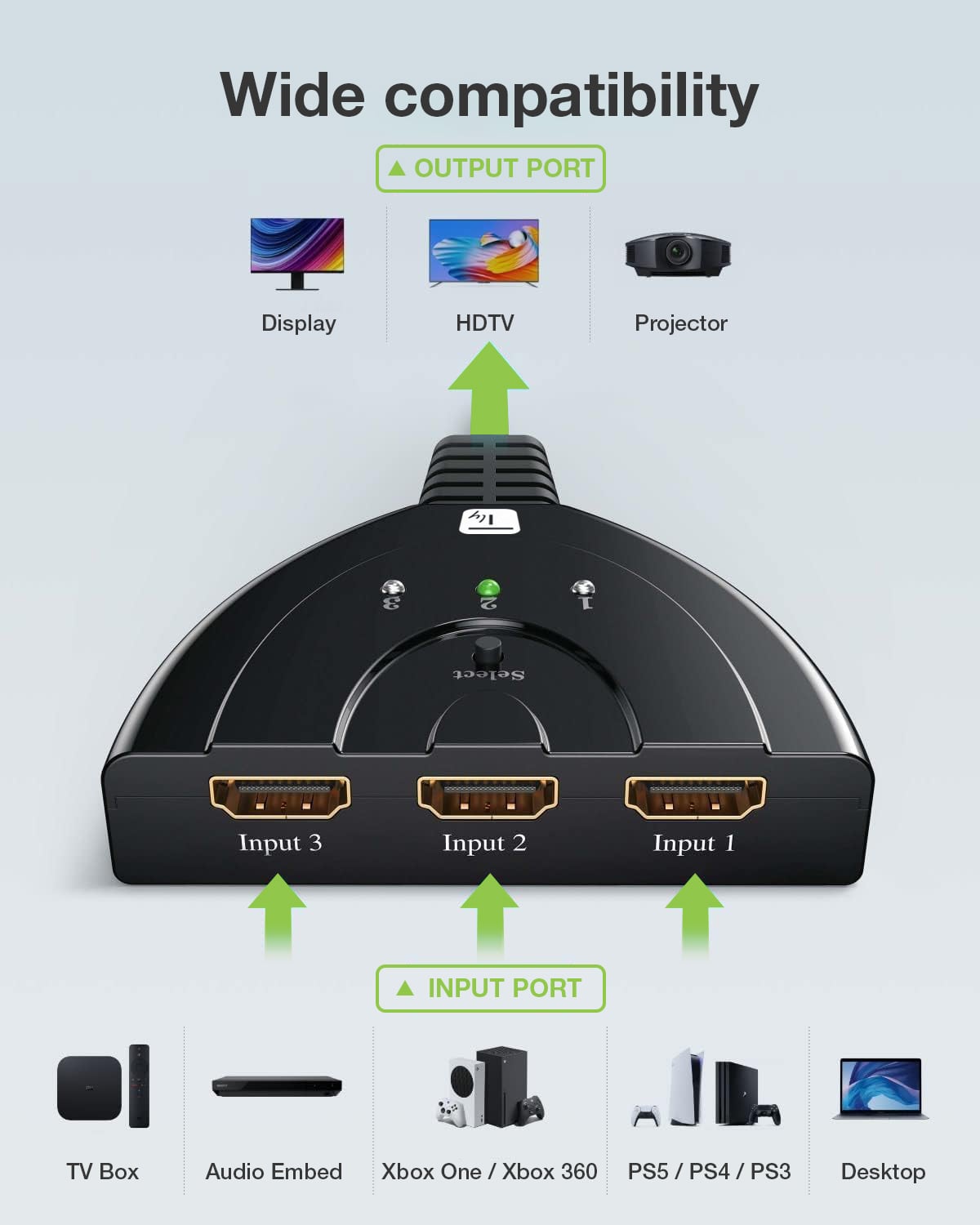

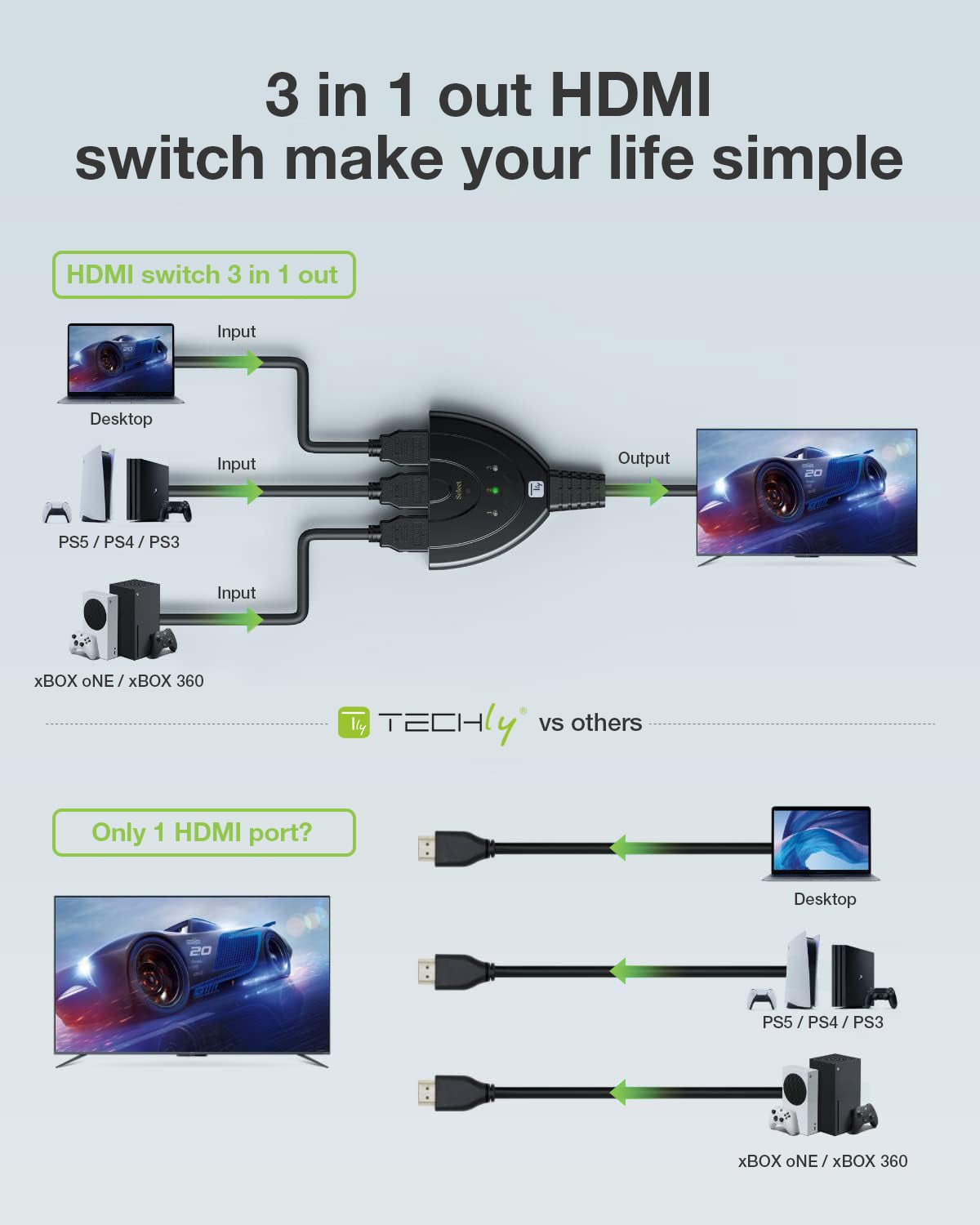

- Supports 3 HDMI and 1 HDMI output inputs: allows you to view one of three connected sources on a monitor
- Supports maximum video resolution of 8 K@ 60 Hz and back compatible
- Compatible with HDMI V 2.1 devices
- Supports 24 bit, 30 bit and 36 bit deep color
- Supports uncompressed audio like LPCM
- Supports compressed audio like DTS Digital, Dolby Digital, DTS-HD and Dolby True HD
Technical specifications- Video output: HDMI
- HDMI resolution:
24 / 50 / 60 fps
480 w/ 576 / 480 / 576 w/ 720 / 1080 / 1080 w/ 2160 w/ 4320 p
- HDMI/HDCP version: HDMI 1.2 / HDCP 2.3
- Deep color: 24 bit, 30 bit, 36 bit
- Audio support: DTS HD/Dolby - trueHD/LPCM 7.1 /DTS Dolby*-AC 3 /DSD HD (HBR)
- Velocità transmission: 48 Gbps
- Maximum input and output cable distance: < 2m AWG24 cavo standard HDMI 2.1

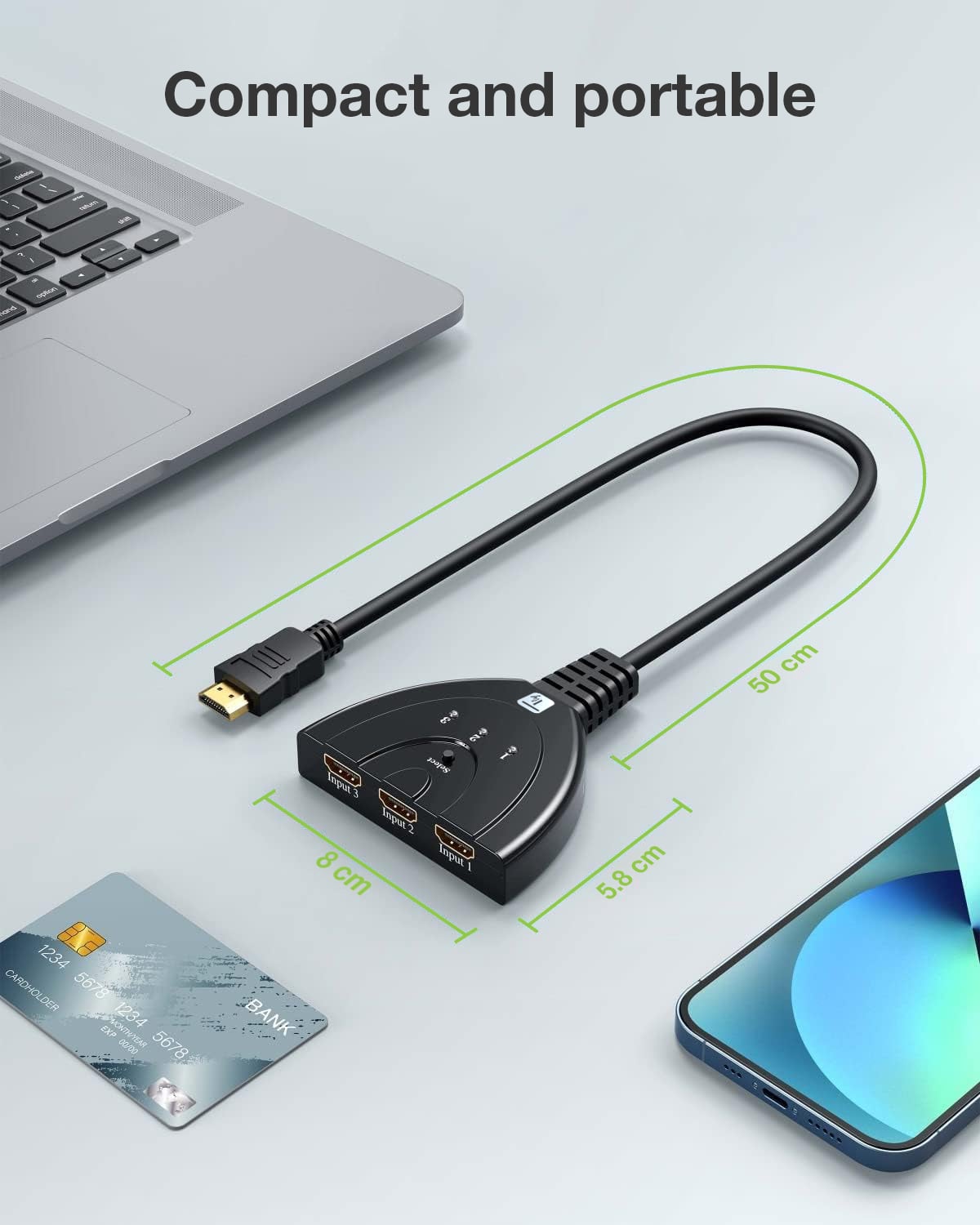

Dimensions- Width: 8,0 cm
- Depthà: 5,8 cm
- Cable length: 50 cm
Environmental features- Operating temperature From - 15 °C to + 55 °C
- Humidità operating from 5 % to 90 % RH (without condensation)
Package contents- HDMI IDATA Switch- 3 F 8 K
- User manual
