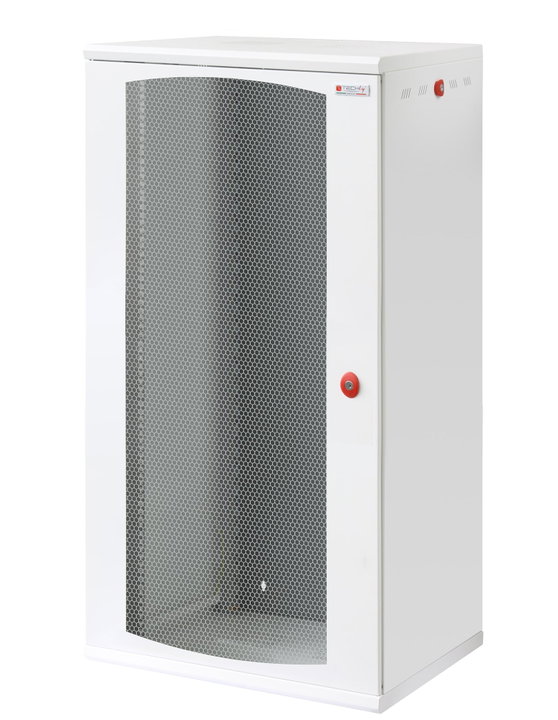

Wall-mount Rack Cabinet 19" 22U Single Section Depth 600mm White Perforated Door - Techly Professional I-CASE EW-2022WH6V

€275.27
Tax included €225.60 excl. VAT

Wall-mount rack cabinet 22U, depth 600 mm, 75% perforated door. Structure in white painted steel RAL 9016. Static load capacity 30 kg (up to 105 kg with reinforcement bars).



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Single-section wall cabinet 22 units with sturdy painted steel structure

  • Perforated door at 75% to promote thermal exchange, easily removable and reversible, opening angle greater than 210°, lock with key

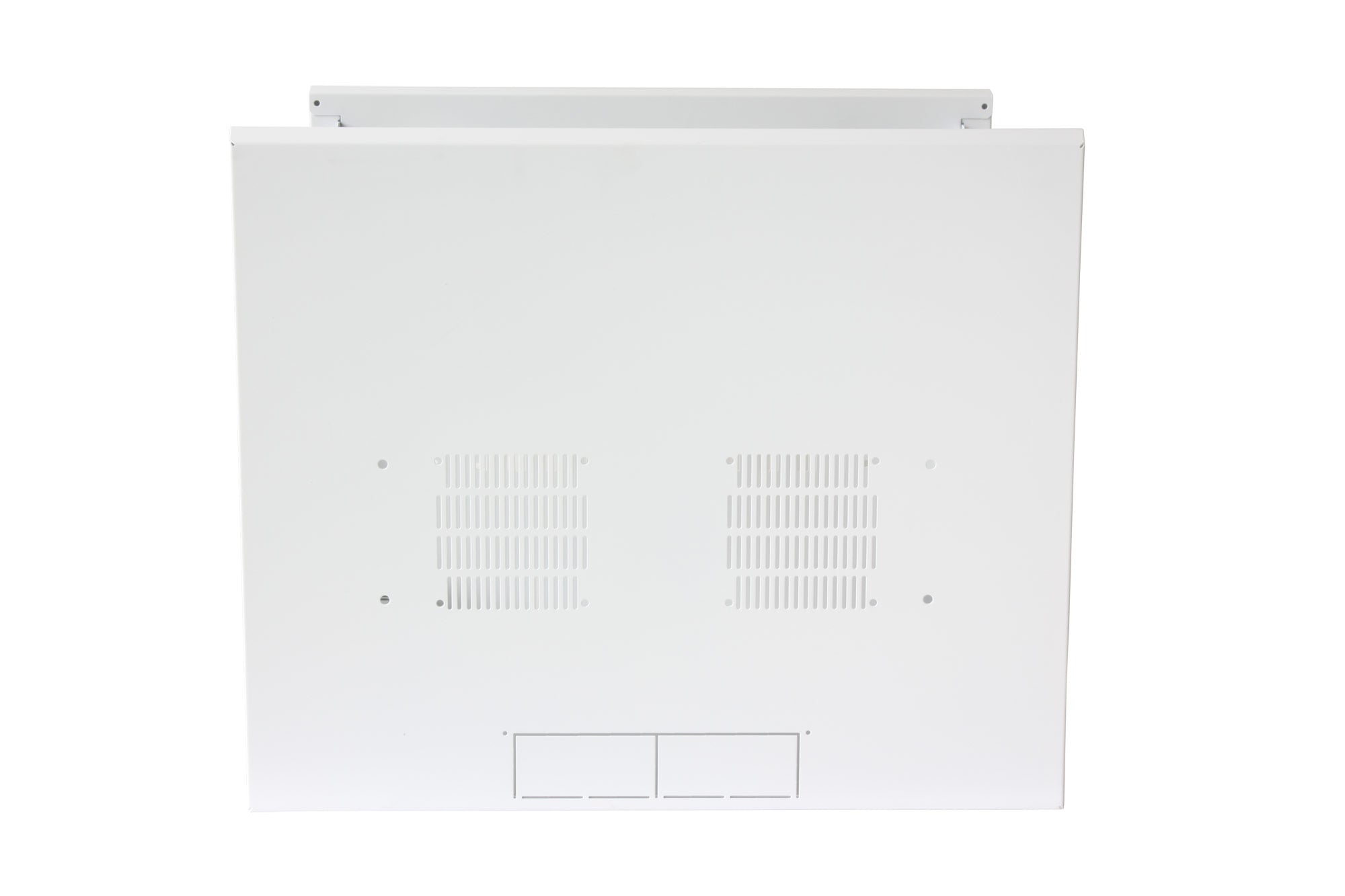

  • Fixed blank rear panel with holes for quick wall installation

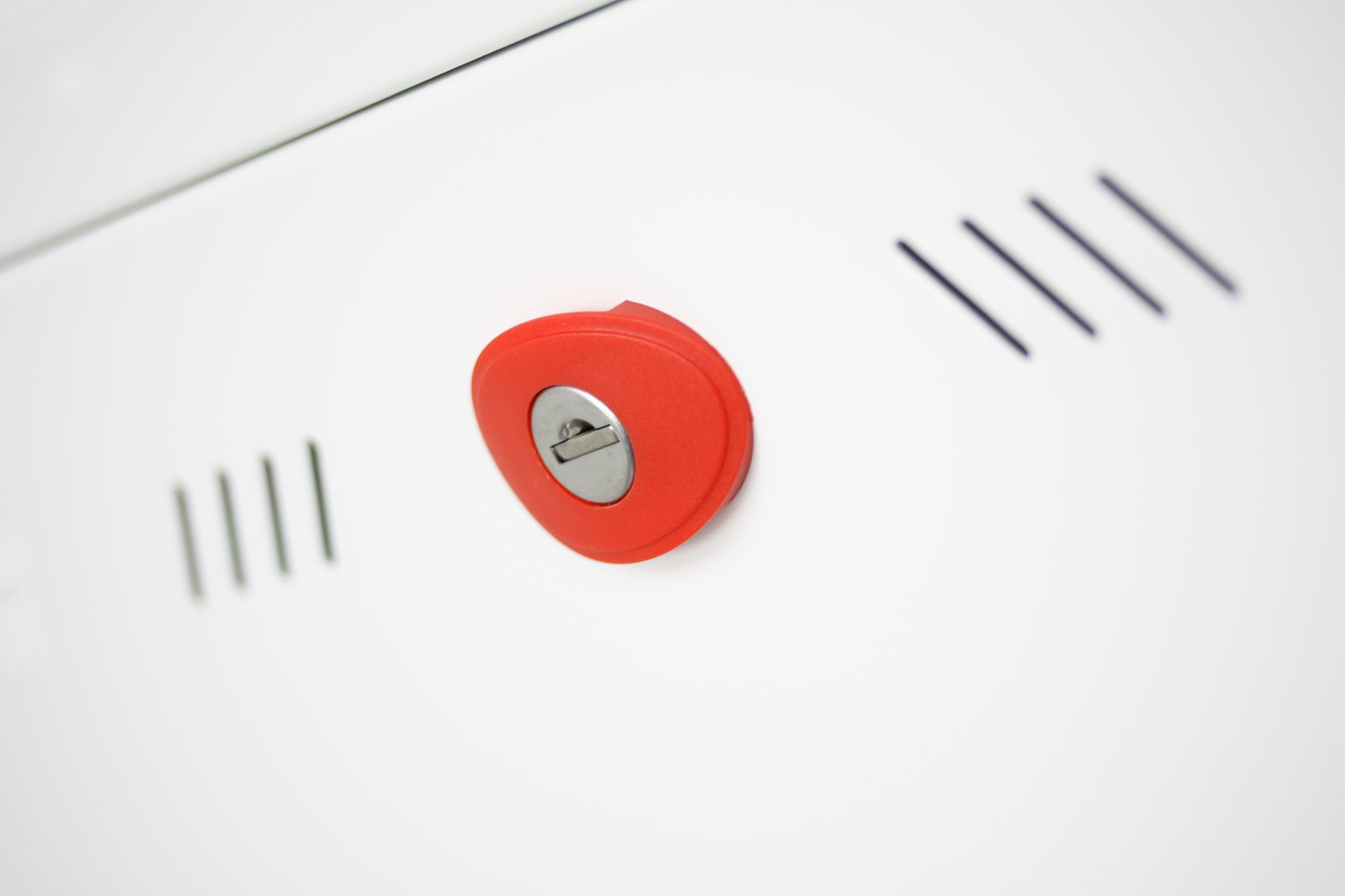

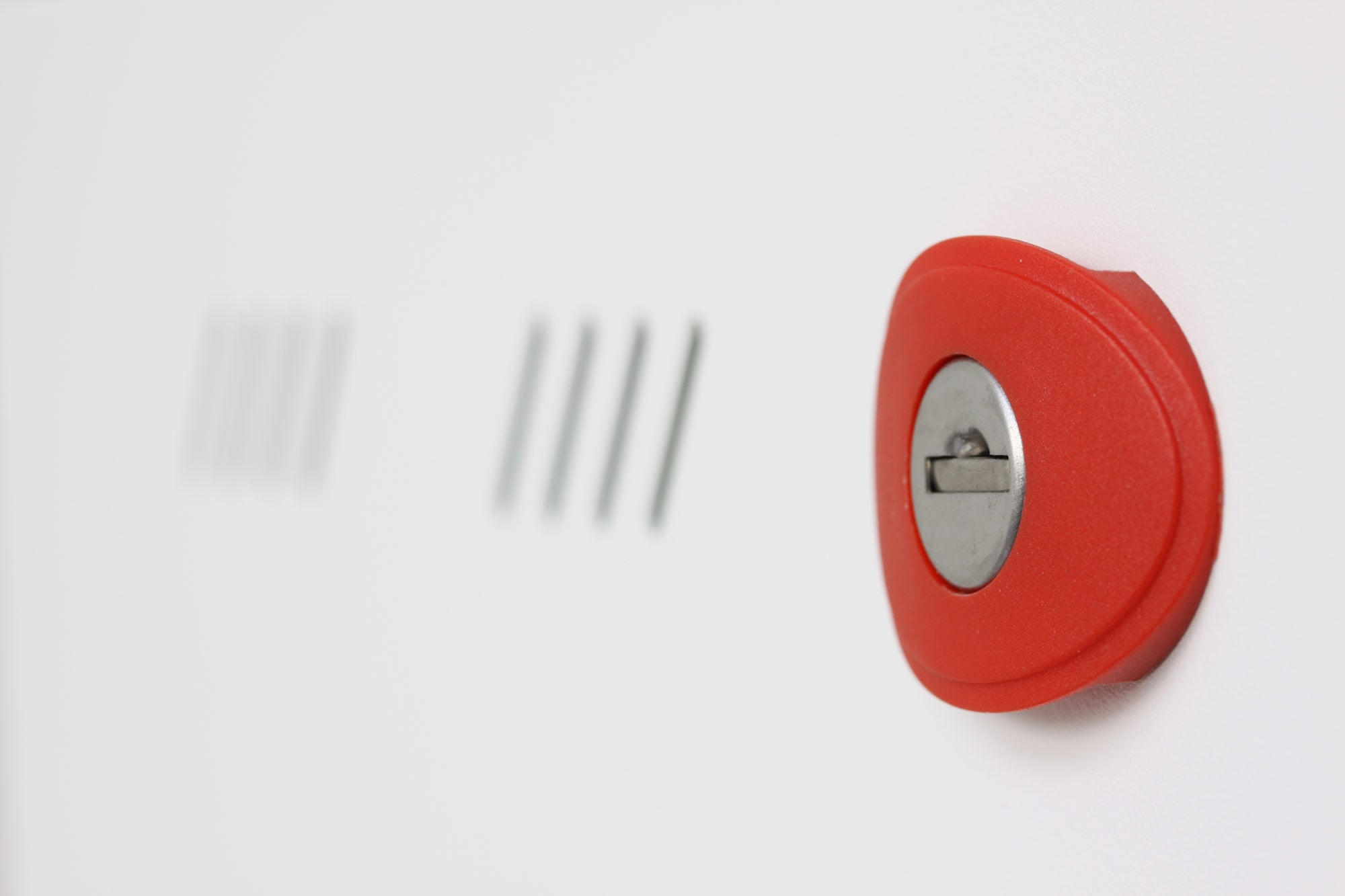

  • Removable blank side panels with key lock and ventilation slots

  • Provision for cable entry on base and roof via pre-cut profiles (210 x 50 mm)

  • Provision for installation of 2 fans of 120 mm

  • Pair of front mounting rails 19 in welded steel, painted with metallic powder, adjustable in depth (useful depth: minimum 240 mm, maximum 460 mm)

  • Pair of fixed rear mounting rails 19

  • Grounding kit and cables included in the supply

  • Static load capacity: 30 kg

  • With additional reinforcement bars, the cabinet can reach a load capacity of 105 kg

  • Holes for installation of leveling feet (optional, not included)

  • Protection rating: IP20 according to standard EN 60529

  • Color: RAL 9016 (white)

  • Dimensions: 1057x600x600 mm (HxWxD)



Certifications

  • CE certification according to EN 62208

  • Conformity to IEC297; IEC297-1; IEC297-2; IEC297-3; EN61439-1; EN60529; EN12150-1

  • Compliance with standard UNI EN ISO 9001:2015

  • Brand
  • Reference
    I-CASE EW-2022WH6V
  • In stock
    12 Items
  • EAN13
    8059018369328
