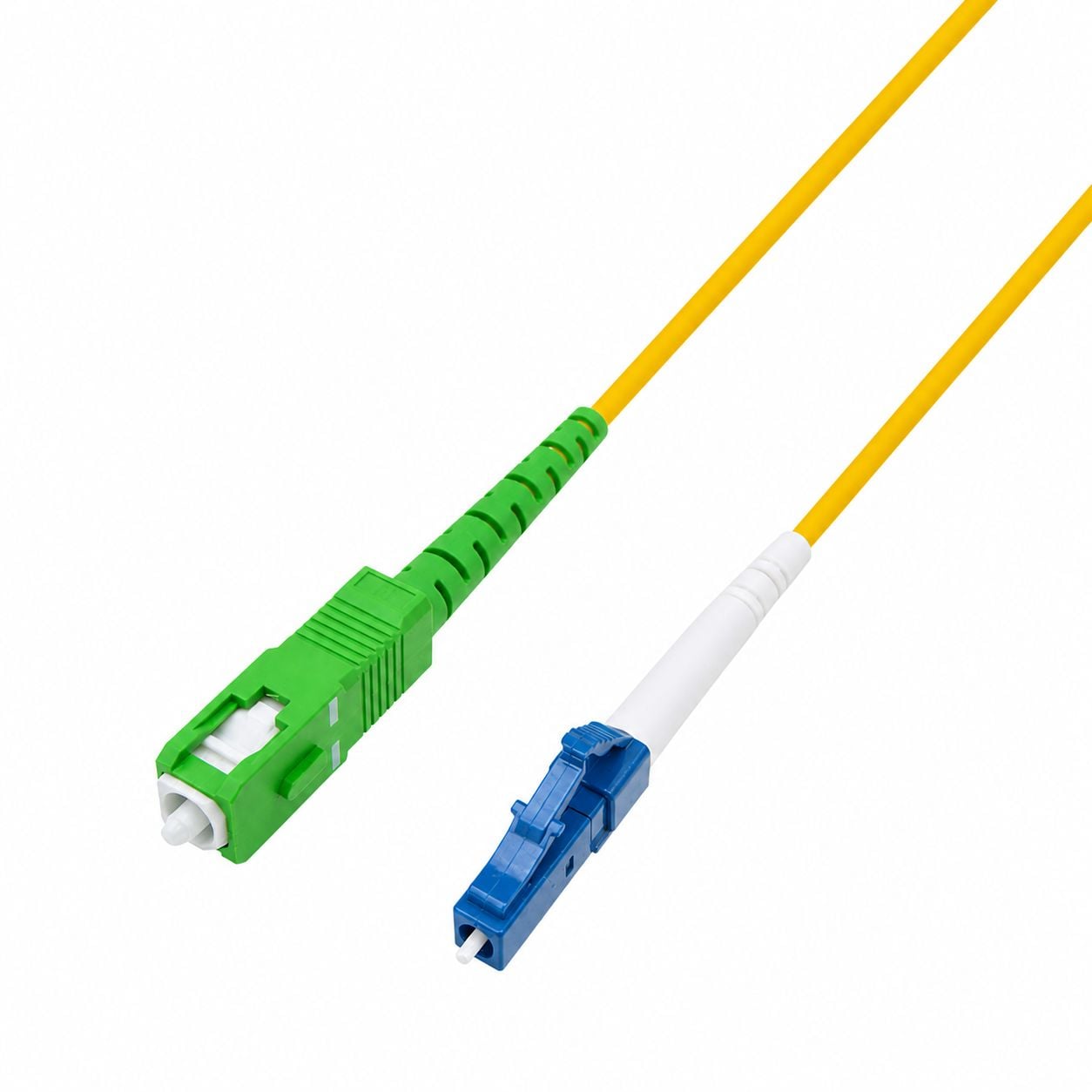

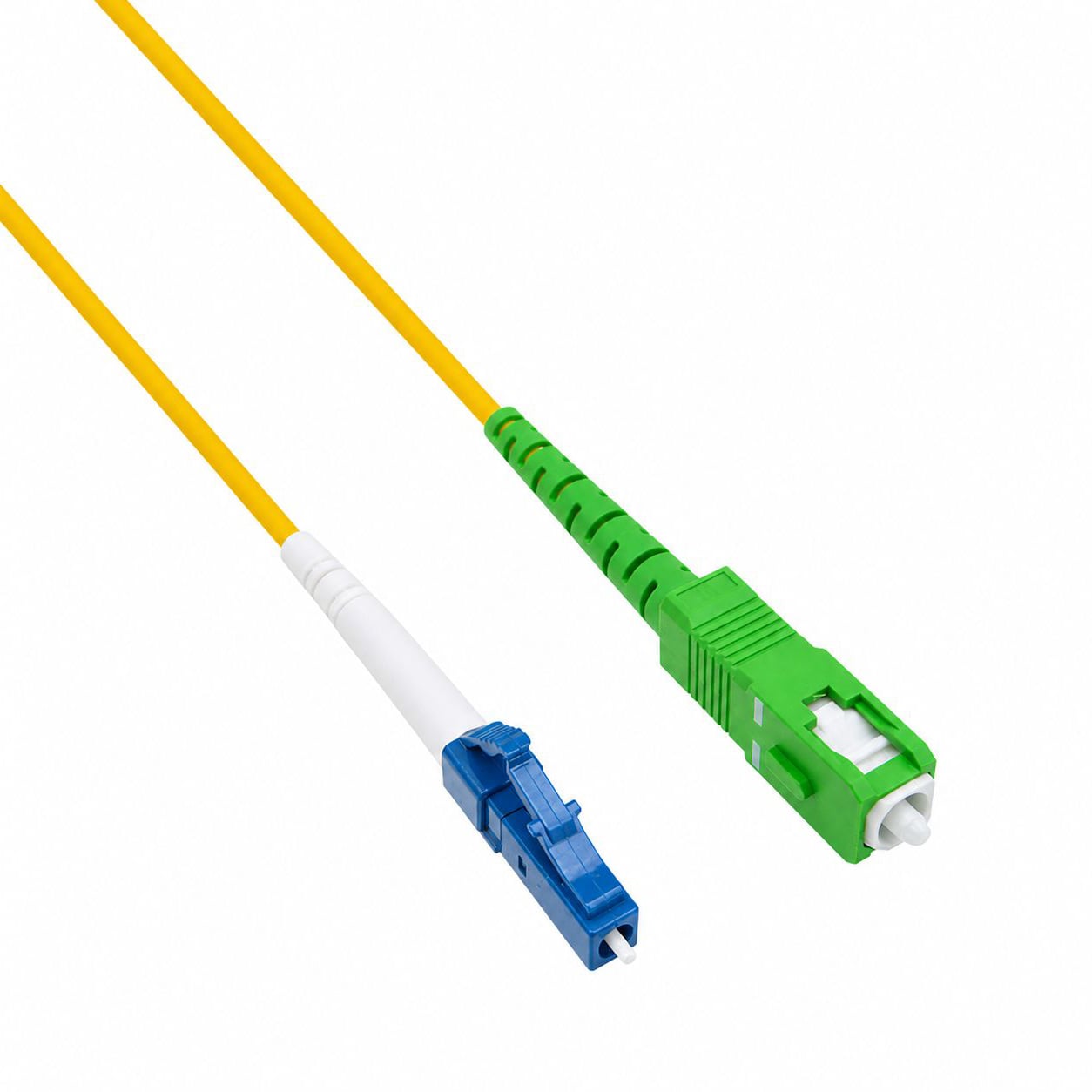

Optical fibre SC-APC male > LC-UPC male, halogen-free sheath (LSZH)The patch è cable suitable for private and industrial applications, including home fiber (FTTH) and è compatible with the FTTH options of a wide range of telecom service providers. Thanks to an optimized radius of curvature of the fiber optic cable, è can a space-saving installation without increasing the attenuation and risk of interference.
Features- Monomodal fiber optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, at the office, in data centers etc.
- The patch cable is the connection between the home transfer point and the optical network terminal (ONT) inside
- Optical fiber cable up to 100 Gbit/s, optimized for bending and not bulky, with a minimum radius of curvature of 30 mm (static)
- LSZH conform: the halogen-free è cable sheath and flame retardant according to IEC 60754 2 , IEC 60332 1 and IEC 61034
- Reinforced traction discharge with aramid yarn provides greater stabilityà
- Equipped with dust cap, Simplex connector, OS 2 fibre type, SM singlemode 9 / 125 µm according to ITU T G. 657
- Individual test protocol with measurement of return loss and insertion loss
Connections- 1 connection: type SC-APC male
- 2 connection: male LC-UPC type
- Connectors with ceramic ring
Cable- Cable length: 3 meters
- Specifications Monomodal (OS 2) Yellow
- Fiber optic core diameter 9 µ
- Fiber optic sheath diameter 125 µ
- Wave length 1310 nm
- Fiber Cable Glass fibre G 657 .A 2
- Bending radius 30 mm
- Simplex type cable
- Cable diameter (approximately) 3 mm
- Cable sheath material LSZH
Environmental features- Operating temperature from - 40 °C
- Operating temperature up to 85 °C
Package contents- FTTH Single Mode Fiber Cable SC-APC / LC-UPC OS 2 9 / 125 Simplex 3 meters
