UPS Line Interactive 1600 VA USB LED - Infosec ICUX 1 EX 1600 UP

The X range 1 EX UPS è has been designed to protect small business computers and IT systems from electrical power problems and dangerous electrical disturbances.



The perfect solution for:

• SMEs

• Office computer equipment (computer tower, PC monitor, router...)

• Electronic equipment (game console, TV player, NAS...)


Ideal protection

In case of short or prolonged power outages, X 1 EX batteries ensure that the connected hardware continues to be powered for several minutes, allowing applications to be closed and shut down the PC



Effective technology

Equipped with Line Interactive technology and automatic voltage adjustment, X 1 EX ensures that connected devices are powered by high quality current à and adjust during major fluctuations without the use of batteries



Energy saving functions

• Energy saving: If none of the connected è loads are switched on and the UPS is switched into battery mode, it will shut down à automatically after 5 minutes so as not to download the battery;

• Automatic UPS battery charge off: The battery automatically recharges when è has network power and UPS è switched off. This function ensures that when connected devices are not in use and the UPS è is switched off, the batteries continue to charge


Technical specifications

• UPS technology: Line Interactive

• Power (VA): 1600

• Power (W): 900

• Phases: Single phase/Monophase

• Schuko grabbed

• Up to 3 LED indicators

• 1 USB and cable communication port

• Format: Exclusively tower


Technical characteristics of entry

• Connection Type: Grips

• Rated voltage (VAC): 230


Exit technical characteristics

• Connection Type: Plug

• Type of output voltage: AC

• Waveform: pseudo-sinusoidal wave


Output connection

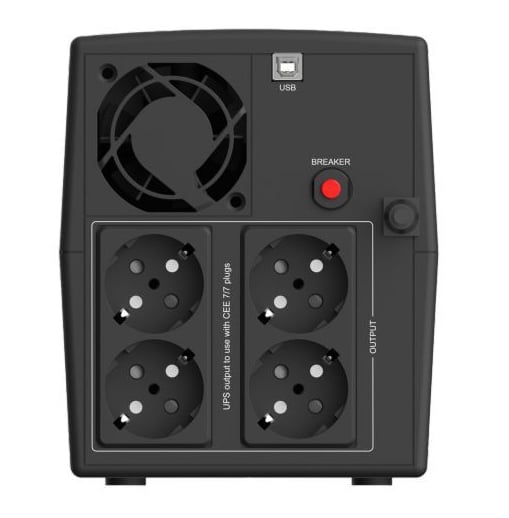

• Type of sockets: Schuko

• Type of sockets FR/SCHUKO: 10 A


Technical specifications

• Technology: Line Interactive with automatic voltage adjustment

• Output waveform: Modified synusoidal

• Power: 1600 VA

• Power factor: 0,56

• IEC 320 C 14 plug-in

• Electric sockets: 4 Schuko/FR EEC 7 / 7

• Female USB type B connection

• Protection: not loading / overloading / overvoltage / short circuit

• Input protection: fuse


Dimensions

• Width: 148 mm

• Depthà: 298 mm

• Height: 178 mm


Batteries

• Charger: works when the UPS è connected to the network

• Cold start (without network): sì

• Battery type: 12 V / 9 AH

• 2 number

• Charging voltage: 27,4 V DC

• Charging time: 8 hours at 90 % after full discharge

• Backup time (1 PC load): 60 min.


Certifications

• CE

• RoHS


Package contents

• Continuity group; ICUX 1 EX 1600 UP

• 1 x User manual

• 1 x USB cable
