Docking Station 19 in 1 USB-C 8 K HDMI 4 Releases Video - Techly IUSB 32 C-DOCK 198 K

Multi-function docking station designed to meet the needs of multi-display expansion for Mac and Windows systems.

It is equipped with three HDMI video outputs and a Display Port, thus giving the possibility to connect up to 4 monitor at the same time.

It splits the content into triple display for the Mac system or quadruple display for the Windows system.

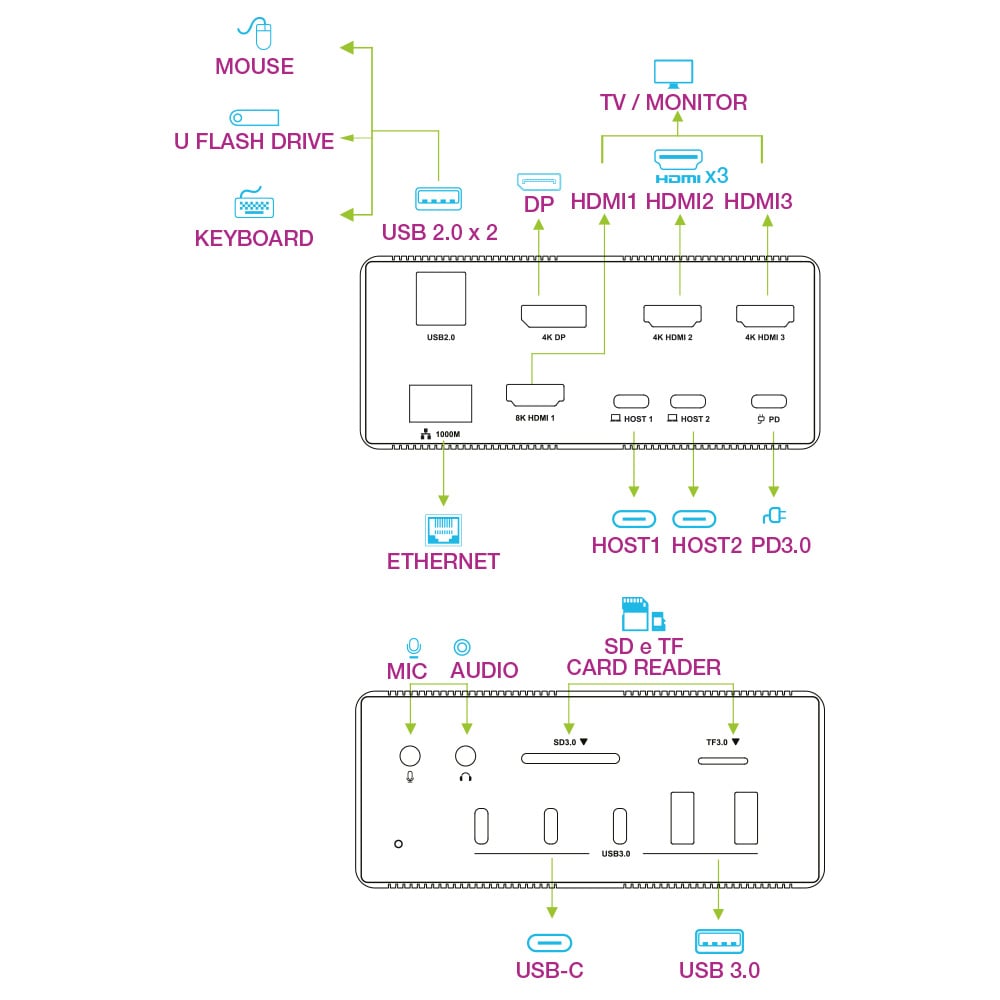

Connections

•

• 2 USB-C™ ports at HOST

• 1 x HDMI 8 K@ 30 Hz

• 2 × HDMI 4 K@ 60 Hz

• 1 × DP 4 K/ 60 Hz

• 2 × USB 3.0

• 1 × PD 3.0

• 1 x SD and Micro SD

• 2 x USB 2.0

• 1 × RJ 45 Gigabit Ethernet

• 3 x USB-C™

• 1 x audio output

• 1 x microphone input


Technical specifications

•

• SD and Micro SD card reader: 50 - 104 MB/s reading; writing: 30 - 80 MB/s. The data transfer speeds are subject to the speed of the memory card itself and to the USB ports of the PC

• Three USB-C&trade outputs; support 3.0 USB data transfer to 5 Gb/s speedà data and maximum output power 5 V/ 0,9 A

• Two USB-A ports support USB 3.0 standard (data + charge downstream) up to 5 Gbps, 5 V/ 1,5 A to 7,5 W

• Two USB-A ports support the USB 2.0 standard: speedà up to 480 Mbps, 5 V/ 0,5 A to 2,5 W. They are designed for connecting wireless devices to 2,4 GHz, such as wireless keyboard/mouse adapters etc.

• Supports power supply from 100 W


Dimensions

•

• Width: 121,5 mm

• Height: 51,0 mm

• Depthà: 87,0 mm


Package contents

•

• 1 x Docking station IUSB 32 C-DOCK 198 K

• 2 x USB-C&trade cable;

• 1 x User Manual
