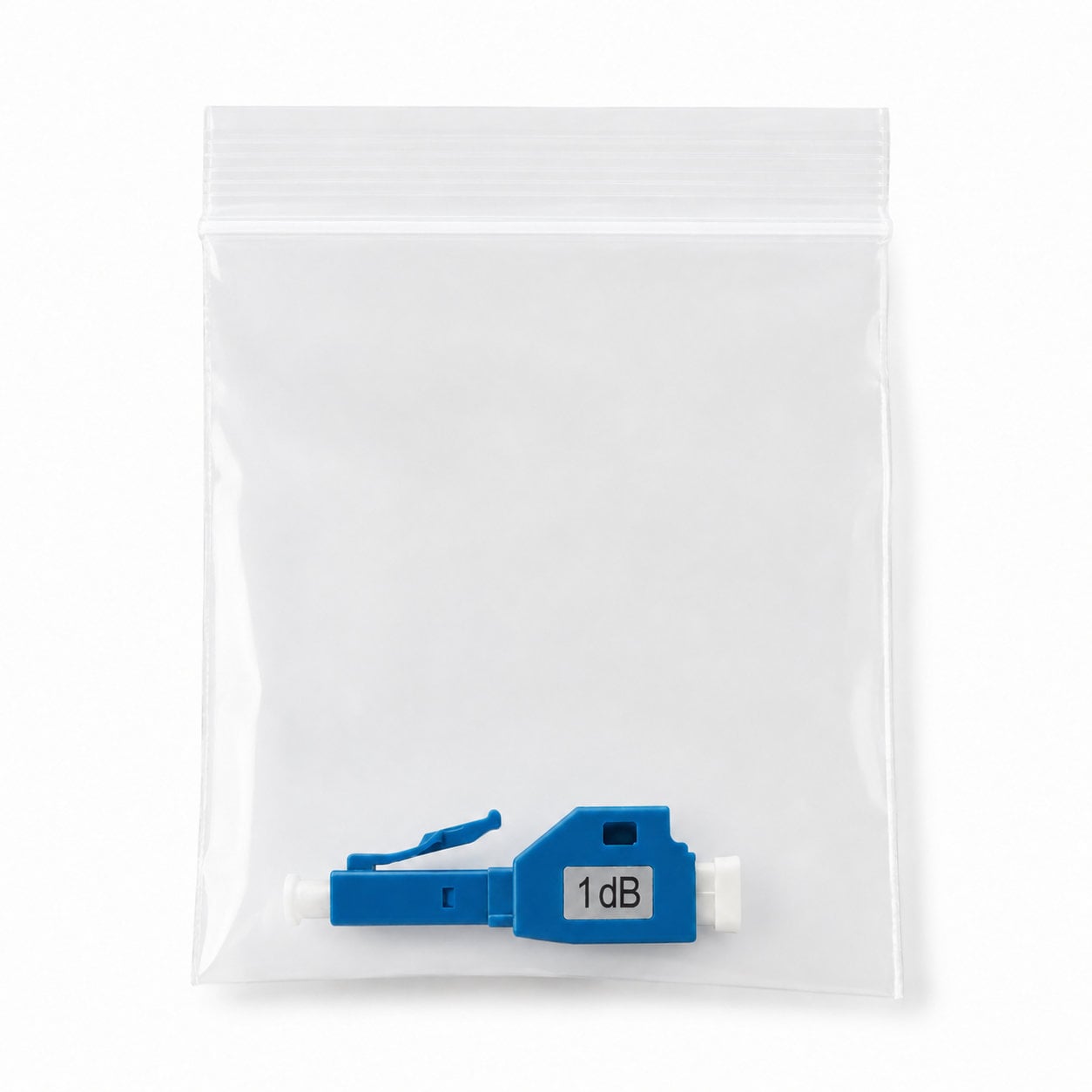

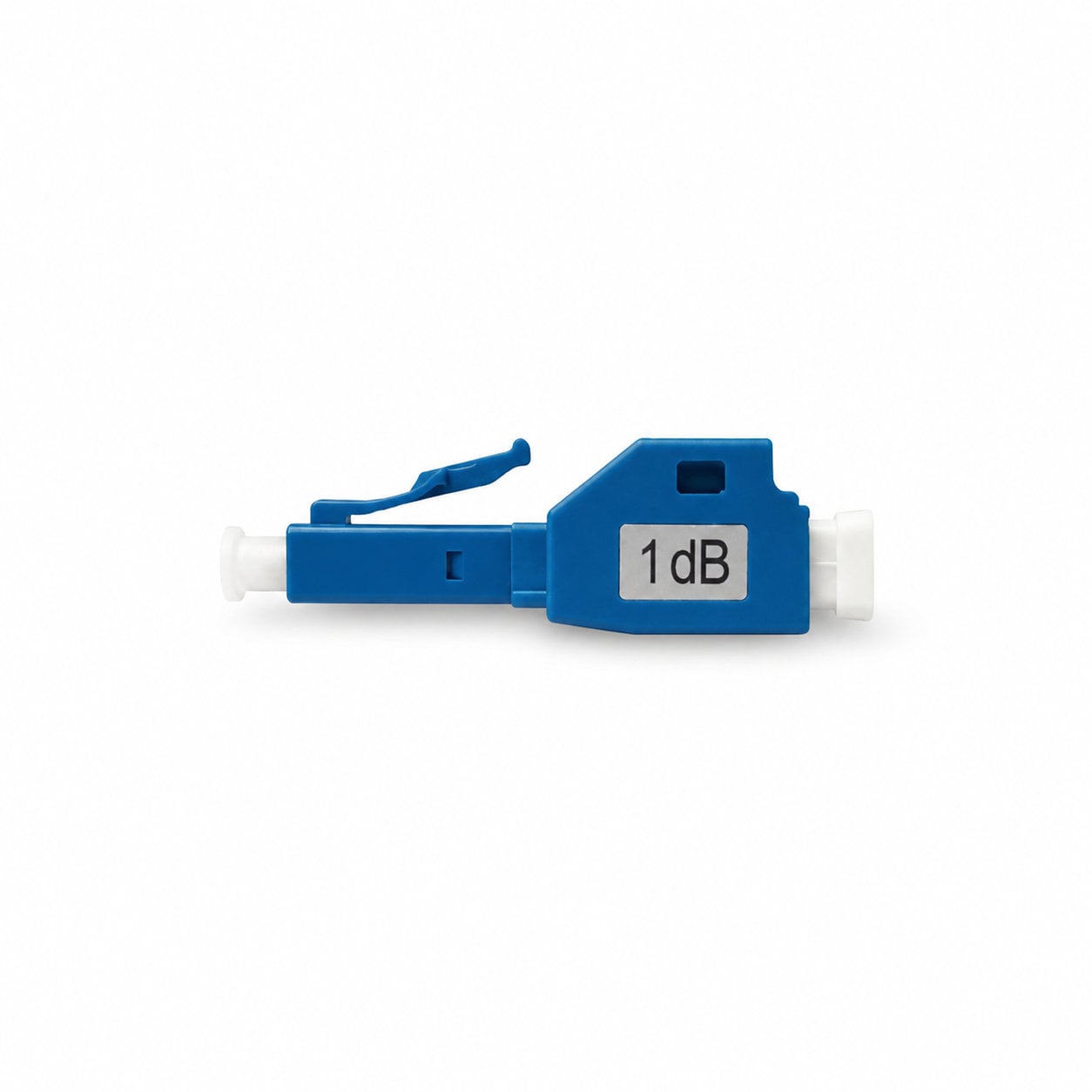

LC/SPC Attenuator Monomode 1 dB Blue - ILWL-ATT-SM-LC/SPC

• The attenuators are used to increase the attenuation of the optical fibre lines. Ciò may be necessary at short distances to avoid overmodulation of the receiver

• SPC = Return Loss max. 45 dB

• APC = Return Loss max. 60 dB

• Suitable for CWDM

• Attenuation in dB: 1


Technical specifications

• Standard: IEC 61754 - 20

• Dust cover

• Housing material: Plastic

• Material sleeve: Ceramic

• Type of connector connection 1 : LC

• Type of connector connection 2 : LC

• Type of housing: without flange


• Operating temperature: - 20 – 75 °C

• Storage temperature: - 40 – 75 °C


• Width: 6,3 mm

• Height: 10,5 mm

• Length: 28,65 mm
