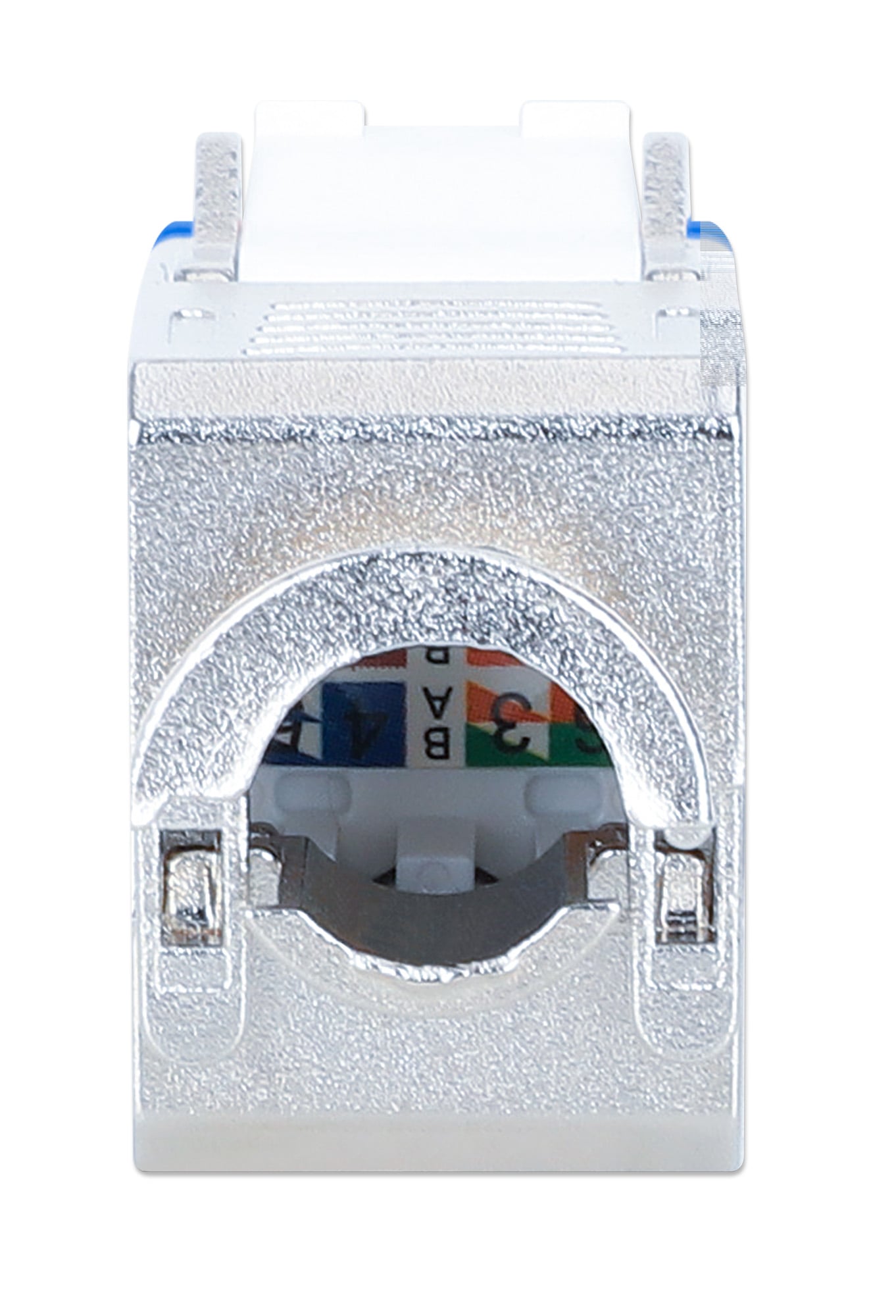

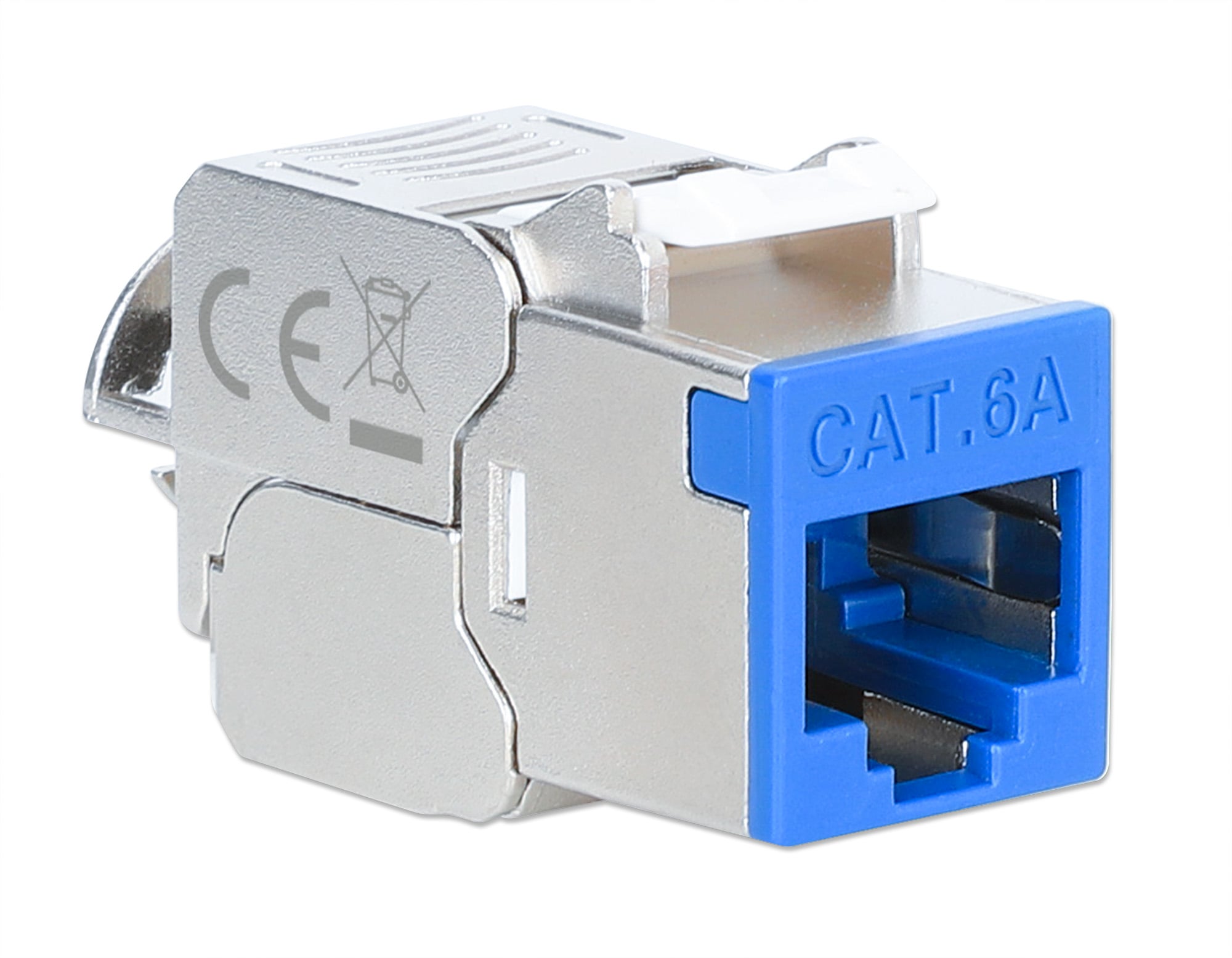

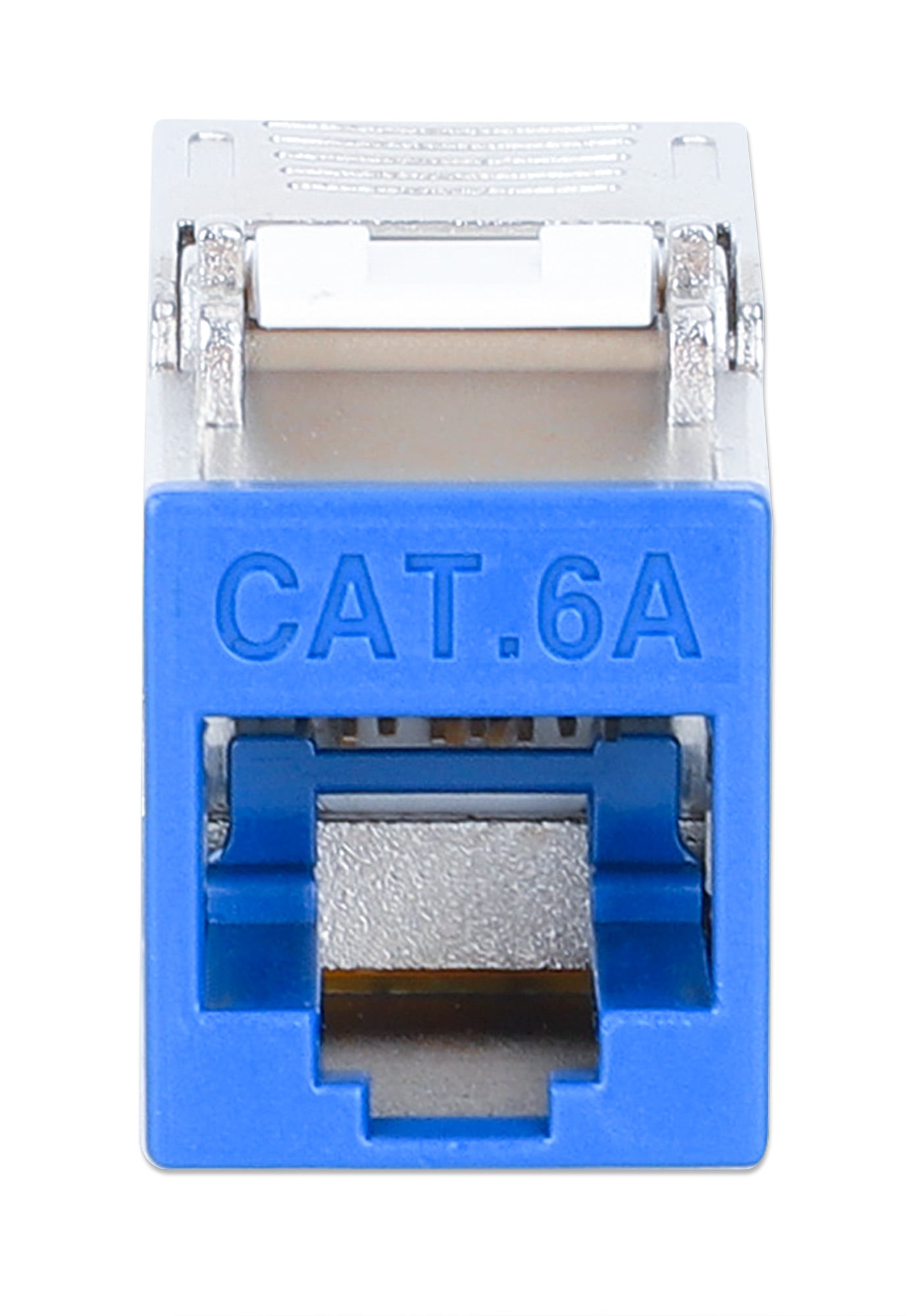

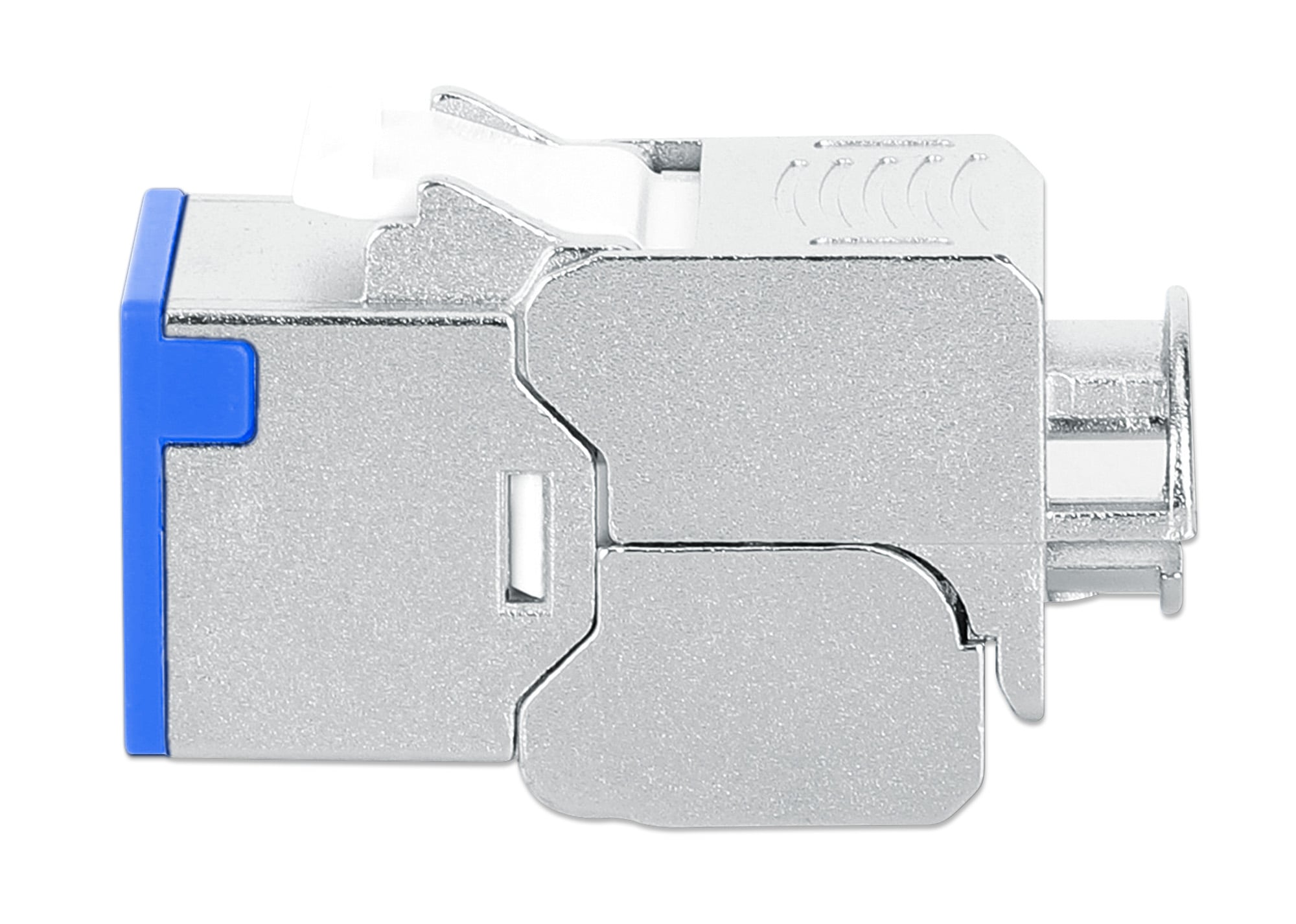

Fruit Keystone RJ 45 Cat 6 A 10 G Slim STP Toolless Blue - Intellinet IWP-MD C 6 A/STBL

€3.87
Tax included €3.20 excl. VAT

Module RJ 45 Cat 6 A STP toolless, width 14,8 mm. Supports 10 Gbps, 500 MHz and PoE+ (IEE 802.3 bt). Gold plated contacts 6 μ".



Return policy



Delivery policy



Direct contact for info



Secure Payment

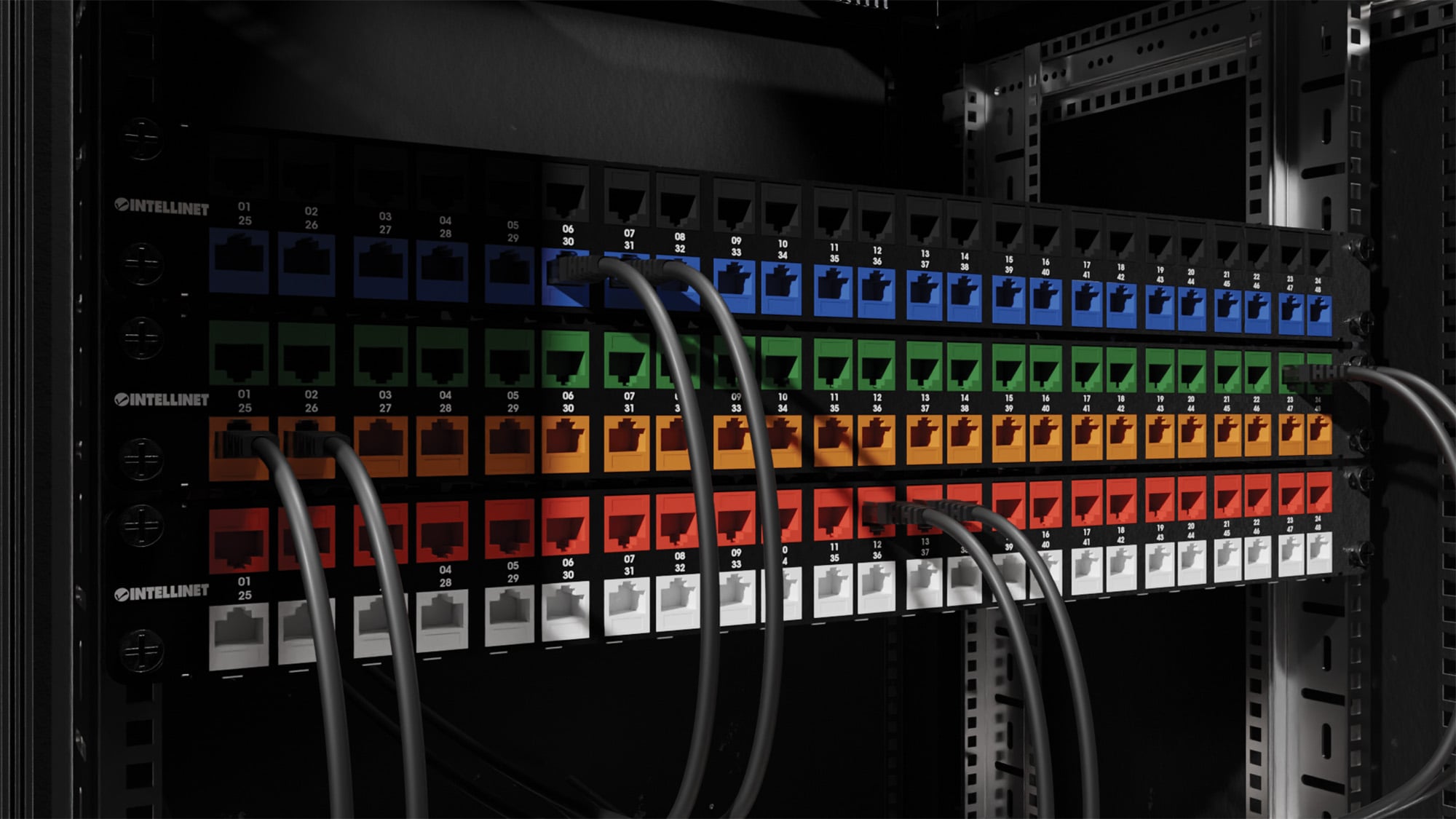

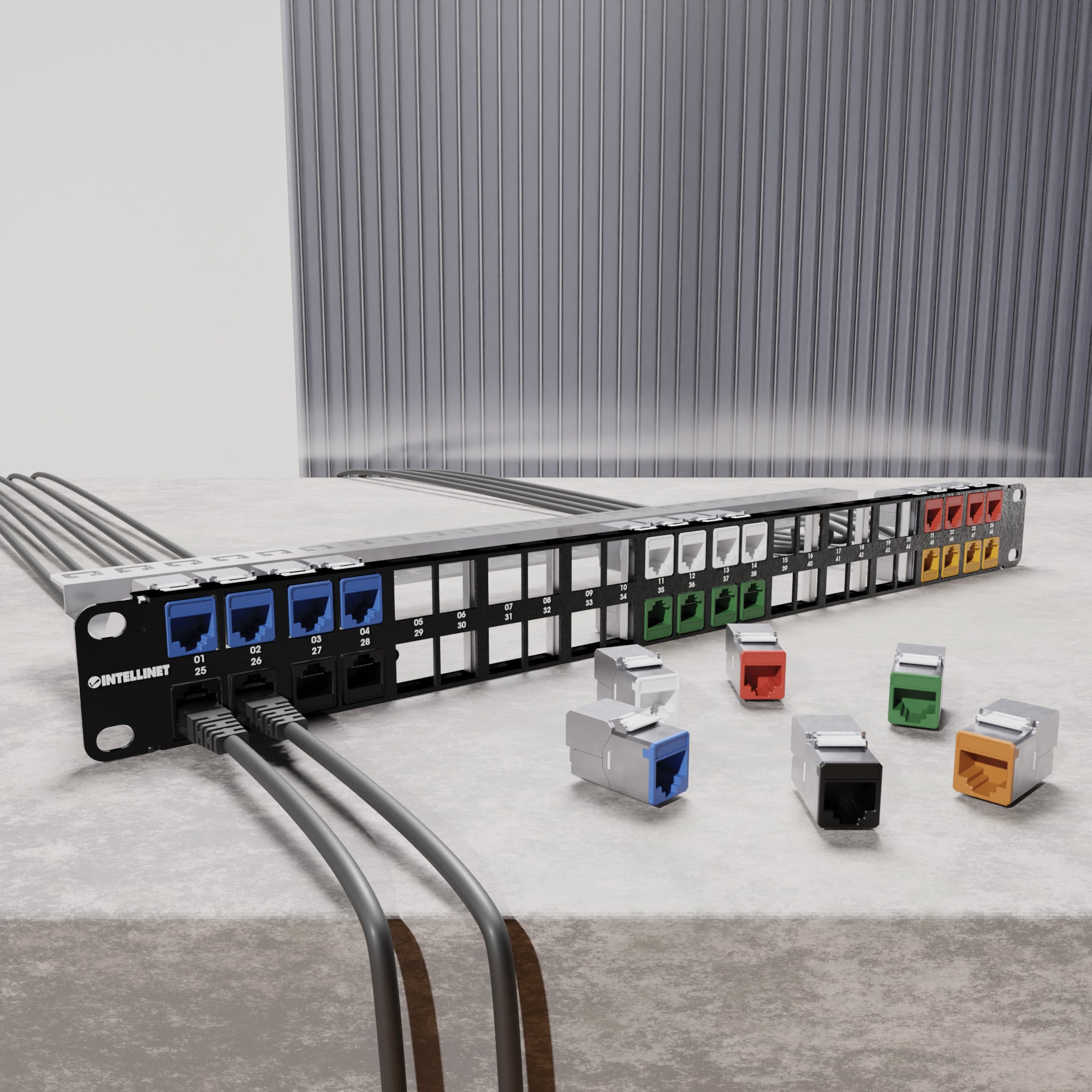

  • For fast and toolless use in empty patch panel, wall plates or connection boxes
  • Compact design, only 14,8  mm width for comfortable side-by-side installations
  • Module RJ 45 Cat 6 at Class EA 10 G and 500 MHz in compliance with ISO/IEC 11801
  • Module RJ 45 STP 360 ° shielding for PoE applications up to IEEE 802.3 bt / PoE+ / 4 PPOE / Ultra PoE
  • 6 micro-inch gold placate contacts
  • Supports hard cable with AWG from 22/1 to 26/1
  • Design 8 P 8 C standard, compatible with all network connections RJ 45
  • Compatible with color coding T 568 A and T 568 B
  • Fully compatible with all previous cable categories, including 6 , 5 E and 5
  • Clasp included


Standards and certifications

  • CE
  • RoHS
  • ISO/IEC 11801
  • REACH
  • UKCA


General

General

  • Supports speed à transfer up to 10 Gbps
  • Maximum operating frequency: 500 MHz
  • Supports all PoE standards up to IEEE 802.3 bt / PoE++ / 4 PPoE / Ultra PoE
  • Coupling cycles: ≥ 750
  • Strength: 30 N max.
  • Retention force: 7,7 kg between plug and socket
  • Suitable for rigid cables: from 22 / 1 to 26 / 1 AWG, OD from 6.0 to 8.0 mm


Material

  • Contacts: phosphorous bronze
  • Contact coating: 6 micro-inch gold
  • IDC: phosphorous bronze
  • Housing: zinc alloy die-cast


Electrical information

  • Insulation resistance: ≥ 500 MOhm
  • Dielectric sealing voltage: 1.000 V DC/ 700 V AC
  • Contact resistance: 20 MOhm
  • DC resistance: ≥ 0.3 Ohm
  • Rated current: 1.5 A


Physical information

  • Dimensions (A x L x P): 36 x 14.8 x 20 mm
  • Net weight: 12 g
  • Gross weight: 24 g


Environmental information

  • Operating temperature: - 10 ° to 60 °C
  • Storage temperature: from - 40 ° to 70 °C
  • Operative (non-condensed) humidit&agrave: 10 - 90 % RH

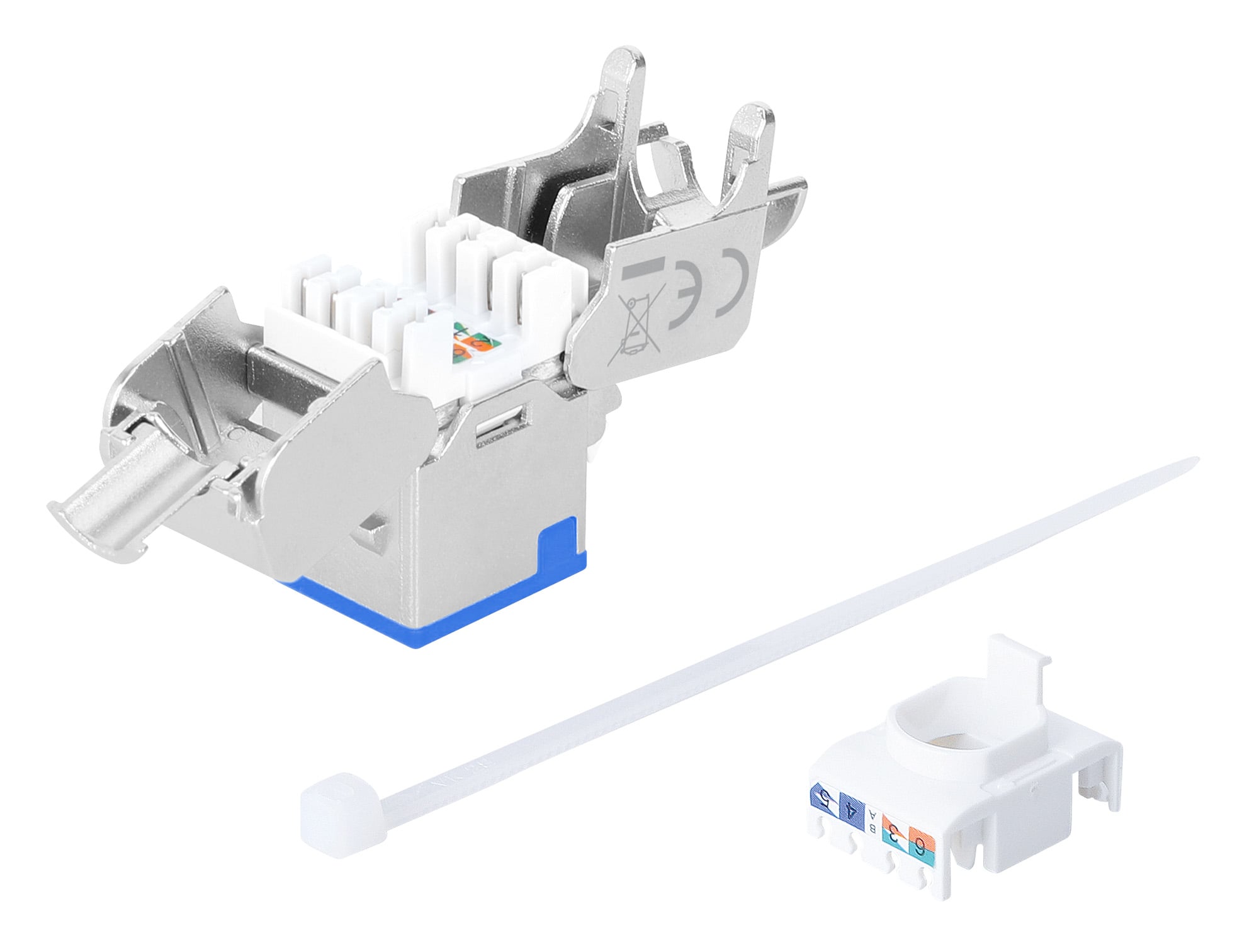

Package contents

  • Keystone Jack Cat 6 A 10 G Screenshot Toolless Slim
  • Clasps
  • Instructions

  • Brand
  • Reference
    IWP-MD C6A/STBL
  • In stock
    691 Items
  • EAN13
    0766623791342
