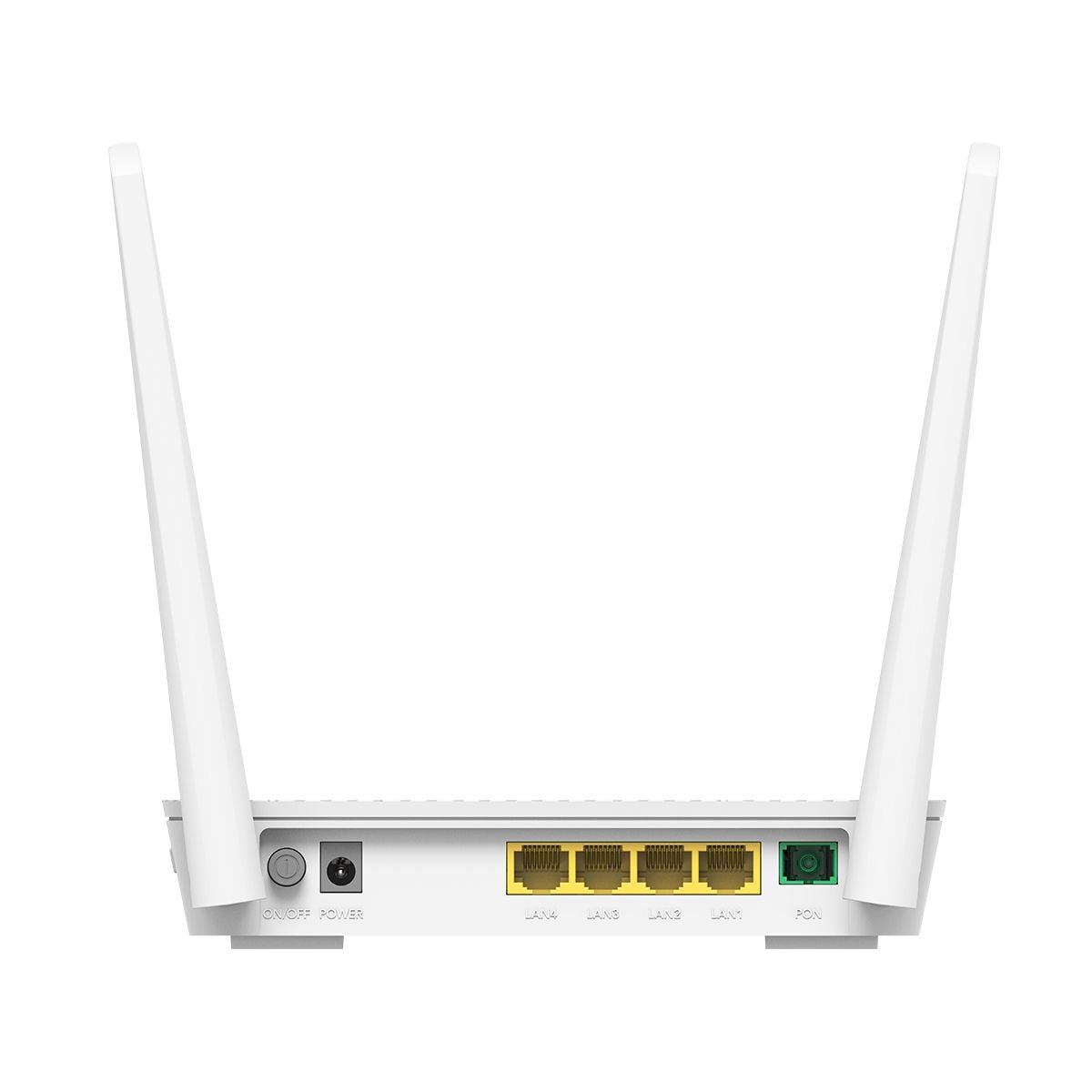

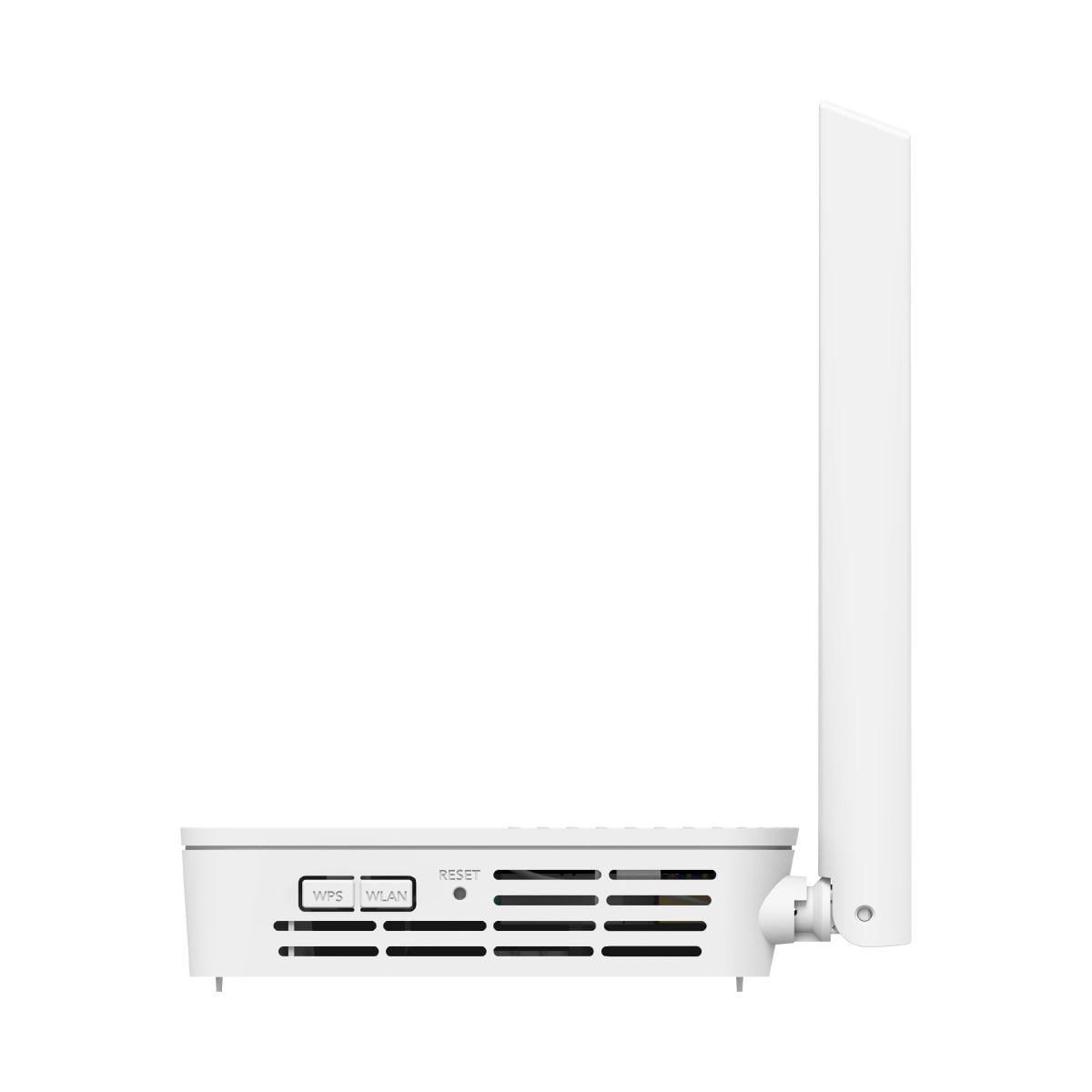

Wi-Fi router AC 1200 xPON, GP 1200 - Cudy ICU-GP 1200

A Wi-Fi xPON router for reliable implementation of the FTTx solution, with double modeà GPON/EPON, CWMP, OMCI, QoS to 4 code and EasyMesh.

•

• Dual-core CPU from 1,15 GHz

• Max 2.48 Gbps GPON / 1.25 Gbps EPON

• Wi-Fi dual band to 4 flows 5

• Wi-Fi 867 Mbps + 300 Mbps 1

• 1 SC/APC slot

• 4 Gigabit Ethernet ports

• WTO/OAM/TR 069 /TR 098 /TR 181

• EasyMesh


Technical Specifications

•

• Chipset RTL 9607 C

• CPU Details 1.15 GHz Dual-Core

• Flash/ROM 128 MB (1 Gbit) NAND

• DDR/RAM 256 MB (2 Gbit) DDR 3

• Protocols: GPON (ITU G. 984 standard • Class B+); EPON (802.3 ah)

• Velocità: GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream; EPON: 1.25 Gbps Downstream / Upstream

• Wave length: TX: 1310 nm; RX: 1490 nm

• Maximum transmission distance: 20 km


Wireless

•

• 5 GHz Wi-Fi Speed 867 Mbps

• 2.4 GHz Wi-Fi Speed 300 Mbps

• 5 GHz Wi-Fi Streams 2 T 2 R (2 × 2 MIMO)

• 2.4 GHz Wi-Fi Streams 2 T 2 R (2 × 2 MIMO)

• Wi-Fi Antennas 2 × Fixed

• 5 GHz Max antenna gain 5 dBi

• 2.4 GHz Max antenna gain 5 dBi

• FEM or PA/LNA

• 5 GHz: 2 × Interior

• 2.4 GHz: 2 × Interior

• Beamforming


LED

•

• Power

• PON

• LOS

• Internet

• 2.4 GHz WiFi

• 5 GHz WiFi

• WPS

• LAN


Power supply

•

• Input: 100 ~ 240 V, 50 / 60 Hz CA

• Output: 12 V 1 A CC


Certifications

•

• CE

• FCC


Dimensions

•

• Width: 173 mm

• Depthà: 123,8 mm

• Height: 33 mm


Package contents

•

• ICU-GP 1200 router

• User manual

• Power supply

• Network cable
