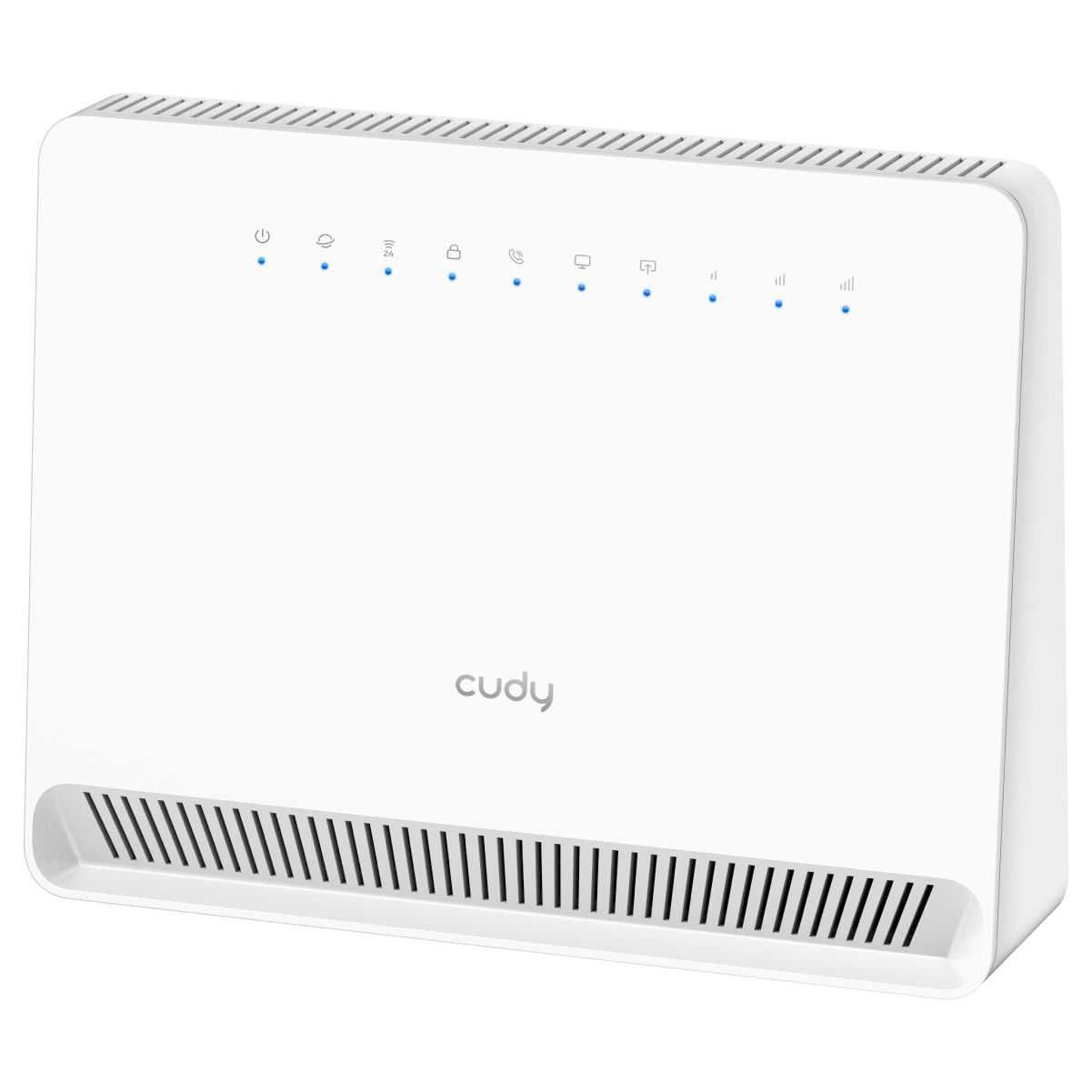

Wi-Fi router 4 G N 300 with Voice, LT 400 V - Cudy ICU-LT 400 V

A 4 G WiFi router with nano SIM slots, RJ 11 port, internal antennas and four Ethernet ports, which provides your home or camper with a reliable network and an all-in-one VOLTE solution.

•

• 4 G Cat. 4 with Max 150 Mbps DL

• Wi-Fi 300 Mbps

• 4 × FE and 1 × FXS RJ 11

• 1 slots for nano SIM

• Cudy Mesh, VPN server and client

• Cudy Application


Technical Specifications

•

• Chipset MT 7628

• Details CPU 580 MHZ Single-Core, MIPS 24 KEC

• Flash/ROM 8 MB (64 Mbit) NOR

• DDR/RAM 64 MB (512 Mbit) DDR 2

• Mobile standards 4 G Cat. 4

• Mobile antennas 2 × fixed

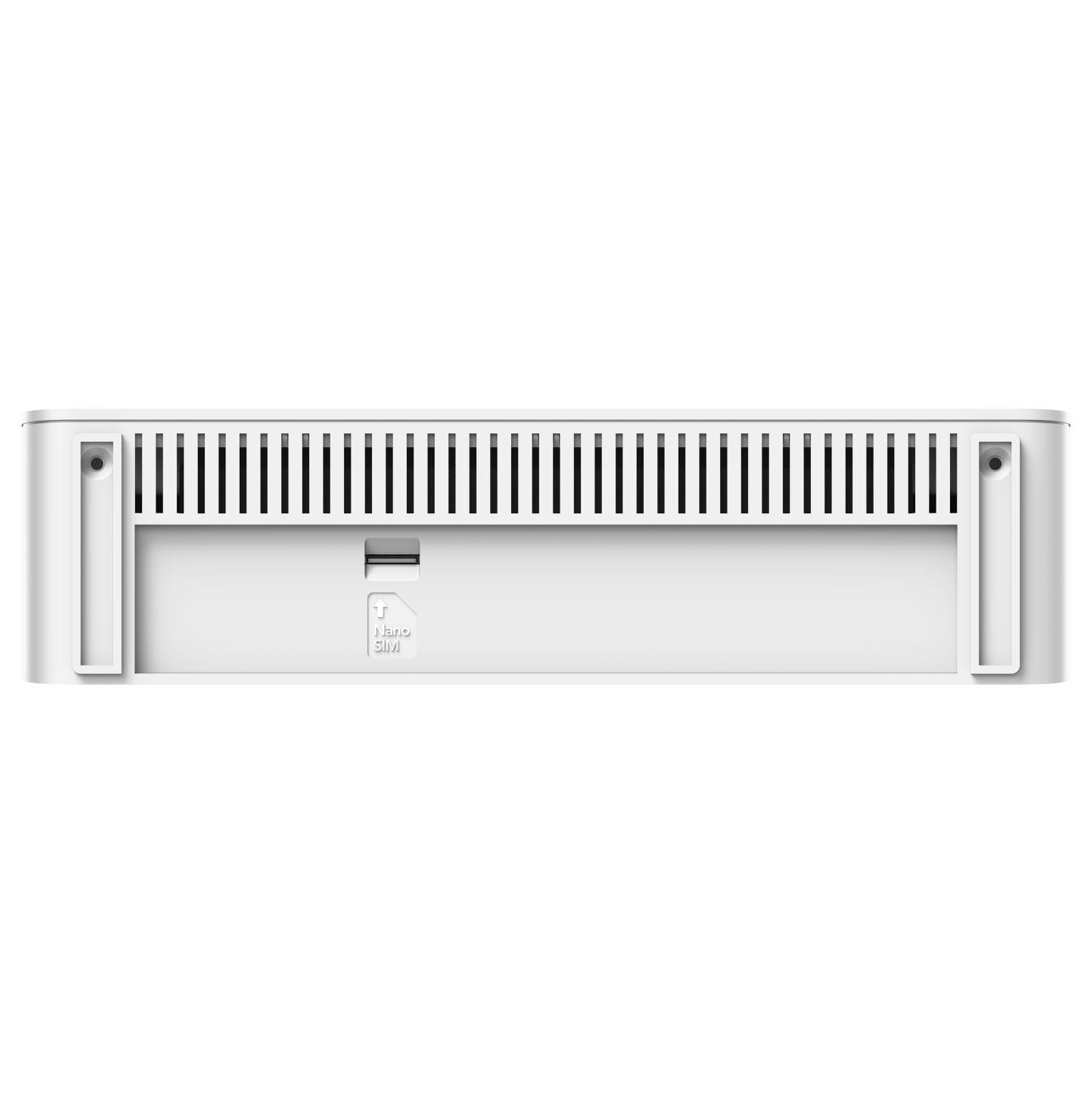

• SIM Options 1 × Nano SIM slot

• Velocità maximum DL 150 Mbps (LTE-FD), 130 Mbps (LTE-TDD)

• Velocità maximum UL 50 Mbps (LTE-FD), 30 Mbps (LTE-TDD)

• Advanced DL 2 × MIMO 2

• LTE-FD: B 1 / 3 / 5 / 7 / 8 / 20 / 28

• LTE-TDD: B 38 / 40 / 41

• WCDMA: B 1 / 5 / 8

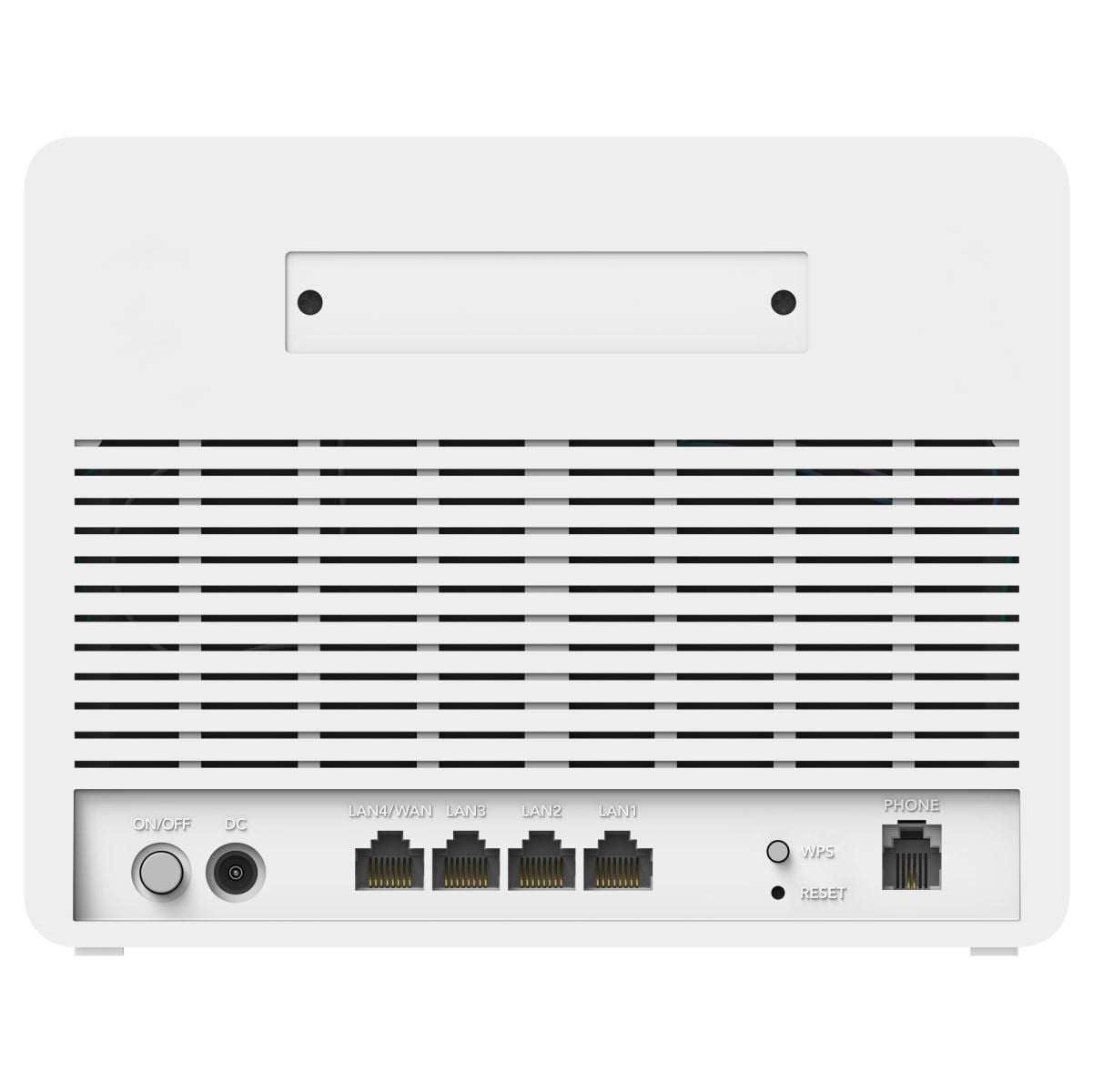

• RJ 45 10 / 100 Mbps 4

• Doors FXS 1 × RJ 11 (VoLTE)

• Power input: CC

• ESD 4 kV contact protection

• Antistatic protection ESD 8 kV


Wireless

•

• Velocità Wi-Fi 2,4 GHz 300 Mbps

• Streaming Wi-Fi 2,4 GHz 2 T 2 R (2 × 2 MIMO)

• Wi-Fi antennas 2 × fixed

• 5 GHz antenna gain Max 3,97 dBi

• 2,4 GHz antenna gain Max 3,54 dBi

• Beamforming

• FEM or PA/LNA 2,4 GHz: 2 × internal

• Maximum capacity 130 meters


The range of indoor WiFi varies depending on the layout and materials of the walls. Please refer to the specifications on the performance of the walls for suggestions on positioning.

Physical Buttons

•

• Switch on/off button

• WPS Button

• Reset Button


LED

•

• System

• Internet

• Wi-Fi

• WPS

• Telephone

• LAN

• WAN/LAN

• Intensità cell signal


Feeding

•

• CC 12 V 1 A

• Power adapter input: 100 ~ 240 V, 50 / 60 Hz AC

• Output: 12 V 1 A CC

• Maximum power consumption (W) 8 W

• Inactive energy consumption (W) 4 W


Environmental Characteristics

•

• Operating temperature: 0 °C ~ 40 °C

• Storage temperature: - 40 °C ~ 70 °C

• Operating Humidità 10 % ~ 90 % without condensation

• Storage humidità 5 % ~ 90 % without condensation


Certifications

•

• CE

• FCC


Dimensions

•

• Width: 190 mm

• Depthà: 50 mm

• Height: 148,8 mm

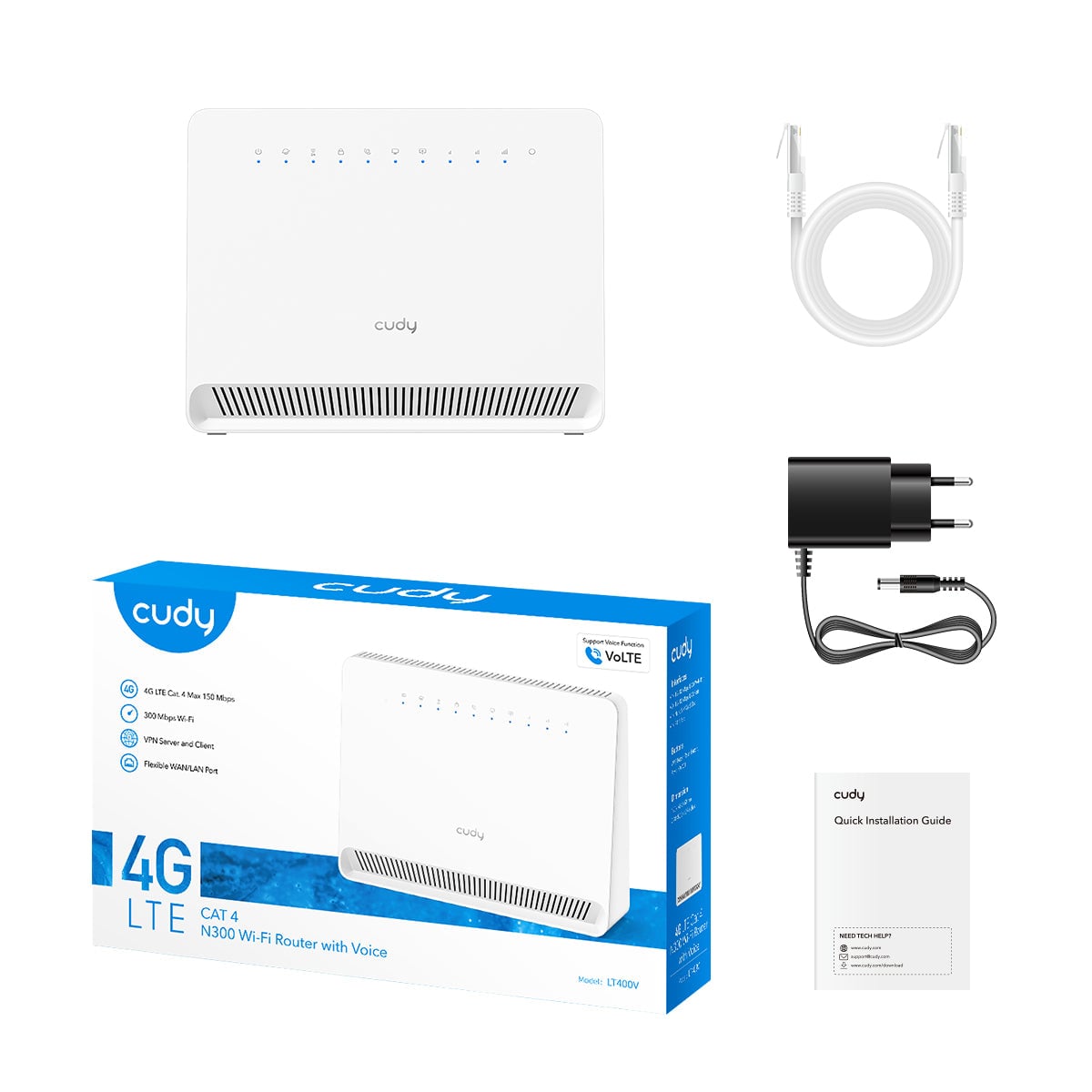

Package contents

•

• ICU-LT 400 V WiFi Router

• User manual
