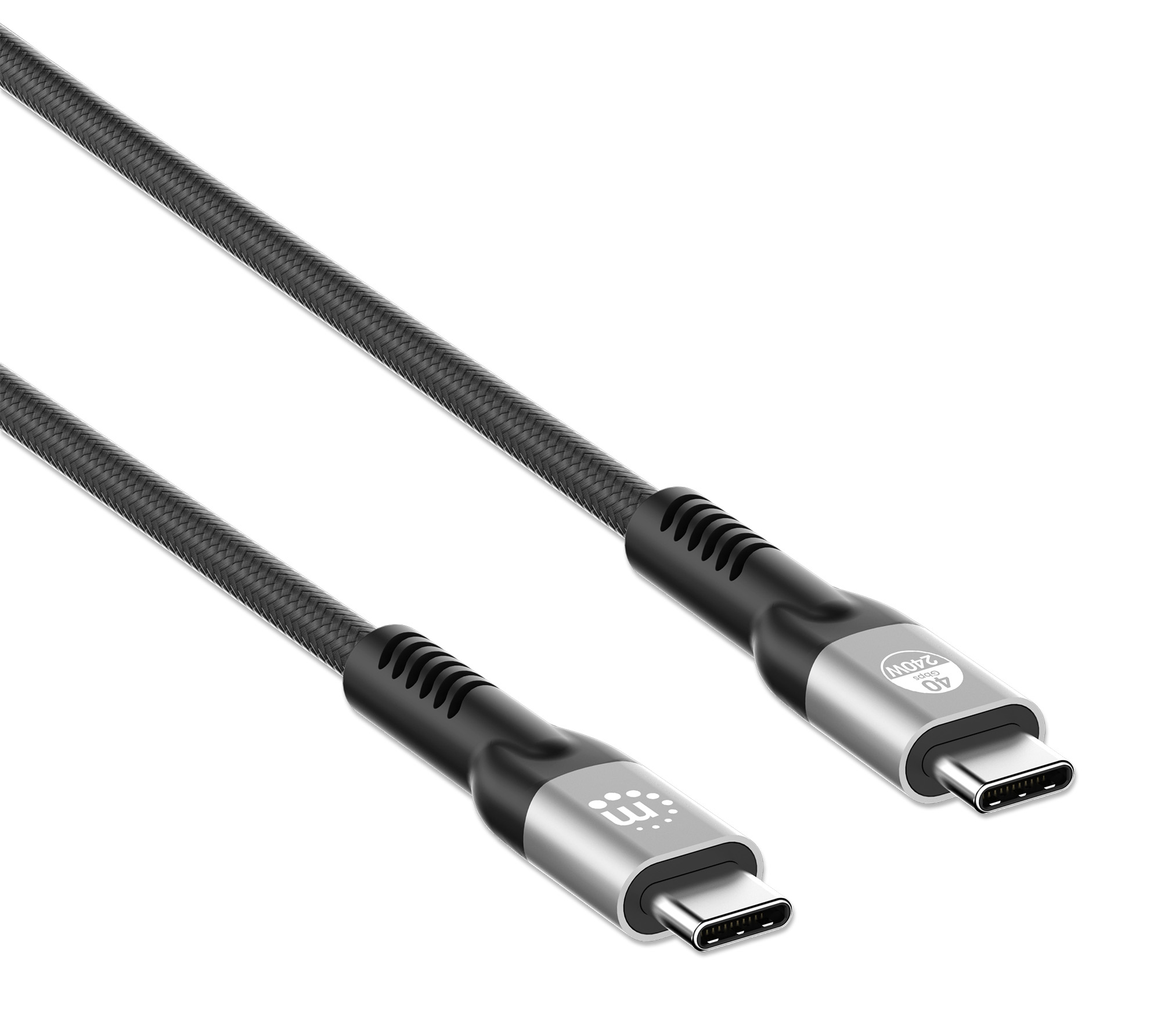

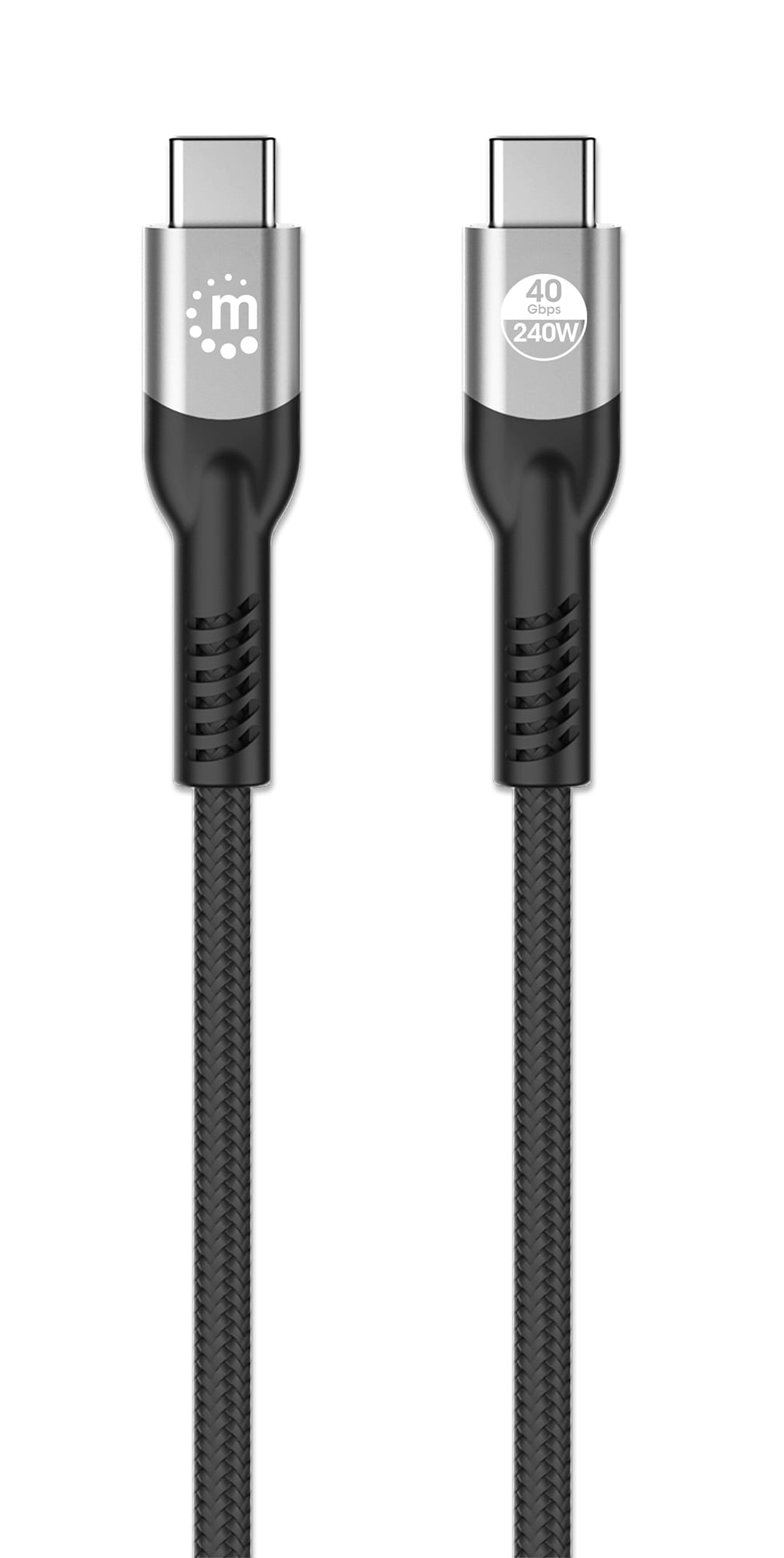

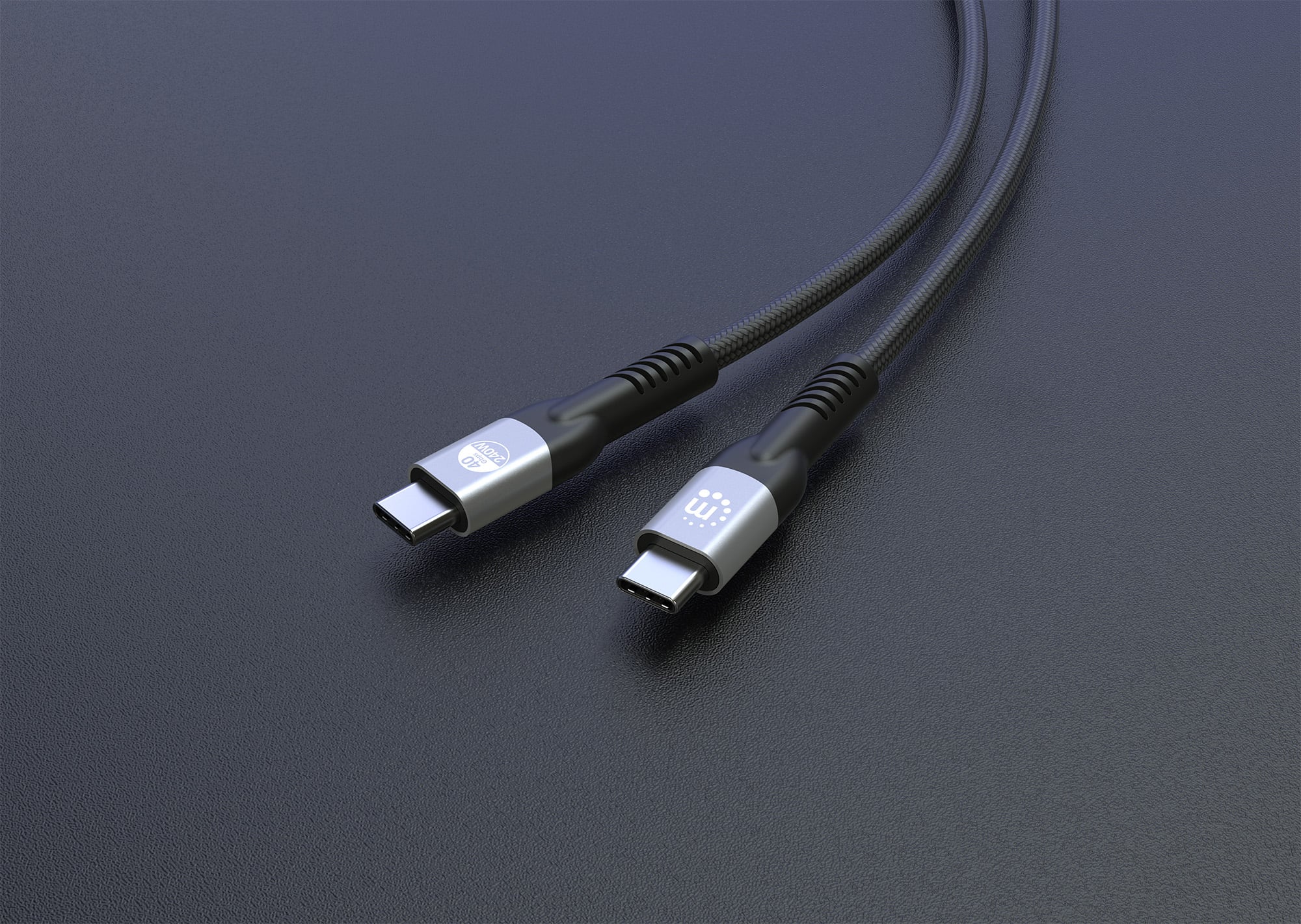

USB cable 4 EPR USB-C M/M 40 G 240 W PD 3.1 8 K E-Mark 2 m - Manhattan ICC MU 4 - 40 G 240 W 2 M

•

• USB Power Delivery (PD) 3.1 cable with Extended Power Range (EPR) charging up to 240 W to 48 V / 5 A, backcompatible with PD 3.0 / 2.0 / 1.0

• Supports ultra fast data transfer up to 40 Gbps

• Compatible with USB 4 ® and Thunderbolt™ 3 / 4 interfaces

• Supports video output resolution up to 8 K@ 60 Hz and 4 K@ 144 Hz on single display or 4 K@ 60 Hz on double display

• USB-C™ male to USB-C™ male to connect USB-C&trade peripheral ports;

• E-Marker chipset for reliable and leak-free power supply of 240 W over the entire distance

• DisplayPort 2.0 Alternate Mode (DP Alt Mode)

• HDR 10 dynamic for superior contrast and bright colors

• Ultra high bandwidth, ideal for direct connection to a monitor with USB-C&trade interface; no signal loss

• Tangle-resistant braided sheath with sturdy cable press

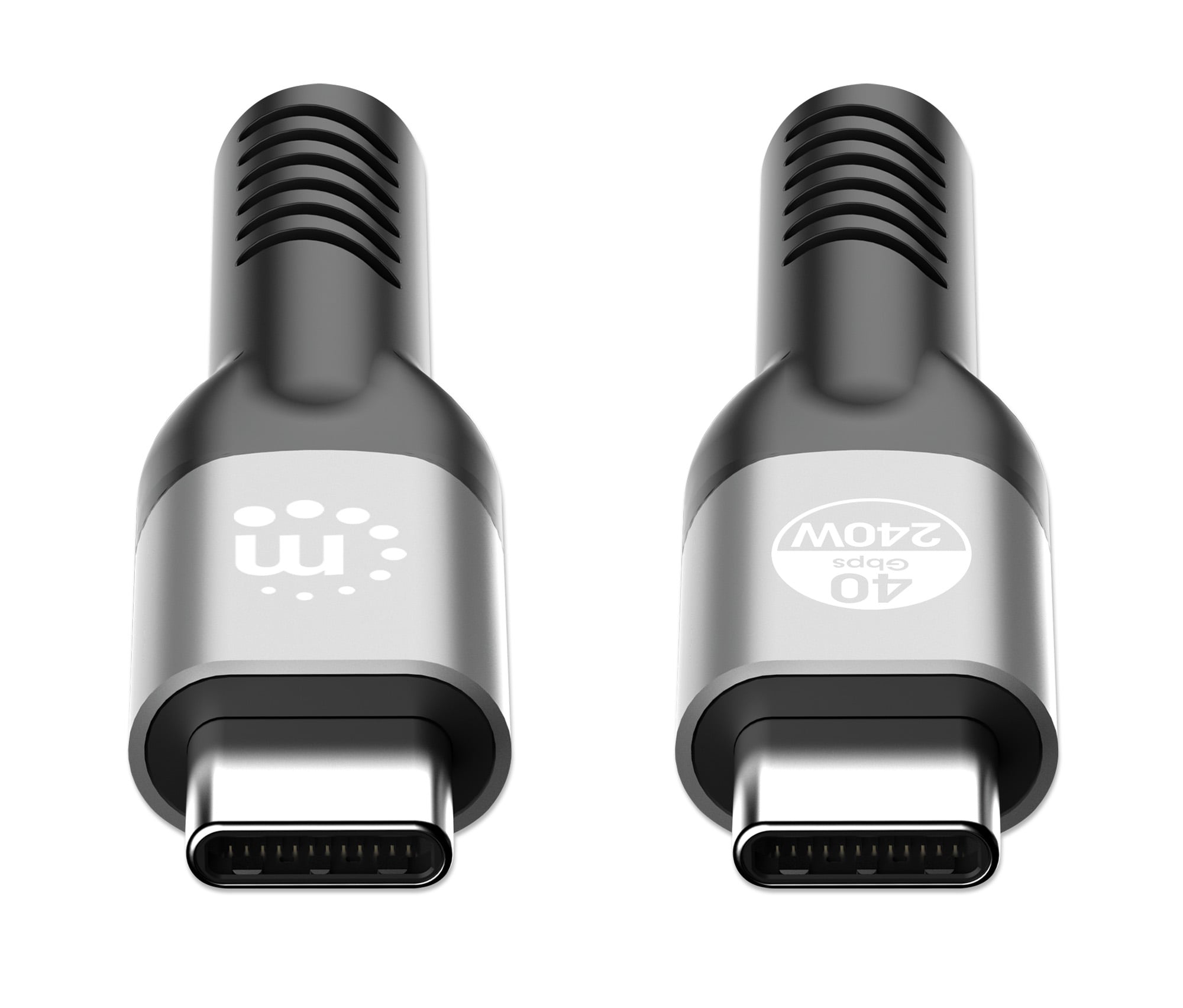

• Robust aluminium connector cover for longer life

• Double foil and braid shielding to reduce EMI and other sources of interference

• Gold and copper conductors for reliable connections

• Bidirectional design - both connectors can send power and data from a source

• Ideal for all laptops, MacBook® Pro or USB-C&trade powered docking stations;

• Reload other Type-C devices like phones, tablets, portable game consoles and much more

• Retrocompatible with USB 3.2 Gen 1 / 2 , USB 3.0 , USB 2.0 and USB 1.1

• Guarantee one year


Standards and certifications

•

• CE

• RoHS

• REACH

• USB 4 Gen 3 x 2

• PD 3.1


General

•

• Two USB-C™ 24 -pin male connectors

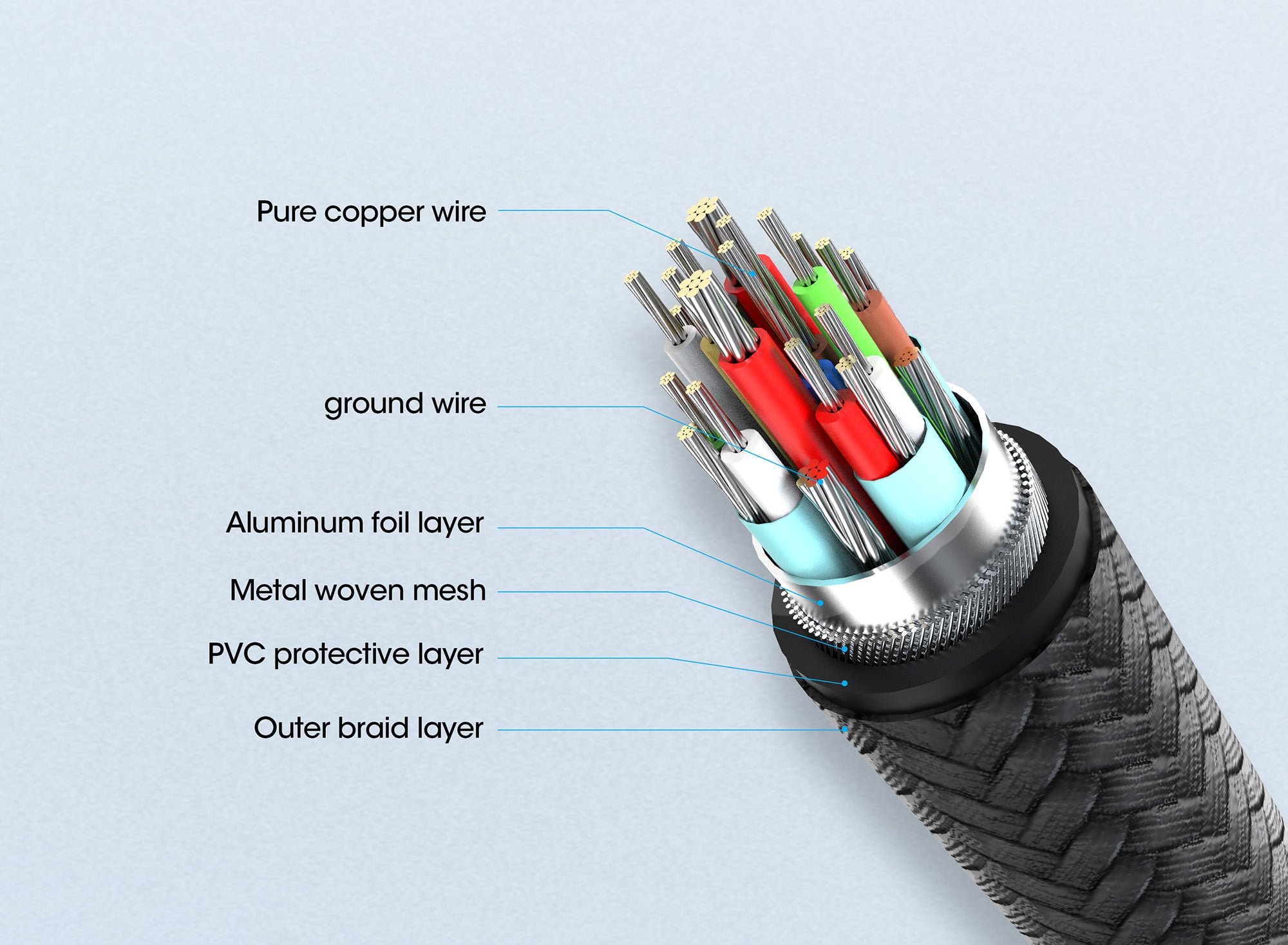

• Double shielding: aluminium foil and braid

• Conductors: pure copper

• Cable: Pure copper

• Aluminum connector cover with cable holder

• 22 / 29 AWG

• Length: 2 m

• Outer diameter (OD): 4.8 mm

• Net weight: 55 g

• Gross weight: 60 g


Electrical information

•

• Withstanding voltage: 500.0 V DC 10 ms

• Insulation resistance: 100 MΩ/km to 20 ° C

• Contact resistance: 3 Ω (max.)

• Supported effective power: 240,0 W to 48,0 V / 5,0 A max.


Environmental features

•

• Operating temperature: from 0 to 45 °C

• Operating humidity (without condensation): 10 - 85 %

• Storage temperature: - 10 to 70 °C

• Storage humidità (without condensation): 5 - 90 %


Package contents

•

• USB cable 4.0 USB-C™ male USB-C™ male 2 meters
