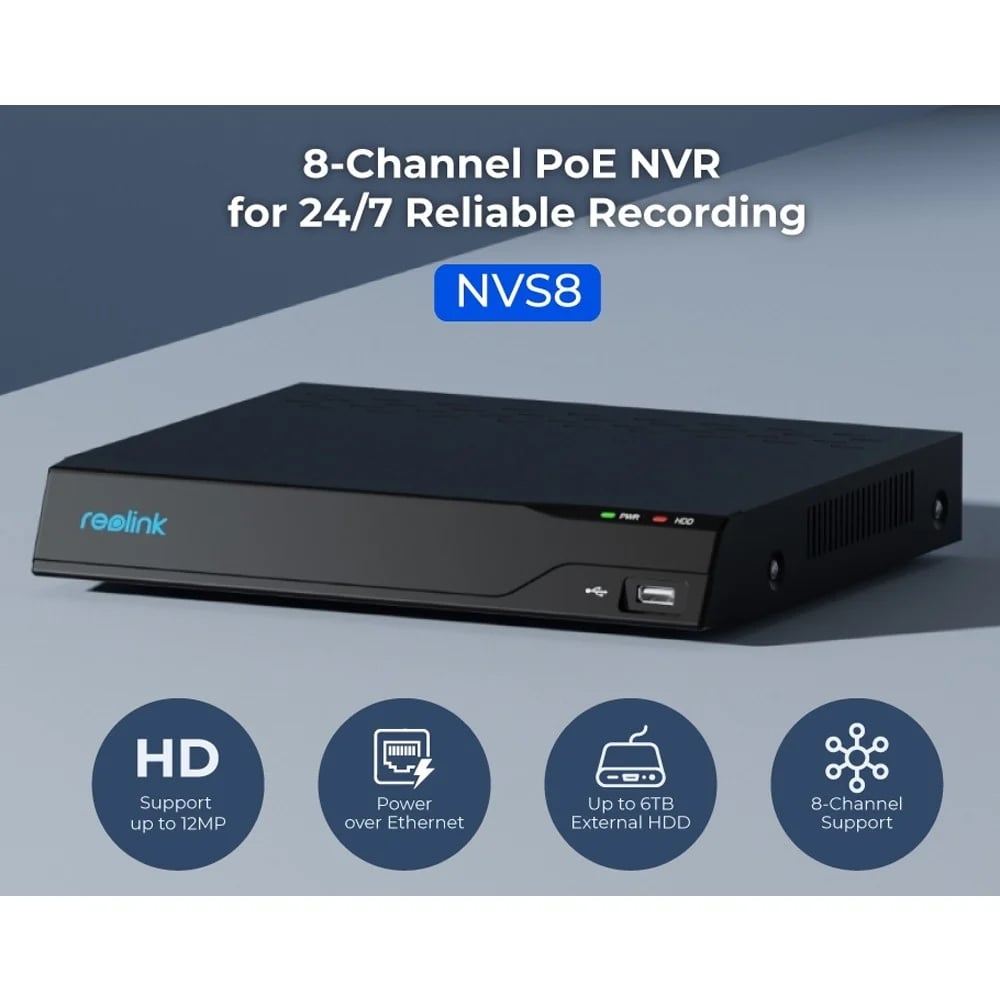

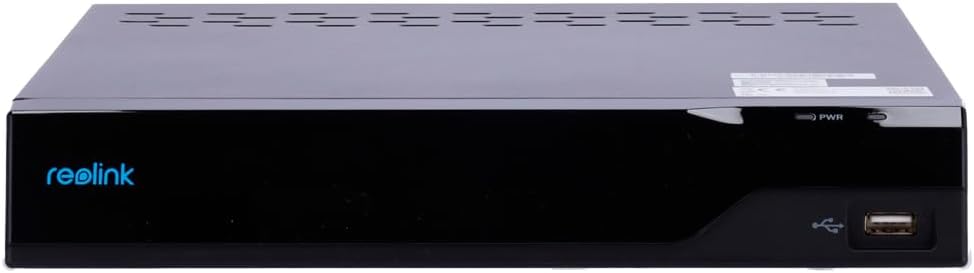

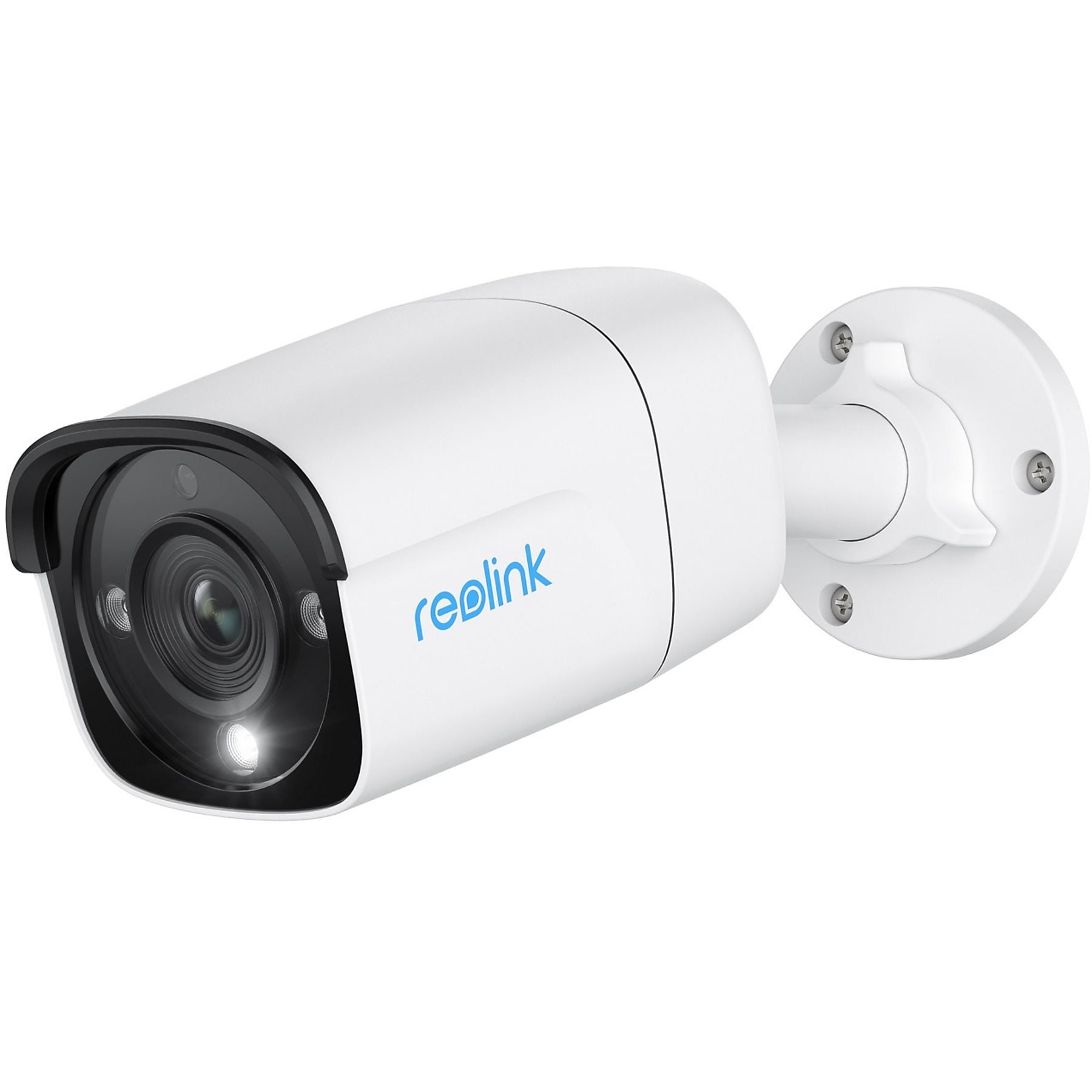

NVR Kit Poe 8 CH 2 TB HDD + 4 Cameras 5 MP - Reolink ICR-NVS 8 - 5 MB 4

Super HD high resolution from 5 MP:

ICR-NVS 8 - 5 MB 4 has a pixel resolution of 2560 x 1920 , ieè almost 2,4 times the resolution full HD 1080 p and 1,3 times the resolution 1440 p. The security of your home è guaranteed by clearer and more detailed images and recordings.

PoE. Easy installation, even for a beginner:

A real plug and play security system! Thanks to PoE (PoE power supply), è a single network cable is enough to start the system. Connect each network camera to the NVR for both power supply and video signal transmission. Ease à wiring: the wiring process could not be more ù simple for DIY enthusiasts and even for beginners.

High quality night vision;:

Thanks to the numerous LEDs and improved infrared radiation that ensure 24 watch over 24 hours, the 5 MP cameras offer a clear night vision up to 30 meters away (depending on the surrounding environment).

Technical Specifications:

•

• Image sensor: CMOS from 1 / 2,49

• Video resolution: Default: 3840 x 2160 (8,0 Megapixel) to 25 frames/sec

• Objective: f= 4,0 mm fixed; F= 2,0 , with IR filter

• Video format: H. 265

• Field of view: Horizontal: 87 ° - Vertical: 44 °

• Day and night

• IR filter with automatic switching

• Night vision: 30 meters (100 feet) (LED: 18 pieces/ 14 mil/ 850 nm)

• Audio recording


PoE

•

• IEEE 802.3 af, 48 V active

• Power supply: CC 12,0 V 1 A, < 12 W


Feeding

•

• DC power port

• System: Reset button

• Ethernet: 1 x 10 M/ 100 Mbps; RJ 45

• Memory: microSD card slot (max 256 GB)

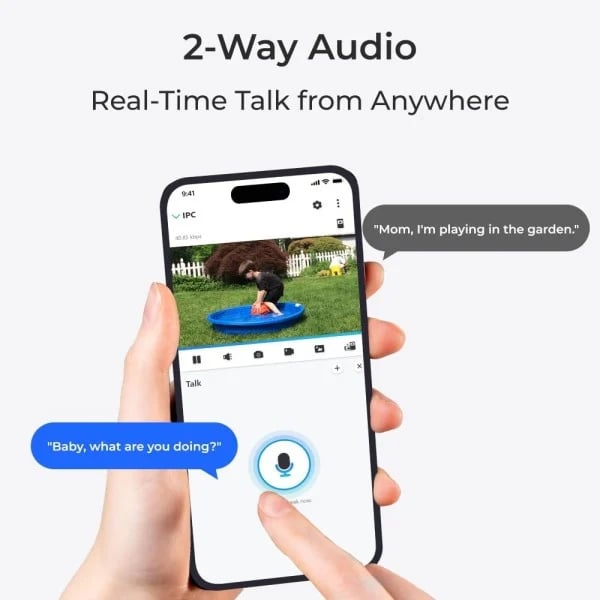

• Audio: integrated microphone

• Frame rate: Mainstream: 2 fps - 25 fps (default: 25 fps) - Substream: 4 fps - 15 fps (default: 10 fps)

• Code rate: Mainstream: 4096 Kbps - 8192 Kbps (default: 6144 Kbps) - Substream: 64 Kbps - 512 Kbps (default: 256 Kbps)

• Supported browsers: Edge, Chrome, Firefox, Safari

• Supported OS: PC: Windows, Mac OS; Smartphone: iOS, Android

• Intelligent alarm: motion detection; person detection; vehicle detection; pet detection

• Modalità recording: motion activated (default); scheduled recording; 24 recording hours on 24 , 7 days on 7

• Protocols and standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv 4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P 2 P

• Maximum user access: 20 users (1 admin account and 19 user account); supports up to 12 simultaneous video streams (10 substream and 2 mainstream)

• Smart Home: Google Assistant

• Waterproof IP 67


Dimensions

•

• Camera width 6,8 cm

• Depthà camera 18,8 cm

• 6,3 camera height cm

• Recorder width 26 cm

• Depthà 23 recorder cm

• Recorder height 4,1 cm


Environmental characteristics:

•

• Operating temperature: - 10 °C ~ + 55 °C

• Operating Humidità 10 % ~ 90 %


Package contents

•

• 1 x NVR 8 channels

• 4 x PoE security camera
