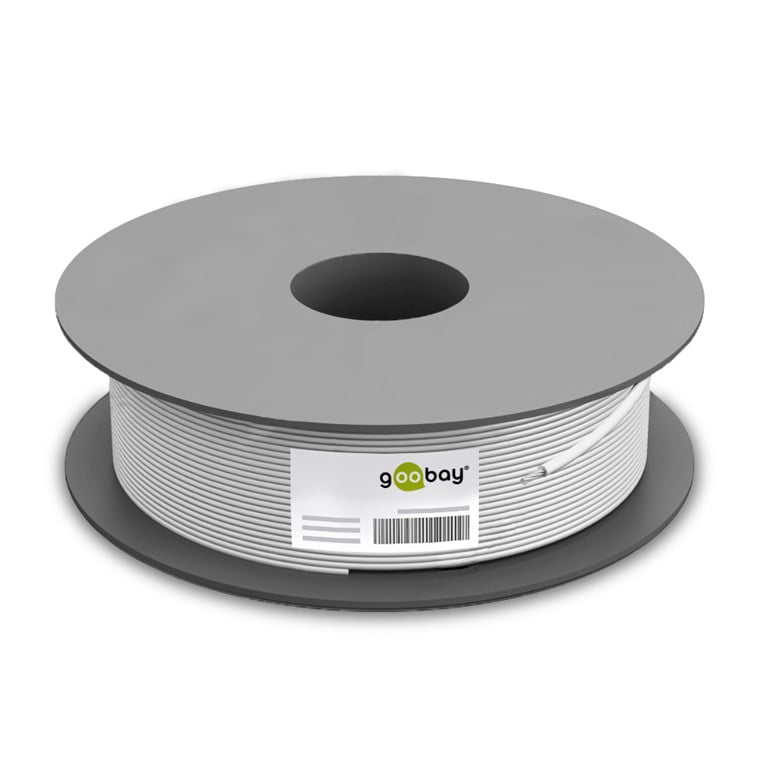

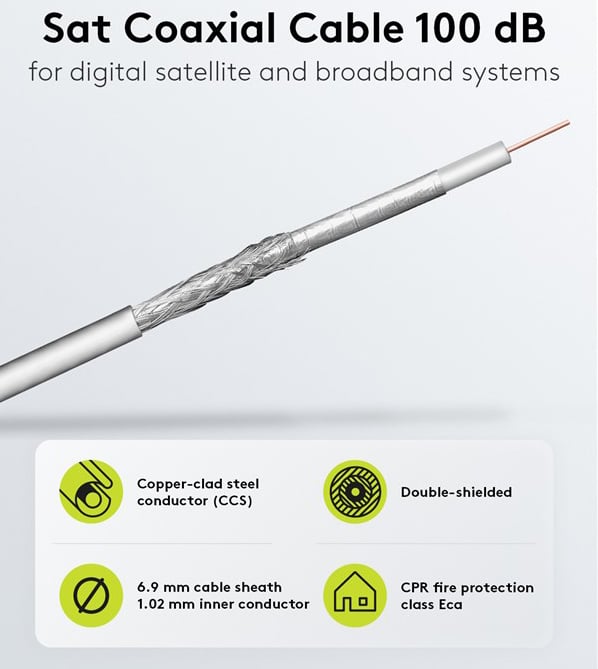

Coaxial cable SAT 100 dB Double Shield CCS 100 m - Goobay ICOC SAT-R 528

•

• Coaxial cable for SAT and DVB-C digital systems

• Satellite cable tested and classified in Class A according to EN 50117

• Digitally compatible with HDTV installed via DVB-S/S 2 , DVB-T/T 2 , DVB-C/C 2

• Double shielding TV cable for interference-free transmission

• With metric indication on antenna cable

• The cable of the TV antenna è compliant with the CPR (Regulation on construction products), then corresponds to the class of fire protection Eca

• For connection or extension of cable or radio TV systems, for example

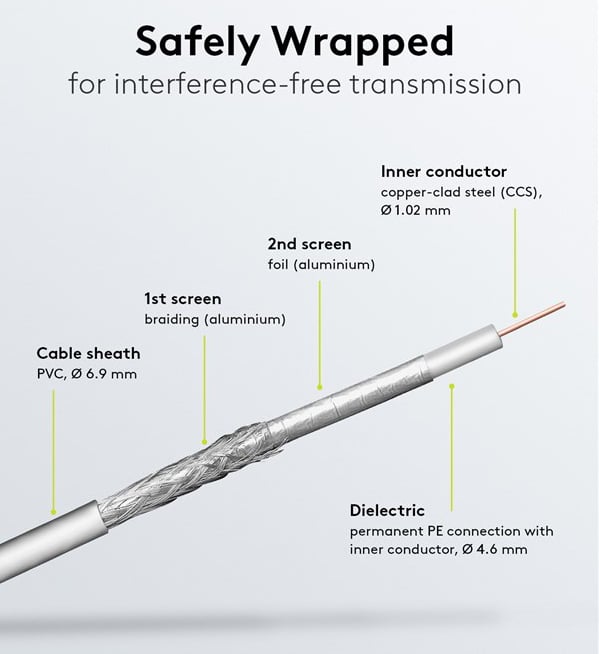

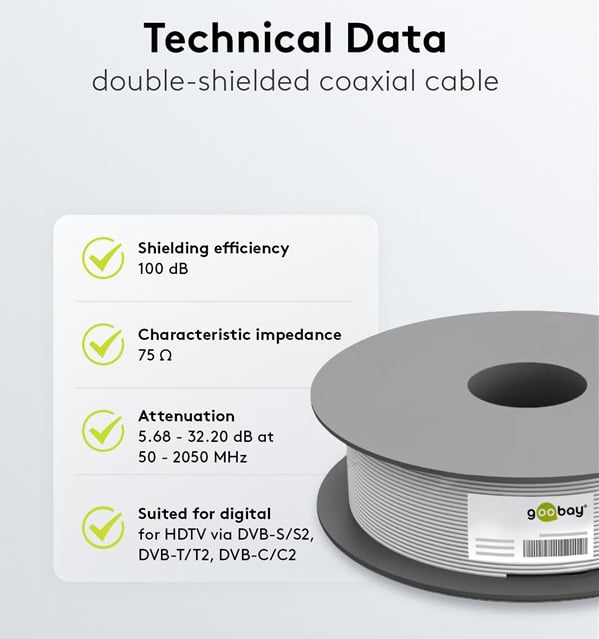

Technical Specifications

•

• Internal conductor material: CCS

• Metric Scale

• Dielectric diameter: 4,6 mm

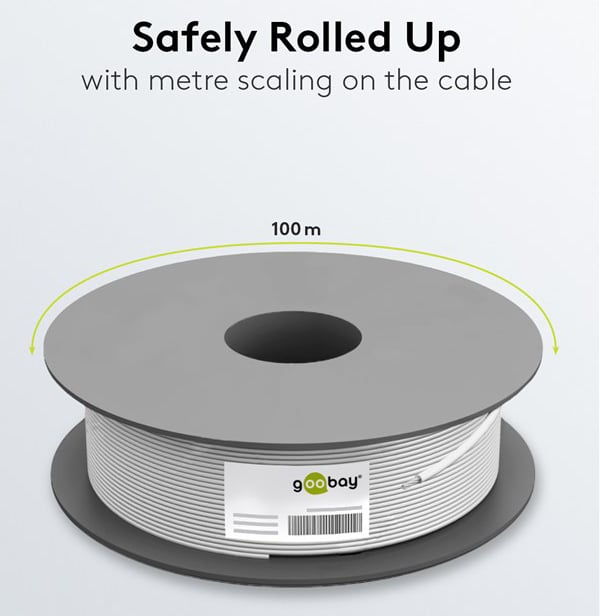

• Cable length: 100 m

• Type of cable: coaxial cable

• Internal conductor, core diameter: 1,02 mm

• Cable sheath diameter: 6,9 mm approx.

• Number of screenshots: 2 x

• Shielding efficiency: 100 dB

• Fire reaction class (CPR): Eca

• Type 1 , shielding foil (aluminium)

• Type 2 , shielding braid (aluminium) 64 x

• Impedance: 75 Ω

• Outer sheath material: PVC

• Markings: ECA_CPR, EC

• Operating temperature: - 20 / 70 °C

• Color: white

• Length: 100 meters
