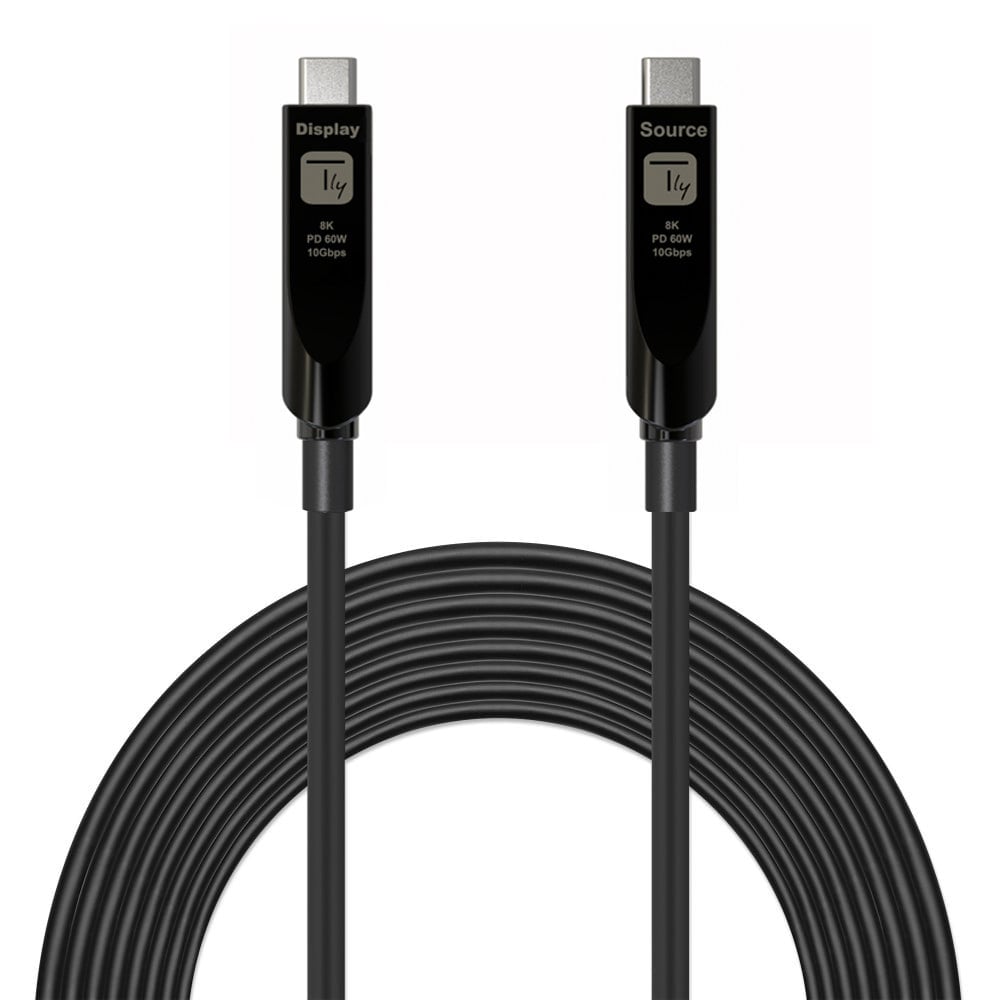

Optical Cable Active USB 3.2 Gen 2 10 Gbps USB-C M/M Fiber Optical 8 K 15 m - Techly ICC U 3 C-HY 10 G- 015

• USB-C™ male to USB-C™ male to connect USB-C&trade peripheral ports;

• Overrides the distance limitation of USB-C™ for power, data and video without signal loss, ideal for digital advertisingà, retail stores and much more

• USB 3.2 Gen 2 (già USB 3.0), supports SuperSpeed+ transfer speeds up to 10 Gbps, USB 2.0 compatible back

• Hybrid cable consisting of optical fiber and copper cable that make the cable thinner, ideal for installations in small spaces

• USB-C™ compliant with DisplayPort 1.4 Alternate Mode (DP Alt Mode) for resolutions up to 8 K@ 60 Hz on supported displays and displays (but the device must support DSC+Thunderbolt)

• Supports USB Power Delivery (PD) function up to 60 W and current up to 3 A

• Triple shielding with aluminium foil, braid and aramid fiber to reduce electromagnetic interference and other sources of interference

• Aramid fiber components for maximum strength and resistance to heat

• Powered by USB bus - does not require external power supply

• Installation Plug and play; Windows®, macOS®, Android™, iOS®, Chrome OS®, iPadOS® and Linux® compatible

• Corrosion-resistant contacts

• Robust tear protection

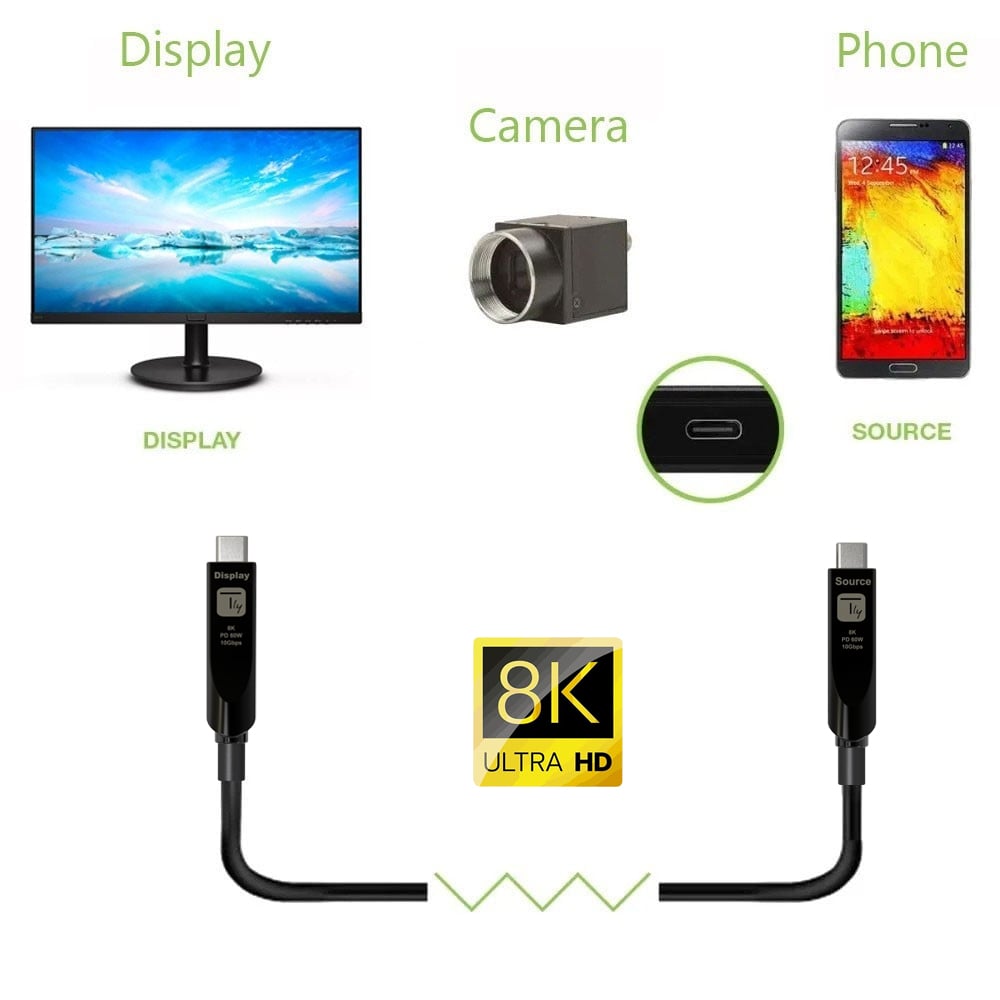

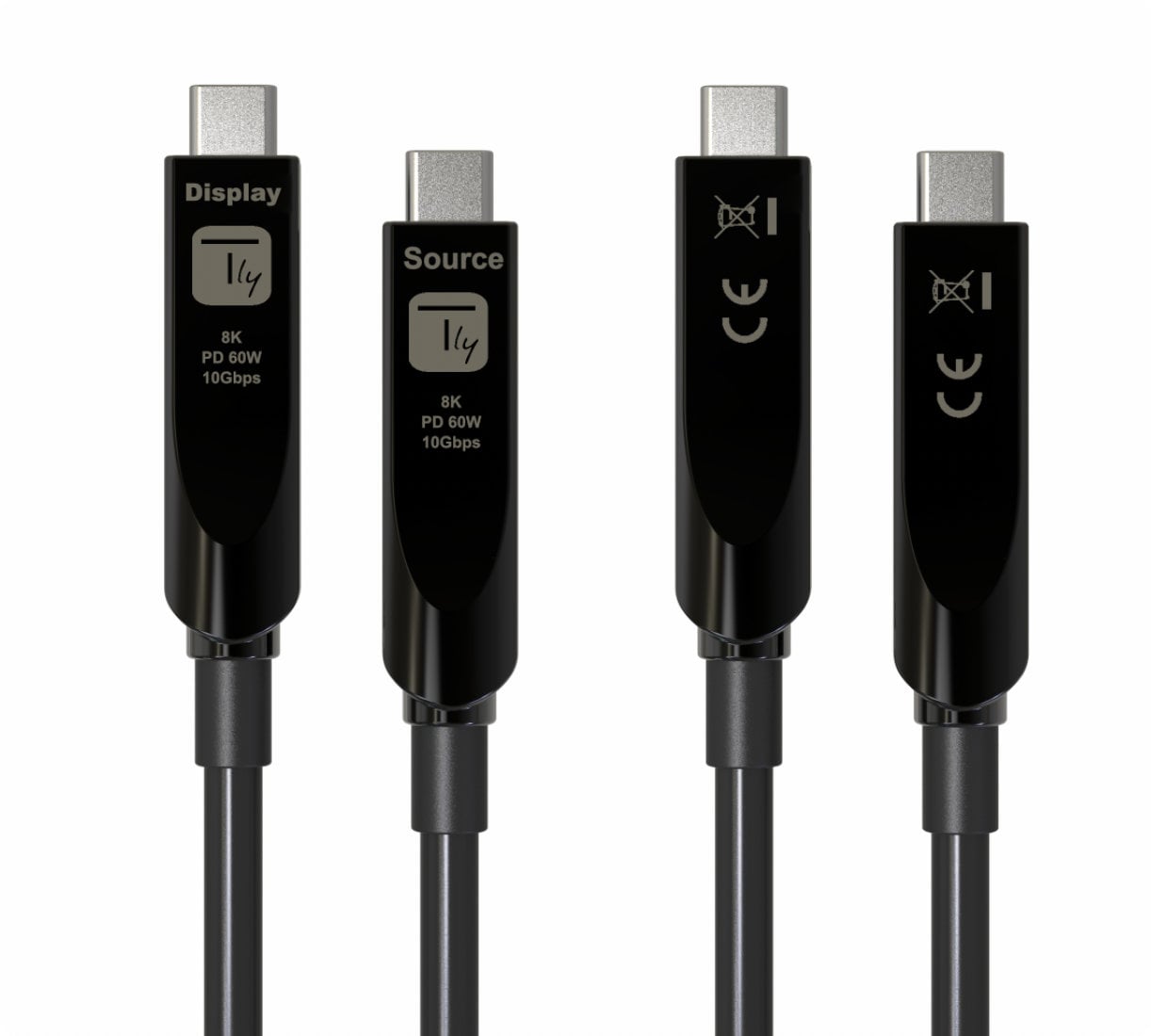

• Bi-directional design, can be connected in both directions for power supply, unidirectional design for data and video with indication on the source and screen connectors


Standards and certifications

• CE

• RoHS
• REACH

General information

• Two USB-C™ 24 -pin male connectors
• Triple shielding: aluminum sheets, braid and aramid fiber
• Optical fibre OM 3

• PVC case

• Material of die-cast zinc alloy connector
• Golden contact pin
• Outer diameter: 5.2 ± 0.2 mm

• Bending radius: 20 mm

• Length: 15 m


Electrical information

• Sealing voltage: 100 N

• Supported current: 3.0 A (max)
• Supported voltage: 20.0 V (max)


Environmental information

• Operating temperature: - 40 ° to 70 °C

Package contents

• Active Optical Cable (AOC) USB 3.2 Gen 2 Type-C USB-C™ M/M 15 m ICOC U 3 C-HY 10 G- 015
