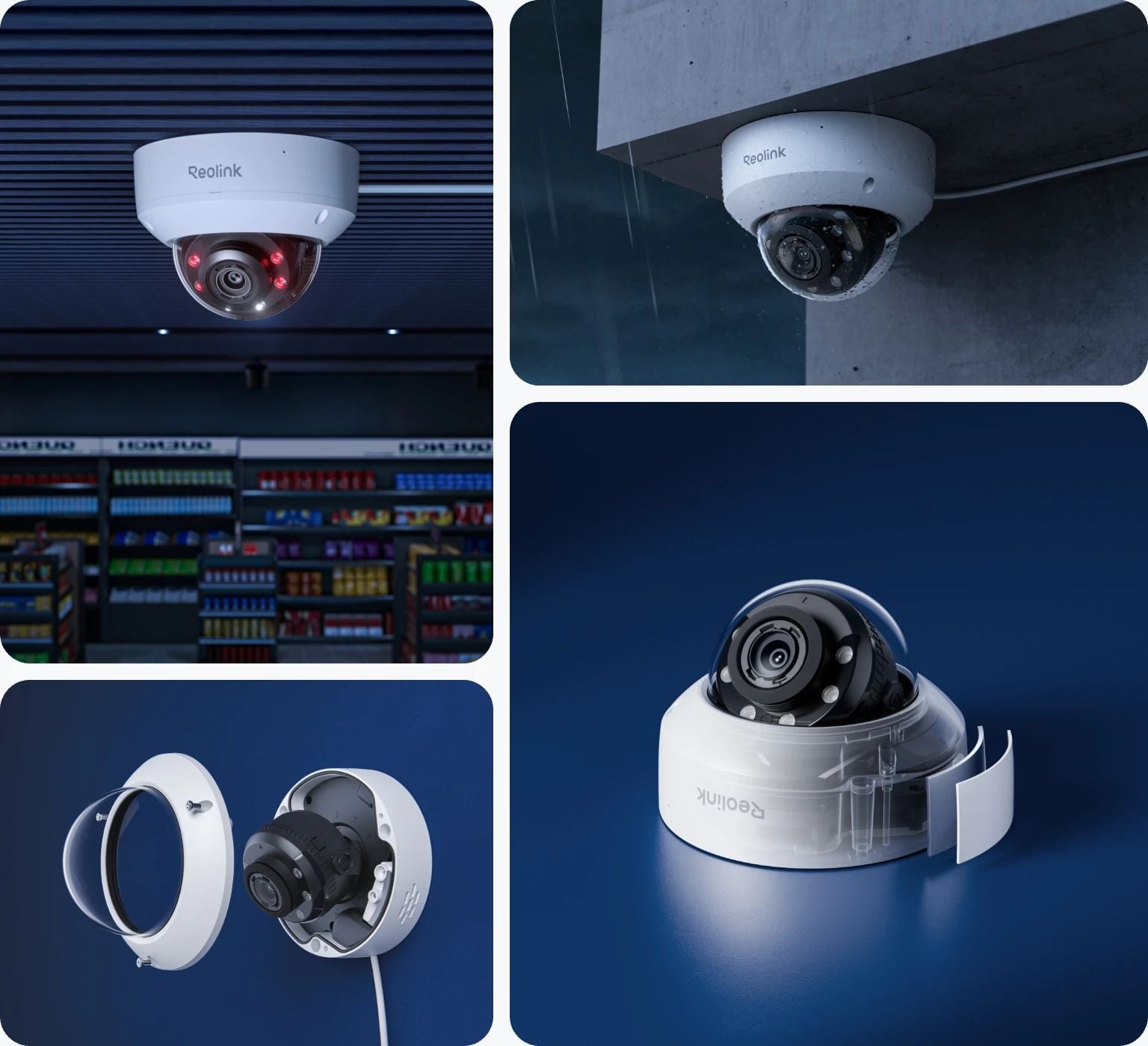

Dome PoE vandal-proof camera IK 10 4 K Zoom Optic 5 X - Reolink ICR-RP-PCV 8 MZ

•

• Dome Poe PRO RP-PCV 8 MZ 4 K UHD camera at 30 FPS

• With a four times higher resolution than 1080 p, it captures every detail with professional precision. This adjustable field of view, combined with 5 X optical zoom, allows targeted monitoring of critical areas, reducing false alarms and ensuring sharp shooting even from long distances

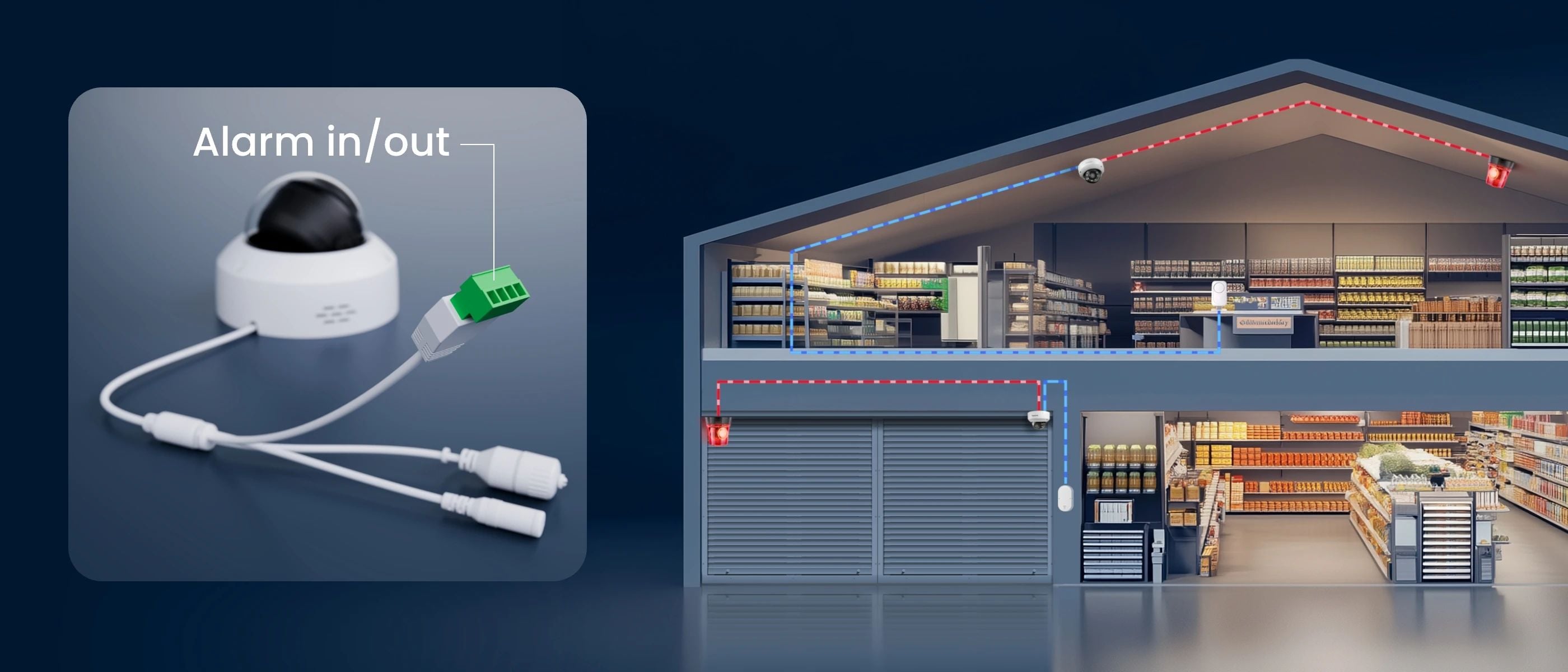

• Equipped with in/out alarm ports that allow connection to external input devices such as sensors and magnetic contacts and output devices such as sirens and stroboscopic lights. This insertion function allows you to create and customize your alarm connection system, perfect for autonomous configurations or projects where the NVR does not have I/O support

• Video search with AI: find the desired movies in seconds. By entering descriptive keywords, the system instantly locates relevant recordings based on intruder characteristics such as età and clothing color. Save time with effective and accurate video search using the ReoNeura app

• Intelligent alarm: motion detection/person detection/motor vehicle detection/non-motorised vehicle detection/animal detection/package detection

• Perimeter protection: line crossing warning, zone intrusion warning, zone wandering warning

• Intelligent event detection: removal of objects (beta), forgotten object (beta)

• Fluid VMS system

• Remote view in real time: stay connected to your home and business; with remote view in real time via the VMS system, both in the office and in mobilityà

• Alarm management: supports different detection functionality à including detection of people and objects, intelligent event detection, perimeter protection, alarm device anomaly and video occlusion alarm, with snap pop-up notifications via VMS for timely response

• Device Management: Group cameras for a specific project or area, for efficient device management and status monitoring. Check the connectivity status à in real time and battery level for uninterrupted surveillance

• Account management: assign roles and permissions according to operational needs; with device-account connection, users only display authorized areas and devices. Once logged in, they can access connected devices on multiple platforms without having to repeat the configuration

• Modelità recording: motion activated (default); scheduled recording, 24 recording hours on 24 , 7 days on 7

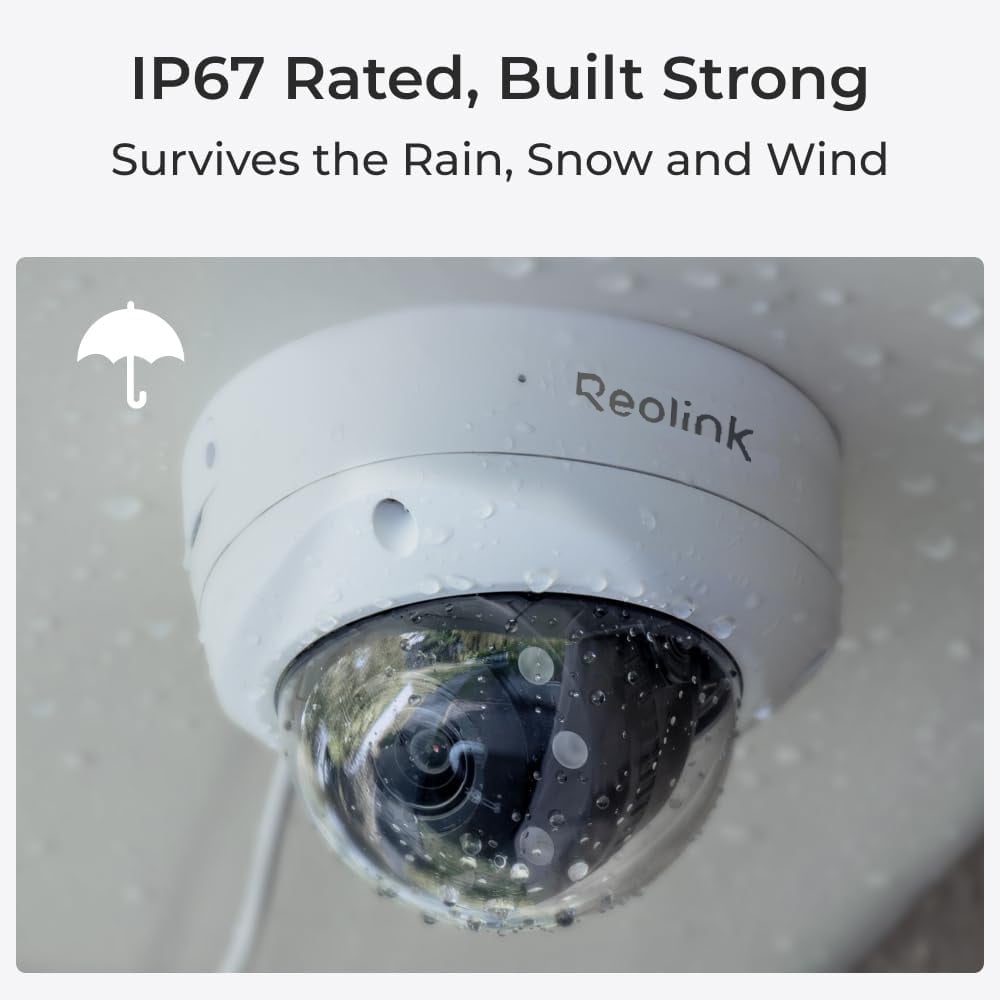

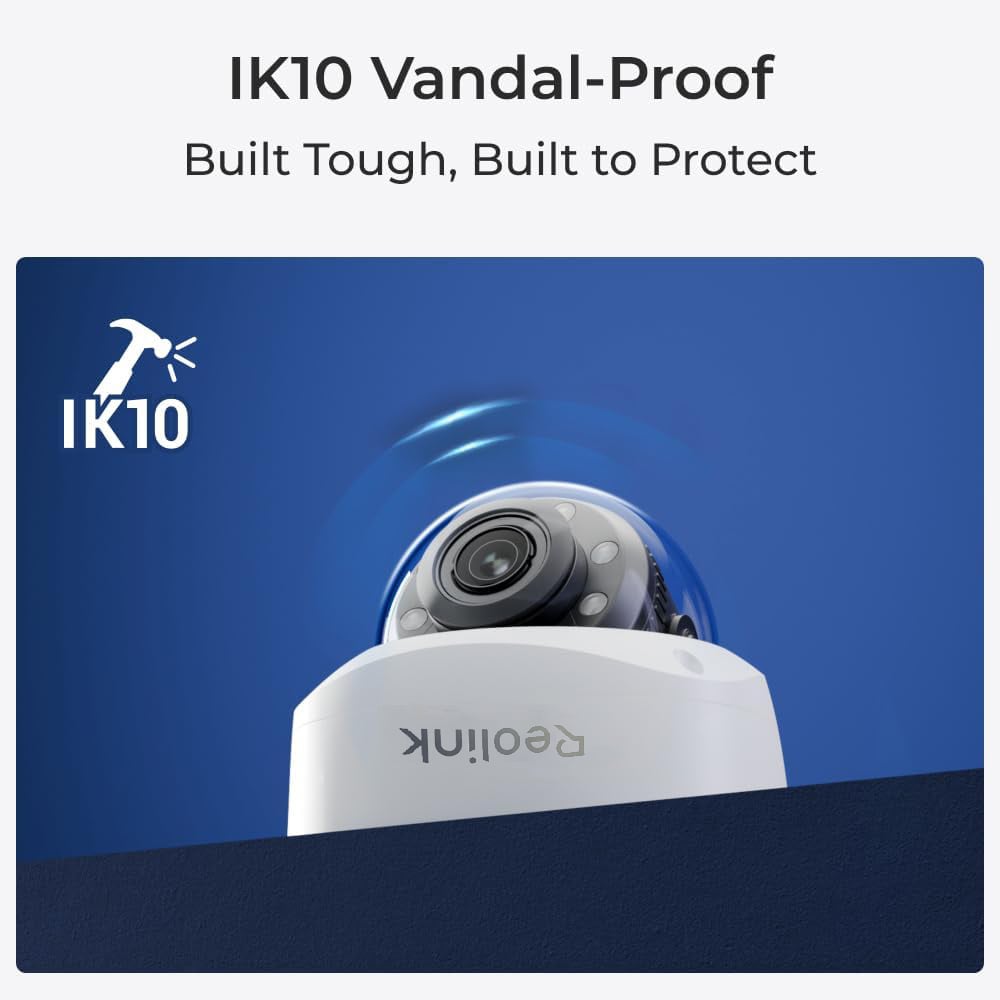

• The metal housing and the IP protection degree 67 guarantee a long-lasting operation from - 30 °C to 55 °C, perfectly adapting to residential, commercial and industrial environments; vandalism resistance IK 10


Technical specifications

•

• Image sensor: 1 / 2,8 CMOS sensor

• Video resolution: 3840 x 2160 (8 Megapixels) to 30 frames/sec

• Objective: f= 2,7 - 13,5 m; maximum: F= 1.6

• Zoom: 5 x

• Video format: H. 265 /H. 264

• Field of view: Horizontal: H: 108 ° - 32 ° V: 56,2 ° - 18 ° D: 133 ° - 36,7 °

• Day and night: automatic switching with IR filter

• Infrared night vision: Up to 30 meters (100 ft); LED: 4 pcs/ 3 W/ 850 nm

• Color night view: with 2 Pcs/ 0 ~ 3 W adjustable/ 4000 K/ 350 lumens

• Frequency Frames: Main flow: 2 fps - 30 fps (default: 30 fps); secondary flow: 4 fps - 15 fps (default: 10 fps)

• Frequency Code: Main flow: 2048 Kbps - 9216 Kbps (default: 7168 Kbps); secondary flow: 64 Kbps - 512 Kbps (default: 512 Kbps)

• Bidirectional audio; integrated microphone and speaker

• PoE: IEEE 802.3 af, 48 V active

• DC power supply: DC 12,0 V 1 A, < 12 W

• Smart Home: Google Assistant


Interface

•

• Power port: DC power port

• Ethernet port: 1 port RJ 45 10 M/ 100 Mbps

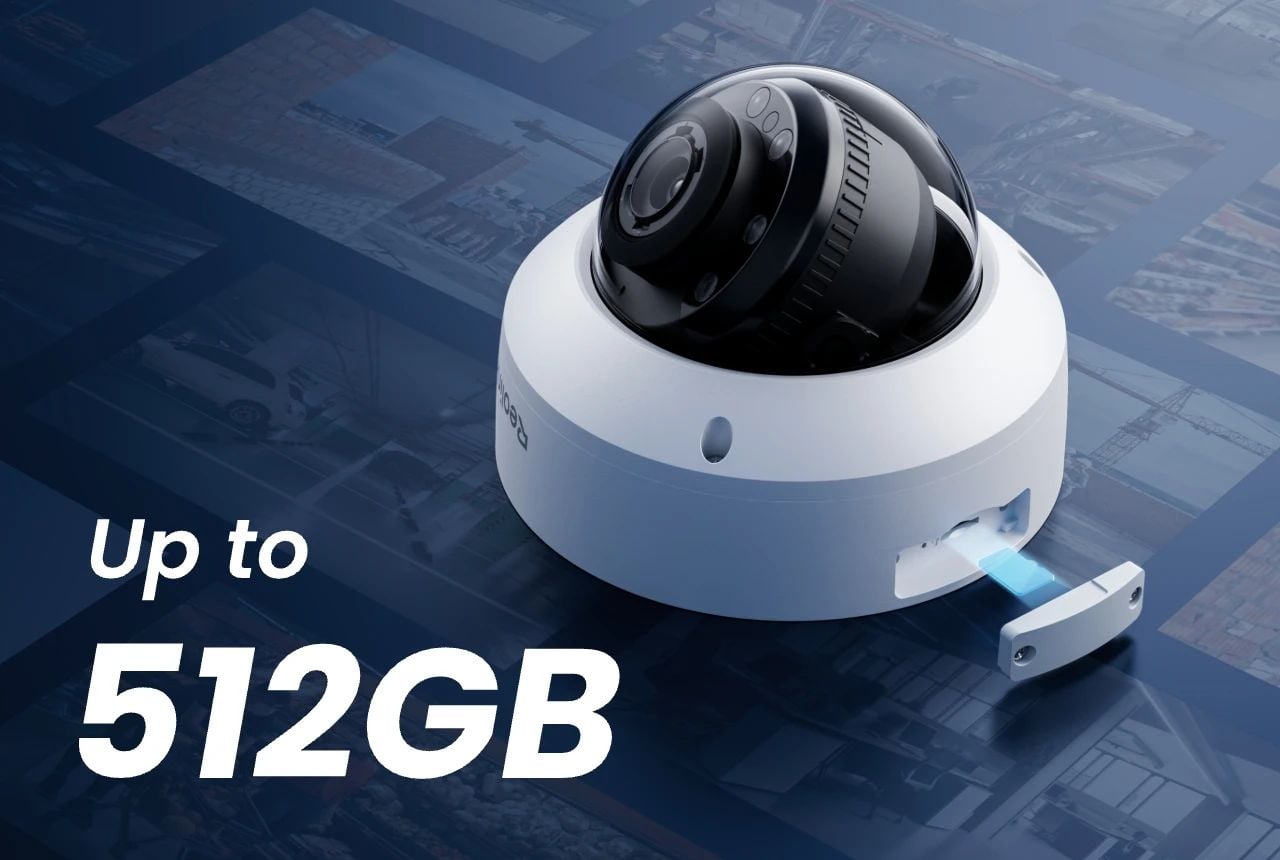

• Storage: MicroSD card slots (max 512 GB); Reolink NVR, ftp

• Reset Button

• Alarm input/output: 1 input, 1 output (entrance: 12 V/ 1 A; exit: 12 V/ 500 mA)

• Audio input/output: integrated microphone and speaker

• HTTPS, SSL, TCP/IP, UDP, HTTP, IPv 4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P 2 P, Onvif

• Maximum user access: 20 users (1 admin account and 19 user account); supports up to 12 simultaneous video streams (2 main and 10 secondary)


Compatibilityà

•

• Browser: Edge, Chrome, Firefox, Safari

• OS: PC: Windows, Mac OS

• Smartphone: iOS, Android


Environmental features

•

• Operating temperature - 30 °C~+ 55 °C

• Umidità exercise 10 % ~ 90 %

• Resistant to weather IP 67

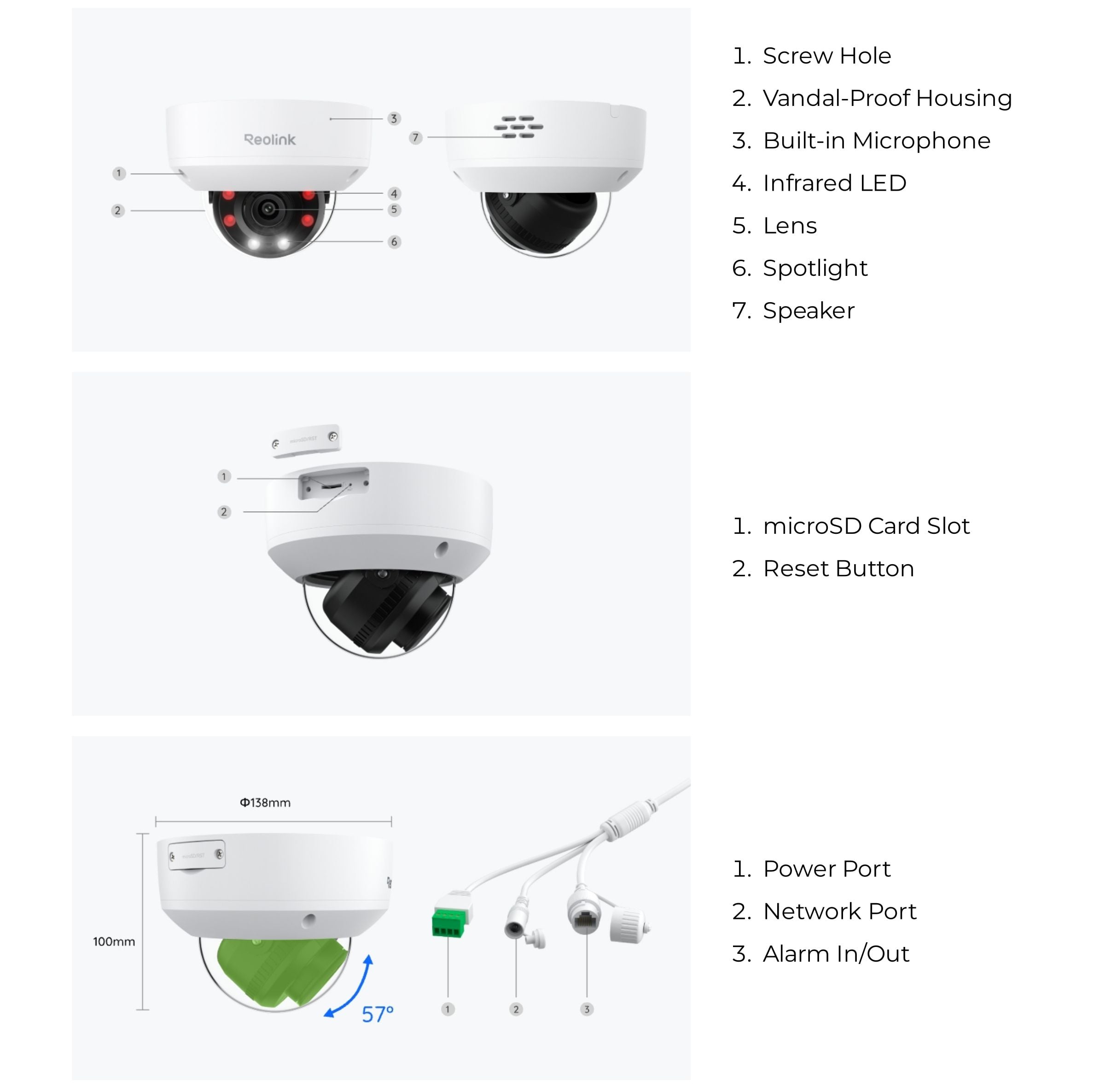

Dimensions

•

• Width: 138 mm

• Height: 100 mm

• Depthà: 138 mm

• Weight: 845 g


Package contents

•

• Dome Room PoE 12 MP PRO RP-PCT 12 M 12 MP with night vision in color ICR-RP-PCT 12 M

• 1 x Ethernet cable

• 1 x user manual
