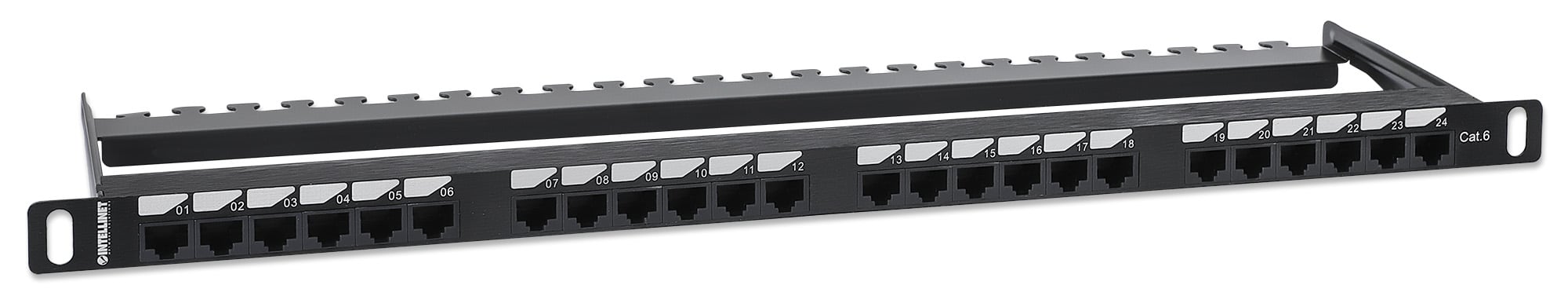

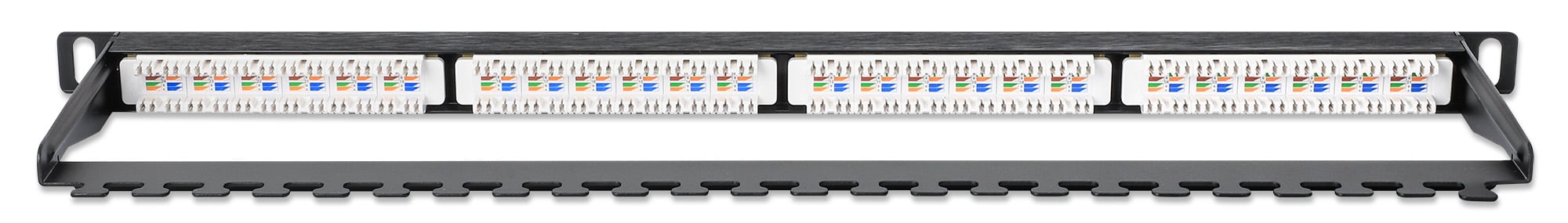

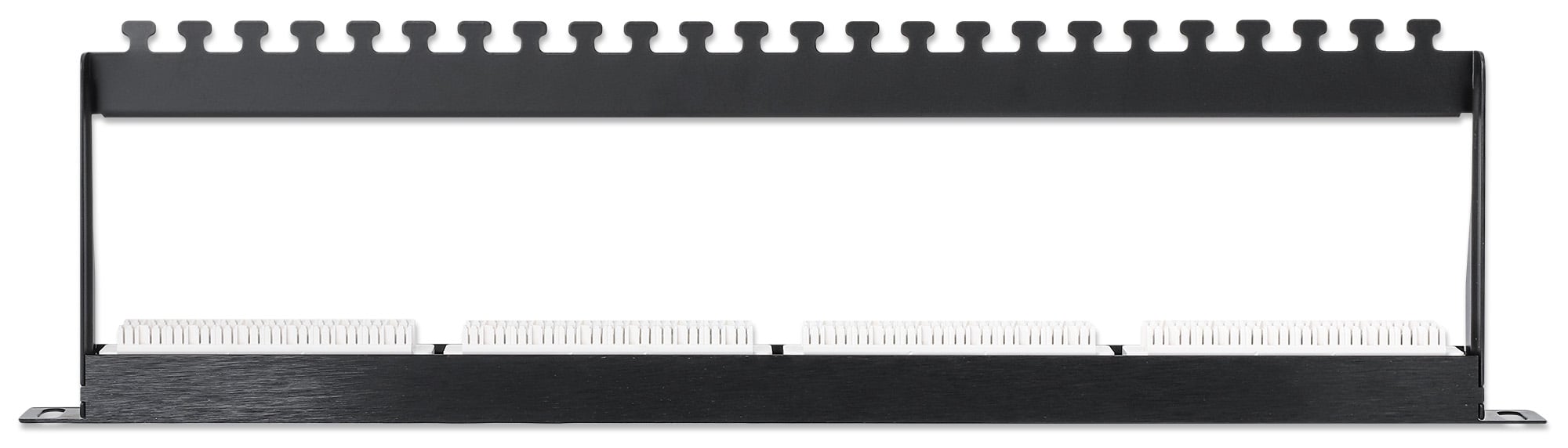

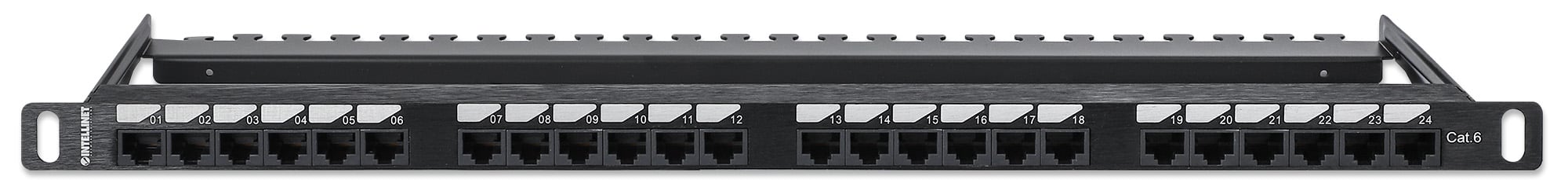

UTP patch panel 24 ports RJ45 Cat6 0.5U black - Intellinet I-PP 24-RU-C6H

€39.55
Tax included €32.40 excl. VAT

UTP patch panel with 24 RJ45 Cat6 ports with height 0.5U. Supports speeds up to 10 Gbps over distances up to 55 m and maximum operating frequency of 250 MHz.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Punch-down termination blocks at 180°, solid and reliable with numbered and labeled RJ45 ports for copper cables
  • 24 ports using only 0,5U of rack space for greater connectivity
  • Compatible with Krone termination tools
  • Removable cable management bar
  • Gold contacts of 50 microinches
  • Supports solid cables from 23 to 26 AWG
  • Compliant with IEC 60297 / EIA 310; compatible with all standard racks of 19 in. / 482,6 mm
  • Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • To be used with Cat6 unshielded twisted pair (UTP) network cables
  • di alta qualità anodized aluminum frame and cold-rolled SPCC steel support with antistatic powder coating
  • Standard 8P8C design, compatible with all RJ45 network connections
  • Compatible and color-coded with T568A and T568B
  • UL certified


Standards and Certifications

  • CE
  • RoHS
  • ISO/IEC 11801
  • IEC 60603-7-41
  • Cat6 (ANSI/TIA-568-D)
  • UL
  • REACH
  • UKCA


General information

  • Supports transfer speeds up to 10 Gbps over distances up to 55 m
  • Maximum operating frequency: 250 MHz
  • Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Mating cycles: ≥750


Material

  • Frame: aluminum
  • Bracket: steel
  • Contacts: phosphor bronze
  • Contact plating: gold 50 micro-inches
  • IDC: phosphor bronze with tin plating
  • Flammability:

- PCB: tested and rated according to FR-4 and UL 94 V-0



Electrical information

  • Insulation resistance: ≥500 MOhm
  • Dielectric isolation voltage: 1.000 V DC/750 V AC
  • Contact resistance: ≤20 MOhm
  • DC resistance: ≥0.3 Ohm
  • Rated current: 1.5 A


Physical information

  • Dimensions (D x W x H): 126 x 482,6 x 22,2 mm
  • Net weight: 475 g
  • Gross weight: 575 g


Environmental information

  • Operating temperature: -⁠10 to 60°C
  • Storage temperature: -⁠40 to 70°C
  • Operating humidity (non-condensing): 10 - 90% RH


Package contents

  • Patch Panel Cat6 24 Port UTP, 0.5U I-PP 24-RU-C6H
  • 24 x cable ties
  • Set of cage nuts (2 x cage nut, 2 x M6 screw, 2 x plastic washer)
  • Instruction manual

  • Brand
  • Reference
    I-PP 24-RU-C6H
  • In stock
    47 Items
  • EAN13
    0766623721073
