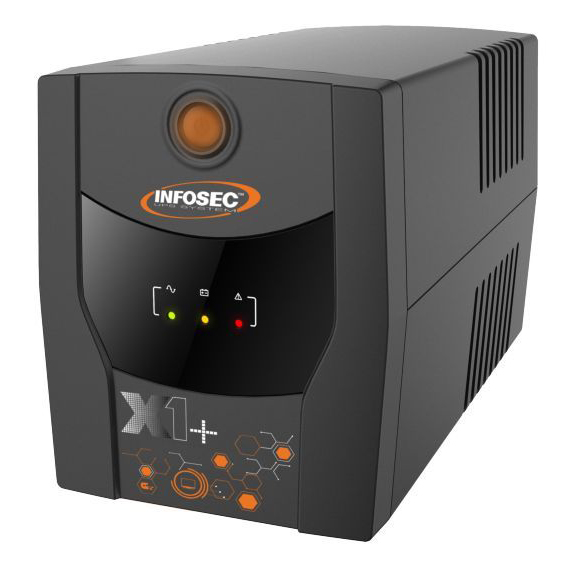

Continuity Group UPS X 1 + 700 VA 4 IEC Line Interactive - Infosec ICUX 2 LCD 700 P

The UPS X 1 + è range designed to protect small businesses' personal computers and IT systems from power problems and dangerous electrical disturbances.
In case of short or prolonged interruptions, UPS ensures that the power supply continues to power the connected hardware, so that it can shut down the applications and turn off the PC.
Equipped with Line Interactive technology and controlled by a microprocessor with automatic voltage regulation, the continuous à group ensures that during large fluctuations the connected devices are powered by high quality regular current, without battery use.
It is equipped with integrated cable with Schuko plug, so there is no need to add cables to connect the equipment.

Perfect solution for IT applications:

• Small and mediumsized enterprises

• Office computer equipment (computer tower, PC monitor, router...)

• Electronic equipment (game console, TV player, NAS...)


Simplified in use:

• Compact design

• One single ON/OFF switch

• 1 indicator light provides information on the status of UPS

• Cold start function in the absence of power

• Automatic UPS restart when network power is restored


General characteristics

• UPS technology: Line Interactive

• Power (VA): 700

• Power (W): 360

• Phases: Single phase/Monophase

• Format: exclusively tower

• Non-flammable plastic case

• Automatic voltage adjustment (AVR)

• A type B USB port


Technical specifications

• Technology: Line Interactive with automatic voltage adjustment

• Output waveform: Modified synusoidal

• Power: 700 VA

• Power factor: 0,5

• Power cable with integrated Schuko plug

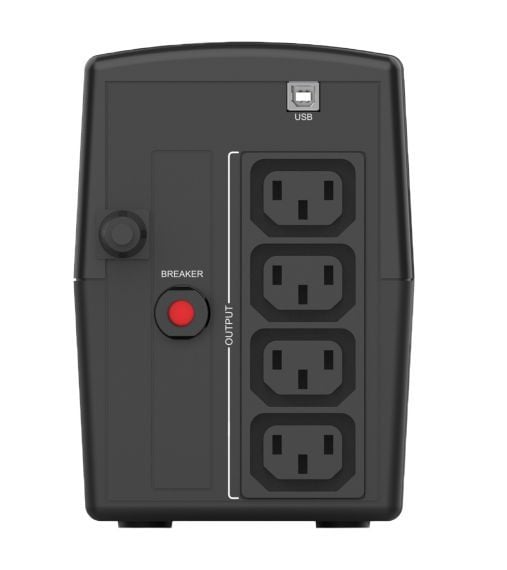

• Electric sockets: 4 IEC

• Type B USB output

• LED indicators: 1


Technical characteristics of entry

• Connection type: sockets

• Rated voltage: 230 V AC


Exit technical characteristics

• Connection type: socket

• Type of output voltage: AC

• Wave Shape: Sinusoidal Modified


Output connection

• Type of sockets: IEC socket


Battery

• Number: 1

• Type: voltage: 12 V

• Type: Amperage-hour: 7 ah

• Cold start function


Protection

• Do not load

• Overload

• Short circuit


Dimensions

• Width 96 mm

• Depthà 286 mm

• Height 138 mm

• Weight: 3,9 kg


Certifications

• CE

• RoHS


Package contents

• Continuity group; ICUX 2 LCD 700 P
• Manual of use
