Wall bracket for TV LCD 32 - 75 " Full-Motion - Techly ICA-PLB 3154 B

• ICA-PLB 3154 B è a wall mount for TV from 32 up to 75 and up to 45 kg; the fully closed arm is only 83 mm away from the wall and extends for 410 mm from the wall; allows the monitor to rotate 90 °.  Full movement allows maximum flexibility à: tilt and turn the TV for easy viewing from any point in a room. The adjustment of the post-installation level allows the TV to rotate up to 3 ° clockwise and counter-clockwise to ensure it is perfectly positioned

Features

• Compact design bracket, ideal for large TV
•
  Optimized vision with + 5 ° to - 12 ° tilt adjustment and +/- 90 ° rotation
•
  It easily installs, ideal for home, office and commercial applications
• Slim design, the back of the TV is only 83 mm from the wall with the arm completely closed
•
  Integrated level bubble to ensure perfect TV mounting


Specifications

• Material: steel

• Finishing: powder coating

• Color: black

• Supported monitor dimensions: 32 - 75
•
  Max VESA: 600 x 400

• Supported weight: 45 kg

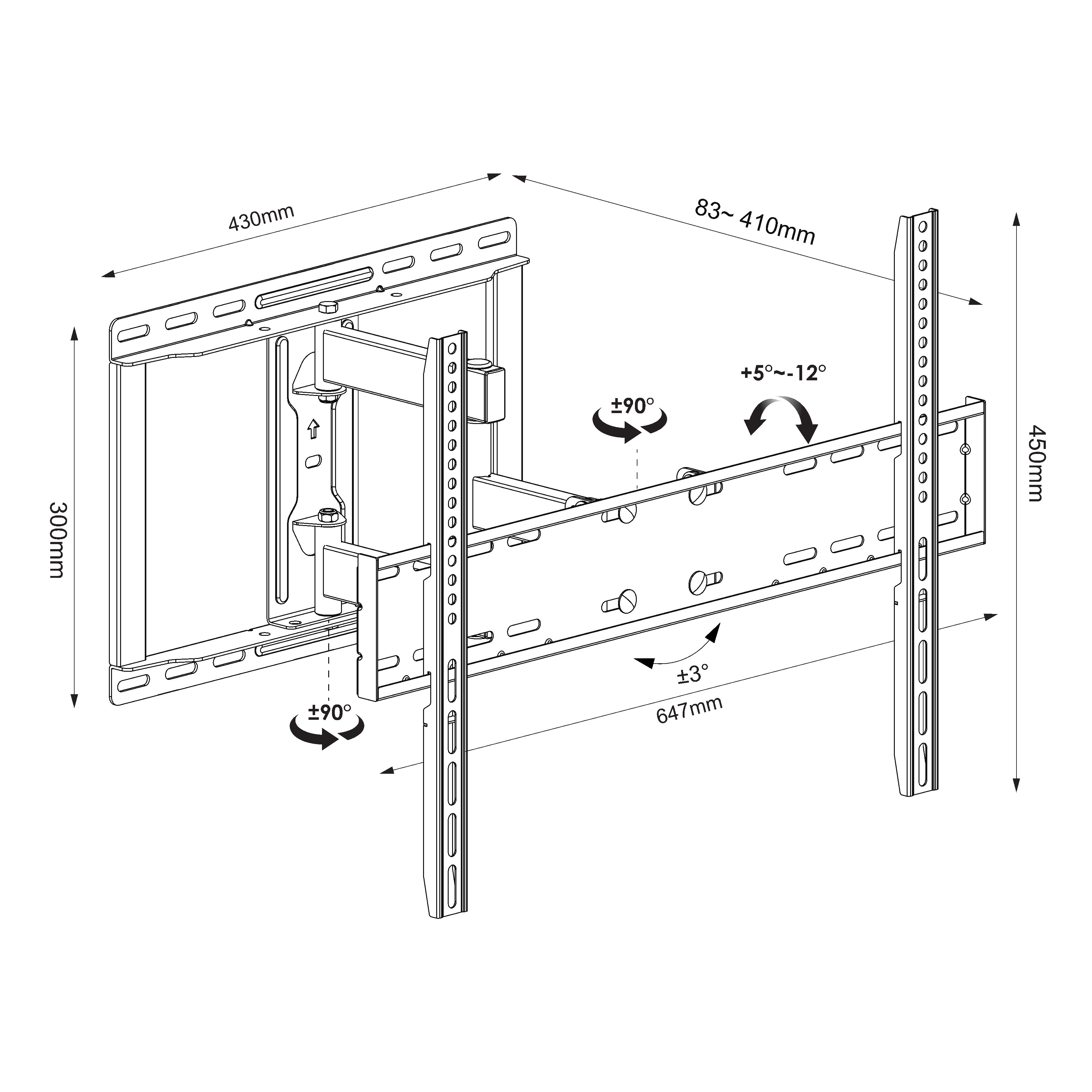

• Distance from the wall: min. 83 max 411 mm

• Tilt: + 5 ° - 12 °

• Rotation: + 90 ° - 90 °

• Screen Leveling: + 3 ° - 3 °

• Integrated cable management

Package contents

• Wall bracket for LED/LCD TV 32 - 75  ICA-PLB 3154 B
• Assembly material
• Installation manual
