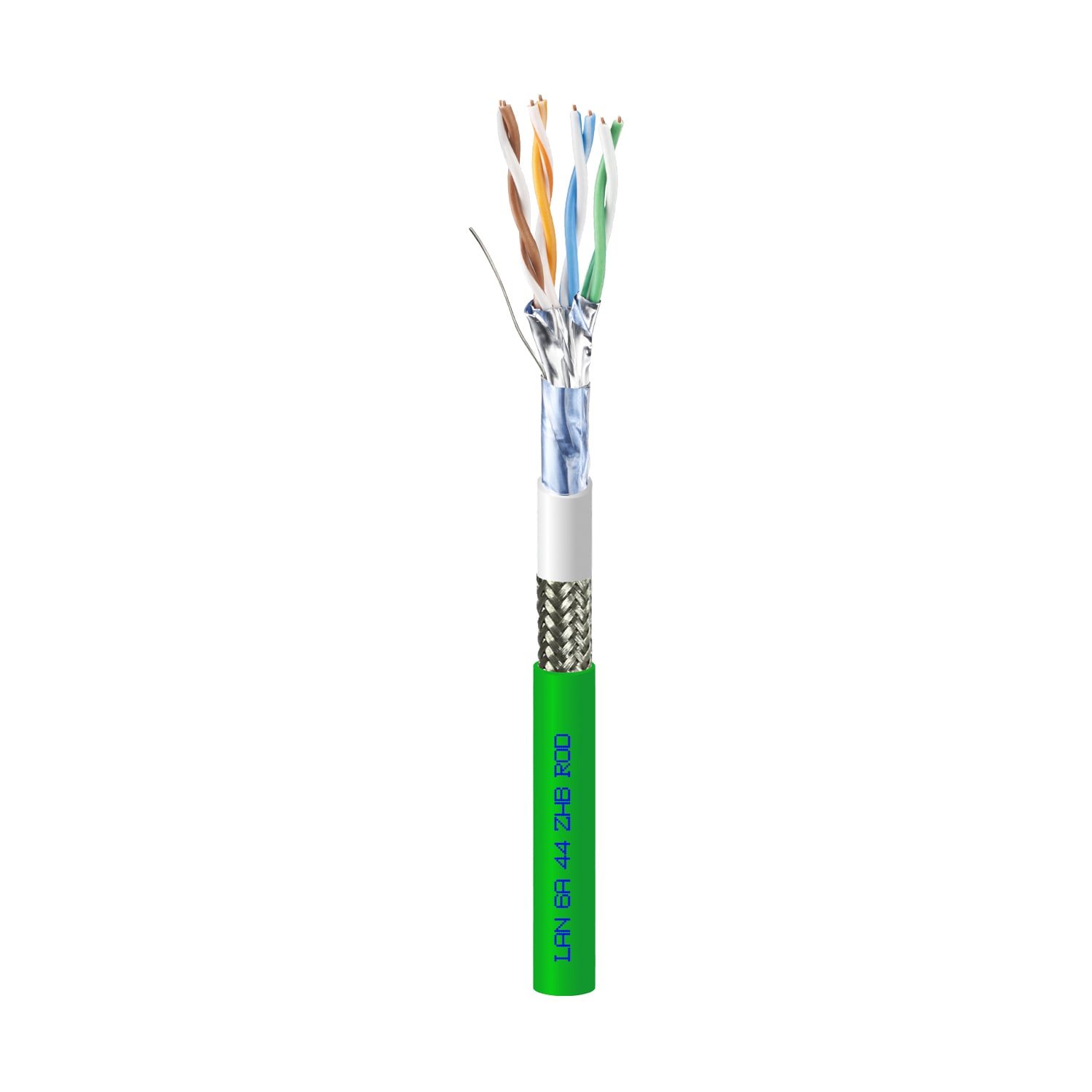

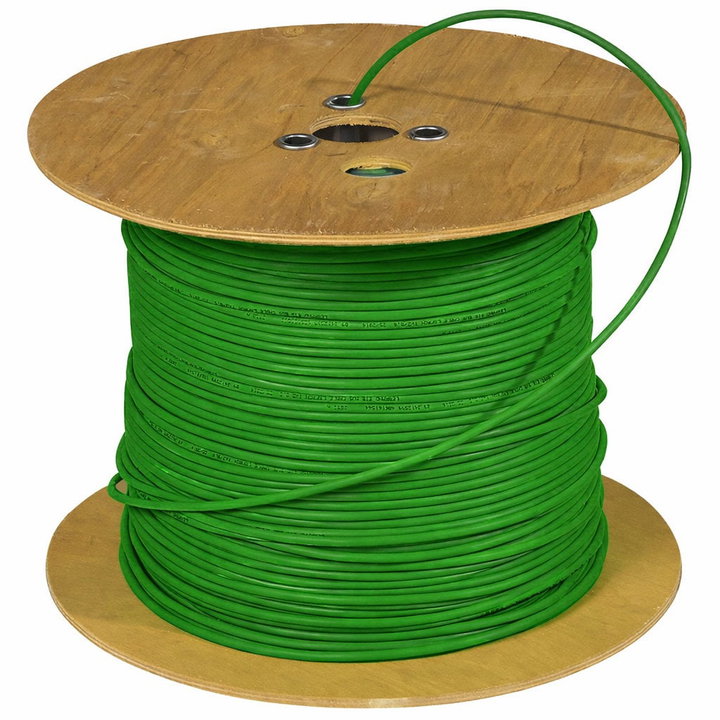

Cat cable 6 A Rigido F/FTP LSZH Armed in Matassa 100 m Green - Cavel ITP 6 AF- 100 LZ-ARM

•

• CAT LAN cable. 6 A F/FTP with anti-roditor braid for internal and external laying

• Suitable for the parallel or near passage of electrical cables, without compromising the integrity of the data signal

• 4 rigid cable braided pairs with red copper conductor (4 x 2 xAWG 23); LSZH outer sheath

• Standards: ISO/IEC 11801 Class Ea; EN 50288 - 10 - 1; EN 50173; EIA-TIA 568; CEI-UNEL 36762 C- 4 (U 0 = 400 V)

• Reaction to fire: EN 50575


Applications

•

• Primary (Campus), Secondary (Riser), Tertiary (Horizontal)

• IPTV; HbbTV 2.0 .n

• IEEE 802.3: 10 Base-T; 100 Base-T; 1000 Base-T; 10 GBase-T

• IEEE 802.5: ISDN; TPDDI; ATM; CATV; Broadband Video; PoE/PoE+

• Inner and Outdoor Laying


Features

•

• AWG 23 / 1 hard cable

• impedance: 100 Ohm ± 5

• Installation temperature: 0 + 50 °C

• Operating temperature: - 20 + 80 °C

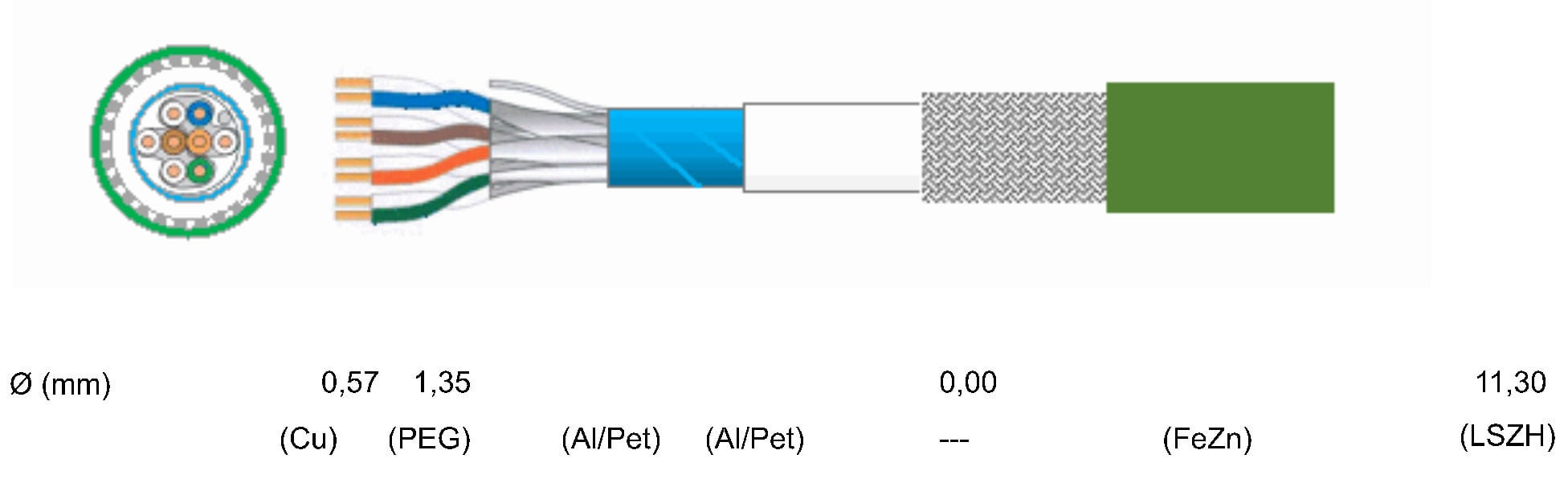

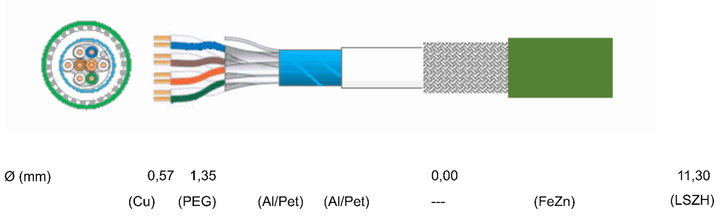

• 4 pairs with red copper conductor (Cu), diameter 0,57 mm

• Insulation made of gas foam polyethylene (PEG) diameter 1,35 mm

• Aluminum/Polyester tape inverted spiral wrapped (Al/Pet)

• Outer sheath made of white thermoplastic polymer (LSZH) diameter 8,30 mm

• Armor sheath made of thermoplastic polymer green (LSZH) diameter 11,30 mm

• With metric scale

• Length: 100 m

• Color: green (RAL 6018)


Certifications

•

• CE

• RoHS
