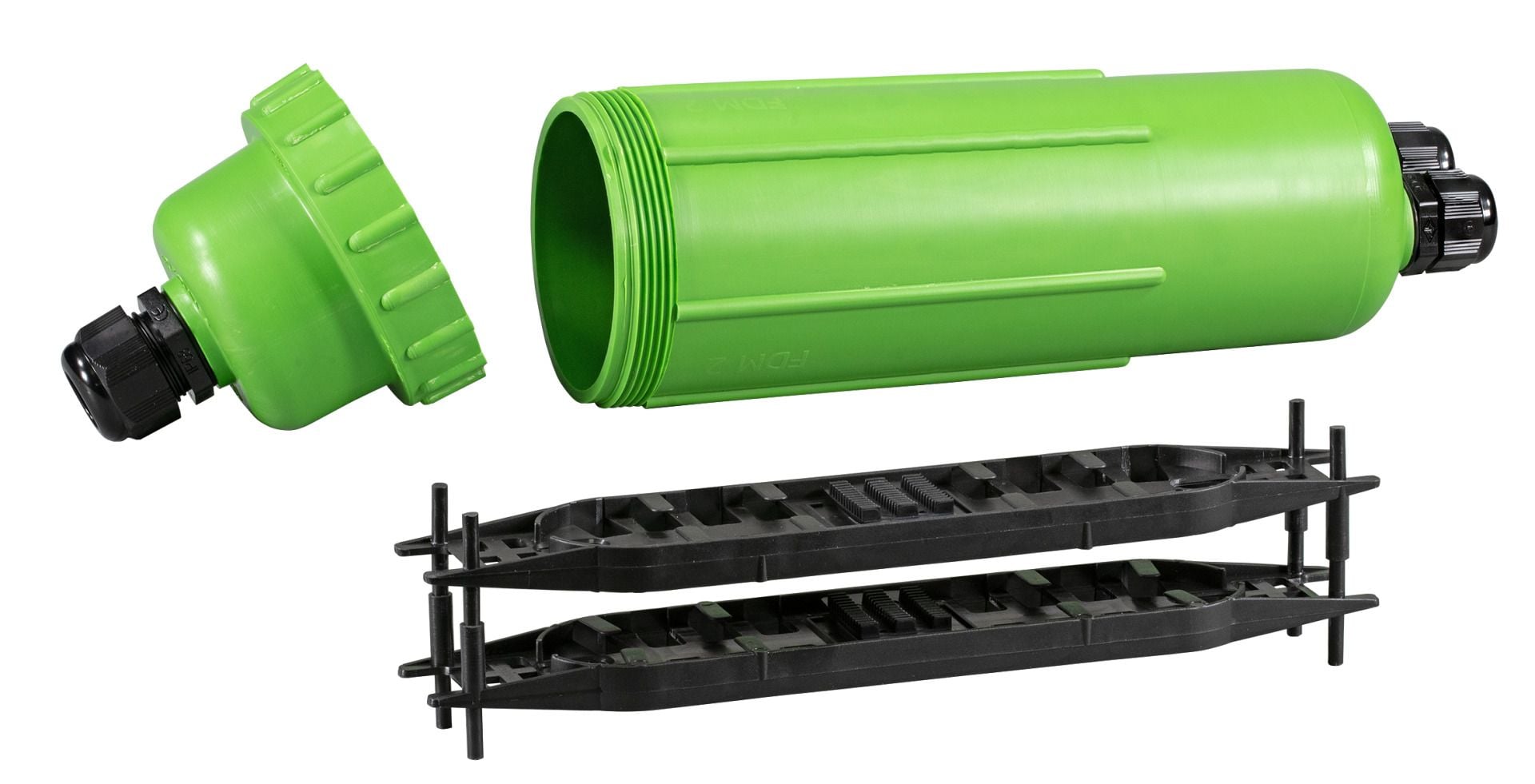

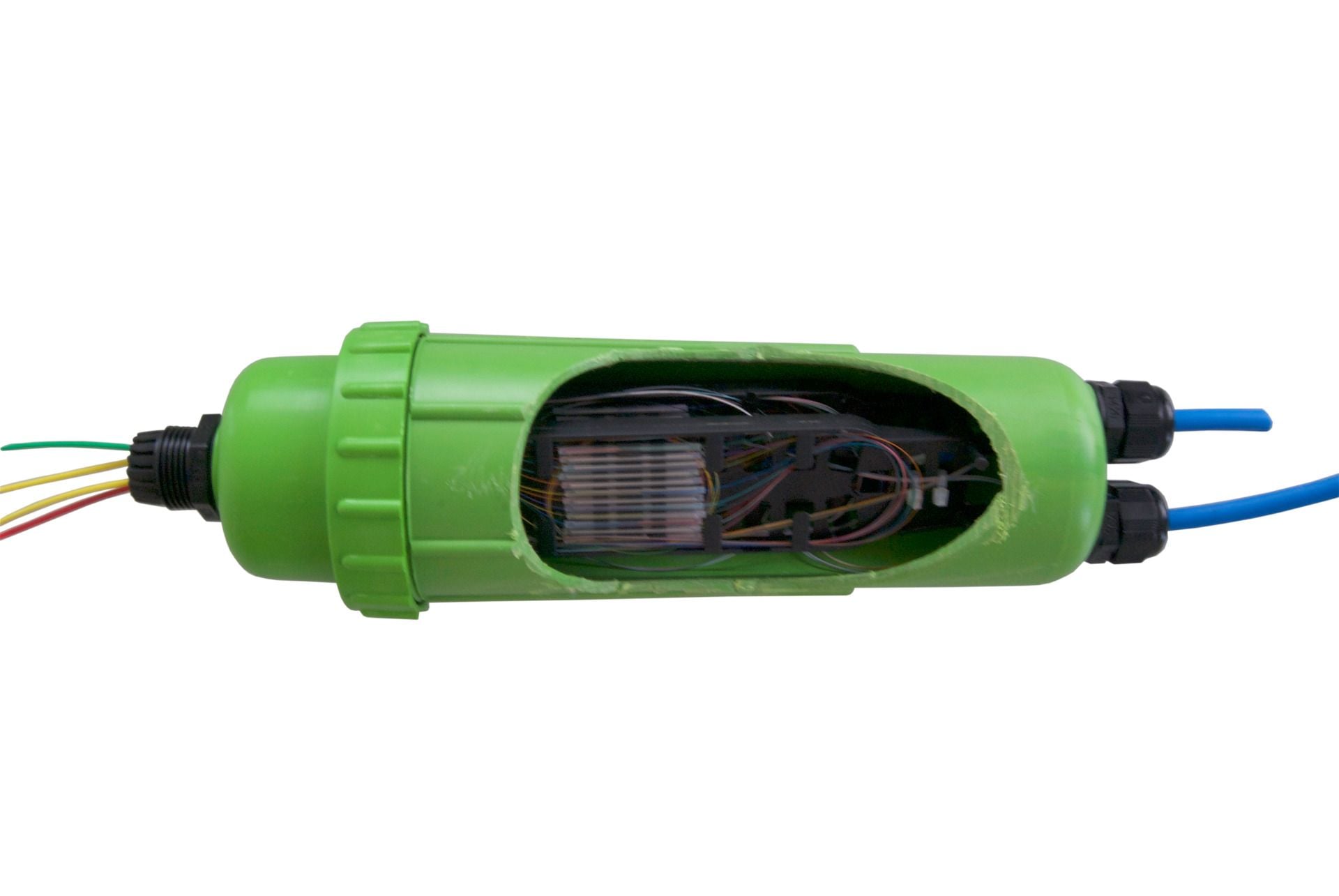

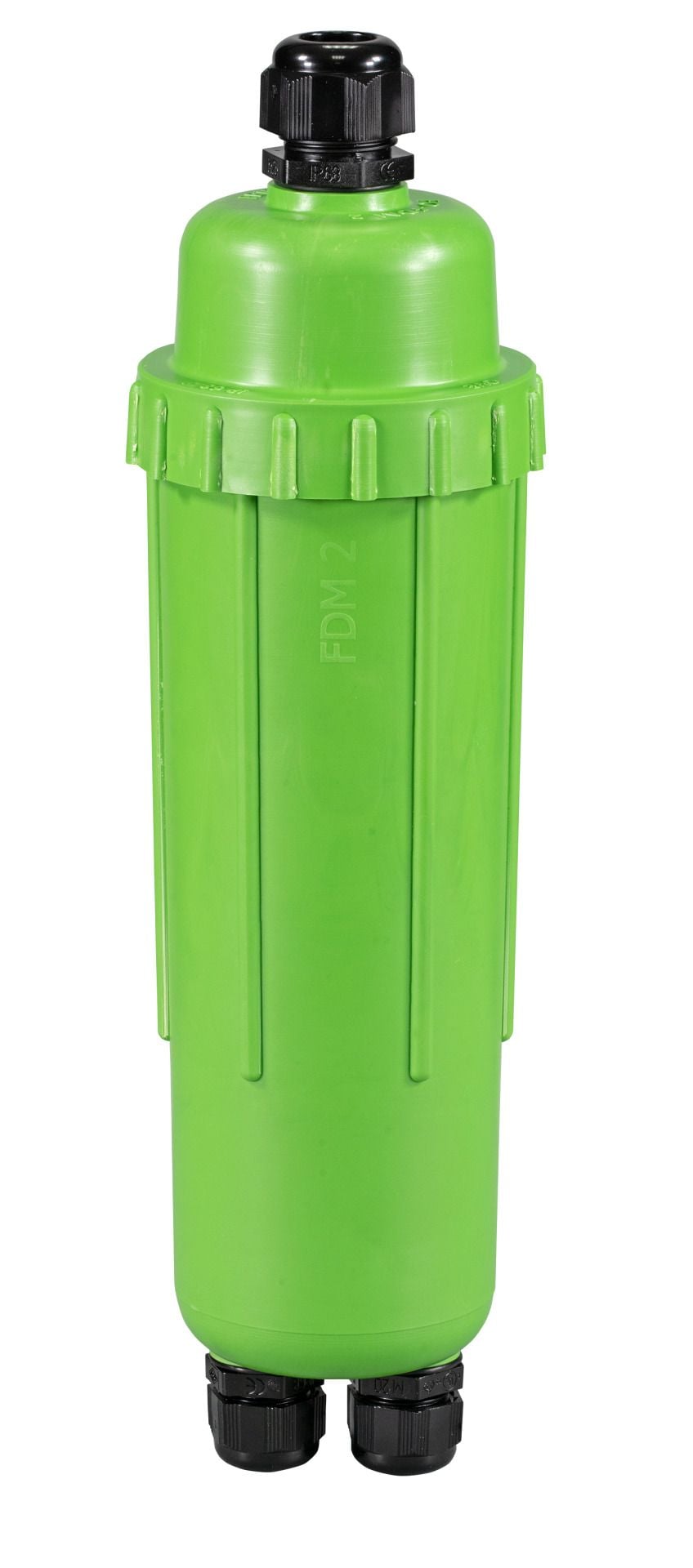

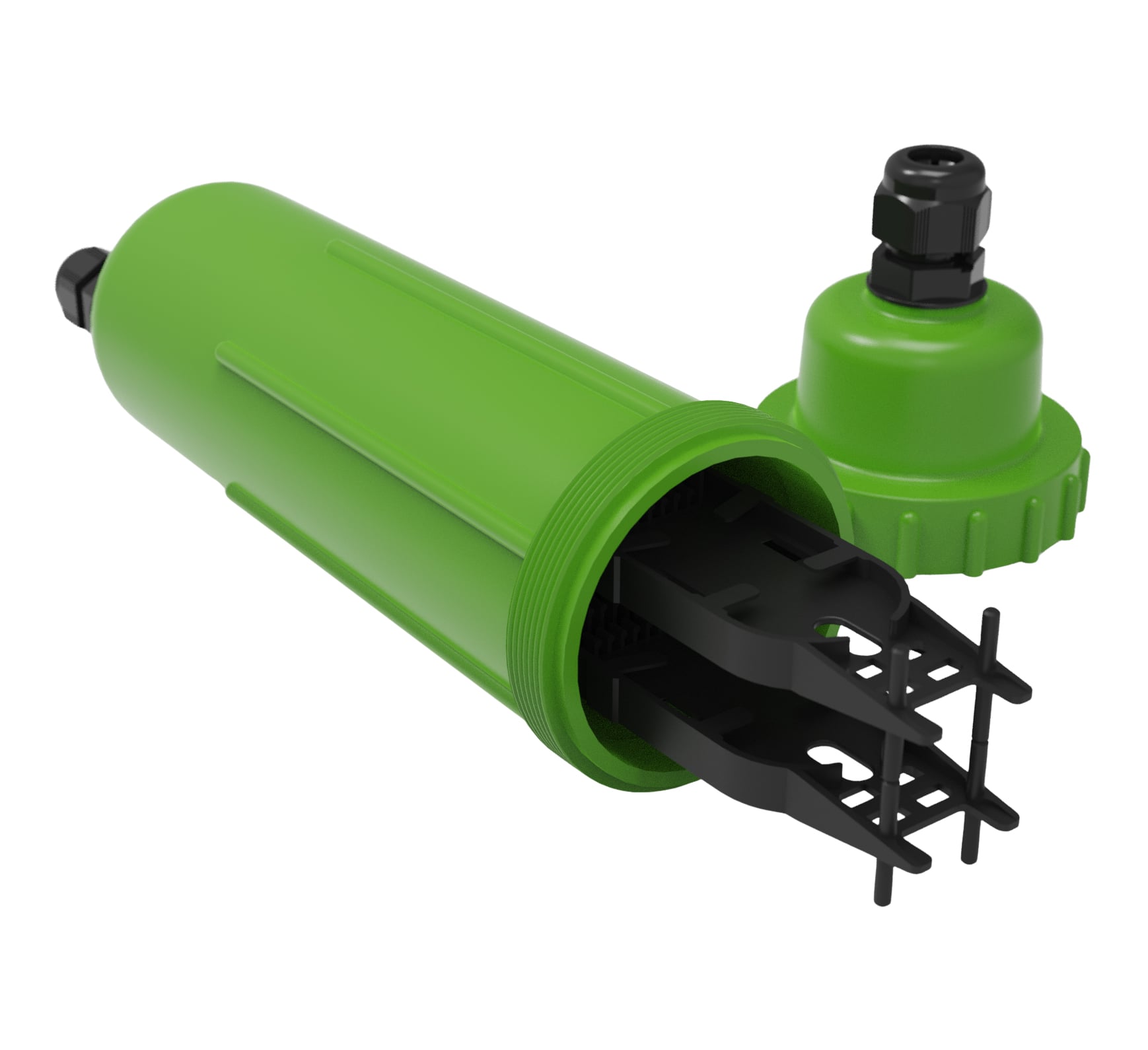

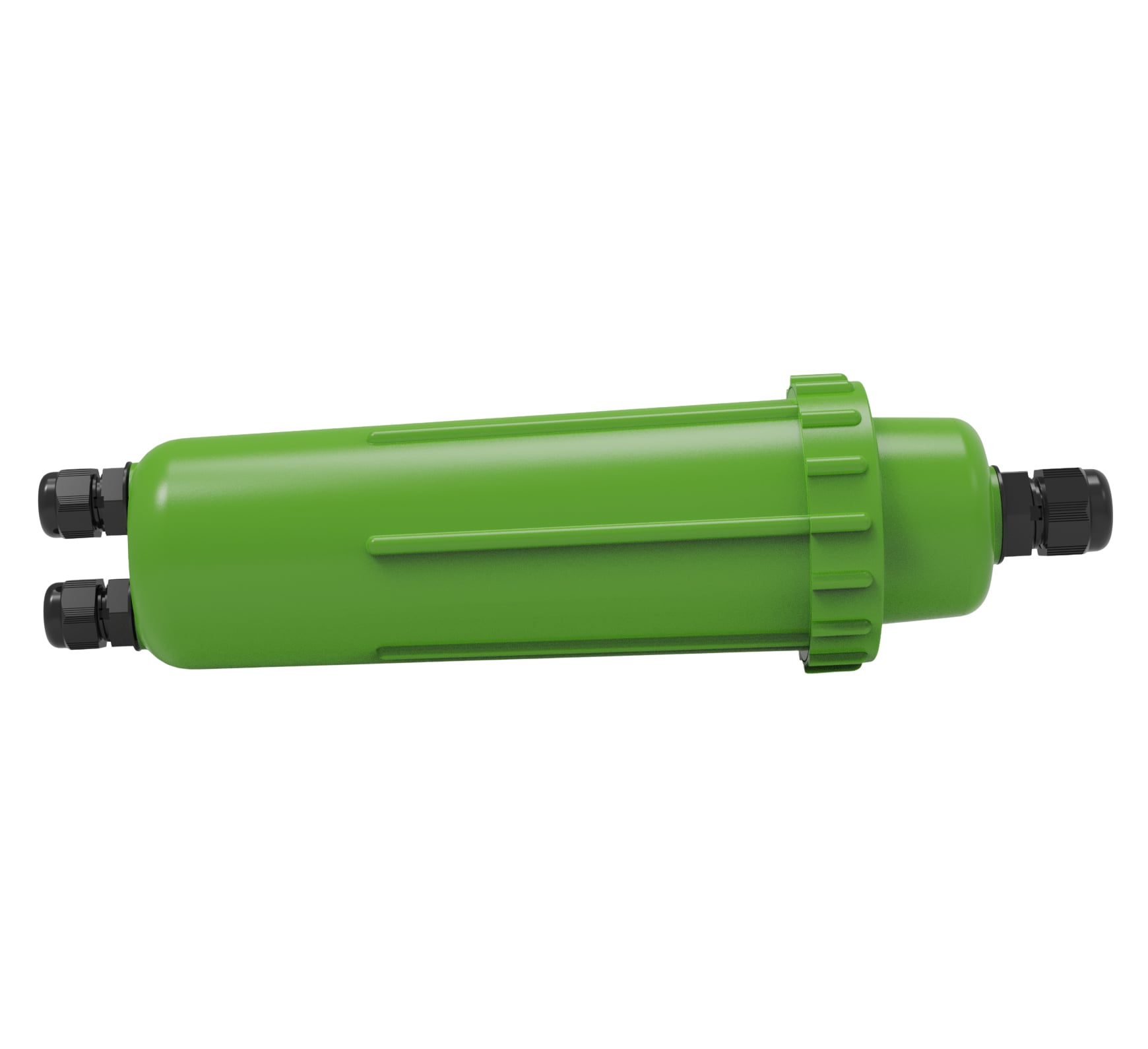

External Fiber Optic Joint Box up to 48 Fibers, crimp - I-CASE FO-OUTP48CG

• External box with 3 entries for joining or connecting fiber optic cables 2x M20 and 1x M25; supports up to 48 fibers

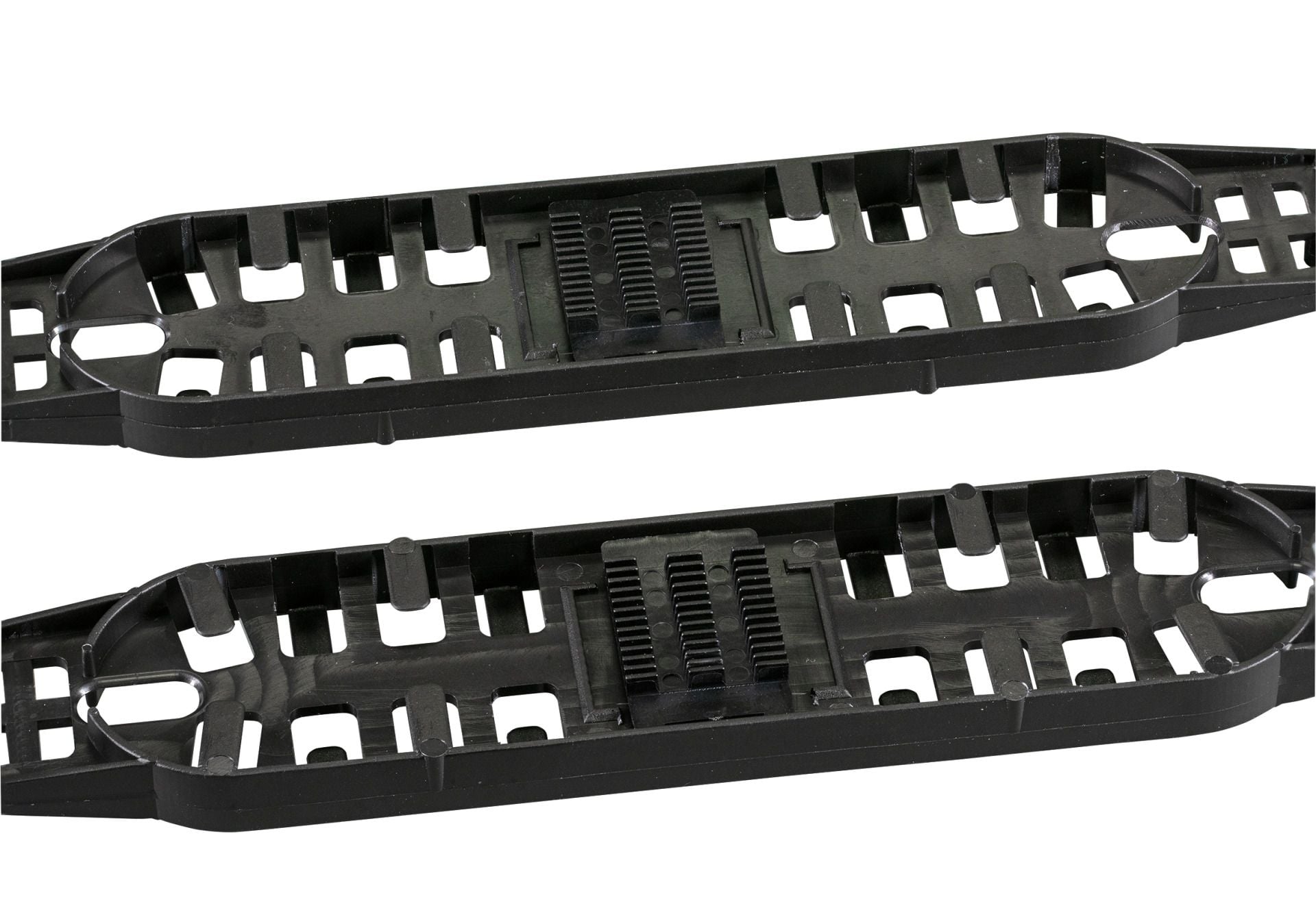

• Includes 4 joint holders
• Suitable for underground installations

Technical Features

• Bending diameter of the fiber holder: 36 mm
• Cable diameter: 2x 7-13. 1x 11-17 mm
• Cable gland: 2x M20 and 1x M25
• Direct burial: yes
• Inputs/Outputs: 3
• Number of joint holders: 4
• Housing diameter: 101 mm
• Housing length: 360 mm
• Maximum fiber storage length: 180 mm
• Material: polypropylene (PP 4408)
• Gaskets in thermoplastic elastomer and Sconablend
• Junction box: integrated
• Splice holder: crimp
• Closure type: release closure
• Tensile/compression strength: 55 N
• Protection rating: IP68
• UV resistant: Yes
• Operating temperature: -30 – 65 °C
• Suitable for number of fibers: 48
• Color: green

Dimensions

• Width: 360 mm
• Depth: 101 mm
• Height: 101 mm

Package Contents

• External Joint Box, up to 48 Fibers, crimp I-CASE FO-OUTP48CG
