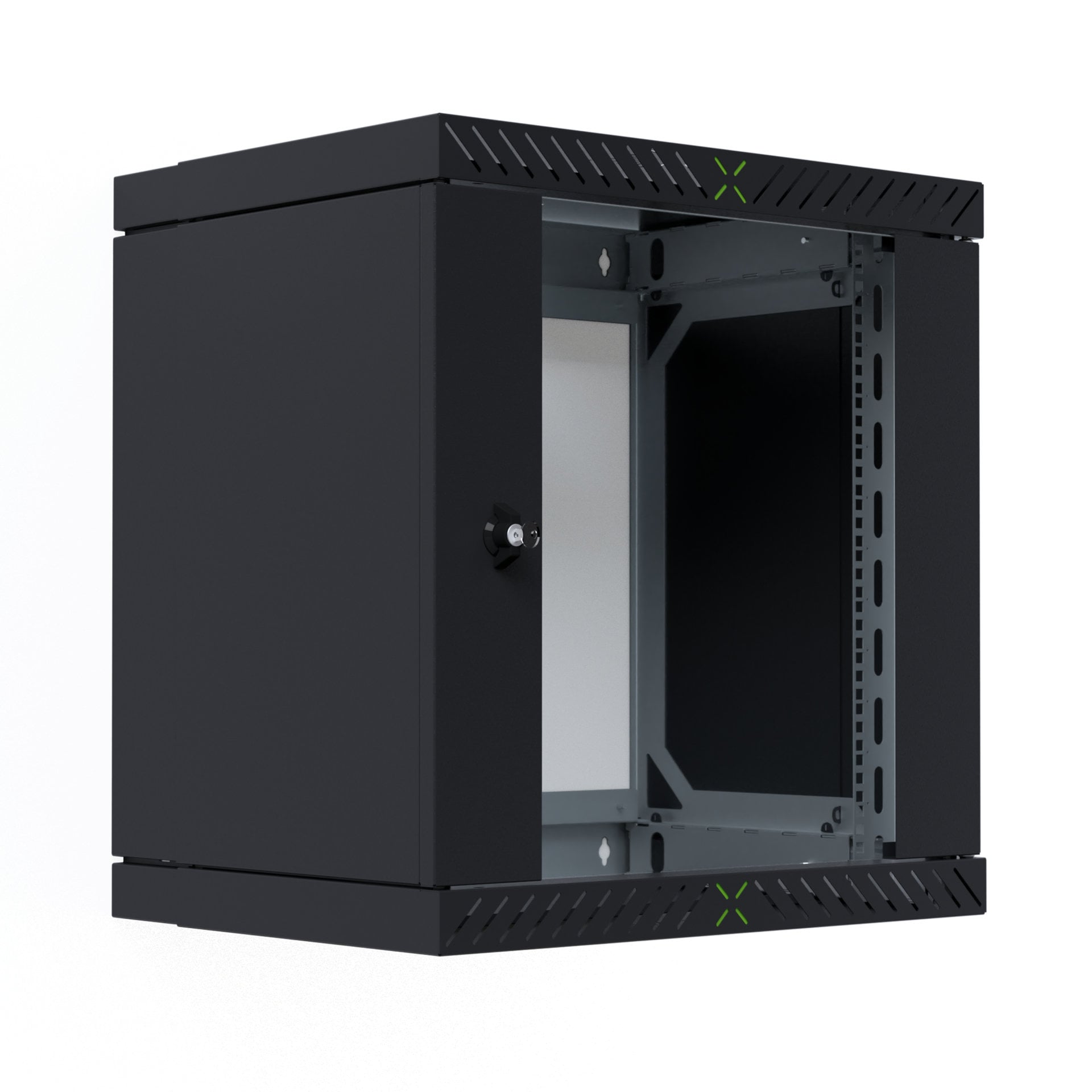

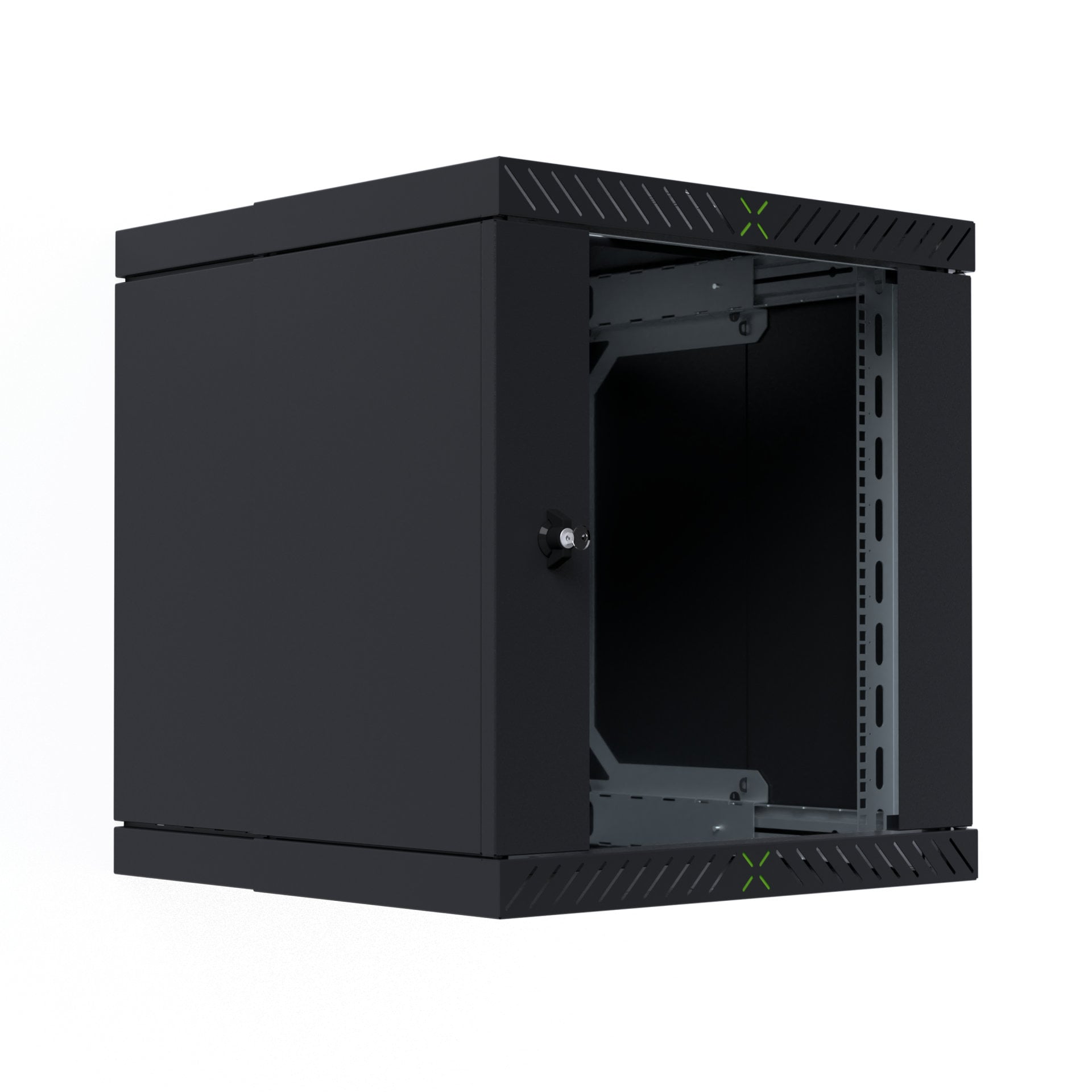

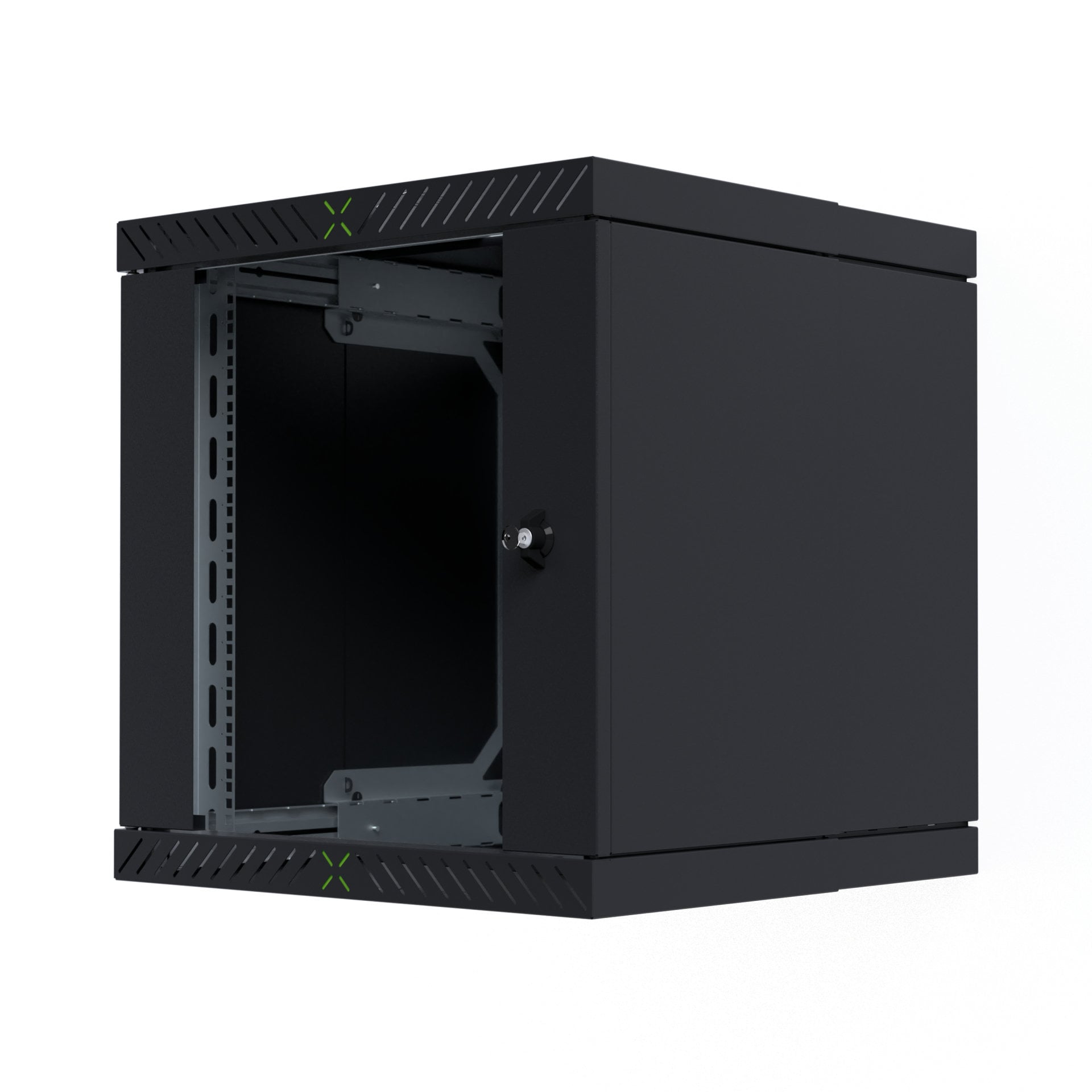

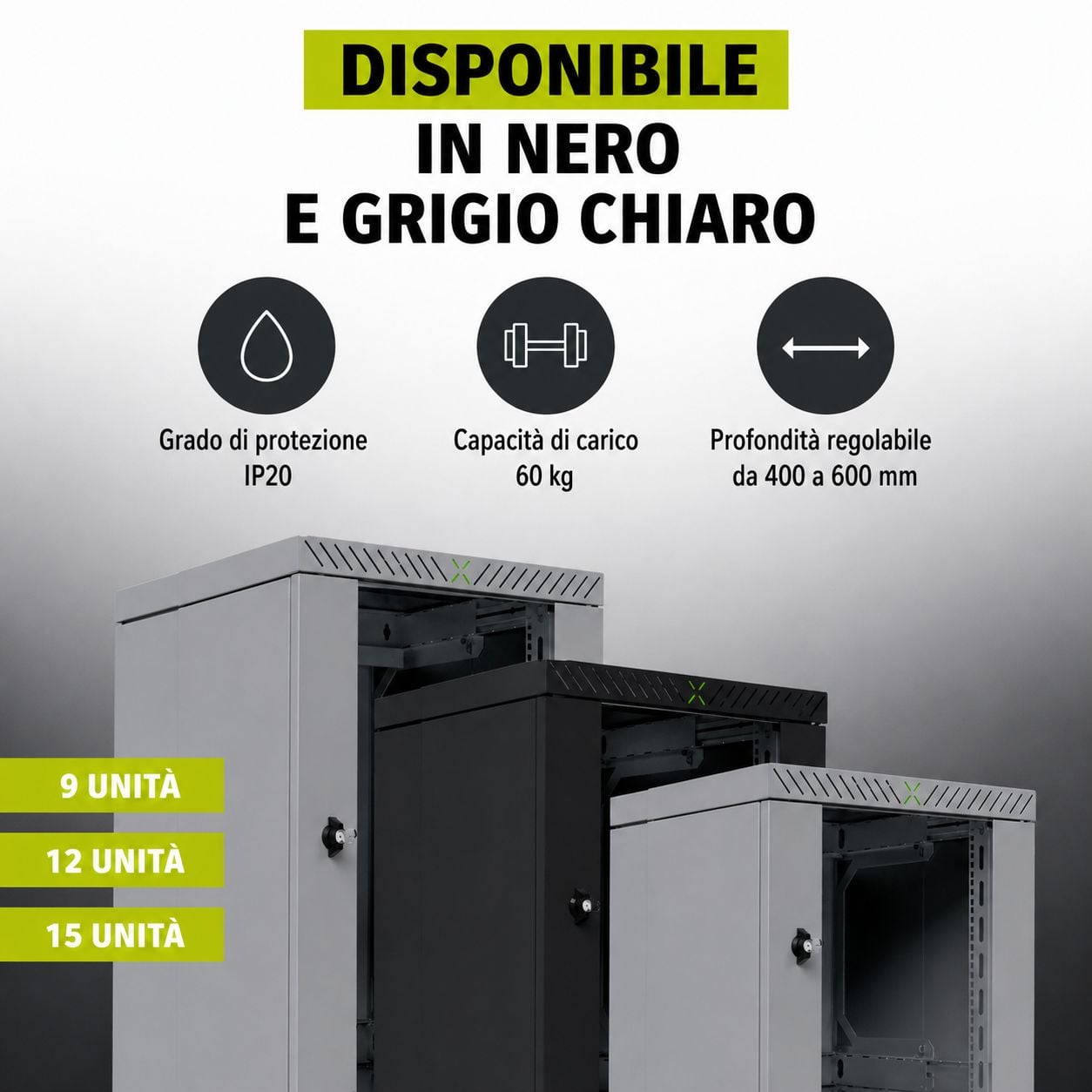

19" Wall Mount Rack Cabinet 12U Unassembled Depth 400-600 mm Black - X-Rack I-CASE EWX-2012BK

•

• Wall mount cabinet 12U black RAL9005 with glass door 400-600 mm

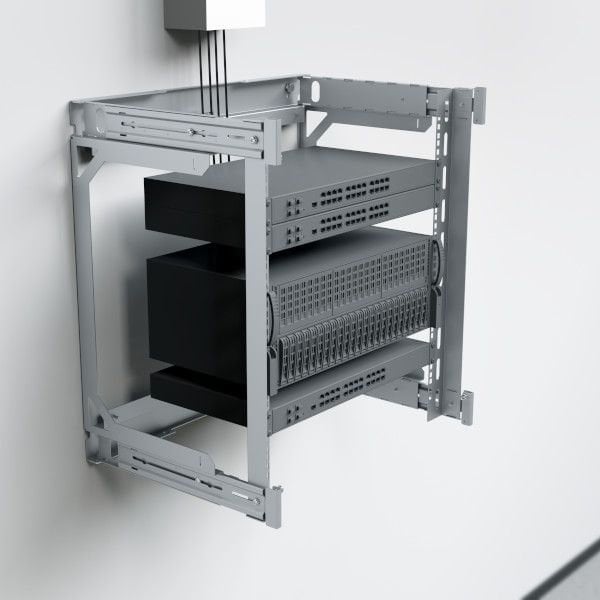

• Offers 360-degree access to components during installation

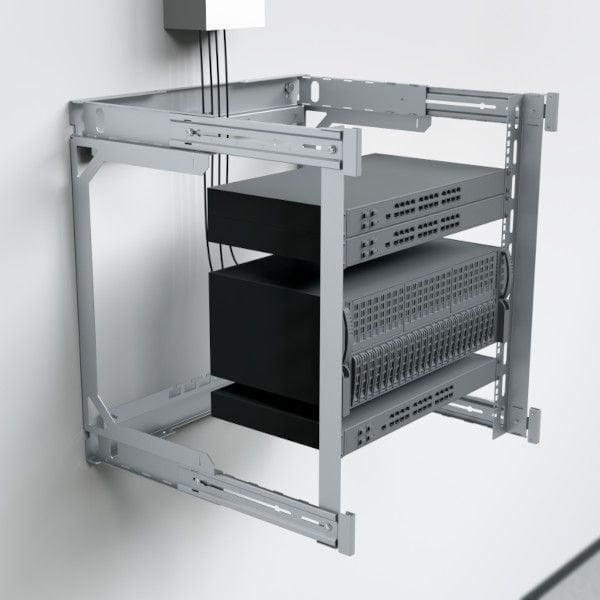

• It is possible to slide the depth of the rear frame to obtain maximum freedom of movement and optimal access to components from every side

• The cabinet can be assembled effortlessly by one person

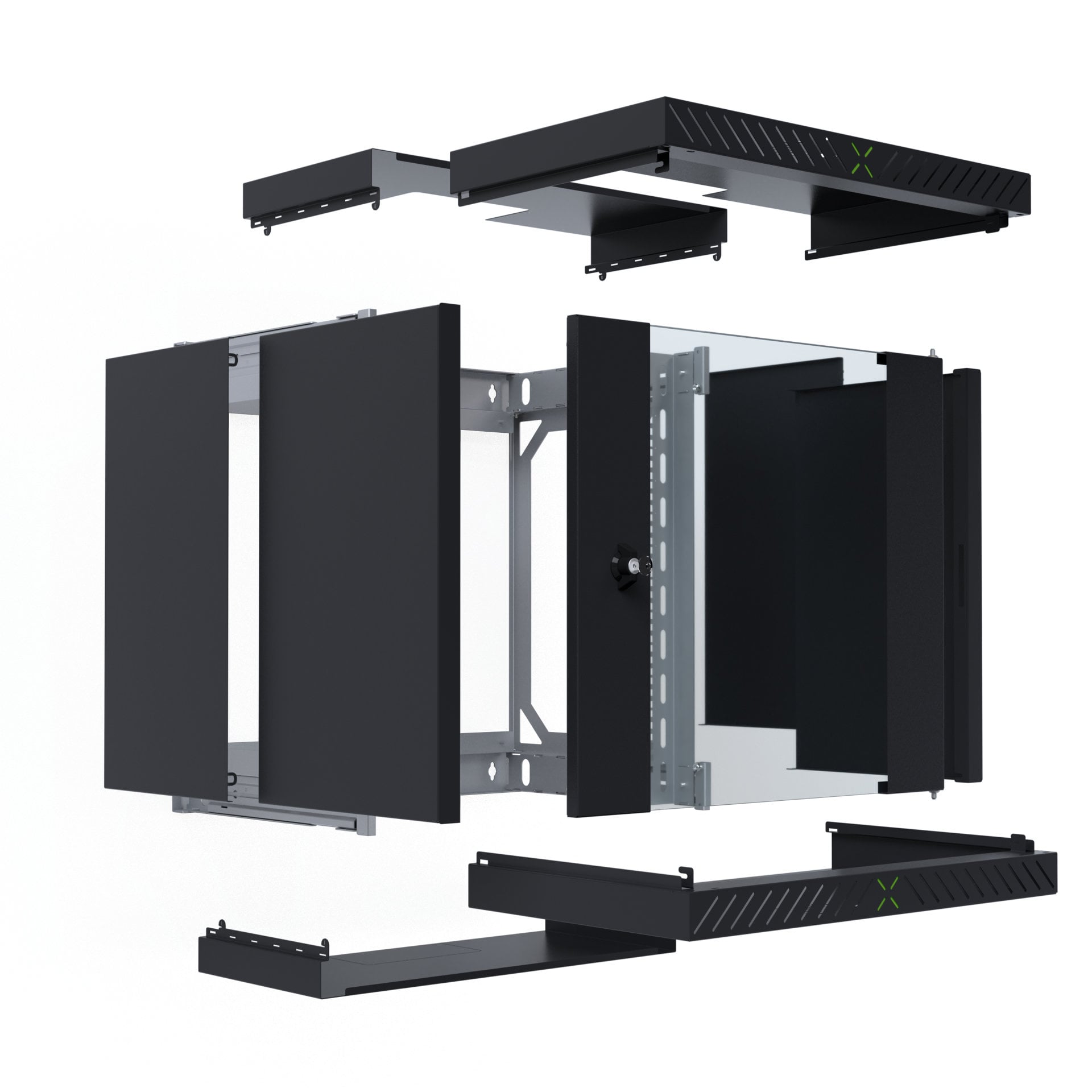

• Sheet steel housing with swiveling frame, self-ventilating, not pre-assembled

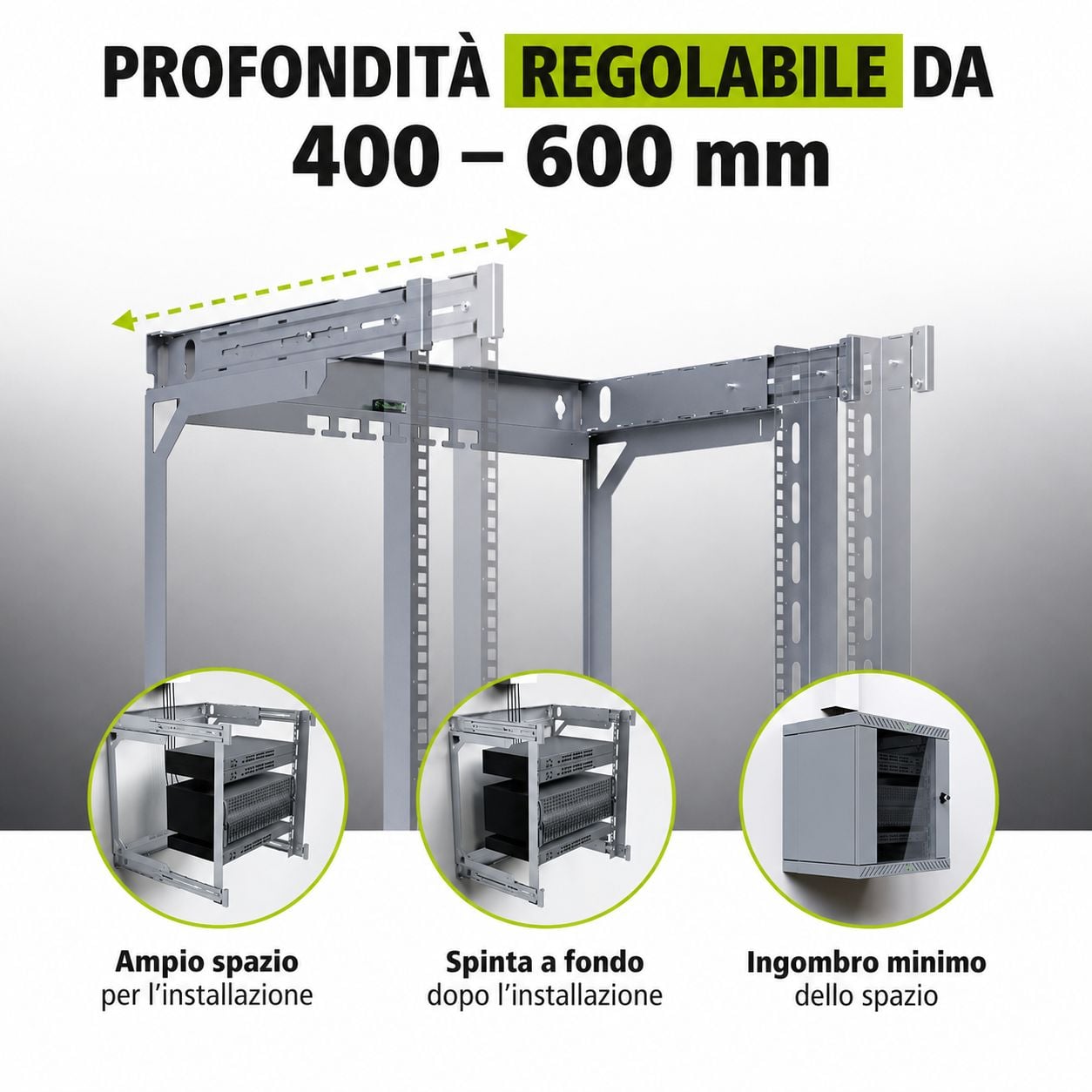

• Adjustable housing depth with adjustable depth at 400/450/500/550/600 mm; installation depth min. - max.: 310 - 510 mm

• Fixed side panels, removable only after opening the front door

• 2 front 19 mounting rails adjustable in depth by 50 mm

• Front door with certified safety glass window (4 mm) and snap closure

• Reversible hinge of the front door

• Interchangeable door stop thanks to sturdy metal spring hinges

• Adjustable door angle thanks to adjustable hinges

• Door opening angle 120°

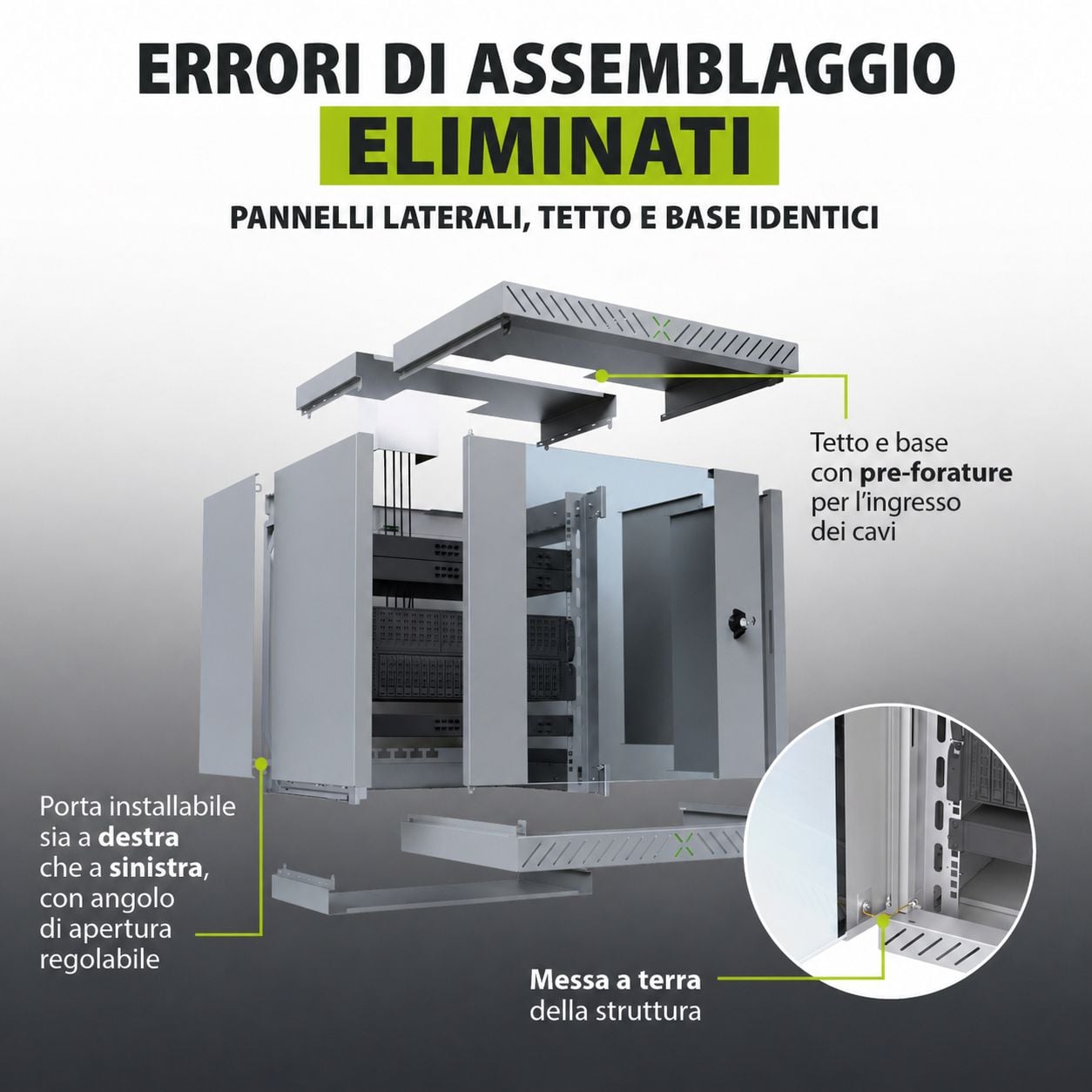

• Top and bottom with pre-drilled holes for cable entry (190 x 90 mm)

• Open rear frame with additional positions for cable management

• Top and bottom prepared for housing a single fan

• Internal parts of the cabinet fully grounded, M5 grounding bolt on the base frame

• Maximum load: 60 kg (statically uniformly distributed)

• Protection rating: IP20

• Material: steel

• Coating: powder-coated

• Color: RAL9005 (black)


Dimensions

•

• Width: 600 mm

• Height: 600 mm

• Depth: 400 - 600 mm


Package contents

•

• Rear frame

• External parts

• Front door

• 2 keys

• 1 grounding cable
