Powerline adapters kit AV 1000 Gigabit Wi-Fi 6 Dual Band AX 1500 - TP-Link ICTP-TL-WPA 7817 K

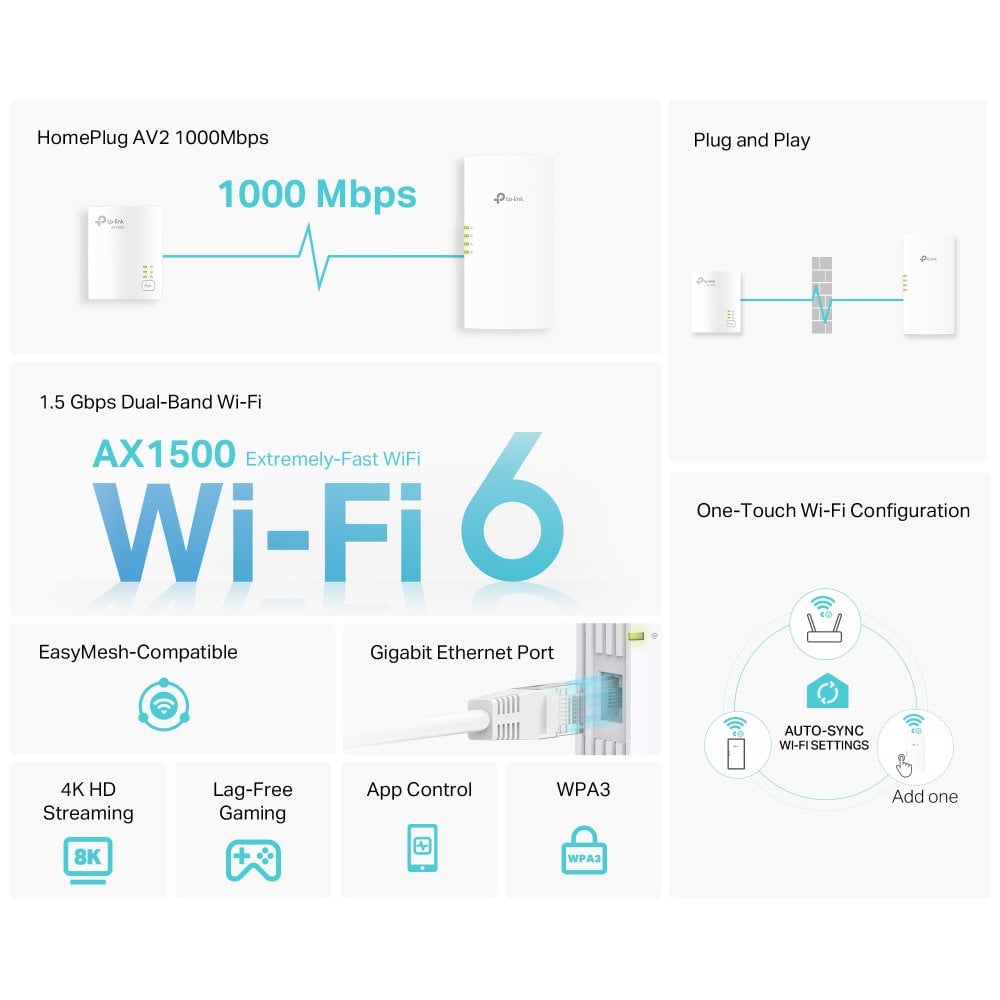

• Extends AX 1500 and Gigabit Wi-Fi network
  to each room

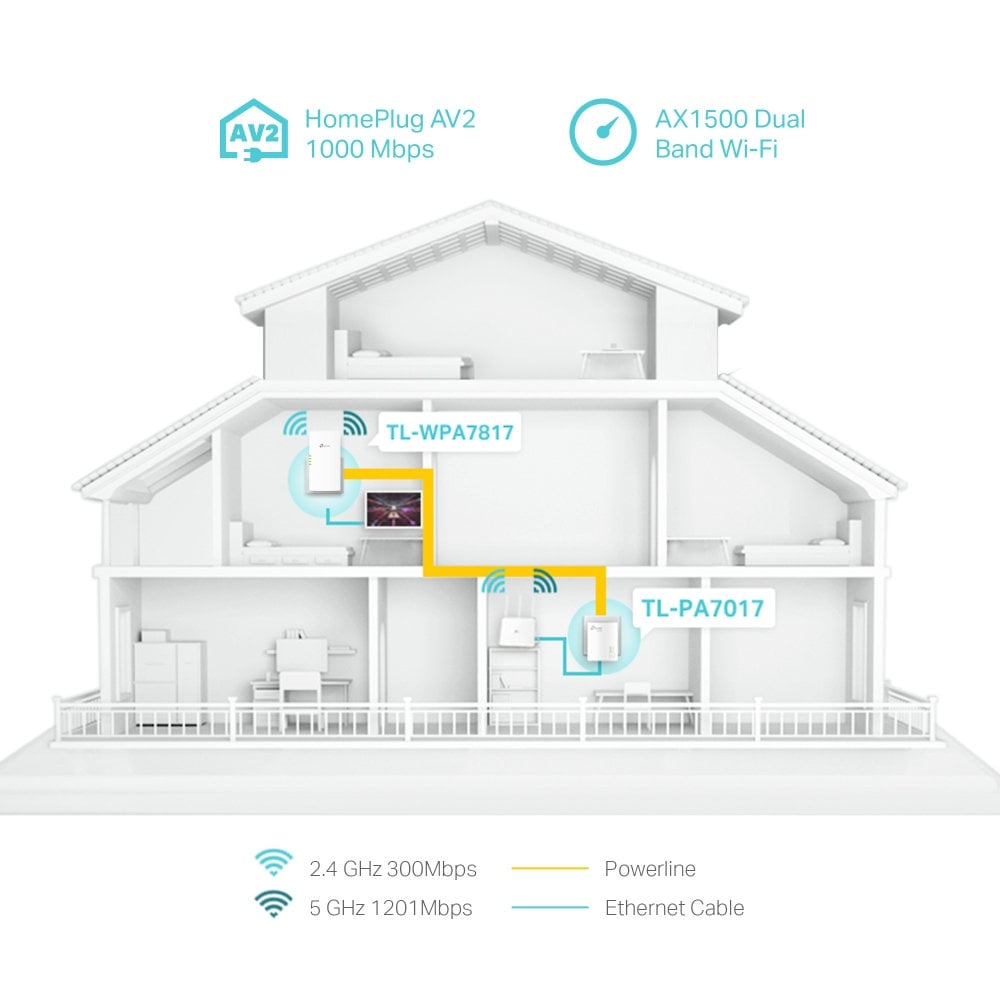

• TL-WPA 7817 Kit transforms the power grid into a high-speed Gigabit network `, bringing wired connection and Wi-Fi wherever there is an electrical socket
• Provides a Wi-Fi connection and stable high-speed wired; providing data transmissions up to 1000 Mbps on the electric cable length up to 300 meters
• Stable and reliable data transmissions for HD streaming, online gaming sessions and large file downloads
• No invasive technical intervention for the installation of network cables
• The è network can overcome obstacles such as thick walls and long distances
• It is possible to expand the coverage by adding other drives; powerline

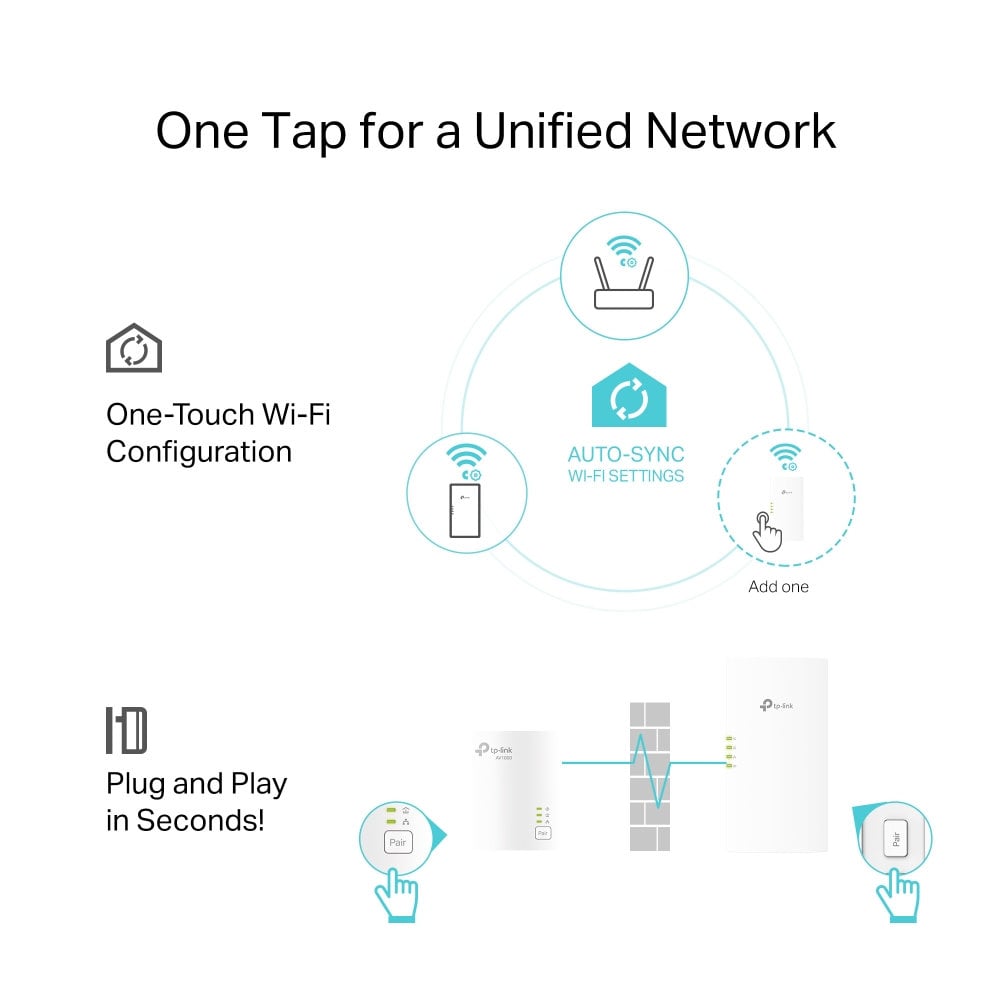

• Wi-Fi One-Touch Configuration: Instantly copy the network name and password from the router for quick and easy configuration; apply changes to the network settings automatically and existing Wi-Fi settings will be synchronized immediately with the new extender
• Plug and play: installs in a few minutes and does not require drivers; just connect the first unità of the kit to the modem and the power supply, then insert the second unità into a power socket and press the Pair key that allows you to easily and quickly copy the security settings of the network
• With Wi-Fi 6 , è technology you can benefit from lower latency and faster 25 data throughput %
• TL-WPA 7817 KIT supports EasyMesh technology: create a unified wireless network without signal interruptions by matching it with an EasyMesh compatible router
• Security: Powerline AES encryption to 128 bit; Wireless WPA-PSK/WPA 2 -PSK, WEP encryption
• Supports Web Server, DHCP, Onemesh, App Management
• No lag from router network to extender network
• Compatible with all standard powerline adapters HomePlug AV and AV 2
• The actual speed of the network could be limited by the speed & agrave; of the Ethernet WAN port or product LAN, the speed & agrave; supported by the network cable, Internet service provider factors and other environmental conditions


Standards and Protocols

•
  HomePlug AV 2
• IEEE 1901
• IEEE 802.3
• IEEE 802.3 u
• IEEE 802.3 ab
• IEEE 802.11 b/g/n (2,4 GHz)
• IEEE 802.11 a/n/ac/ax (5 GHz)

Features

• Velocità Transmission: Powerline up to 1000 Mbps; Ethernet 10 / 100 / 1000 Mbps
• Transmission distance: up to 300 meters on existing electrical cables

• Connector type: EU

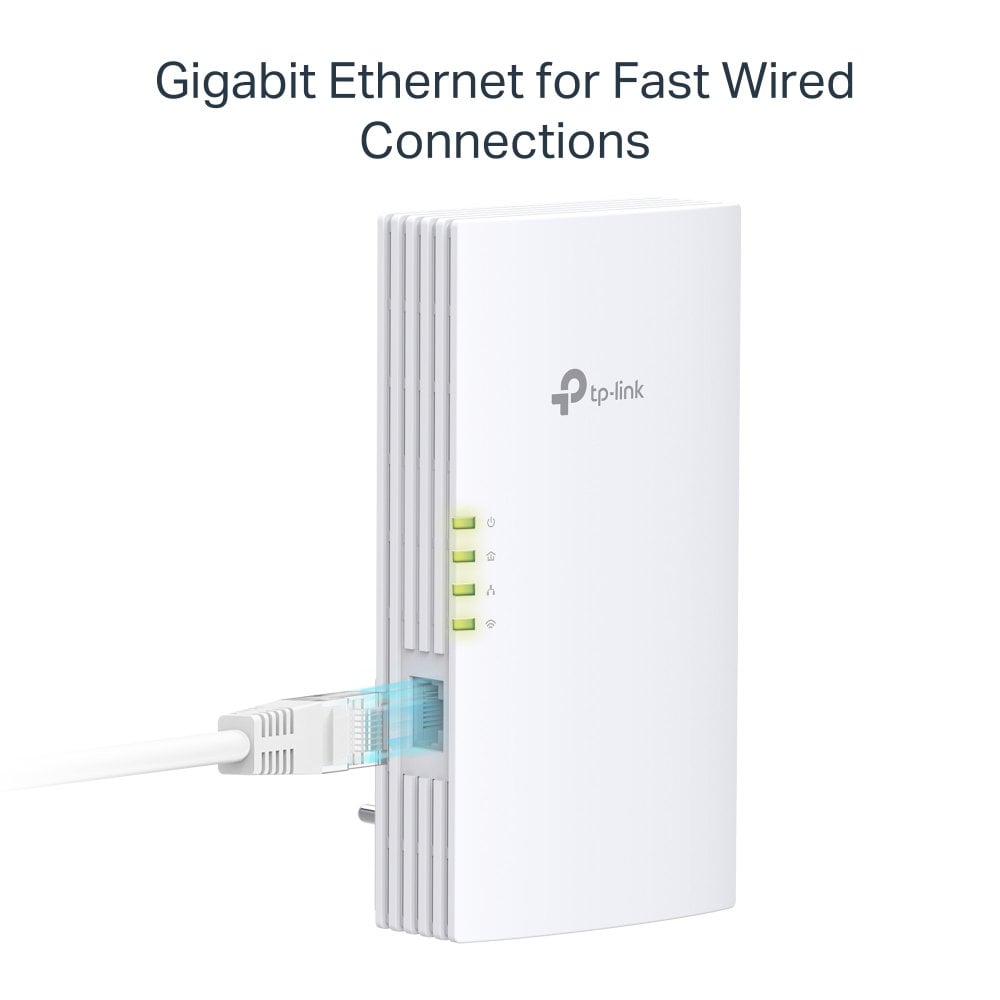

• Interface: TL-WPA 7817 : 1 Gigabit Ethernet port; TL-PA 7017 : 1 Gigabit Ethernet port
• Keys: Pair; Pair and Wifi (only for TL-WPA 7817)
• Match, LED switching on/off, Wi-Fi Cloning, Restore
• LED: Power, Powerline, Ethernet and Wi-Fi (only for TL-WPA 7817)

Energy consumption

• TL-WPA 7817 : Maximum 11 W, Typical: 6,5 W
• TL-PA 7017 : Maximum: 2,9 W, Typical: 2,6 W

Wireless

• Wireless standard TL-WPA 7817 : IEEE 802.11 a/n/ac/ax 5 GHz, IEEE 802.11 b/g/n/ac 2.4 GHz
• Standard wireless TL-PA 7017 : N/A

• Frequency TL-WPA 7817 : 2.4 GHz and 5 GHz
• Frequency TL-PA 7017: N/A

• Velocità signal TL-WPA 7817 : 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
• Velocità signal TL-PA 7017: N/A

Certifications

•
  CE

• Rohs


Operating systems

•
  Windows 10 / 8.1 / 8 / 7 /Vista/XP
• Mac OS
• Linux


Environmental features

•
  Operating temperature: 0 °C~ 40 °C

• Operating Humidità 10 %~ 90 % without condensation

Dimensions TL-WPA7817

•

  Width: 78 mm

• Depthà: 33,9 mm
• Height: 149 mm

Dimensions TL-PA 7017

• Width: 52 mm

• Depthà: 28,5 mm

• Height: 65 mm

Package contents

•

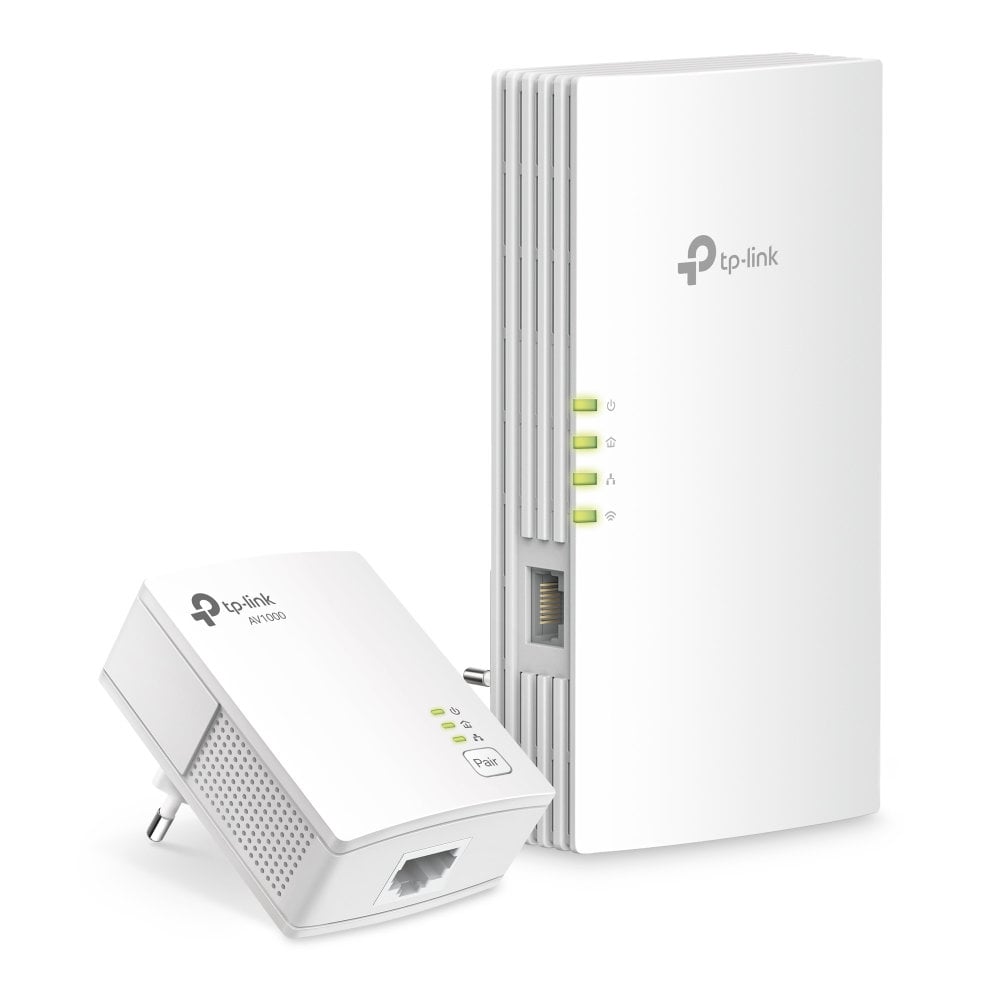

  AX 1500 Powerline Wi-Fi 6 Kit: 1 x TL-WPA 7817 and 1 x TL-PA 7017
• 2 Ethernet cables

• 1 quick guide to installation
