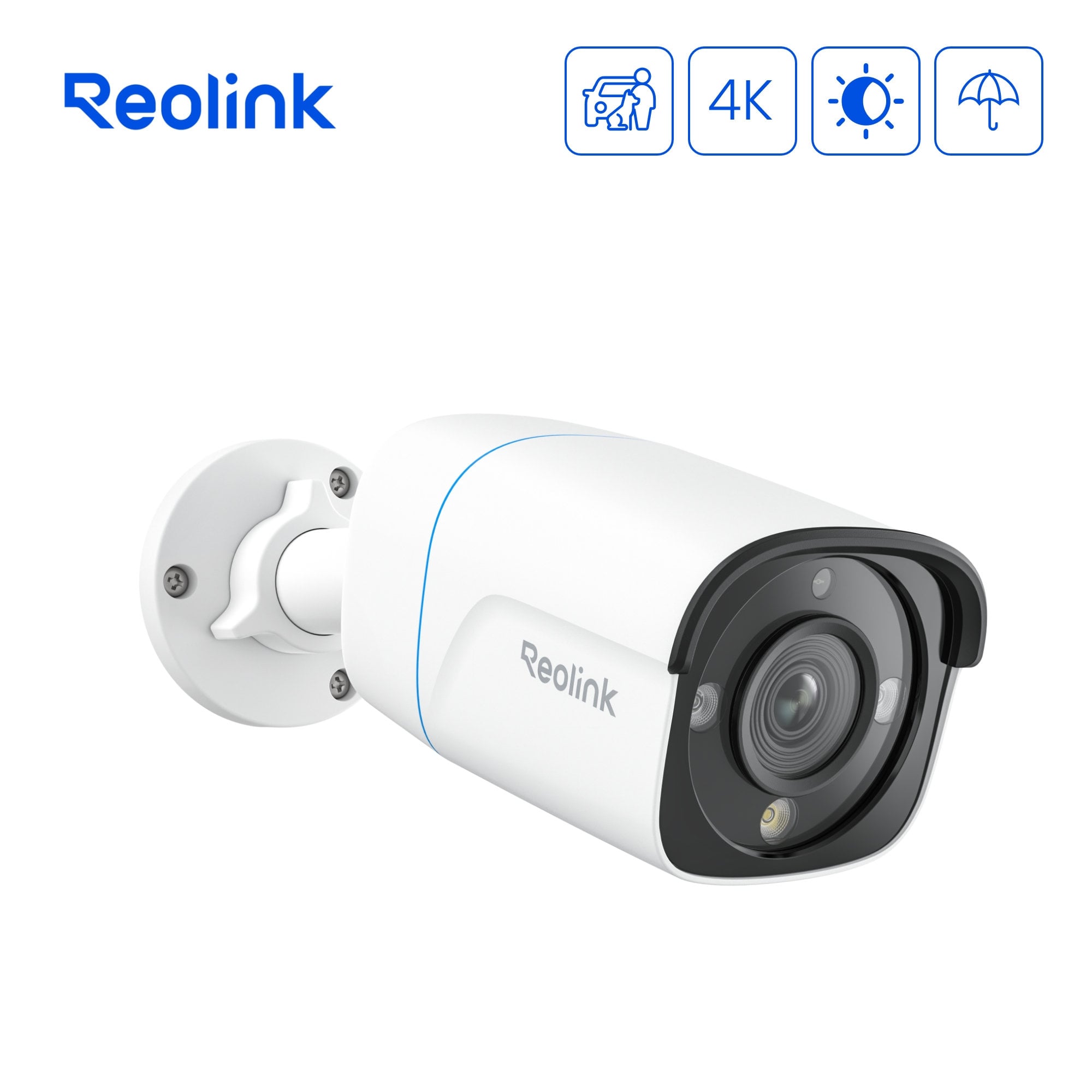

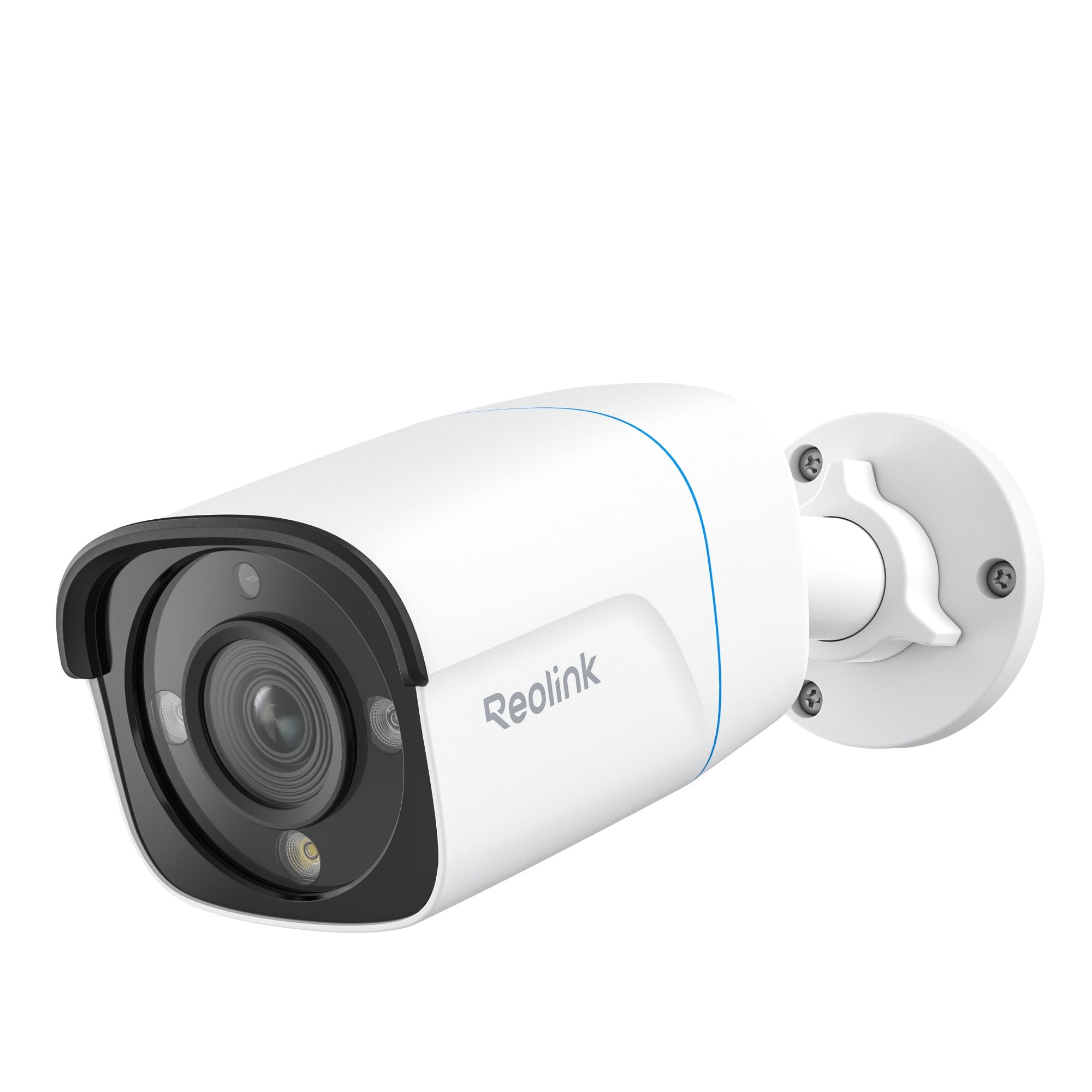

8 MP 4 K PoE IP 67 Smart Detection Professional Series - Reolink ICR-RP-PCB 8 M

• Smart PoE Camera Bullet 8 MP Ultra HD 4 K IP 67 , 8 M PCB, Professional Series
• Detection of persons, vehicle detection, animal detection, movement detection

• Intelligent event detection: object removal detection (Beta), forgotten object detection (Beta)

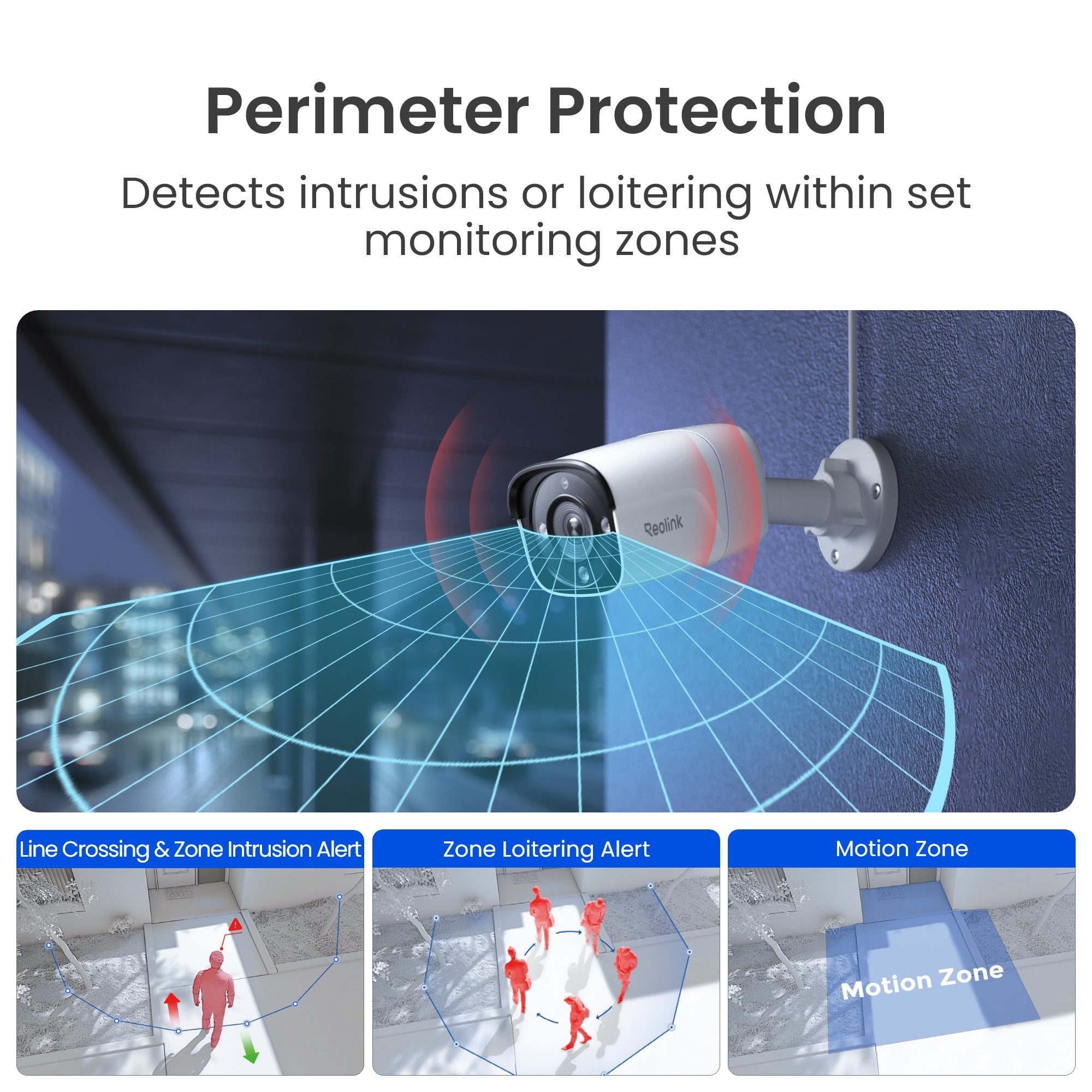

• Perimeter protection: line crossing warning, zone intrusion warning, zone parking warning
  Intelligent detection settings for people, vehicles, animals; detection area

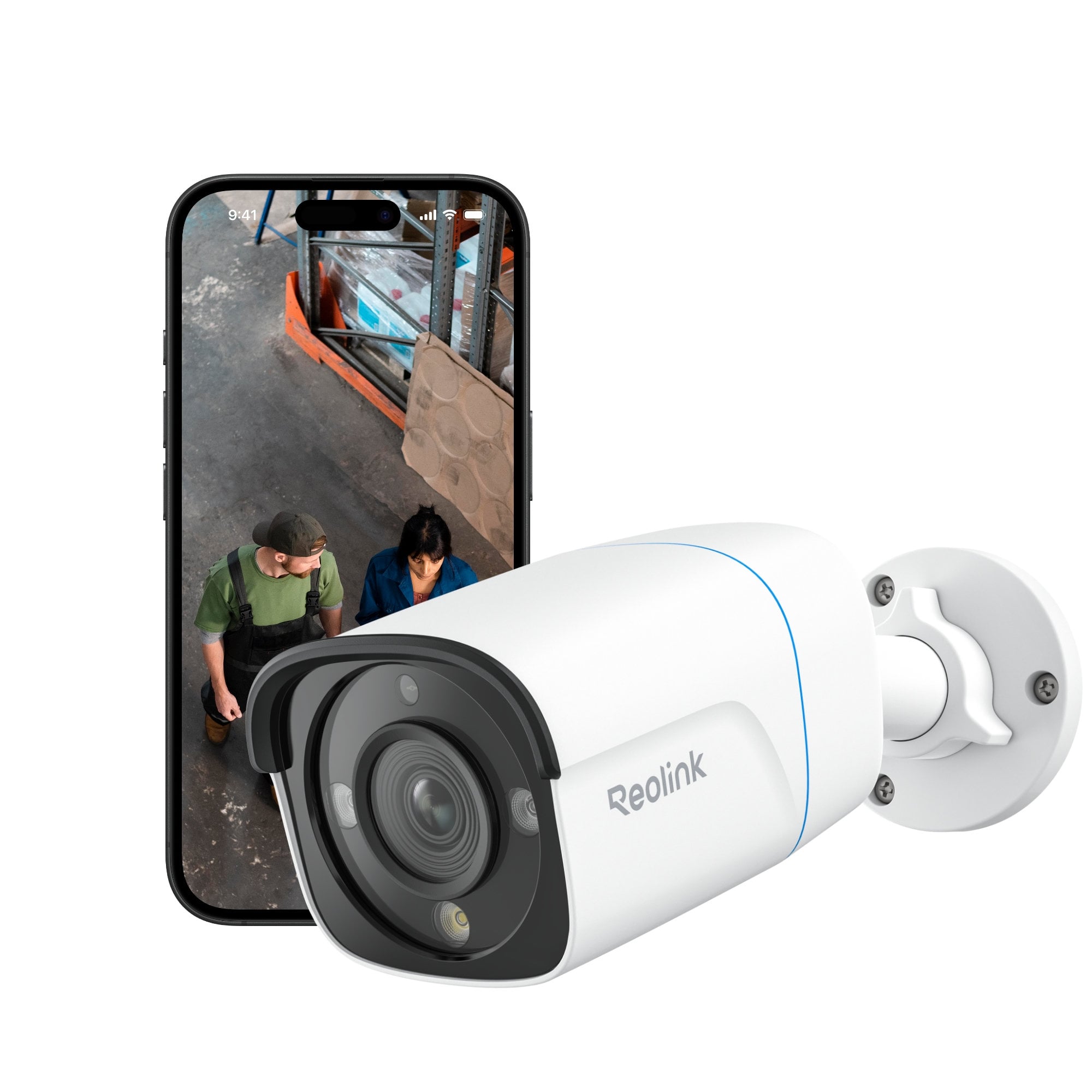

• Fluid VMS system for real-time remote viewing from home or office
• Modelità recording: activated by motion, programmed, 24 / 7
•
  Power over Ethernet (PoE) for simple installation with a single network cable (adaptor not included)

• Infrared LED and spotlight for night vision in black and white or color

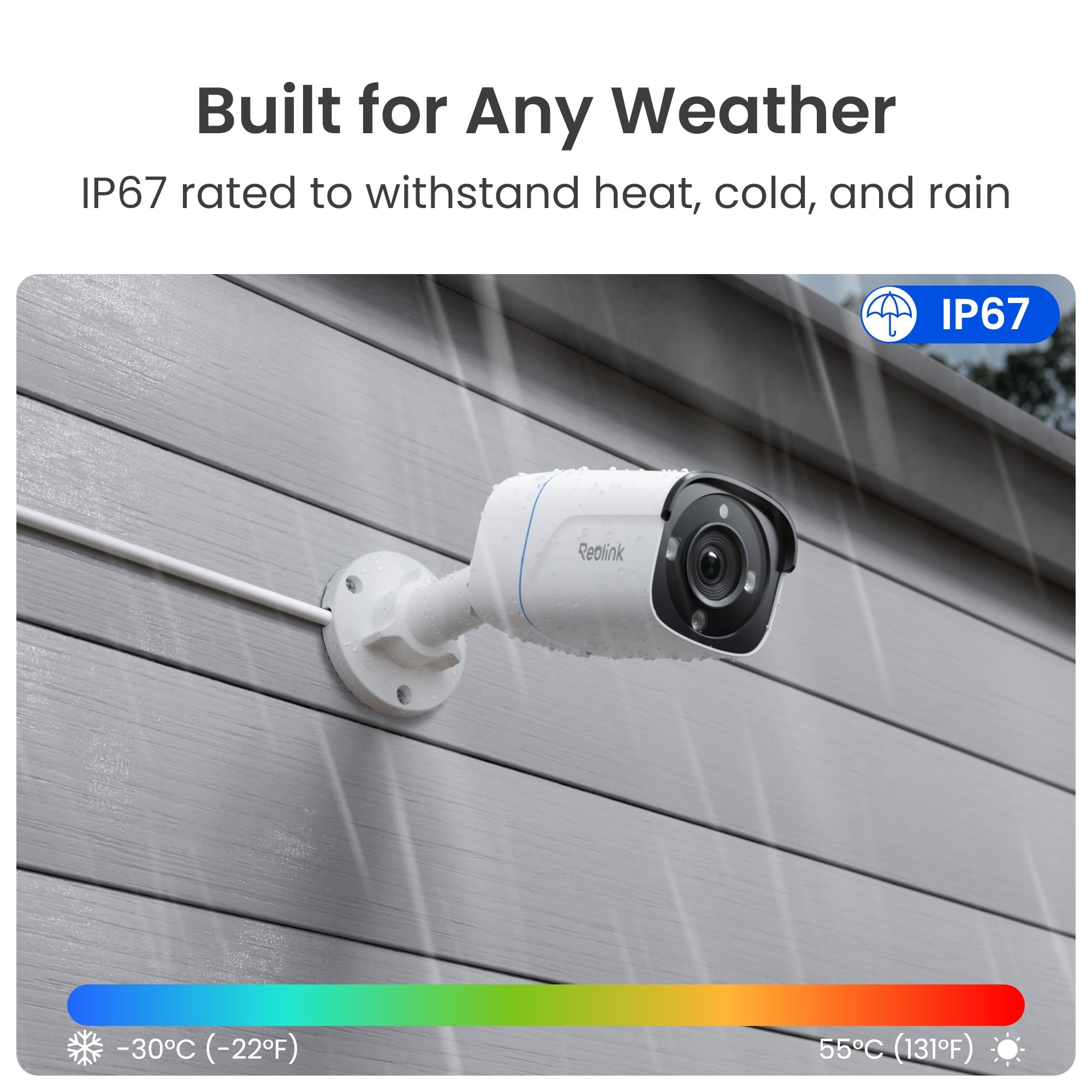

• Metal housing with IP protection degree 67 and operation from - 30 °C to 55 °C for residential, commercial and industrial environments


Technical specifications

•
  Image sensor: CMOS from 1 / 2,7

• Video resolution: 3840 x 2160 (8 Megapixels) a 25 fps

• Target: f= 2,8 mm; F= 1.6  with IR Cut filter
• Zoom: Digital
• Video format: H. 265 /H. 264

• Field of view: Horizontal H: 105 ° Vertical V: 56 ° diagonal D: 125 °

• Automatic day/night switch with IR filter

• Night vision infrared up to 30 meters with 2 LED from 850 nm
•
  Color night vision with 1 spotlight LED 6500 K/ 700 lumens
•
  Frame rate: main flow 2 - 25 fps (default 25 fps), secondary flow 4 - 15 fps (default 10 fps)

• Velocità encoding: main flow 2048 - 9216 Kbps (default 7168 Kbps), secondary flow 64 - 512 Kbps (default 256 Kbps)

• Bidirectional audio

• Compatible with Google Assistant for Smart Home


Feeding

•
  PoE: IEEE 802.3 af, 48 V active

• DC power supply: 12 V 1 A, consumption less than 12 W


Interface

•
  Reset Button
• DC power port
• Ethernet port: 1 port RJ 45 10 M/ 100 Mbps

• Storage: MicroSD slots up to 512 GB, support Reolink NVR and FTP

• Integrated microphone and speaker

• Supported protocols and standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv 4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P 2 P, ONVIF
• Maximum user access: 20 (1 administrator, 19 users); support up to 12 simultaneous video streams (10 secondary flows and 2 main streams)

Compatibilityà

•
  Browser: Edge, Chrome, Firefox, Safari

• PC operating systems: Windows, Mac OS

• Smartphone: iOS, Android


Environmental Characteristics

•
  Operating temperature: from - 30 °C to + 55 °C

• Operating Humidità 10 % - 90 %

• Weather resistant with IP protection degree 67

Dimensions

• Width: 68 mm
• Height: 63 mm
• Depthà: 188 mm
• Weight: 452,4 g

Package contents

•
  8 MP Ultra HD 4 K PoE IP 67 , 8 M Pro ICR-RP-PCB 8 M
• 1 Ethernet cable
• 1 user manual
