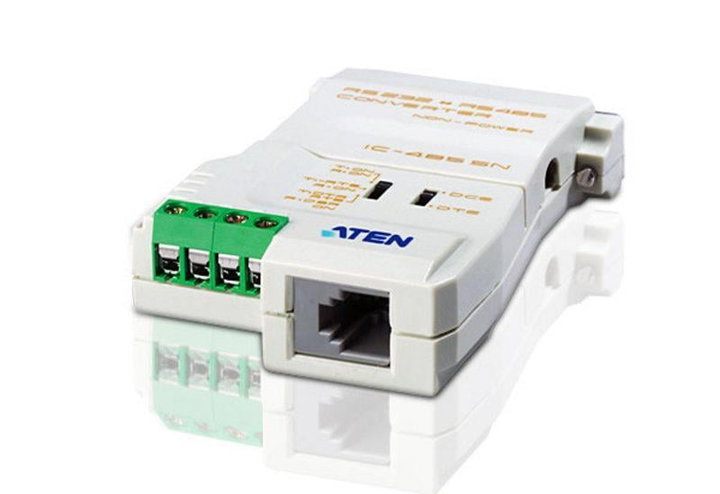

Converter from RS 232 to RS 422 / 485 , IC 485 SN - Aten IDATA 824 - 16

€59.96
Tax included €49.20 excl. VAT

Aten bidirectional self-powered converter Aten IC 485 SN from RS 232 to RS 422 / 485 . Connectors: RS 232 DB- 25 female, RS- 485 /RS- 422 terminal blocks, RJ- 11 female. Max distance 1.200 m, speed up to 115,2 kbps.



Return policy



Delivery policy



Direct contact for info



Secure Payment

Two-way converter to interface RS 232 ports to RS 422 (full duplex) / RS 485 (Half duplex) or vice versa. It allows data to be transmitted over long distances (up to 1.2 Km with speed à 100 K)



Features

  • Powered RS 232 to RS 422 / 485 converter

  • Connections: RS 232 DB 25 poly female

  • Data transmission controlled by the RTS signal

  • Selectable DCE/DTE

  • Select the point-to-point, multipoint and simplex/duplex link.

  • Full duplex with four wires/half duplex with two wires

  • Compact dimensions

  • Transmission at a maximum distance of 1.200 m

  • Operation without power supply

  • Supports speed à up to 115,2 kbps

  • Supported operating systems: Windows 2000 , Windows XP



Connectors

  • 1 x RS- 232 DB- 25 female

  • Four RS- 485 /RS- 422 terminal blocks

  • 1 RJ- 11 female



Electrical consumption

  • CC 9 V, 0.9 W (max.)



Environmental features

  • Operating temperature: from 0 to 50

  • Storage temperature: from - 20 to 60

  • Humidità relative: 0 to 80 %, without condensation



Dimensions

  • Width: 7.90 cm

  • Depthà: 5.45 cm

  • Height: 2.10 cm



Certifications

  • CE

  • RoHS

  • RAEE



Package contents

  • Converter IDATA 824 - 16

  • User Guide

  • Brand
  • Reference
    IDATA 824-16
  • EAN13
    4710423772007
