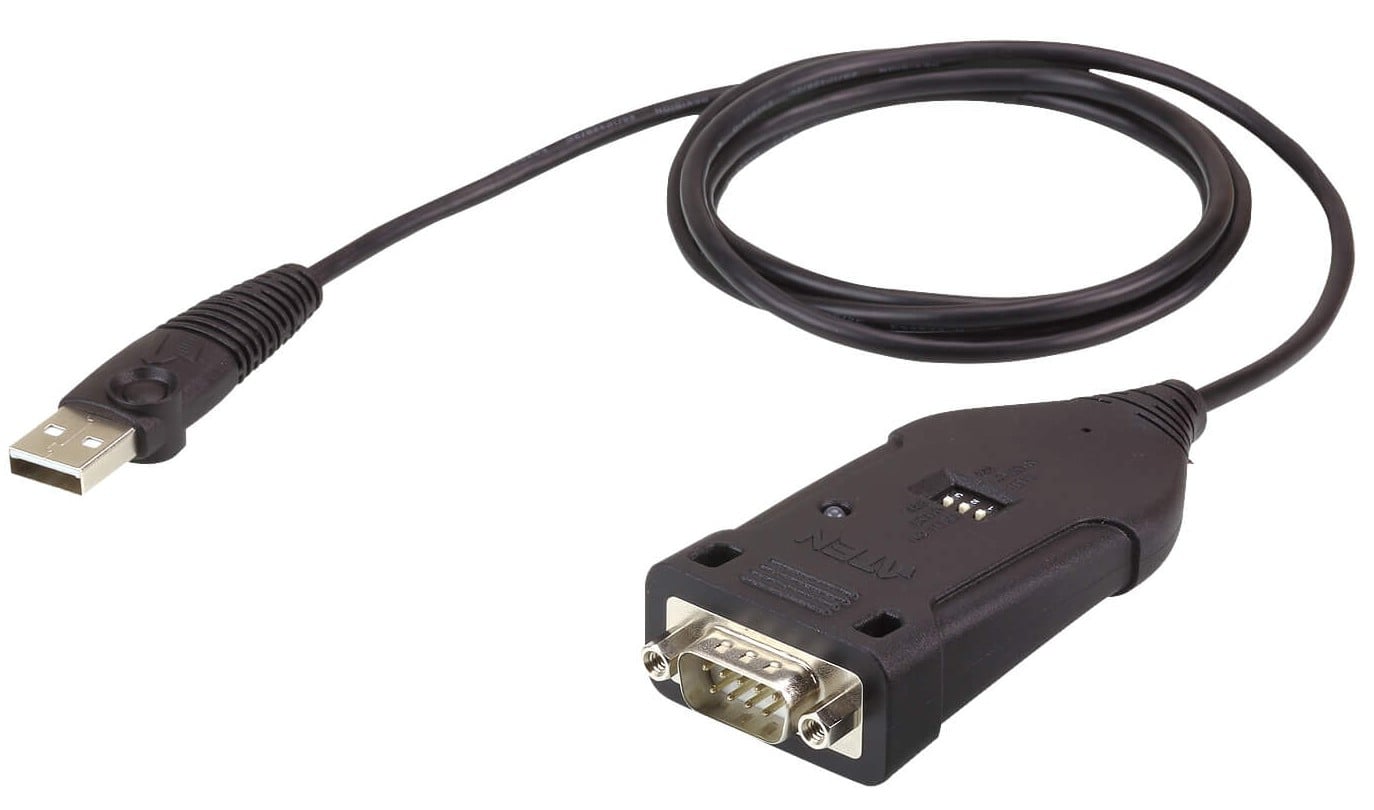

USB adapter to RS- 422 / 485 - ATEN IDATA UC- 485

L ATEN UC 485 è a high quality industrial adapter cable designed to immediately add an RS- 422 / 485 port to your PC or laptop via a USB port. L adapter è powered by a USB connection without requiring an external power supply.

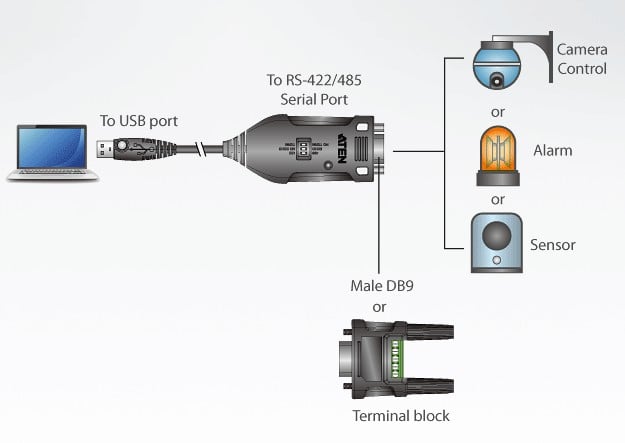

The UC 485 adapter allows you to use a USB connection to create plug-and-play serial transfers without additional cables or complex installation of devices. It allows you to connect any RS- 485 or RS- 422 devices to your computer's USB port, without computer blocking, or I/O problems or drivers. It is the ideal solution for connecting industrial devices such as laboratory machinery, measuring equipment, automatic systems, monitoring devices, and much more, where important applications are needed.



Features

• Converts a USB port to a COM port RS- 422 or RS- 485 legacy


• Fast COM port transmission, up to 921,6 Kbps


• The package includes DB- 9 female for the adapter terminal block for a more ù simple wiring

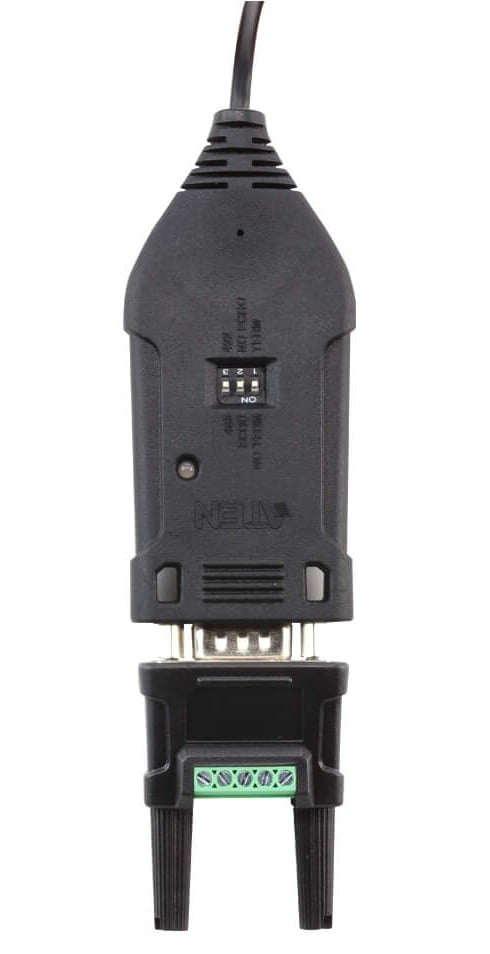

• Supports terminal/ECHO mode via mode selector;


• Supports Windows, Mac and Linux


• Plug-and-play – no power supply needed



Connectors

• USB port: 1 x male type A USB (white)


• Serial: 1 x DB- 9 male (silver)



Velocità data 

• Up to 921,6 Kbps



Cable length

• 1,2 m



LED

• Feed status


• RS- 422 (orange)


• RS-485 (green)



Modalità energy

• Powered by bus



USB Specifications 

• USB compatible



Environmental features

• Operating temperature: 0 – 40


• Storage temperature: - 20 – 60


• Humidità: 0 – 80 % relative humidity without condensation



Dimensions

• Width: 9,53 cm


• Depthà: 4,10 cm


• Height: 2,20 cm

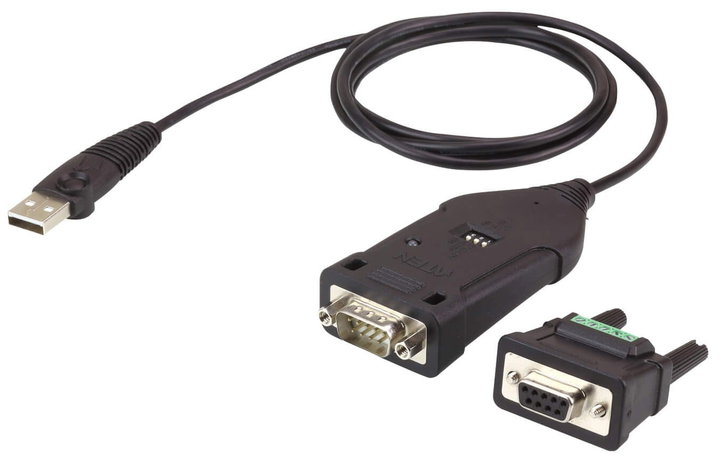

Package contents

• 1 x RS- 422/ 485 USB adapter U.C. 485

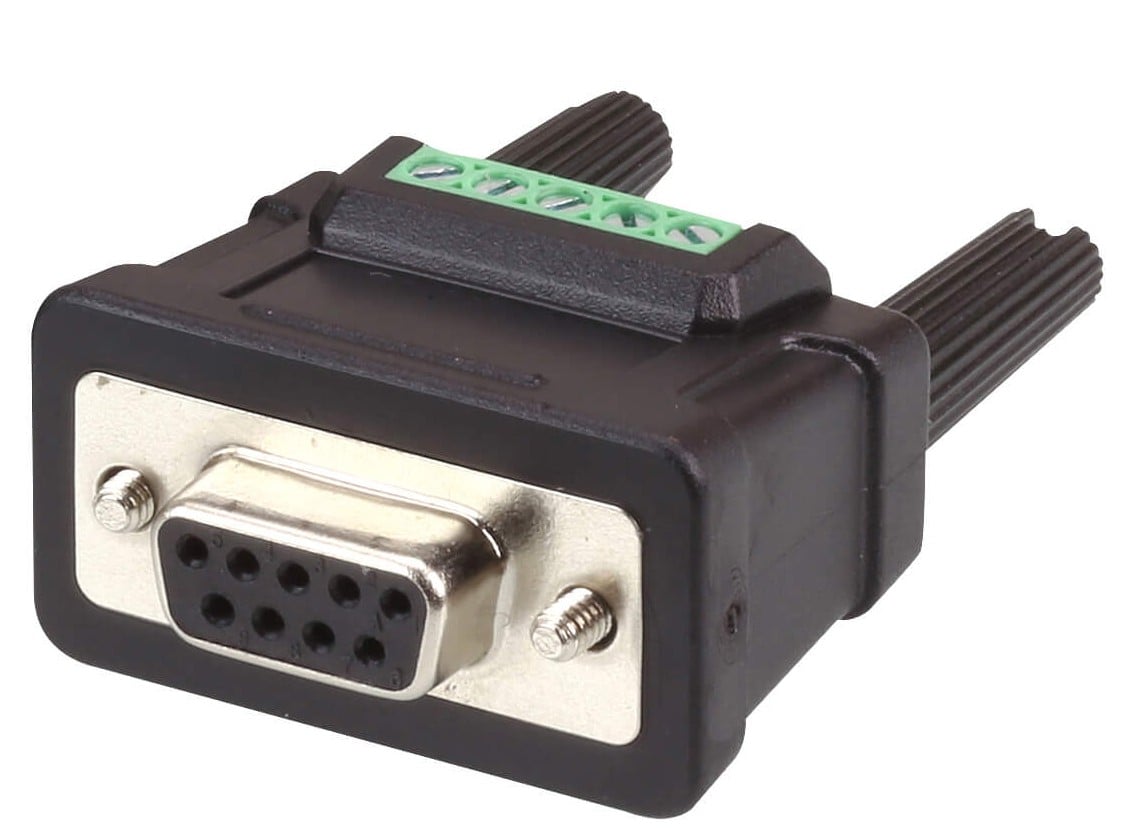

• 1 x terminal adapter


• 1 x user instructions
