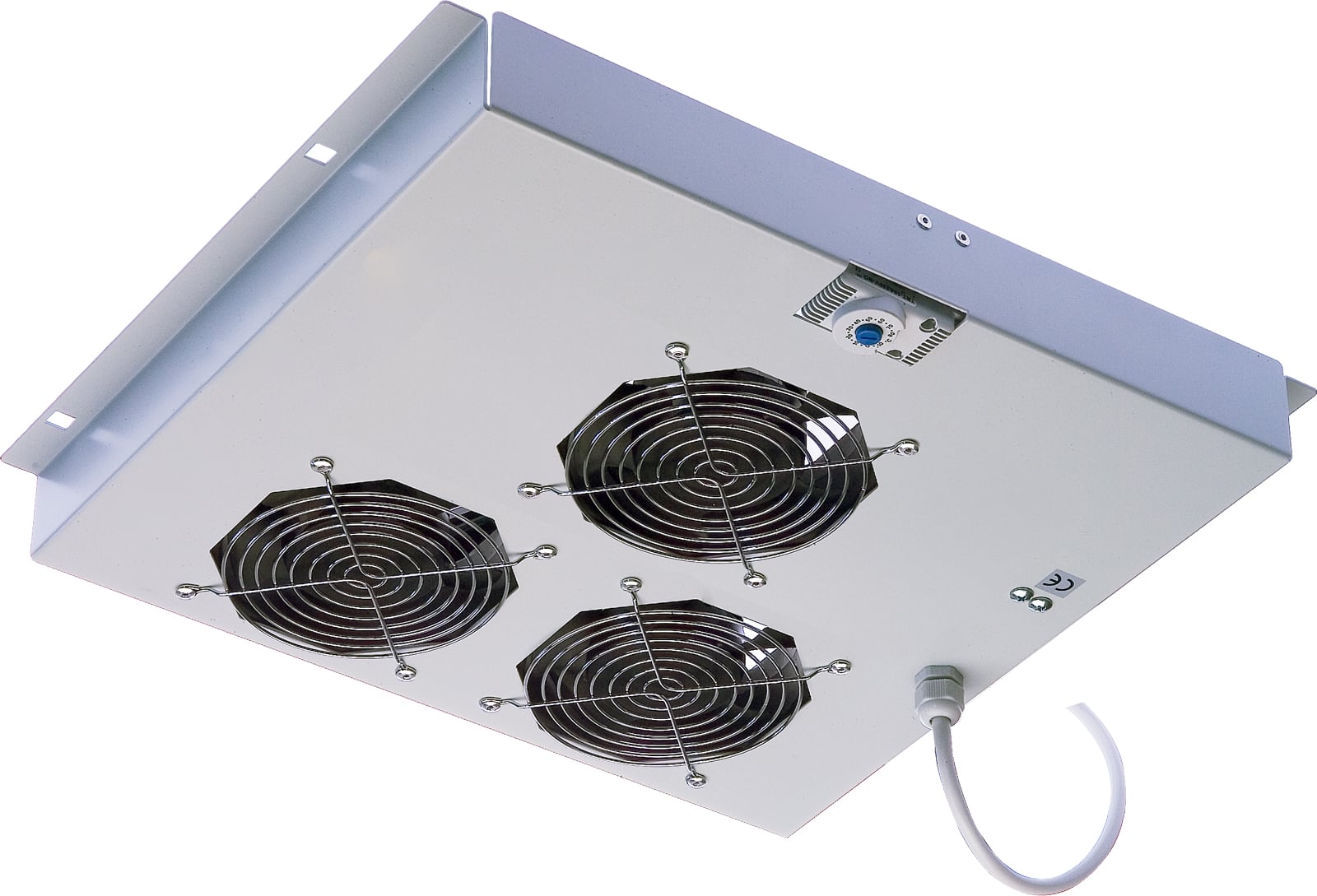

3 Ceiling Fan Unit with Thermostat for Rack Cabinets - Intellinet I-CASE FAN-3

Name: 3 Ceiling Fan Unit with Thermostat for Rack Cabinets - Intellinet I-CASE FAN-3
Brand: INTELLINET
SKU: I-CASE FAN-3
Price: 189.82 EUR
Availability: InStock

€189.82

Tax included

3 axial ceiling fan group with thermostat for rack cabinets. Flow rate 150 m3/h each, color gray RAL 7035, sheet thickness 1,5 mm.

Return policy

Delivery policy

Direct contact for info

Secure Payment

Description

Ventilation unit with three axial fans
Mounting of ceiling fans with thermostat
Compatible with floor-standing cabinets and server cabinets

NOTE

Not compatible with the following cabinets: I-CASE SVR-27BLK/27K, I-CASE SVR-42BLK/42K and I-CASE SVR-27TOPK/42TOPK

Features

Die-cast aluminum structure with protective grille
Fan in black polycarbonate reinforced with self-extinguishing fiberglass according to UL standard 94V-O
Shaded-pole motor
Rotation on bronze bushing
Air flow: 150 m3 each fan
Operating temperature: -10°C + 60°C
Chrome-plated protection grille
Noise level: 43 dbA
Power consumption: 23W each fan
Power supply: 220-240V AC - 50-60 Hz

Thermostat features

Adjustment range: -10°C to +80°C
Protection degree: IP 20
Electrical connection: 2 screw terminals for conductors from 0,75 mm2 to 2,5 mm2
Tolerance: +/- 3°K

Cabinet features
