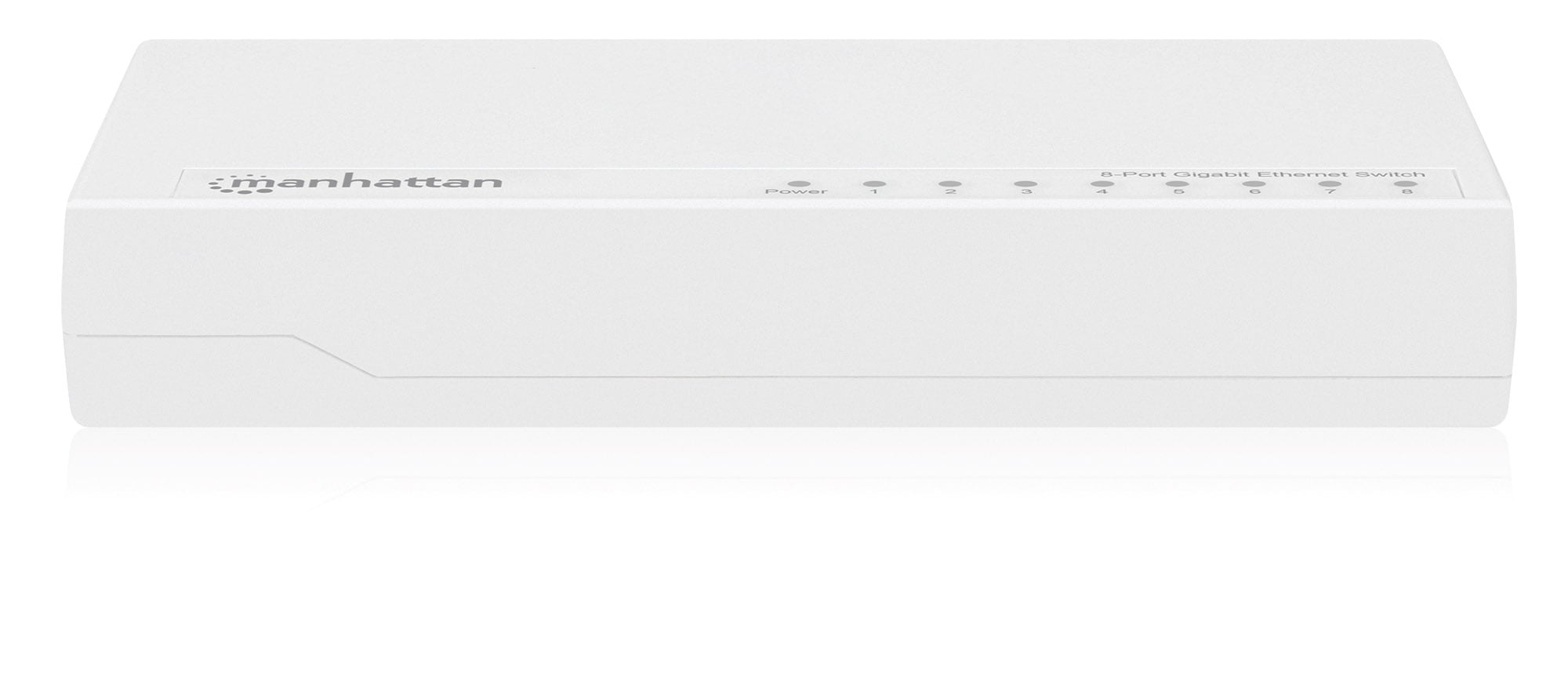

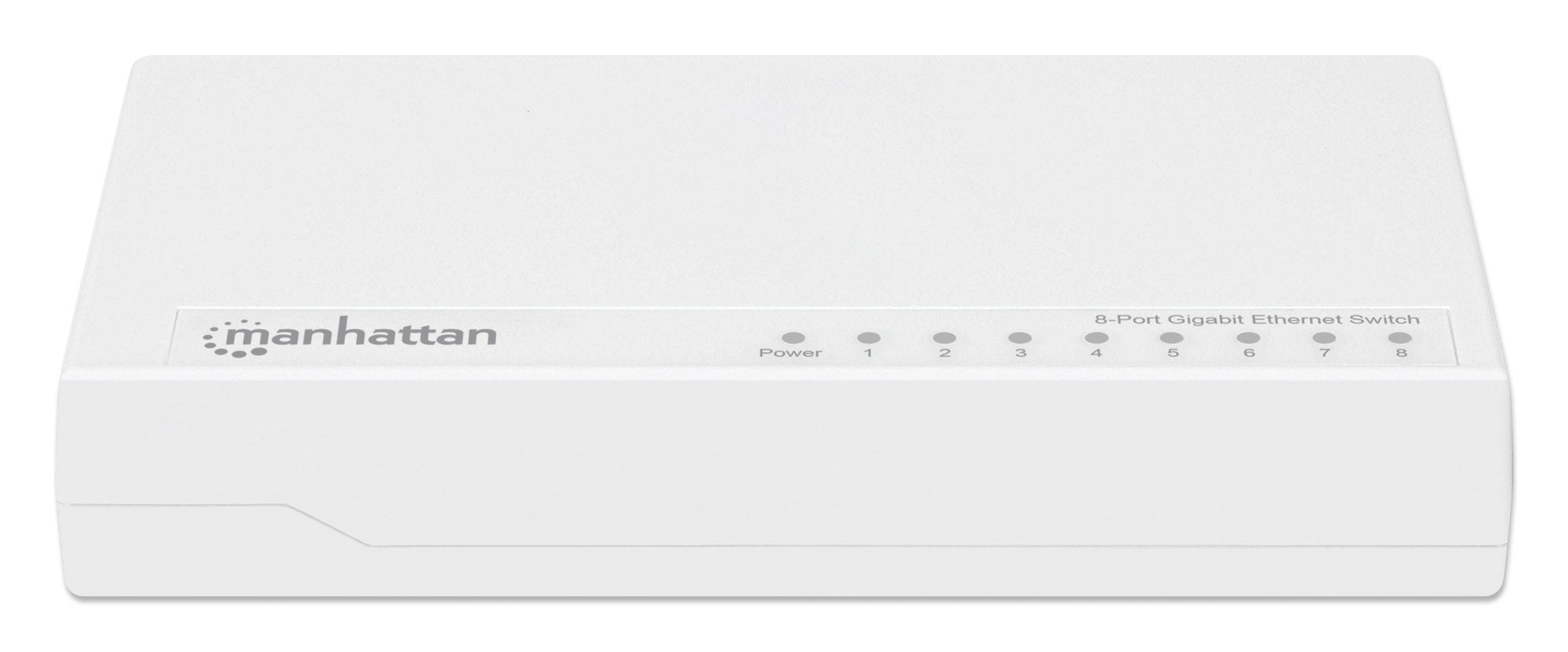

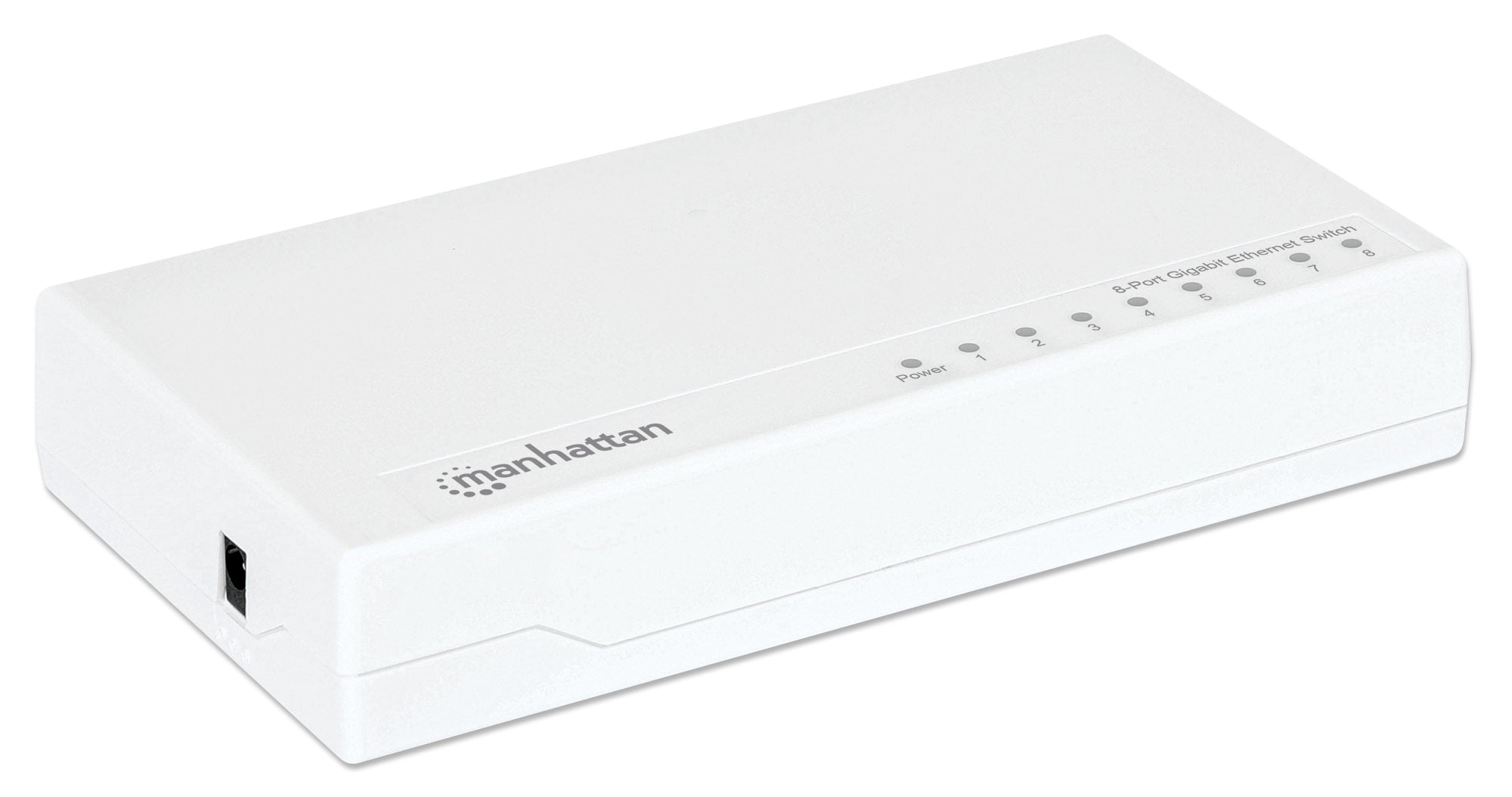

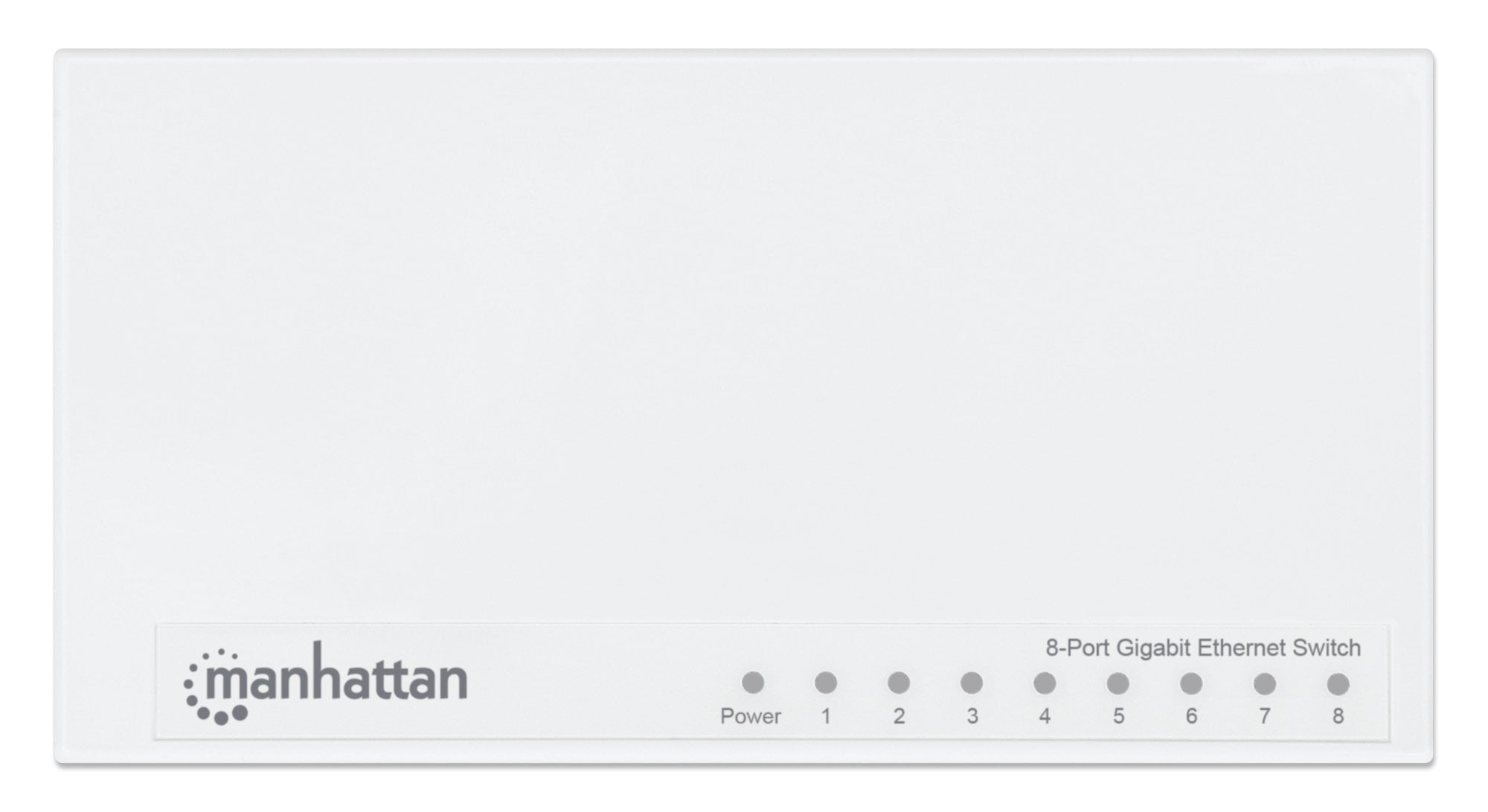

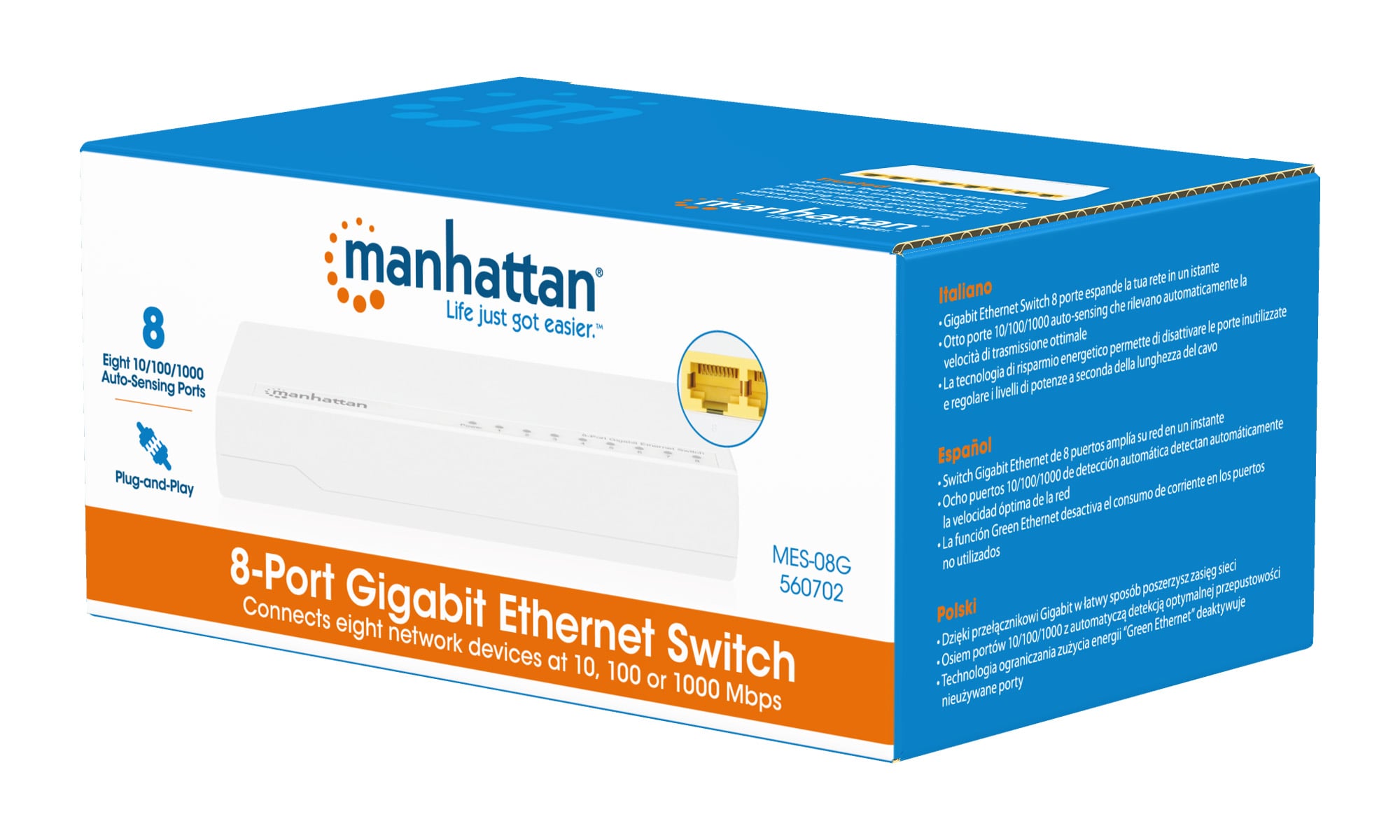

- Gigabit Ethernet Switch 8 ports expands your network in an instant
- Easy plug-and-play installation - simply connect it to power and you can start using it
- Eight 10/100/1000 auto-sensing ports that automatically detect the optimal transmission speed
- High performance, half and full duplex, with zero packet loss
- Energy-saving technology allows unused ports to be disabled and adjusts power levels according to cable length
- Supports devices with any combination of data transfer at 10 Mbps or 100 Mbps or 1 Gbps
- Super compact, fanless, ideal for home and office applications
- Store and forward switching architecture
- Compatible with all Windows and Macintosh systems
Standard- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3x (Flow Control and Backpressure)
- IEEE 802.3az (Energy Efficient Ethernet)

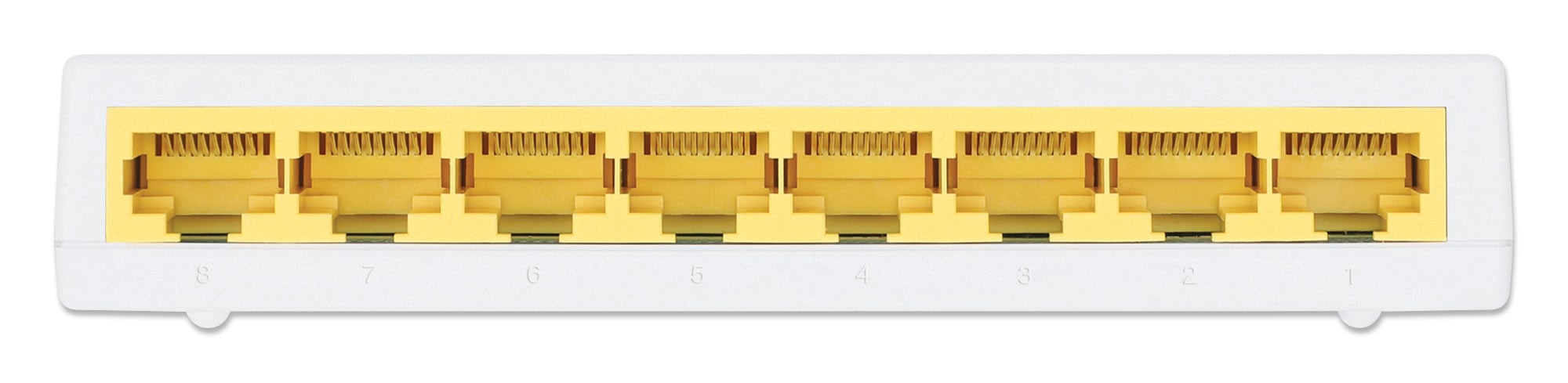

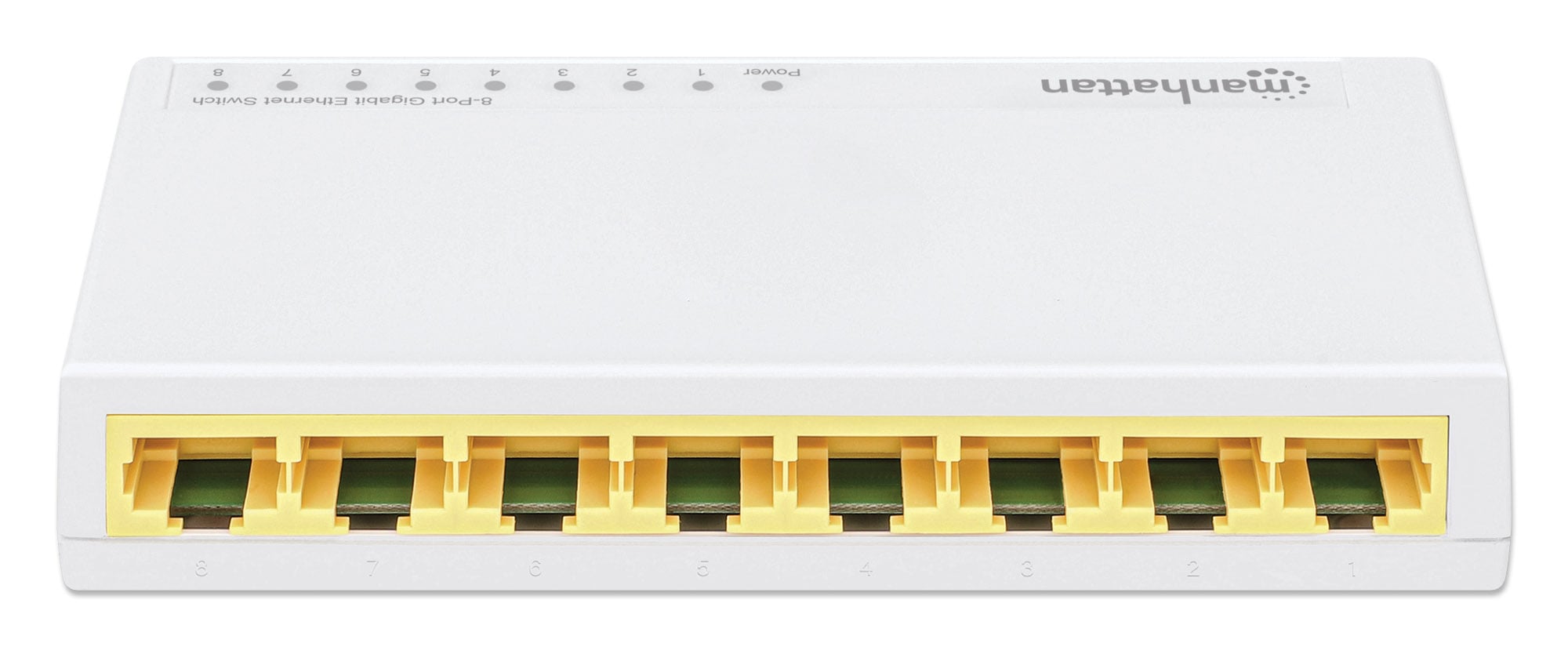

General information- Connections: 8 RJ45 ports 10/100/1000 mbps
- Cable: Cat3, 4, 5 UTP/STP
- Duplex mode: All ports (up to 200 Mbps)
- Uplink: All ports support Auto MDI/MDX (Auto Uplink)
- Architecture: supports Store & Forward switch technology
- Data filtering/forwarding rate
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,488,000 pps (packets per second)
- MAC address: 2,048 entries
- Memory buffer: 256 kBytes
- Supported jumbo frames: 9 kB
- Backplane speed / switch fabric: 16 Gbps

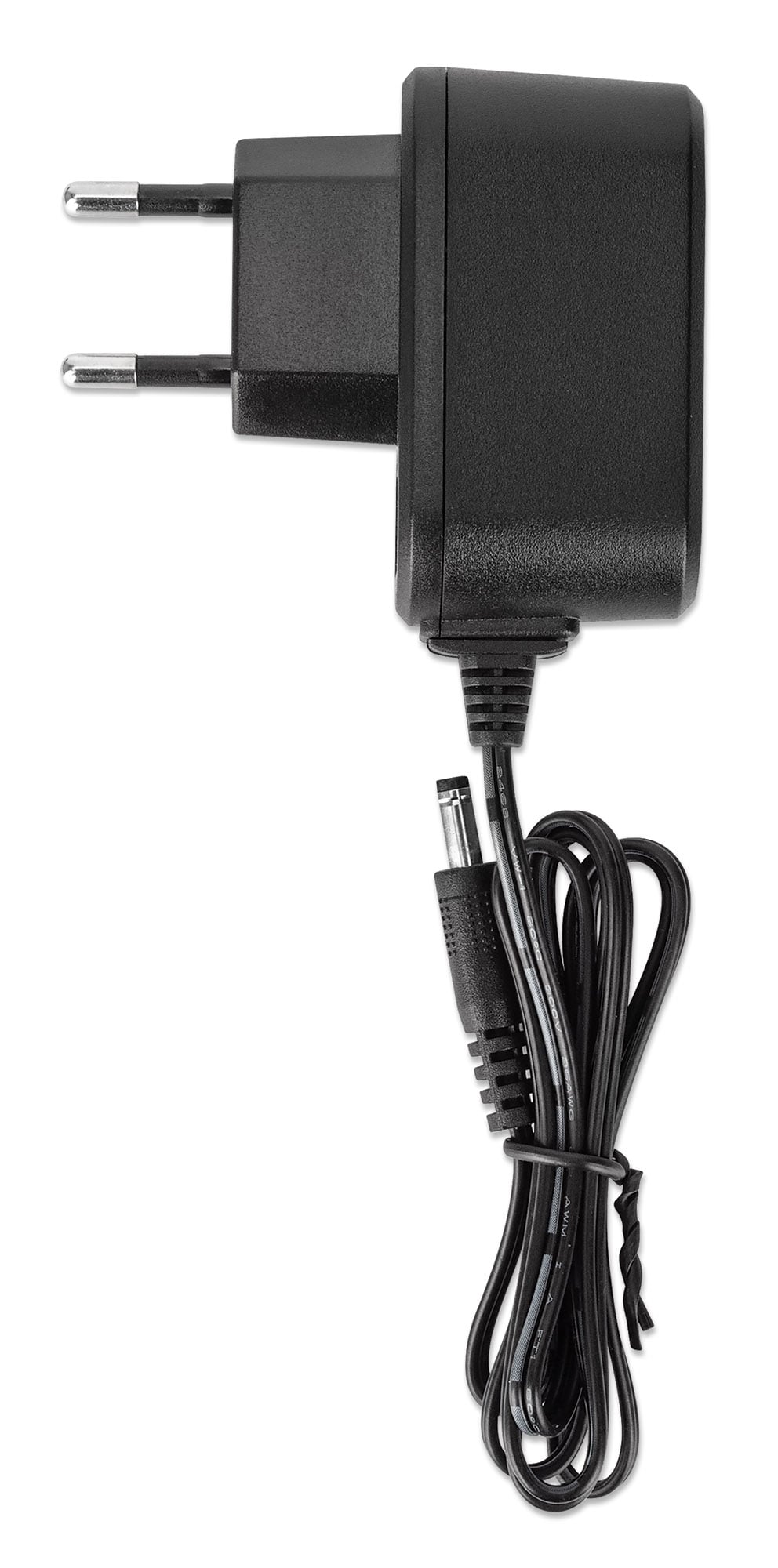

CertificationsLEDPower- External AC power supply: 5V 1A
Physical data- Dimensions: 140 x 78 x 28 mm (LxPxH)
- Weight: 0.33 kg
- Operating temperature: 0 - 40 C
- Humidity: 10% - 90% (non-condensing)
Package contents- Gigabit Ethernet Switch 8 Port Desktop
- Power supply
- Instruction manual
