- Auto-sensing 10/100/1000 Auto MDI-X ports - automatically detects the optimal network speed
- High performance, half and full duplex, with zero packet loss
- Fully supports flow control to provide maximum performance
- The energy-saving technology allows disabling unused ports and adjusting power levels depending on the cable length
- Auto-learning network configuration
- Supports up to 8,192 MAC address
- 128 kBytes of memory buffer
- Supports jumbo frames up to 9 kBytes
- Store and forward switching architecture
- Non-blocking wire-speed forwarding and filtering
Standard- IEEE 802.3 (10 Base-T Ethernet)
- IEEE 802.3u (100 Base-TX Fast Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3az (Energy Efficient Ethernet EEE)
- IEEE 802.3x (Flow Control and Backpressure)
Features- ANSI/IEEE 802.3 NWay auto-negotiation
- Non-blocking, store and forward switching architecture
- Flow control for half duplex mode on 10/100 Mbps ports

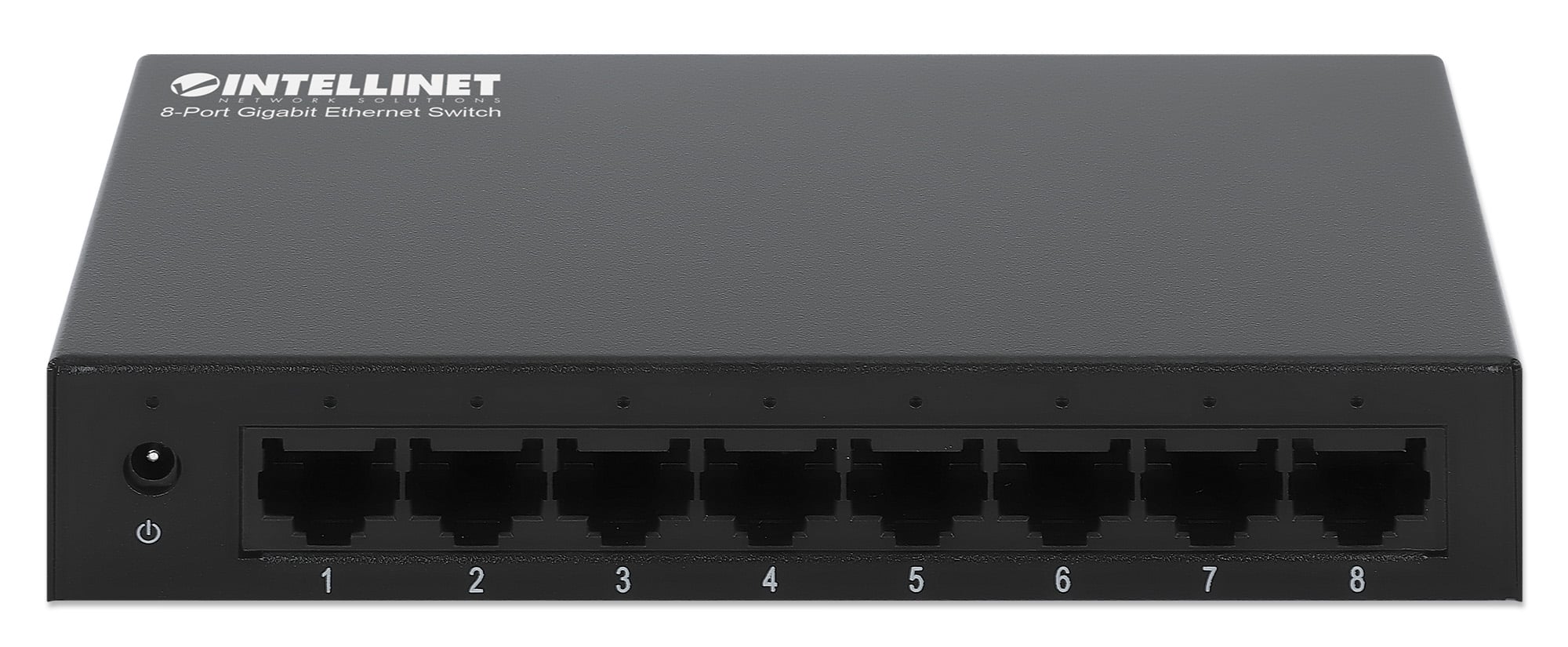

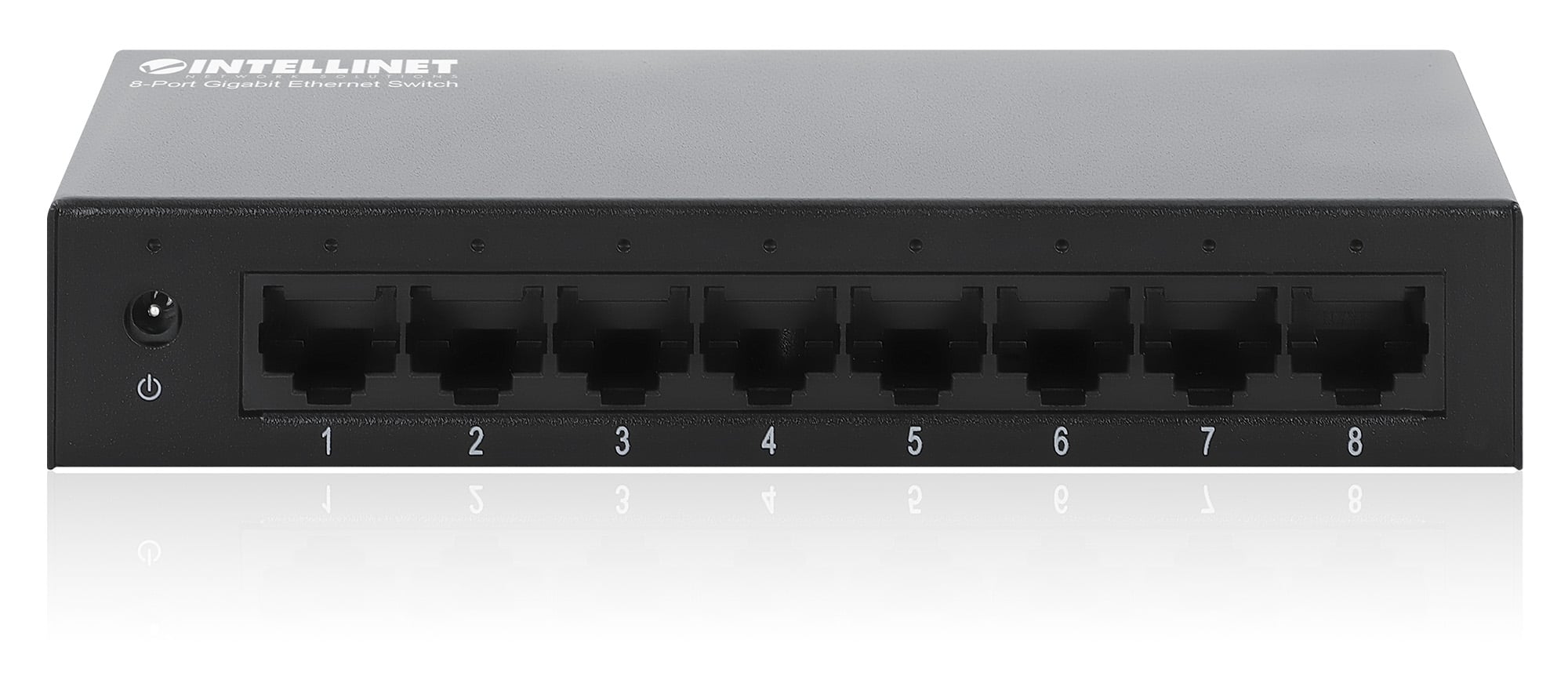

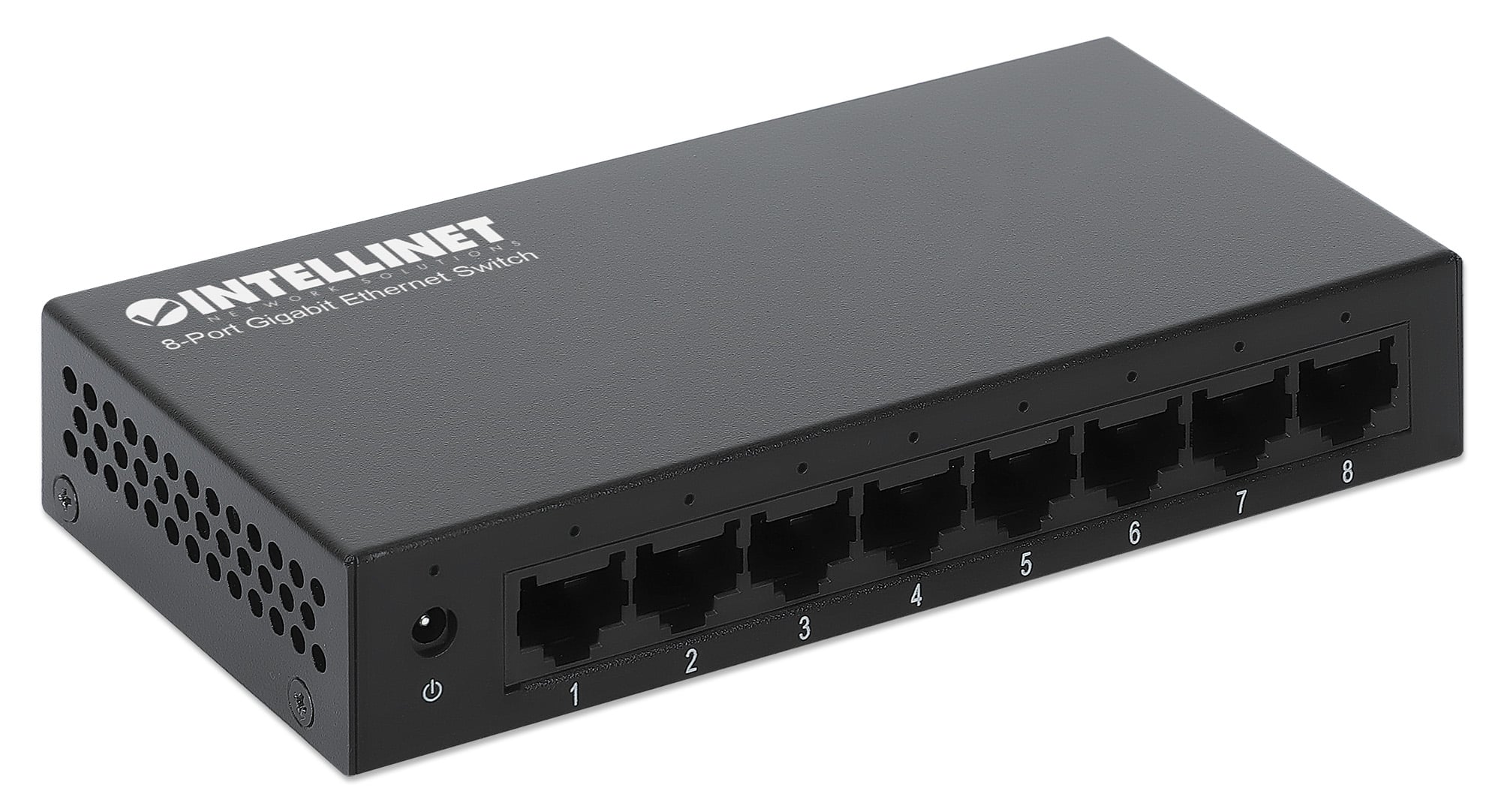

- Connections: 8 ports 10/100/1000 Mbps RJ-45
- Switch architecture: store and forward switch technology
- Network cables:
- 10Base-T: Cat3, 4, 5 UTP/STP
- 100Base-TX: Cat5 UTP/STP
- 1000Base-T: Cat5e UTP/STP
- Certifications: FCC Class A, CE Class A
Performance - 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,480,000 pps (packets per second)
- MAC address: 8K
- Jumbo frame supported: 9K
LED- Power
- LINK/ACT for each 10/100/1000 Mbps port
Power- DC input: 5 V, 1 A
- Power consumption: 2.75 watts (maximum)
Physical information- Metal housing, desktop format
- Dimensions: 155 x 85 x 26 mm
- Weight: 0.60 kg
- Operating temperature: 0 – 40°C
- Operating humidity: 10 – 90% RH, non-condensing

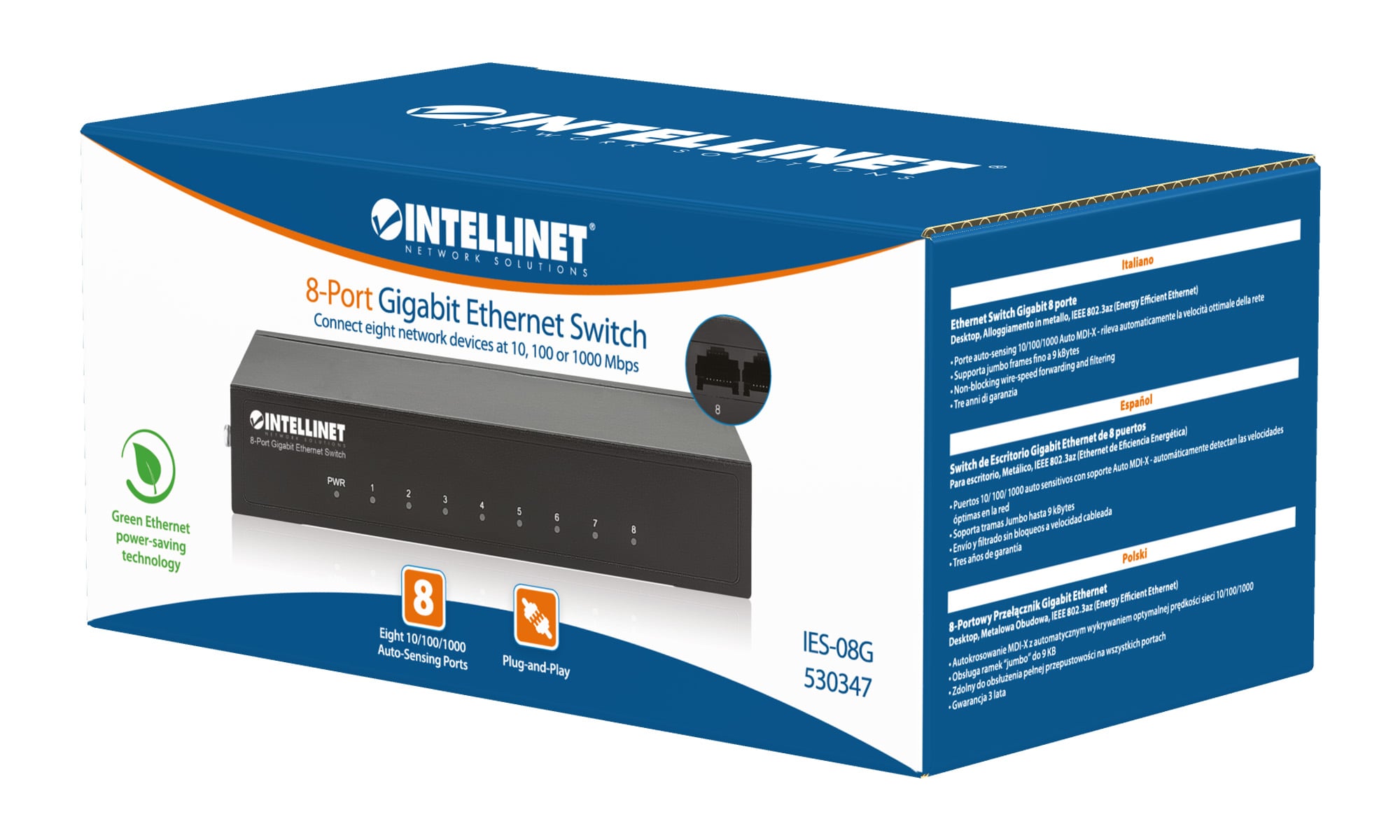

Package contents- Gigabit Ethernet Switch 8 Port Desktop

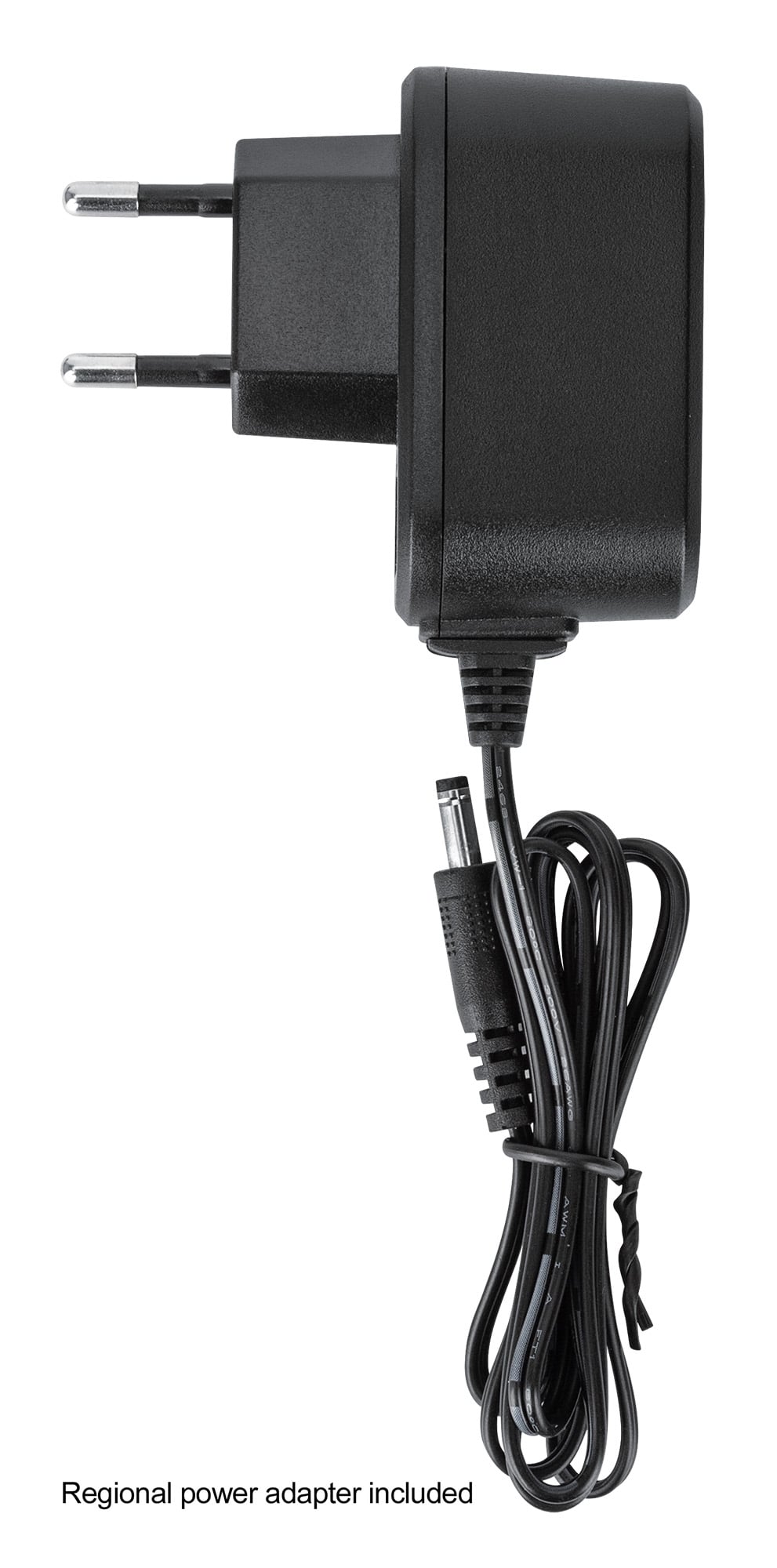

- External power supply
- User manual
