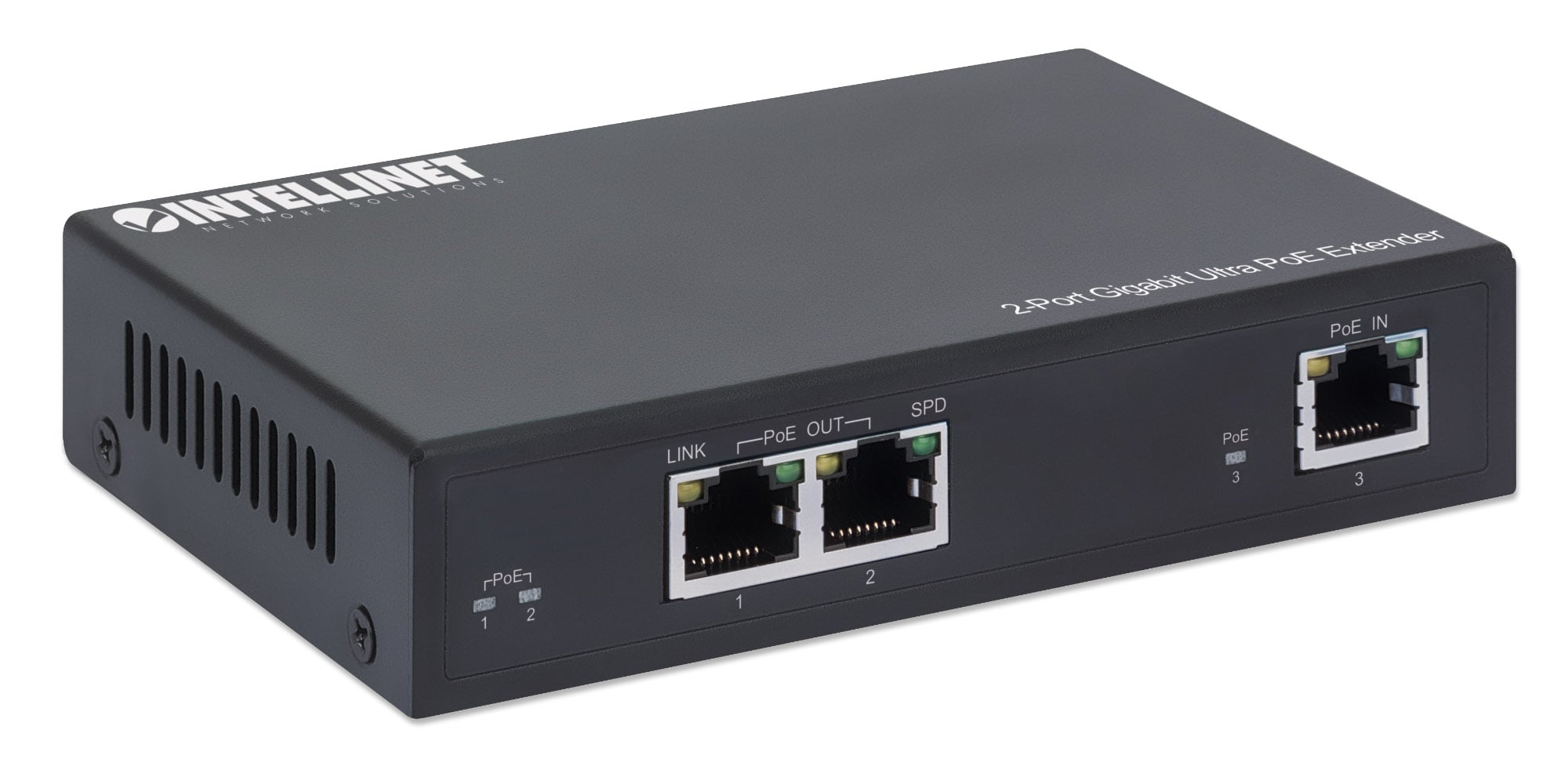

- Doubles the maximum connection distance between the PoE source and the device from 100 m to 200 m
- Connects and powers two PoE devices such as network cameras, wireless access points or VoIP phones, from a PoE injector or PoE switch with PSE port
- Provides up to 60 W to two connected PoE devices with 30 W per port
- Supports data transfer at 10/100/1000 Mbps
- Total PoE power budget of 60 watt
- Saves time and money by providing data and power over existing network cables
- PoE technology ensures that power is sent only to IEEE 802.3at/af compatible devices; non-PoE devices receive data only
- Protection against overload, overcurrent, and high voltage
- Grounding point to protect equipment from external electrical surges
- Does not require additional power; powered directly from the PoE input
- Compatible with IEEE 802.3bt/at/af compliant PoE injectors and PoE switches (PSE)
- Compatible with IEEE 802.3at/af compliant powered devices (PD)
- Functional as a 3 port Gigabit switch powered by PoE with PoE pass-through
- Switch fabric of 6 Gbps
- Supports jumbo frames up to 9 kBytes
- Supports 2048 MAC addresses

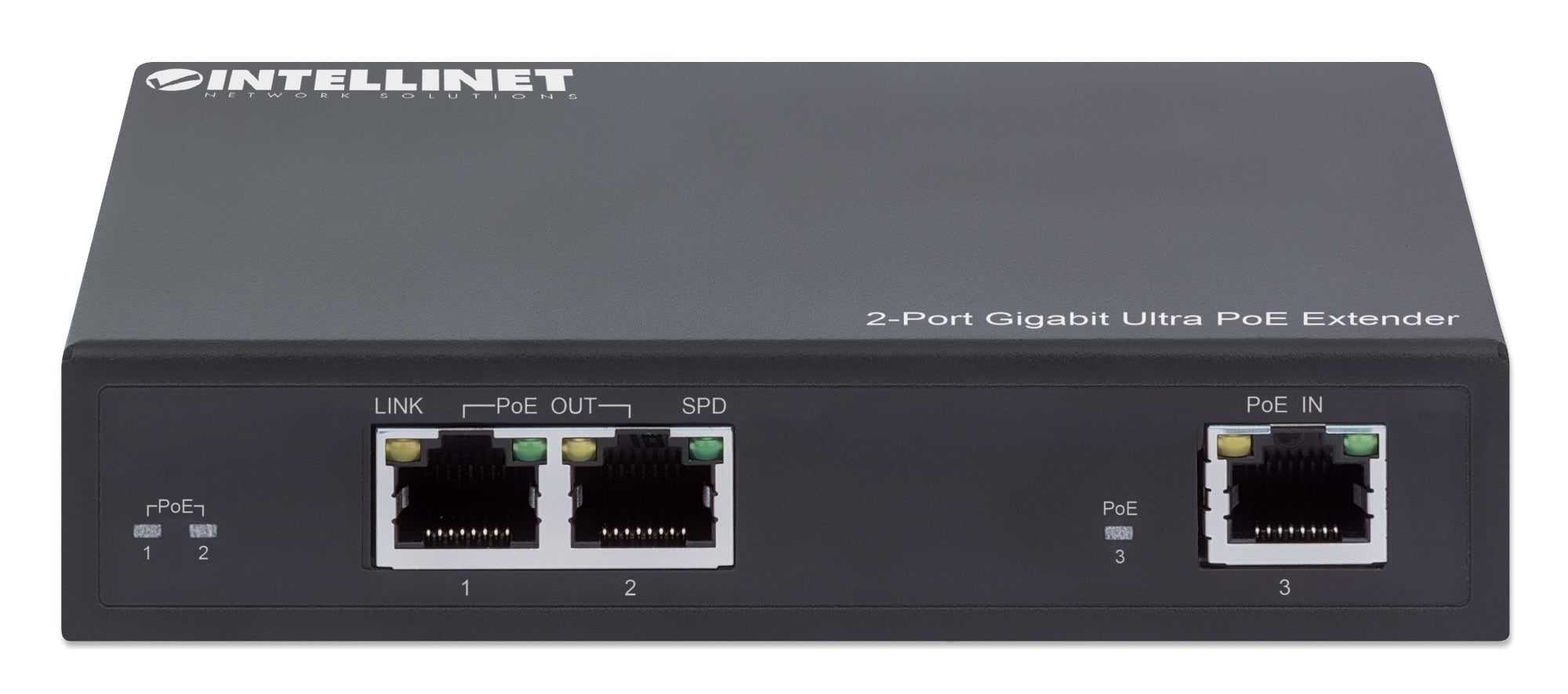

- LED for PoE and data
- Fanless design ideal for silent operation
- Compact metal housing
- One year warranty

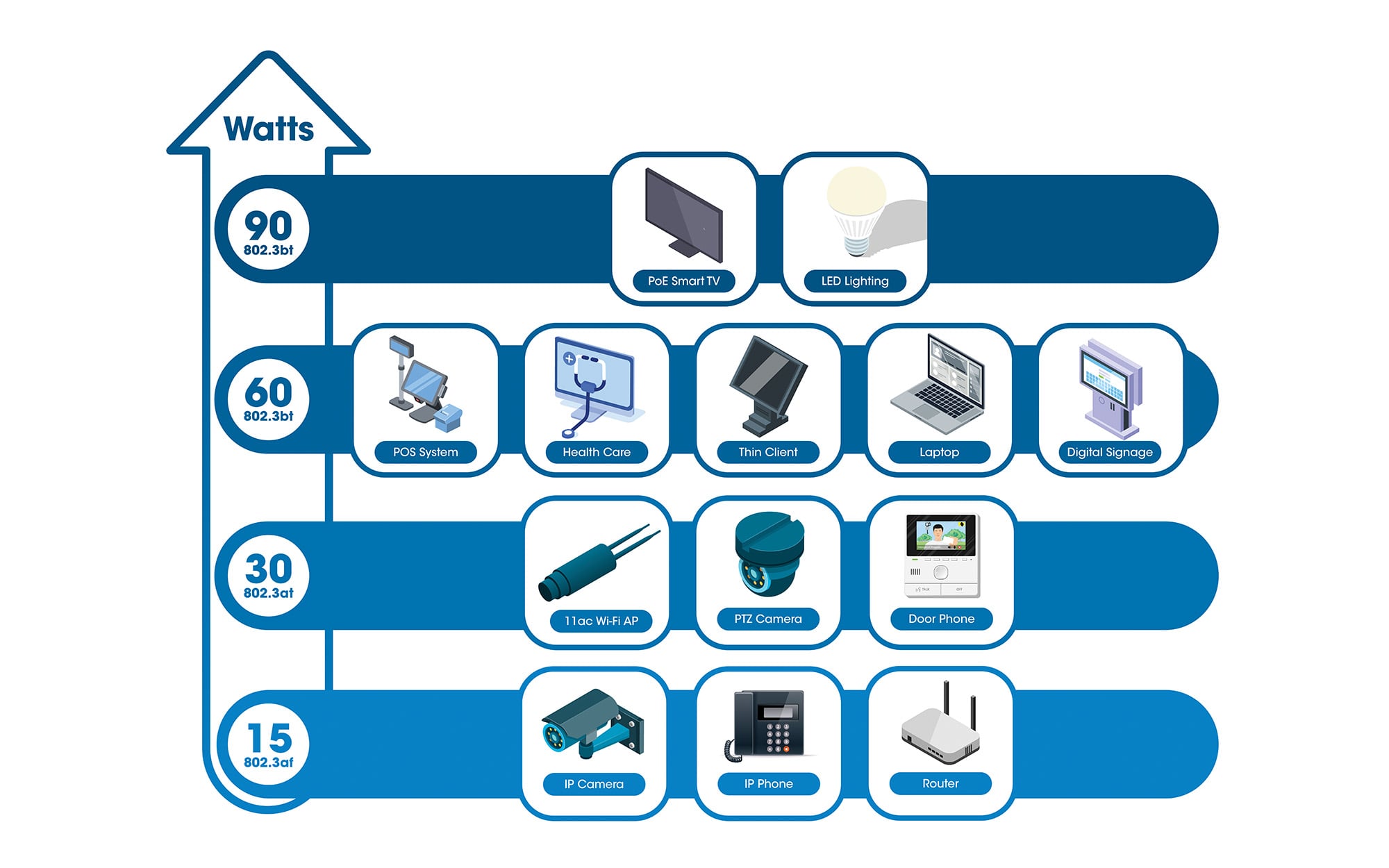

Standards- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3at (ad alta potenza PoE+ Power over Ethernet)
- IEEE 802.3bt (Ultra PoE/4PPoE Power over Ethernet)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3x (Full duplex and flow control)
- IEEE 802.3u (100Base-TX Fast Ethernet)
General information- 10Base-T Cat5e UTP/STP RJ45, 8 pin
- 100Base-TX Cat5e UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin
- One RJ45 10/100/1000 Mbps input port
- Two output ports RJ45 10/100/1000 Mbps
- MAC table: 2048 addresses
- Memory buffer: 256 kB
- Backplane speed: 6 Gbps
- Switch architecture: store and forward
- Certifications: FCC Class A, CE, RoHS
LEDPoE output pinout- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-)
Power- Maximum PD output power: 30 W per port, 44 - 57 VDC
- Power input: IEEE 802.2bt/at/af compliant PSE, 60 W max, 50 - 57 VDC
Physical information- Metal housing

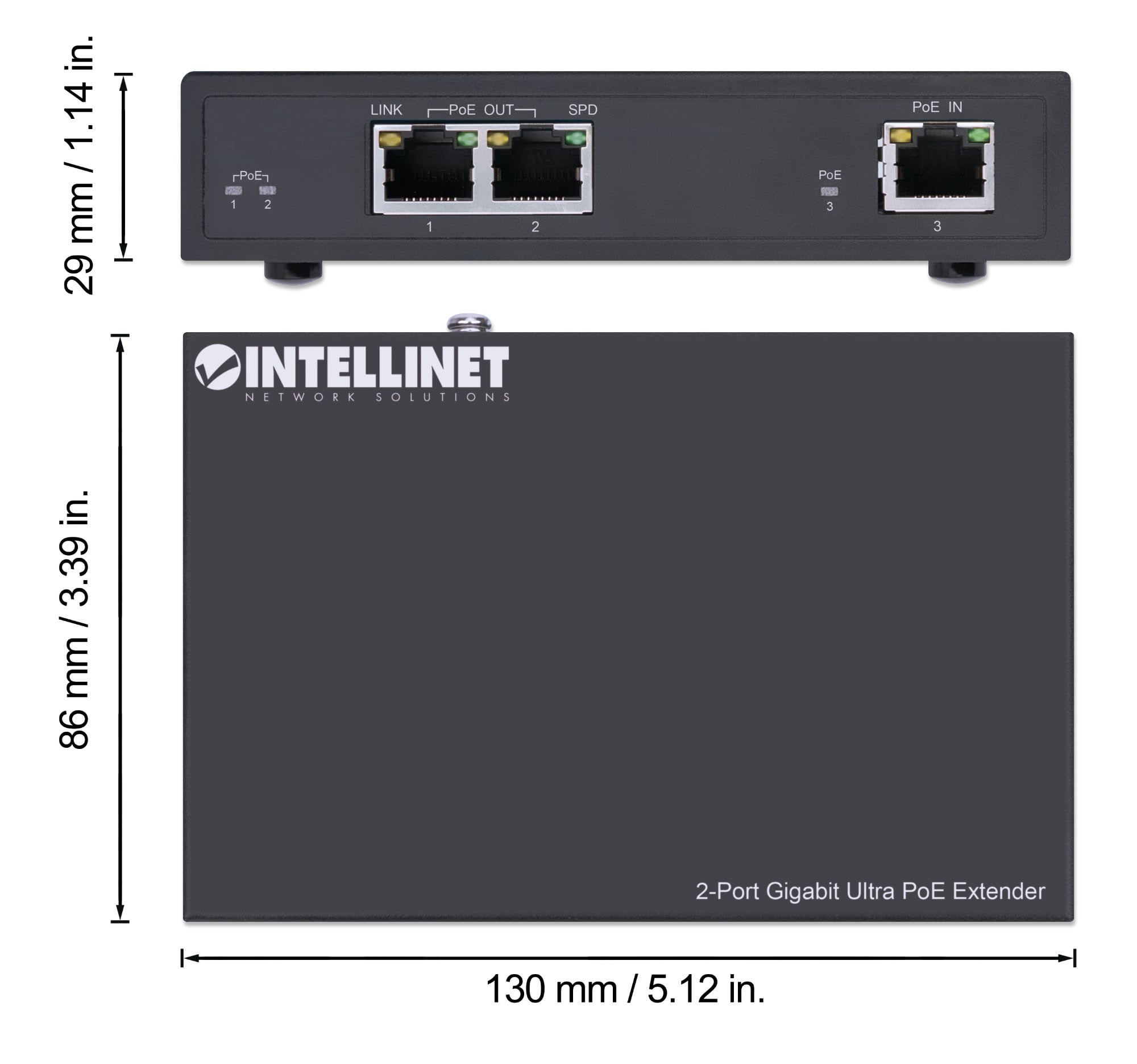

- Dimensions: 130 x 86 x 29 mm
- Weight: 331 g
- Operating temperature: 0 - 40°C
- Storage temperature: -10°C - 70°C
- Operating humidity: 20 - 85% RH, non-condensing

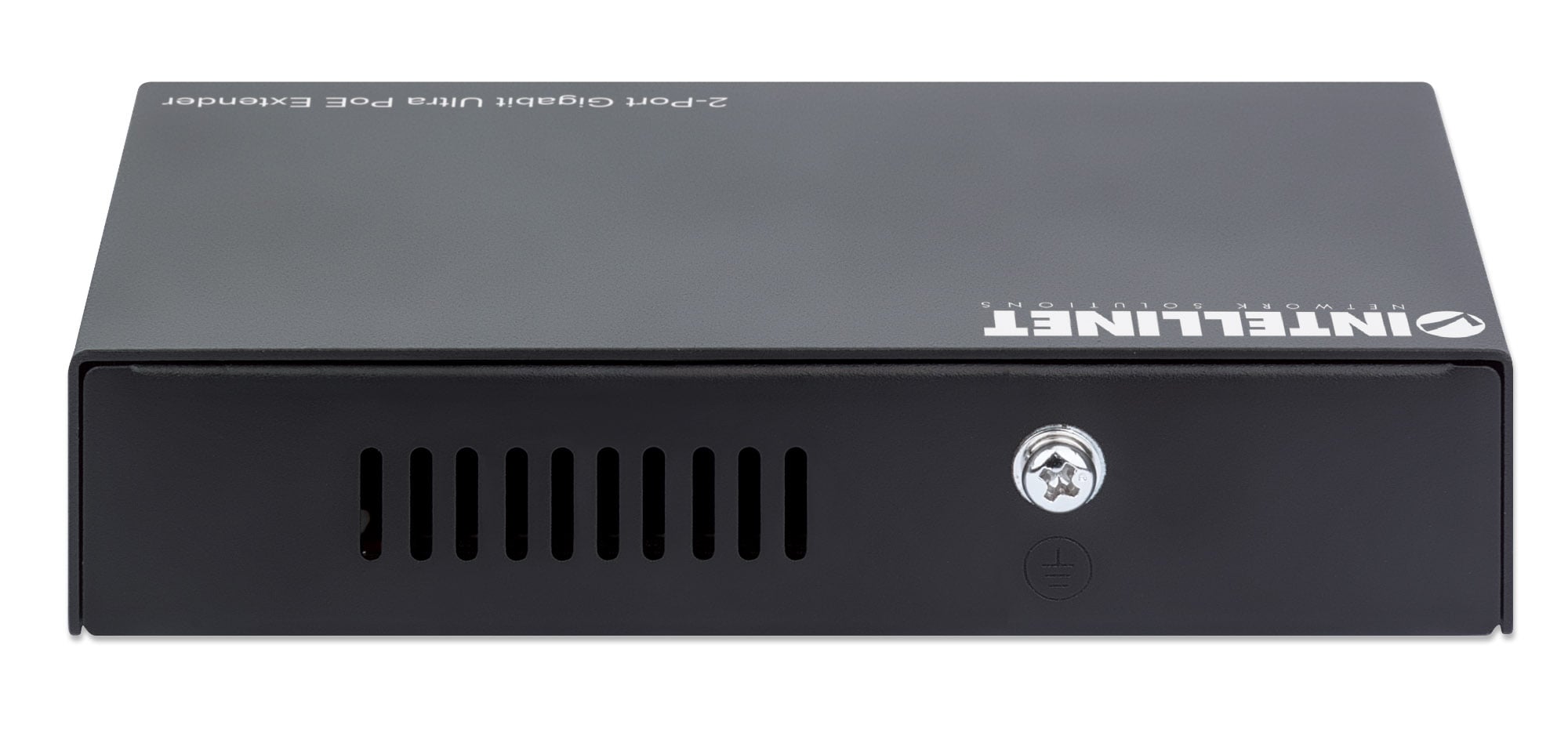

Package contents- Ultra PoE Extender Gigabit 2 ports

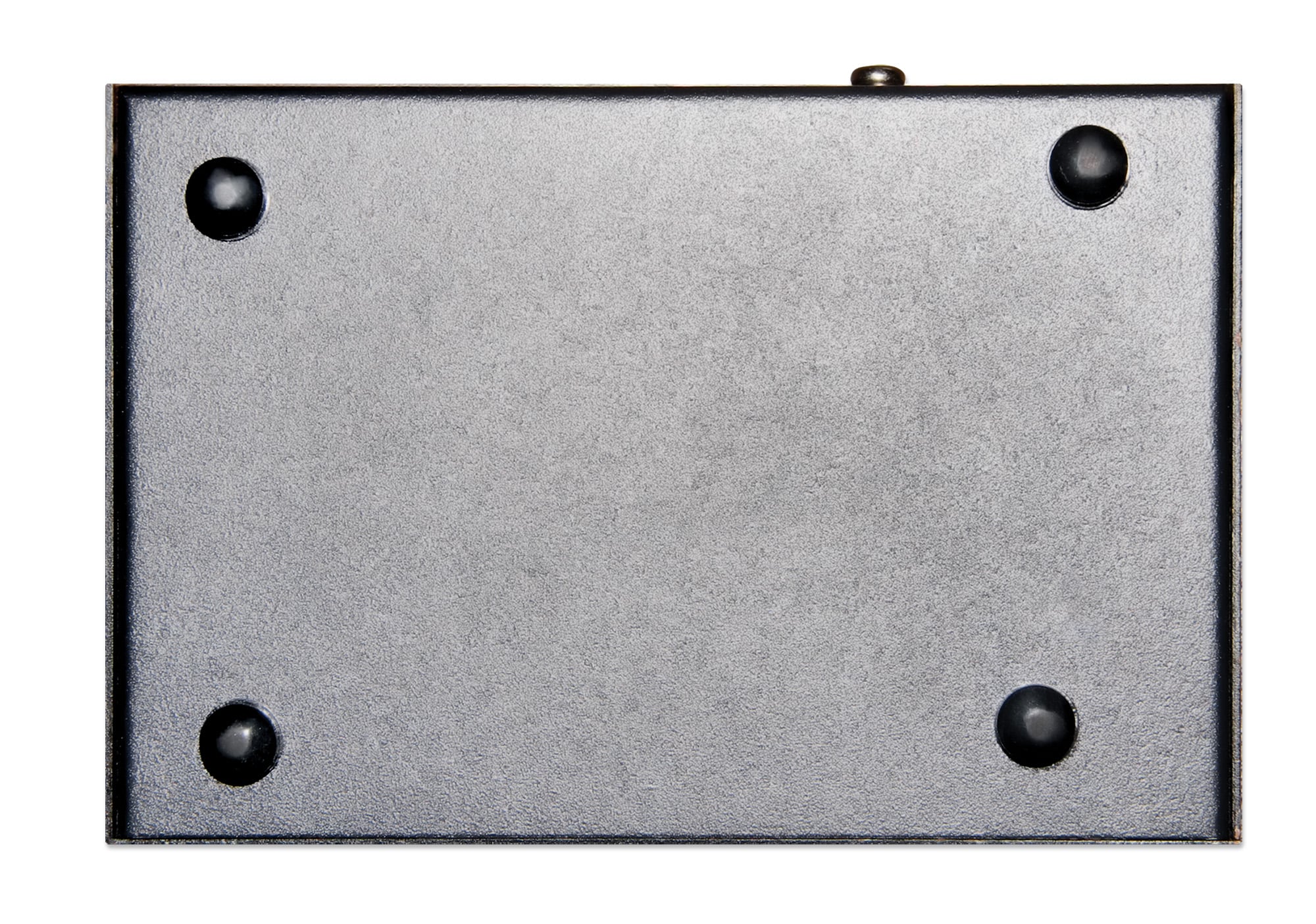

- Four rubber feet
- Instructions
