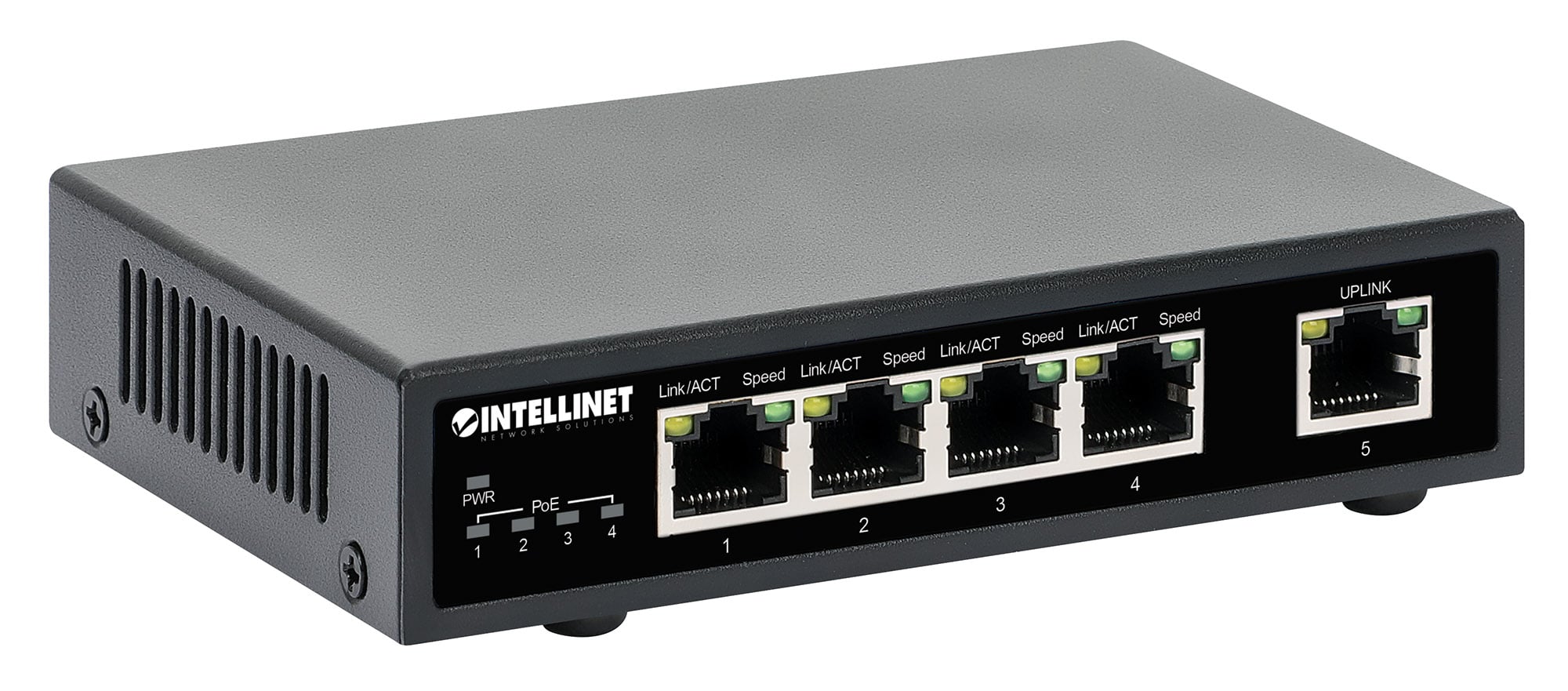

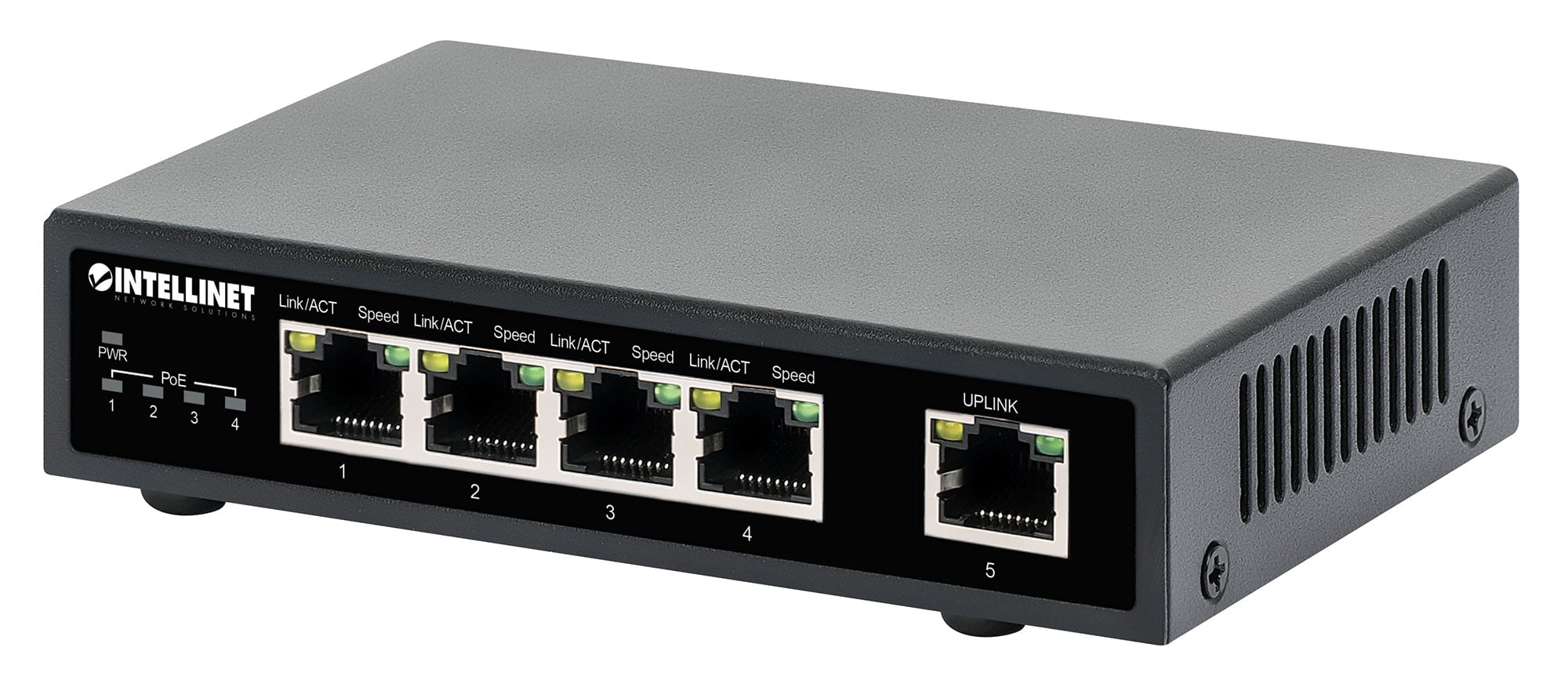

Gigabit PoE+ Ethernet Switch 5 Ports Metal Desktop - Intellinet I-SWHUB POE-839

• Provides power and data to up to four PoE network devices


• Includes one RJ45 10/100/1000 uplink port


• PoE power budget of 62 watt


• Output power up to 30 watts per port


• Allows reducing installation costs by transmitting data and power over existing network cables


• Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (wireless access points, VoIP phones, IP cameras)


• Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection


• 10 Gbps switch fabric


• Auto-sensing 10/100/1000 ports that automatically detect the optimal network speed


• The RJ45 ports support Auto-MDIX and NWay auto-negotiation


• Store and forward switching architecture


• IEEE 802.3x flow control for full duplex mode


• Supports 2k MAC addresses


• Compact desktop form factor with robust metal housing

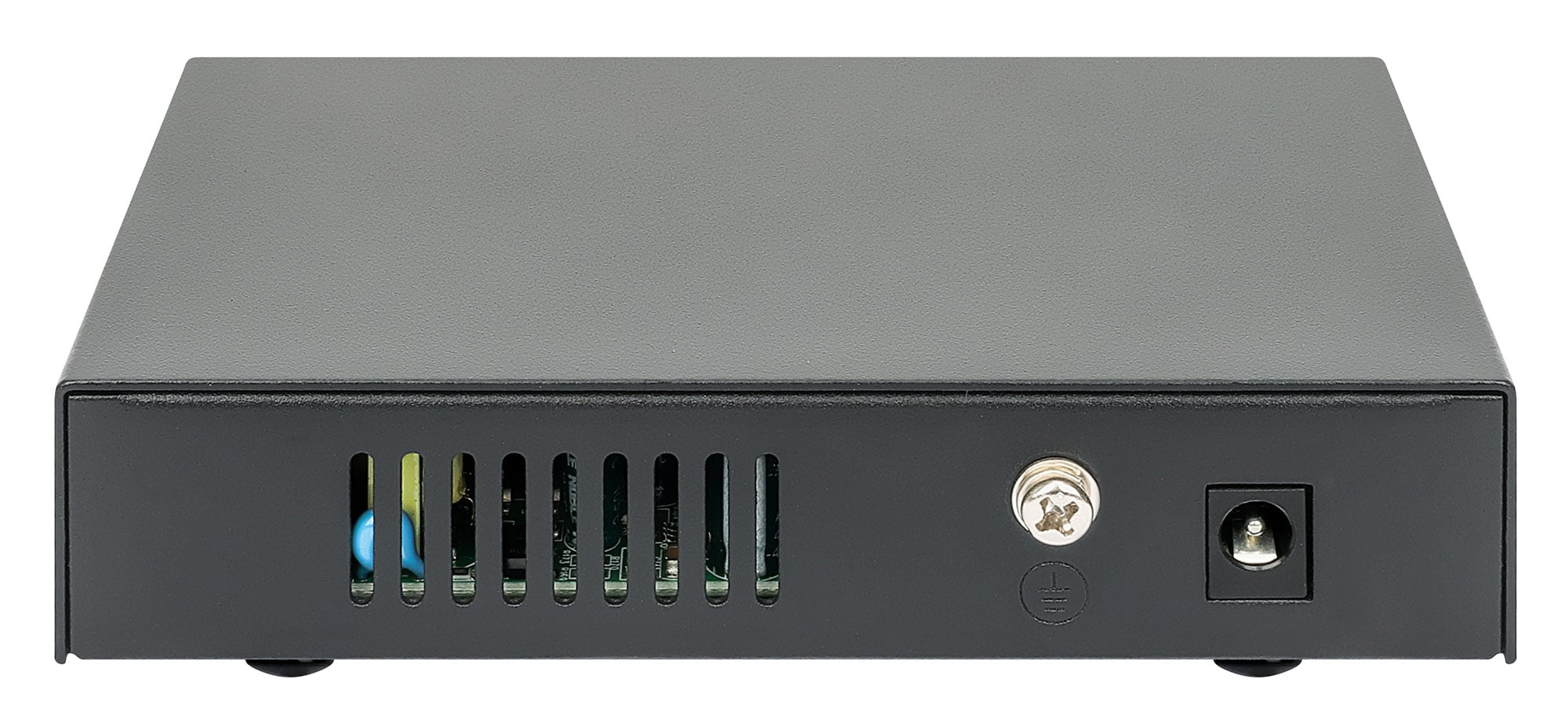

• Grounding point to protect equipment from external electrical surges


• Fanless design ideal for silent operation


• Desktop metal casing



Standard

• IEEE 802.3 (10Base-T Ethernet)


• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)


• IEEE 802.3af (Power over Ethernet 802.3at type 1)


• IEEE 802.3at (Power over Ethernet 802.3at type 2)


• IEEE 802.3u (100Base-TX Fast Ethernet)


• IEEE 802.3x (flow control, for full duplex mode)



General information:

• Supports:



- 10Base-T Cat5e UTP/STP RJ45, 8 pin

- 100Base-TX Cat5e UTP/STP RJ45, 8 pin

- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

• Packet filter / forwarding rate:



  - 1.488.000 pps (1000 Mbps)

  - 148.800 pps (100 Mbps)

  - 14.880 pps (10 Mbps)

• MAC addresses; 2k


• Backplane / switch speed: 10 Gbps


• Switching architecture: store and forward



Certifications

• FCC Class A


• CE


• RoHS

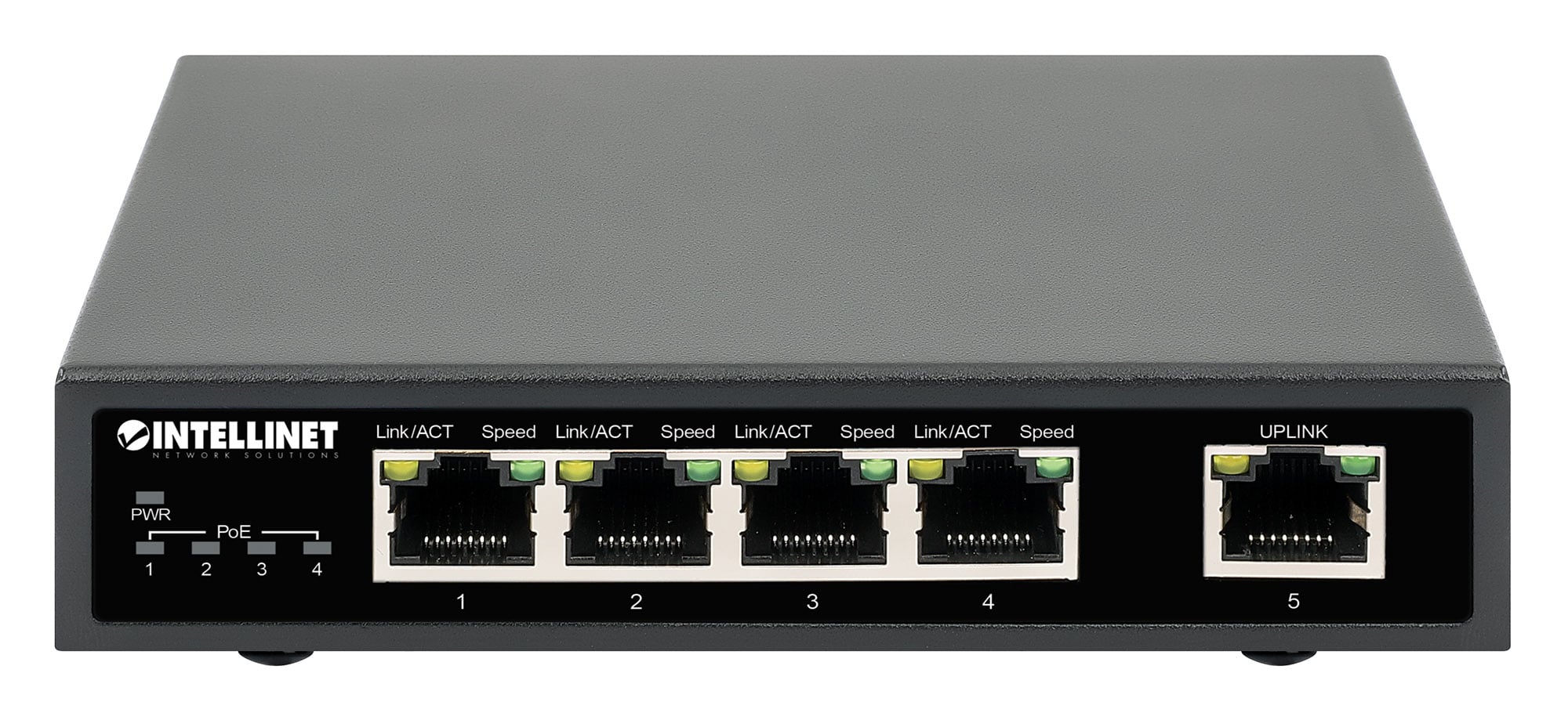

LED

• Power


• Activity/Connection


• PoE



Output port pinout RJ45

- Pin 1: DC (+)

- Pin 2: DC (+)

- Pin 3: DC (-)

- Pin 6: DC (-)



Power

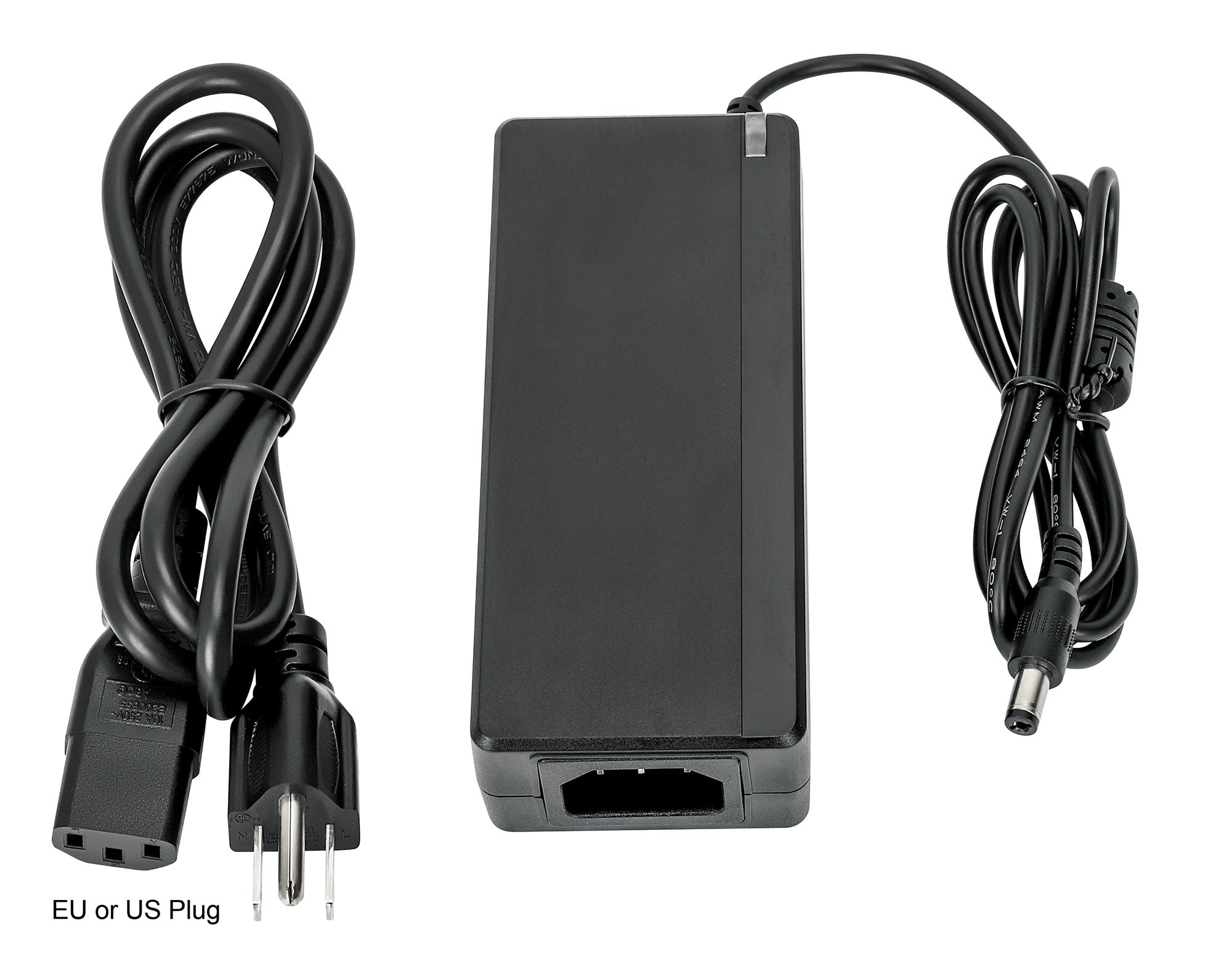

• Power supply included:



- Input: 100 - 240 VAC, 50 - 60 Hz, 2.0 A

- Output: DC, 48.0 V, 1.35 A

- PoE Budget: 62.0 watt (maximum)

- Power consumption: 65.0 watt (maximum)

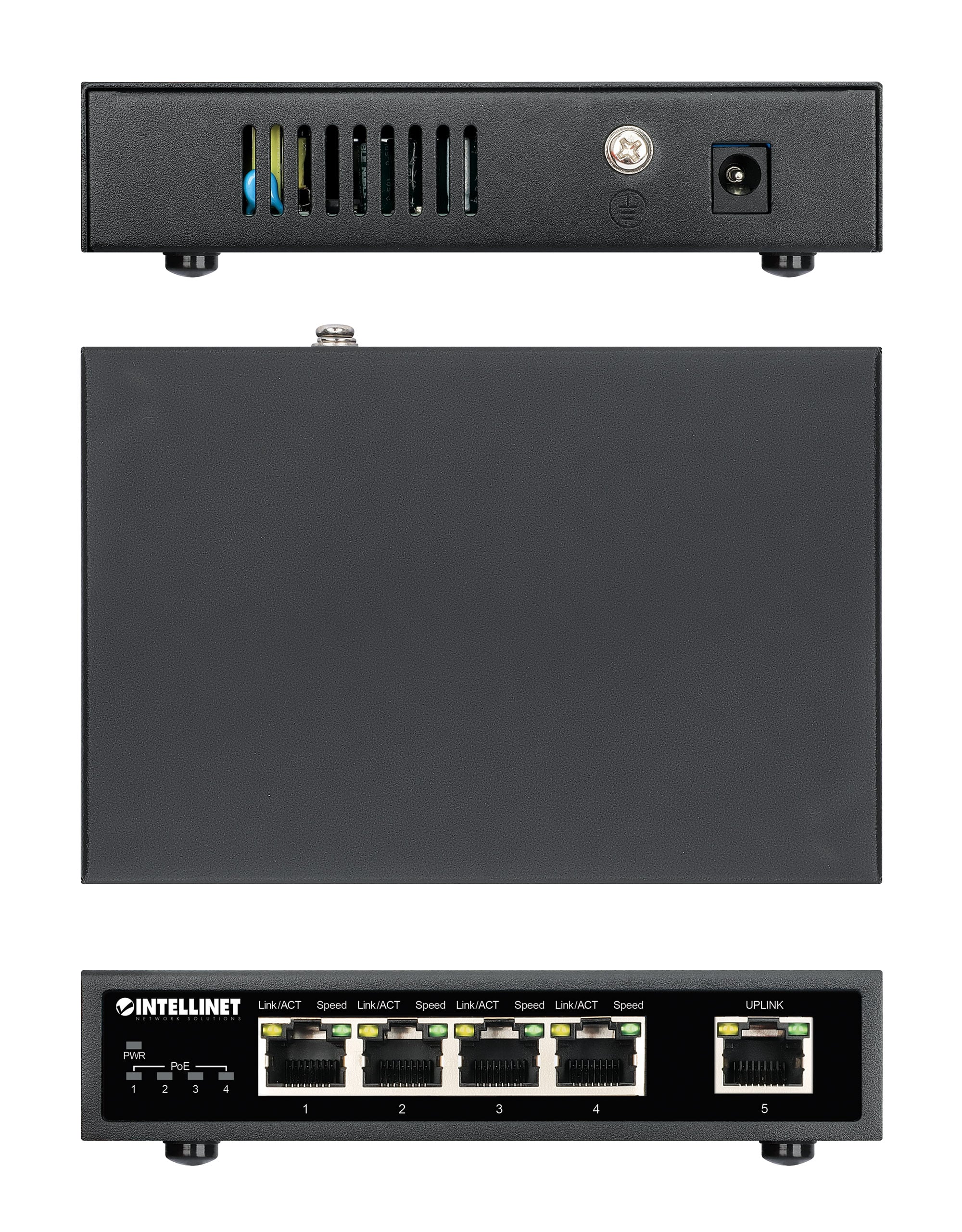

Physical information

• Metal chassis


• Dimensions (D x W x H): 86 x 130 x 29 mm


• Net weight: 770 g


• Gross weight: 850 g


• Operating temperature: from 0 to 40°C


• Storage temperature: from -10 to 70°C


• Operating humidity: 20 - 85% RH, non-condensing


• Storage humidity: 5 - 90% RH, non-condensing



Package contents

• Gigabit PoE+ Ethernet Switch 5 ports


• Power supply


• Power cable


• Instructions
