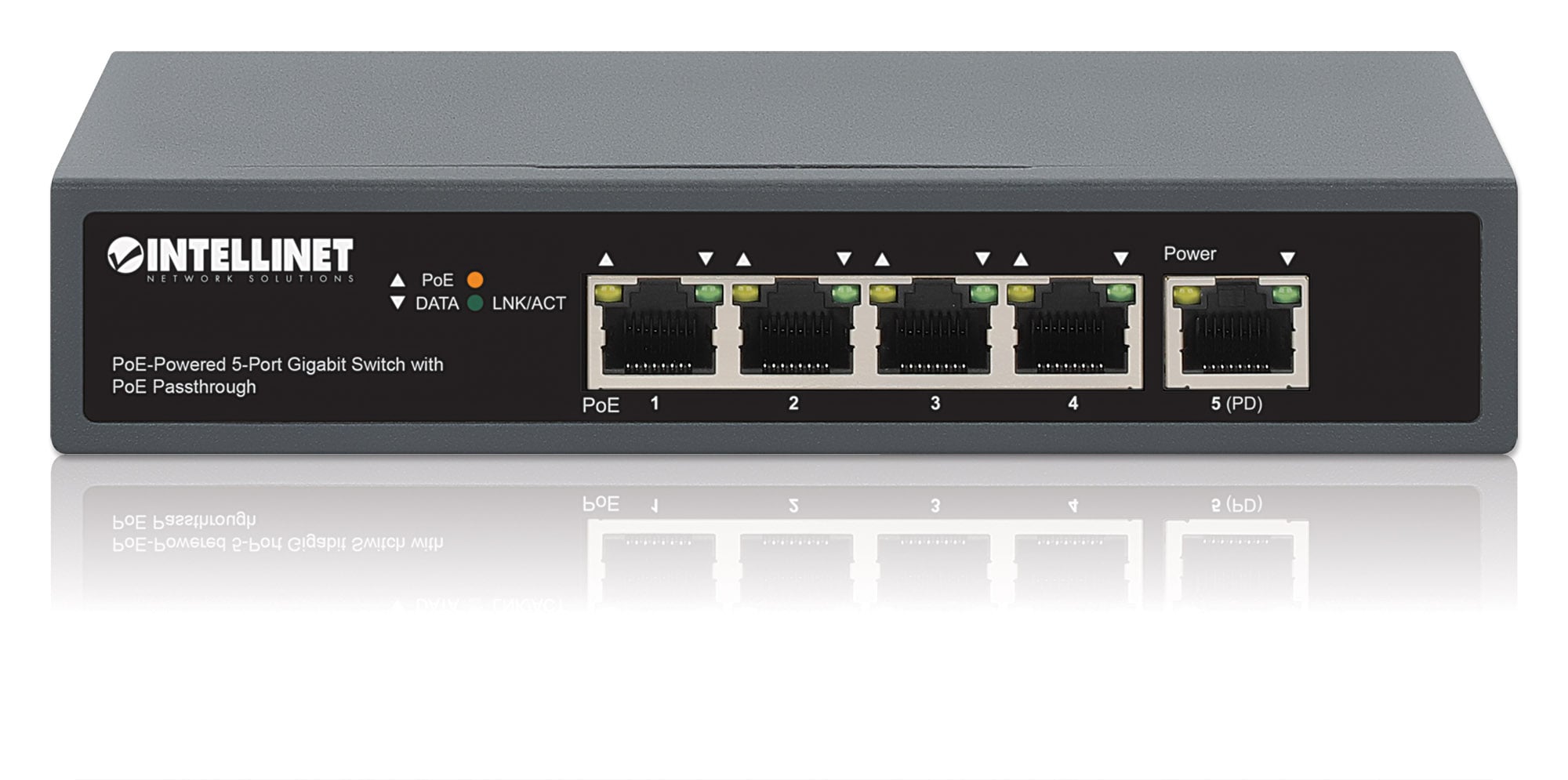

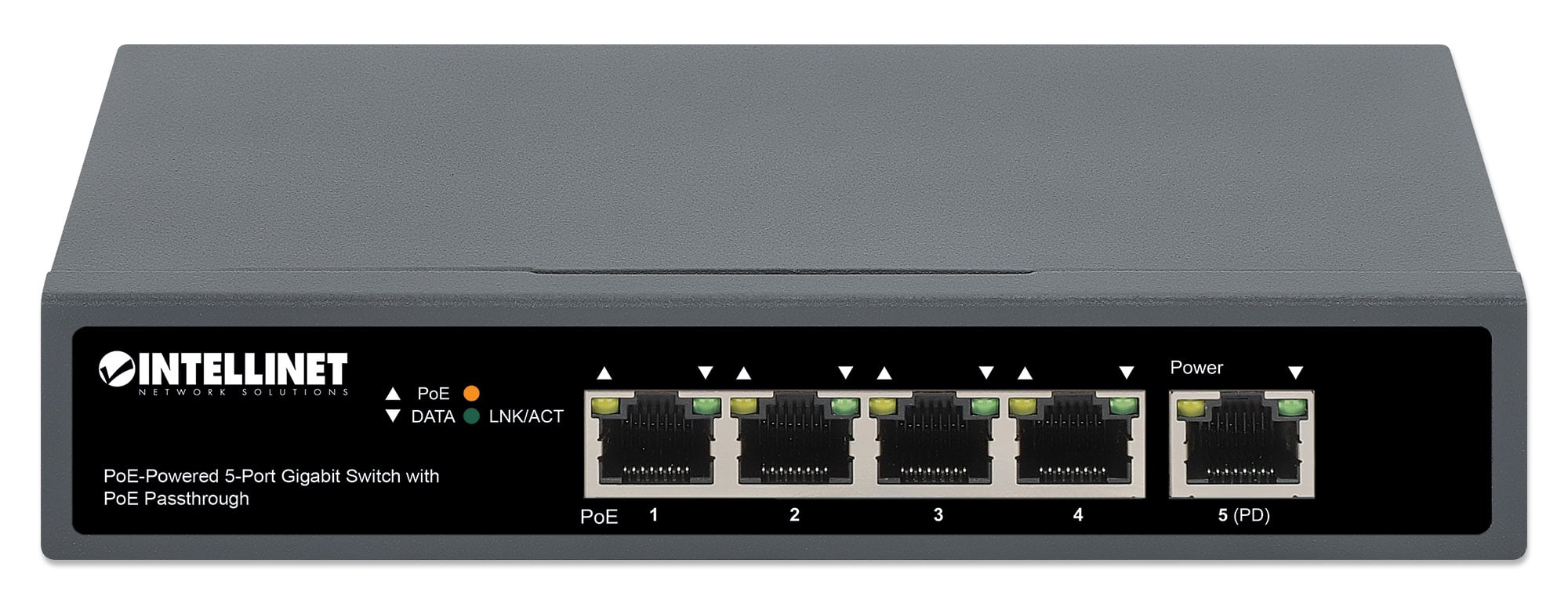

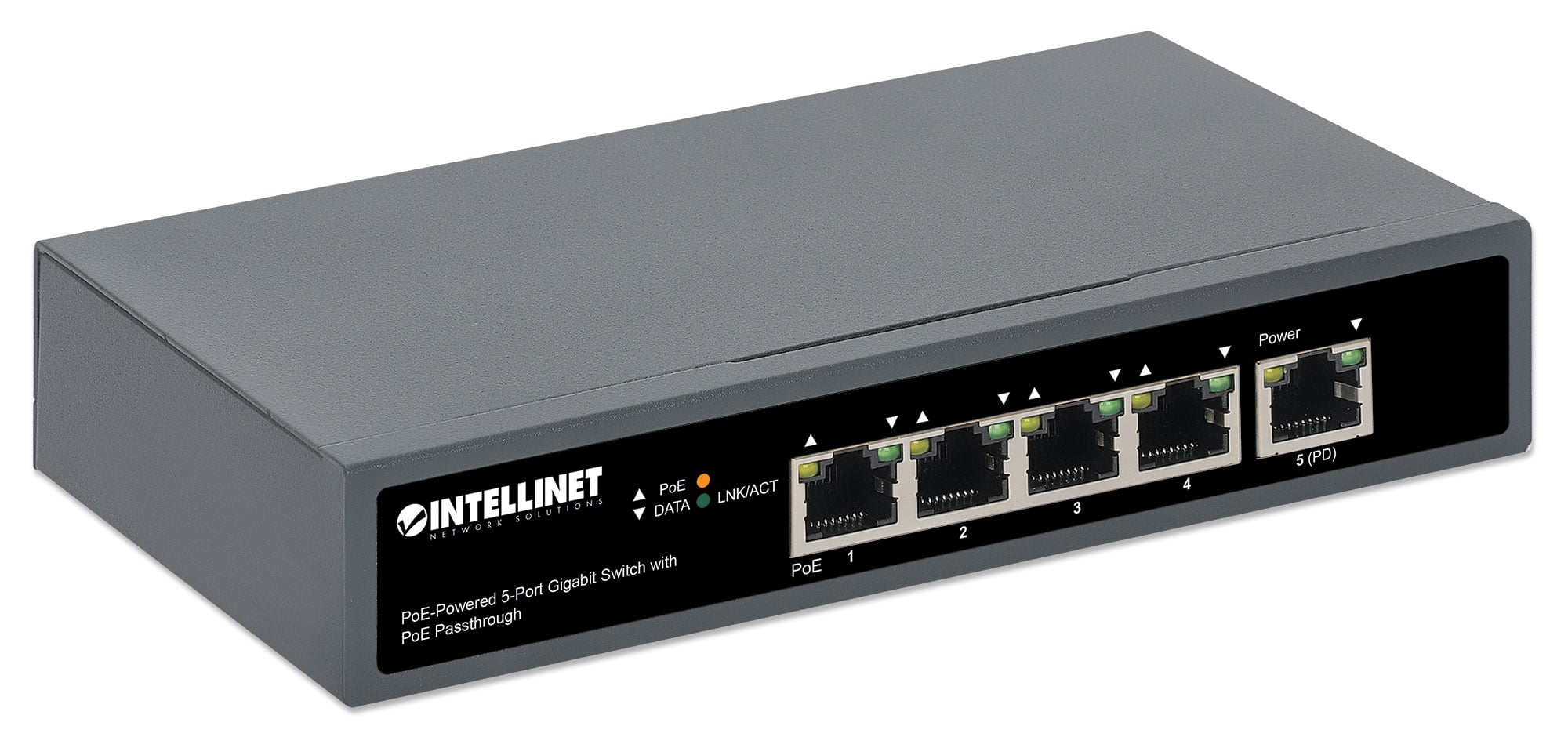

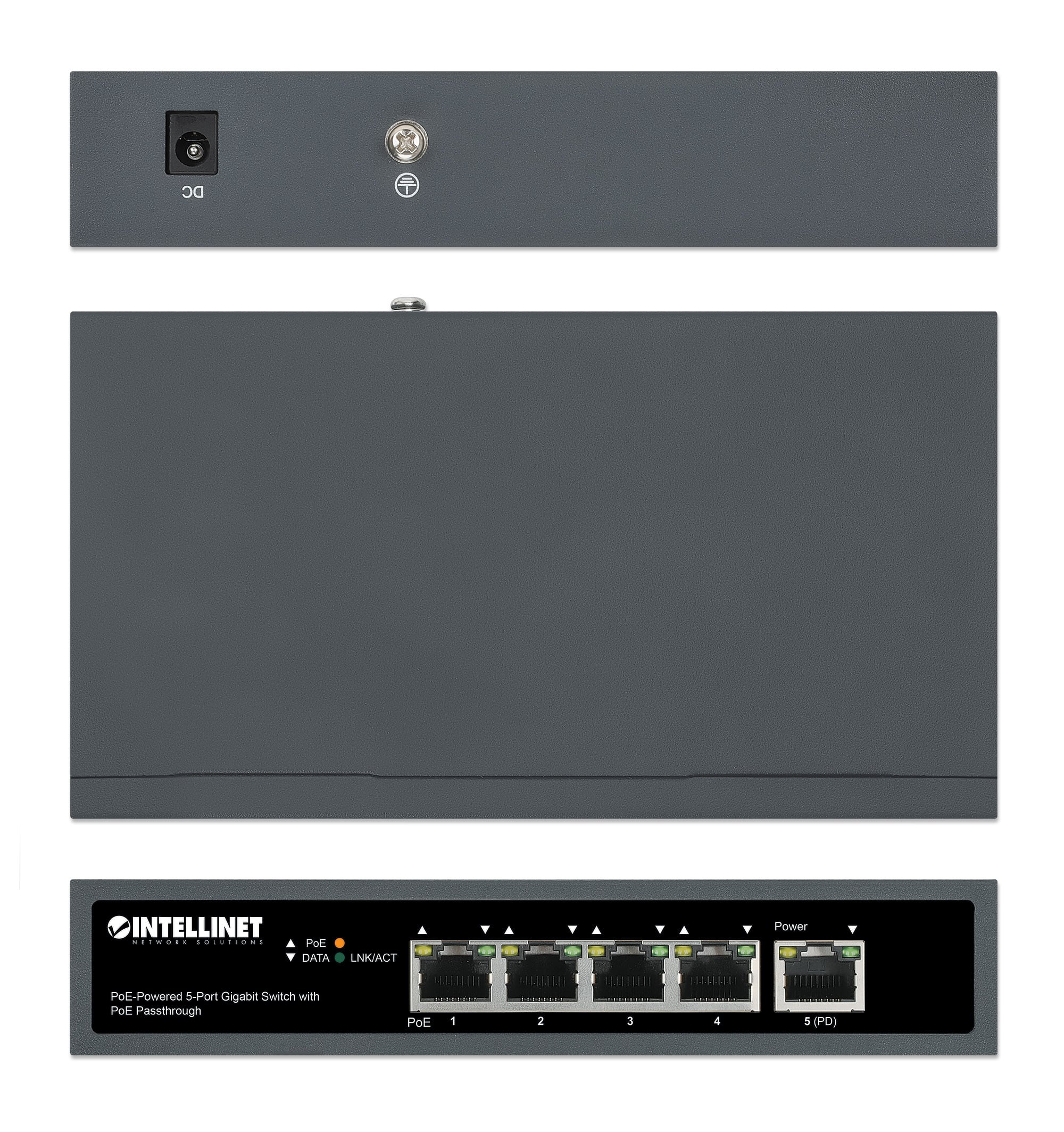

Gigabit switch with 5 ports with PoE Passthrough - Intellinet I-SWHUB 5GPLUS

• Supports up to 95 W of input power from a PoE injector or switch
• PoE power budget up to 65 watts when using an AC power adapter or IEEE 802.3bt via PD input port
• Provides power and data to up to four PoE network devices
• Doubles the connection distance between the PoE source and the device from 100 m to 200 m
• Self-Healing Network: the Powered Device Monitor (PDM) function, also known as PD Alive Check, restarts any connected PoE device that is not responding or not sending network traffic
• Can be powered via PoE or included power adapter
• PoE power budget of 25 W via IEEE 802.3at connection and 10 W via IEEE 802.3af connection
• Compatible with IEEE 802.3at/af RJ45 PoE/PoE+ on output ports
• Output power up to 30 watts per port
• Allows reducing installation costs by transmitting data and power over existing network cables
• Supports PoE devices compatible with IEEE 802.3at and IEEE 802.3af (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high voltage protection

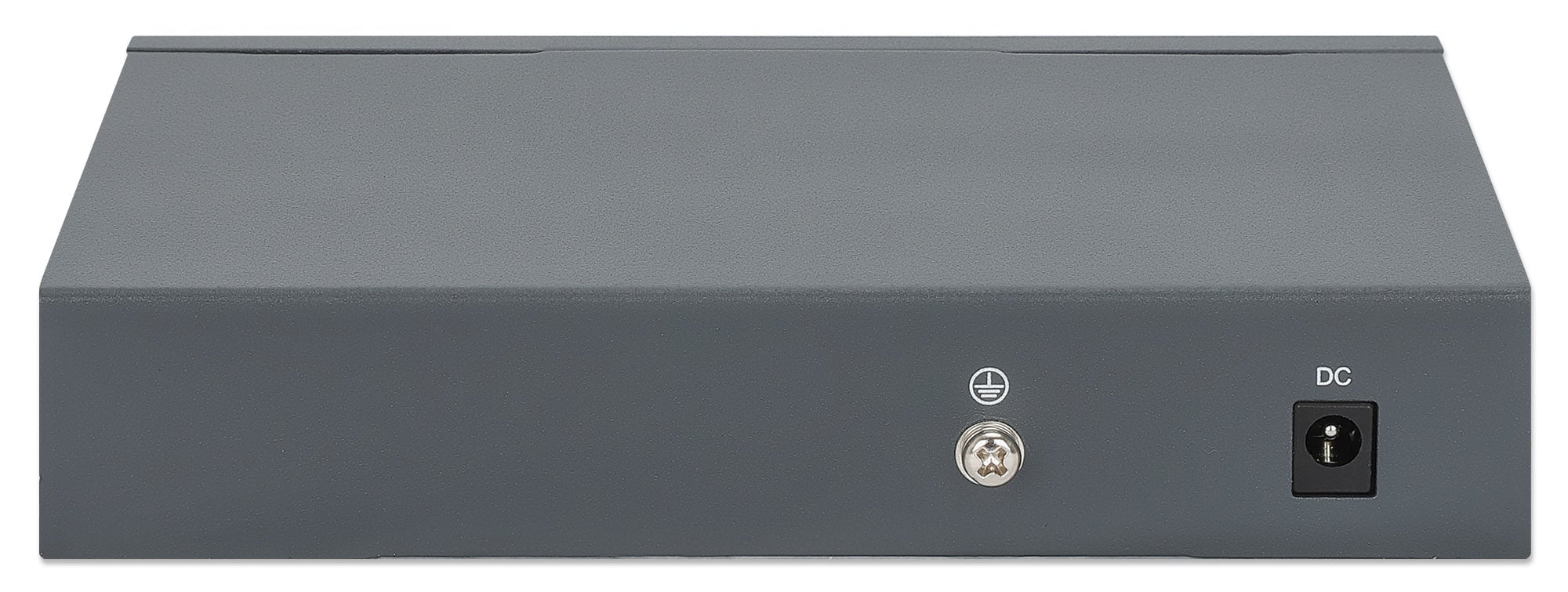

• Grounding point to protect equipment from external electrical surges
• 10 Gbps switch fabric
• Automatic speed detection of ports 10/100/1000 Mbps
• All RJ45 ports support Auto-MDIX (auto uplink)
• Store and forward switching architecture
• IEEE 802.3x flow control for full duplex mode
• Supports up to 2048 MAC address entries
• Buffer memory: 1024 kByte
• Mounting holes for wall installation
• Non-slip rubber feet for desktop use
• Fanless design for silent operation
• Fully NDAA compliant

Standards

• IEEE 802.3 (Ethernet 10Base-T)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at type 1)
• IEEE 802.3at (Power over Ethernet 802.3at type 2)
• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, for full duplex mode)

General information:

• Support support:

- 10Base-T Cat3, 4, 5 UTP/STP RJ45

  - 100Base-TX Cat5 UTP / STP RJ45

  - 1000Base-T Cat5e UTP / STP RJ45

• Packet filter / forwarding rate:

  - 1.488.000 pps (1000 Mbps)

  - 148.800 pps (100 Mbps)

  - 14.880 pps (10 Mbps)

• MAC table: 2048 addresses
• Buffer memory: 1024 kB
• Backplane speed: 10 Gbps
• Switching architecture: store and forward
• Certifications: FCC Class A, CE, RoHS

LED

• Power supply:
• Activity/Connection
• PoE

PoE pinout

• Pin 1: DC (-)
• Pin 2: DC (-)
• Pin 3: DC (+)
• Pin 6: DC (+)

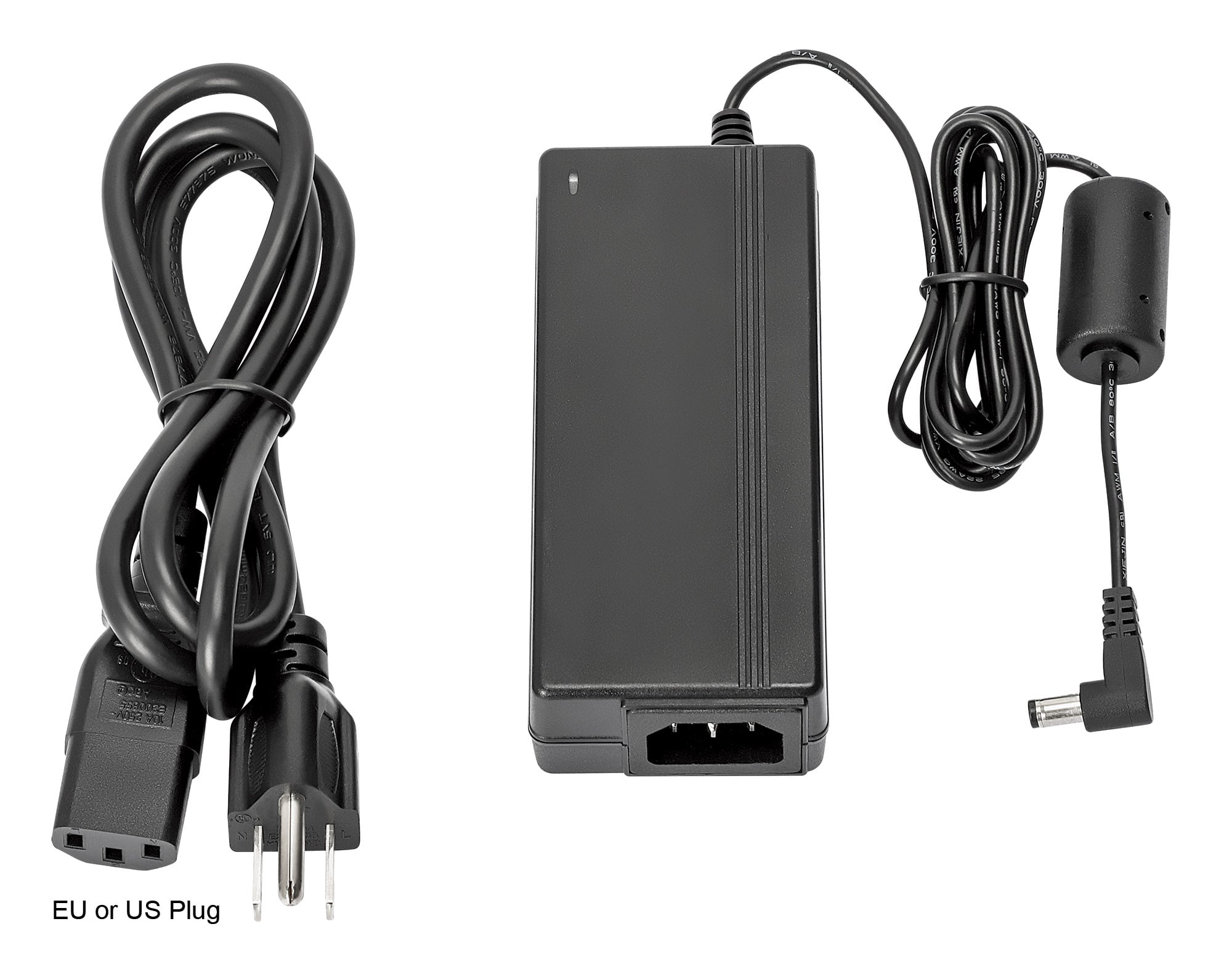

Power supply:

• Power supply included:

- Input: 100,0 – 240,0 VAC, 50 – 60 Hz, 2,0 A

- Output: DC, 54,5 V, 1,32 A

- PoE Budget: 65,0 watt (maximum)

- Power consumption: 72,0 watt (maximum)

• Via PD port (port 5)

- Input: compliant with IEEE802.3af/at/bt

- PoE Budget: 65,0 watt (maximum) with IEEE802.3bt input; 25,0 watt with IEEE802.3at input; 10,0 watt with IEEE802.3af input

- Power consumption: 71 watt (maximum)



Physical characteristics

• Metal housing
• Dimensions (D x W x H): 93 x 168 x 32 mm
• Net weight: 400 g
• Gross weight: 900 g
• Operating temperature: from 0 to 40°C
• Storage temperature: from 0 to 70°C
• Operating humidity: 10 – 90% RH, non-condensing

Package contents

• Switch 5 ports Gigabit PoE with PoE pass-through
• Power supply
• Power cable
• Four rubber feet
• Instruction manual

Note: the total PoE budget for this switch is 65 watt when using the included AC power adapter. This brings the maximum power distribution per port to 16 watt. The maximum power usage per port cannot exceed 30 watt.
