- Allows you to manage / control up to 16 PC with a keyboard, monitor and mouse
- Support USB and PS/ 2 interfaces both on the console side and on the PC side
- 16 connecting cables 4 -in- 1 USB/PS/ 2 included
- Menù Screen Reset (OSD)
- Selecting and operating the computer using the buttons on the front panel and via menuù OSD
- Hot Plug and Play: do not need to turn off the KVM switch to connect or remove PCs
- Numerical display and led indicators for simple monitoring of port status
- Supports screen resolutions up to 1600 x 900
- Supports Microsoft and Logitech standard mouse to 5 compatible keys and templates
- Auto-Scan programmable through menù OSD options
- Password Protection
- Supports auto-logout interval
- Does not require software
- Works independently of computer operating systems
Standard:General information:- Computer connections: 16
- Connections to the console: 1
- PC port connectors:
- 16 connections x HD 15 female for use with connection cables 4 -in- 1 (16 cables included)
- Console door connections:
- 2 x USB type A (keyboard, mouse)
- 2 x PS/ 2 mini-DIN 6 female (keyboard, mouse)
- 1 x HD 15 female (video)
- via buttons
- via on-screen display (OSD)
- Video resolution: maximum 1600 x 900
- Bandwidth: maximum 350 MHz
- FCC Class B, CE, RoHS
LED:- 1 Online LED per channel
- 1 LED selection per channel
Operating conditions:- Metal structure
- Dimensions: 440 (l) x 155 (p) x 45 (a) mm
- Weight: 4.4 kg
- Operating temperature: 0 - 50 °C
- Humidità operating: 0 - 80 %RH, without condensation
- Storage temperature: - 20 - 60 °C
Feeding:- External power supply: DC 9 V, 1 A
- Consumption: maximum 500 mW
Package size:- KVM Switch 16 rack doors
- Mounting brackets to rack 19
- Education manual

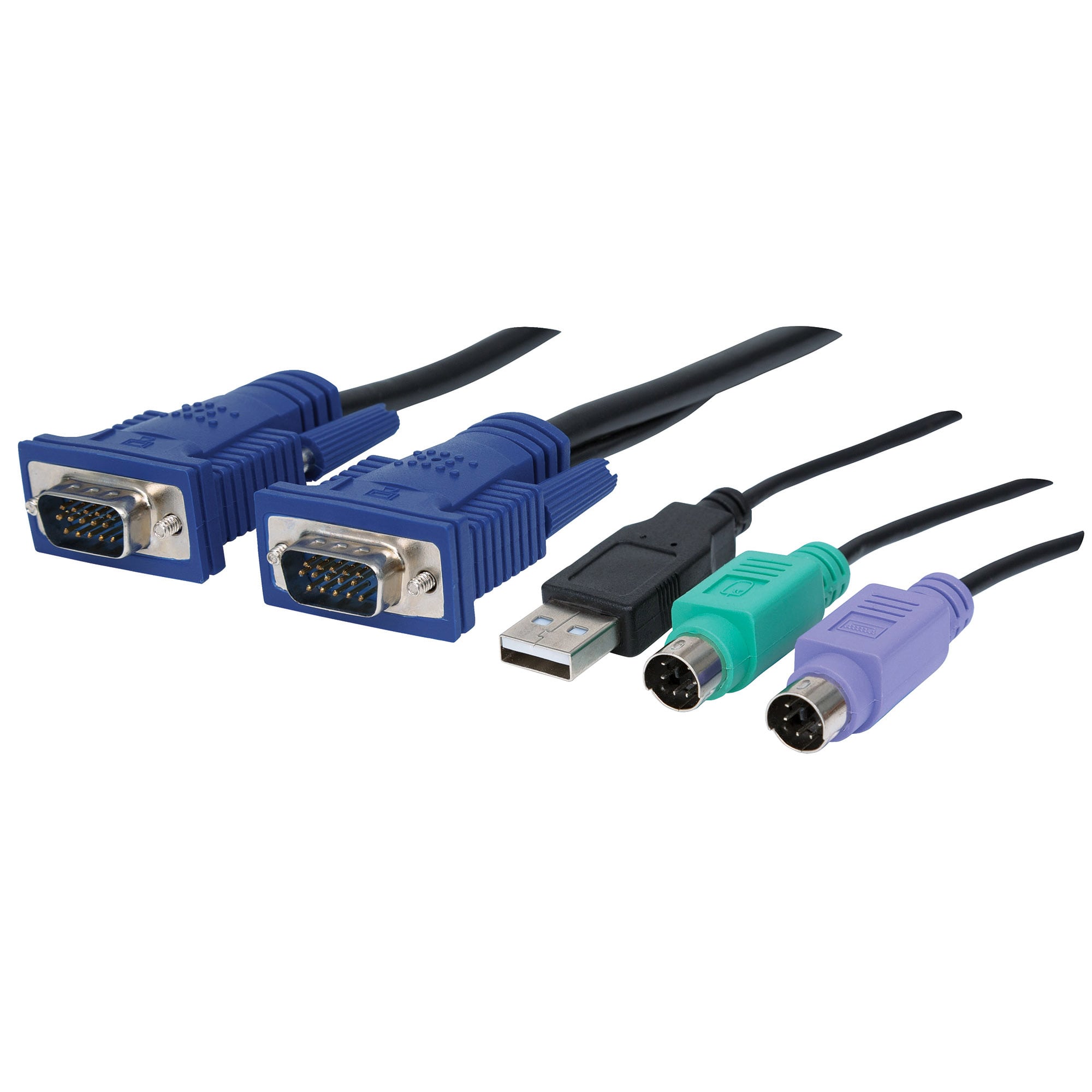

- Connection cable 4 -in- 1 x 16 from 1,8 mt
