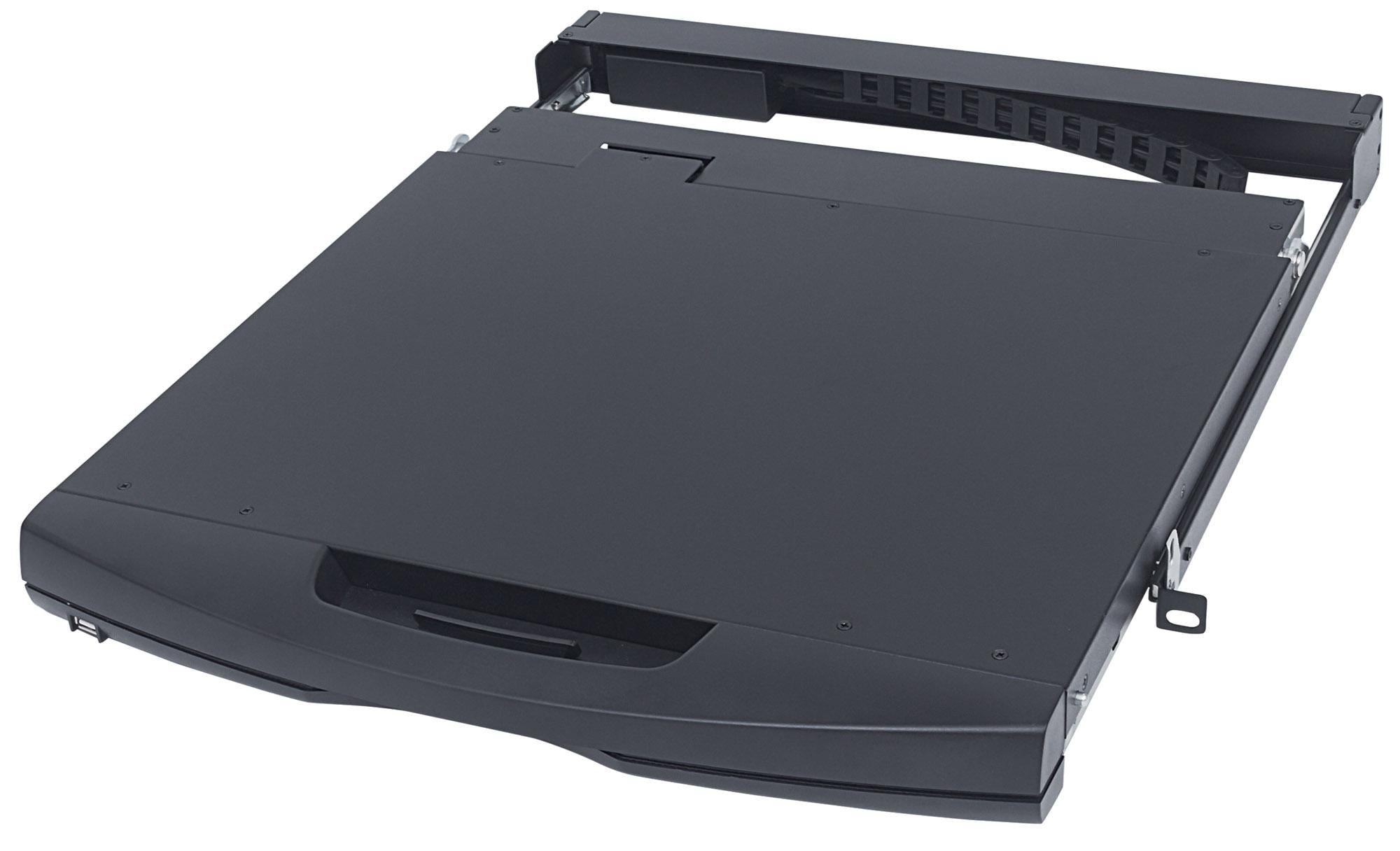

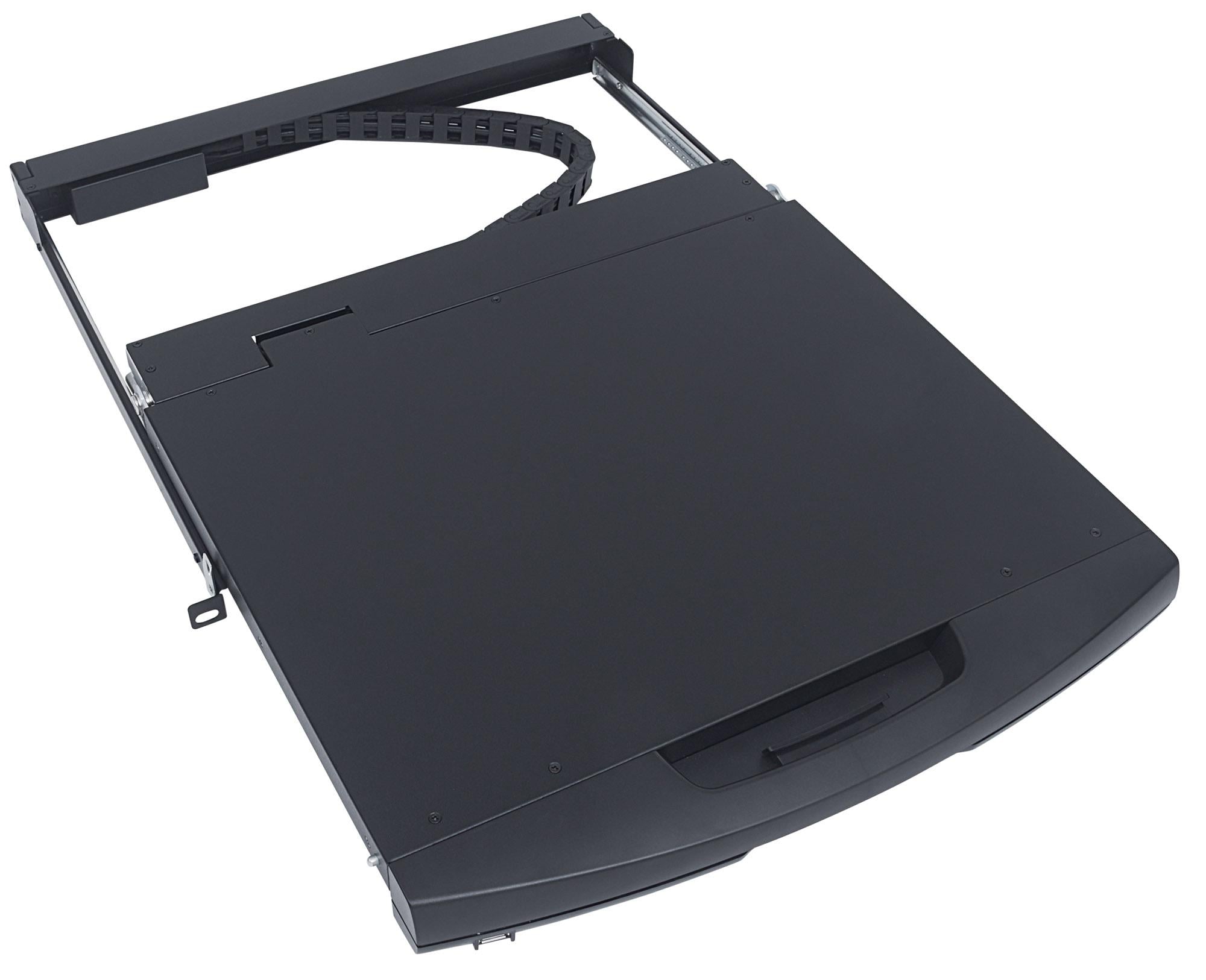

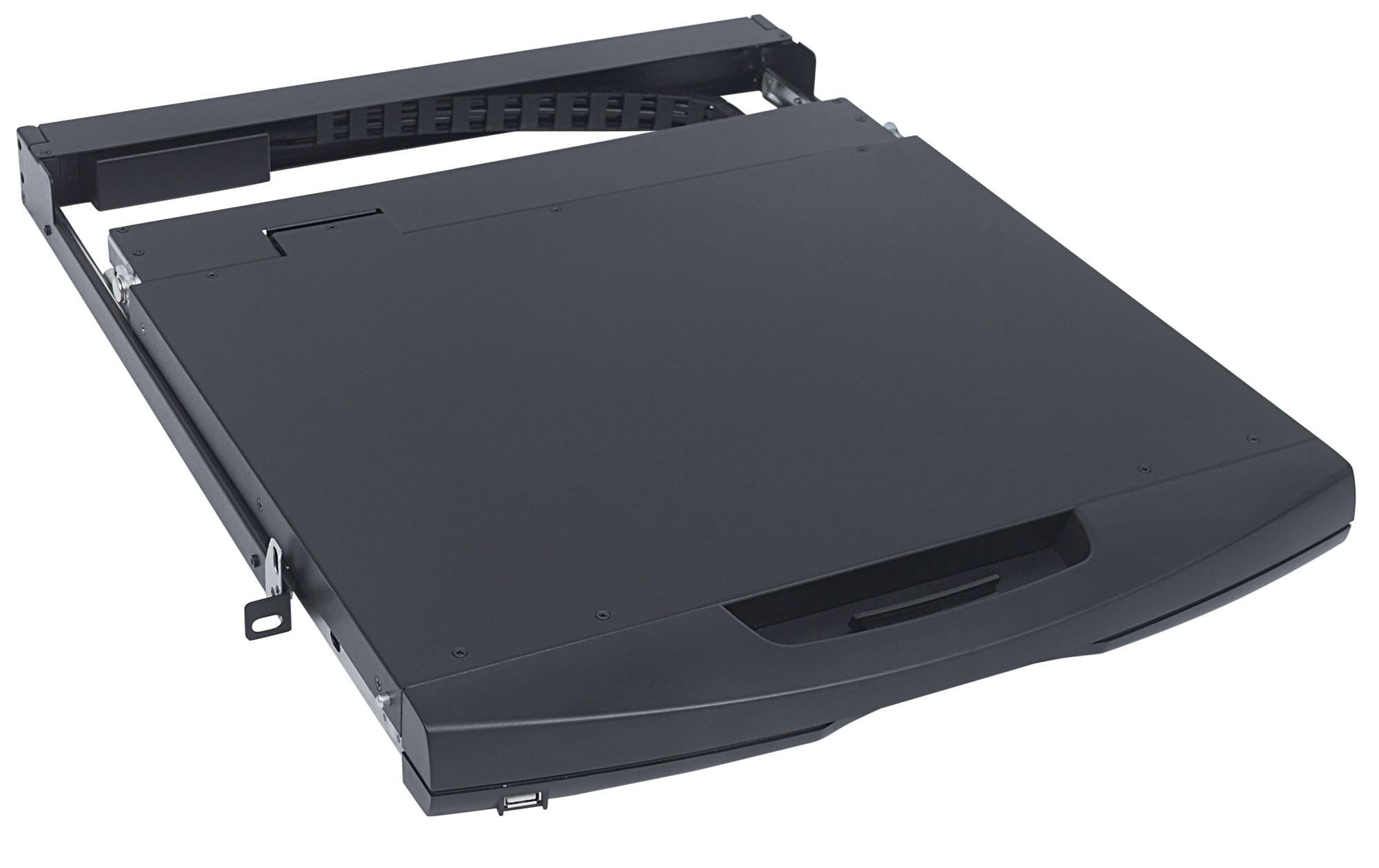

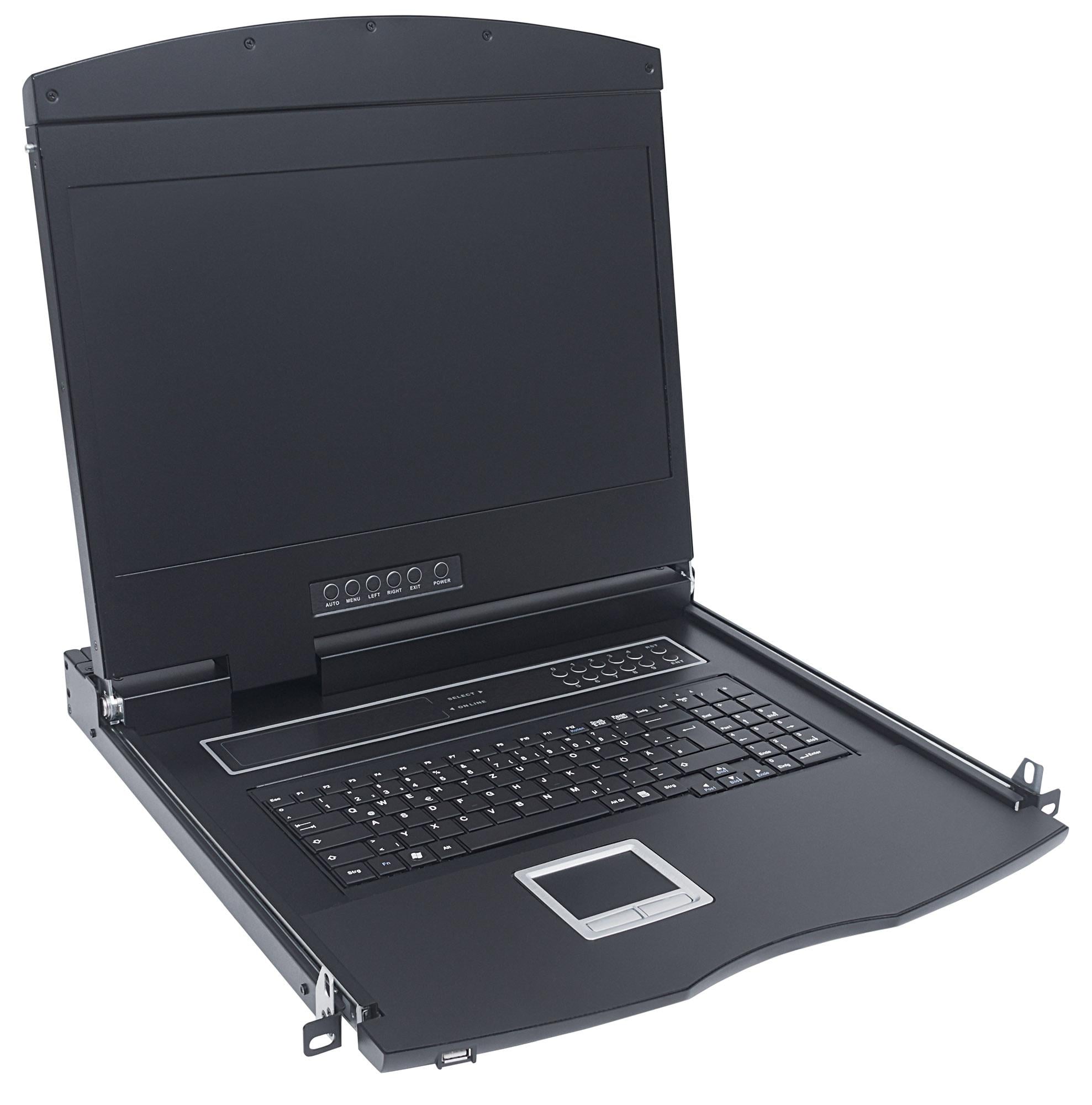

Modular KVM console with 17 " by Rack 19 " - Intellinet IDATA KVM-LCD 17 C

• Console with integrated LCD, keyboard and mouse
• PS 2 or USB computer management/control from a keyboard, monitor and mouse (necessary of KVM module)
• Standard 19 inch 1 U rack drawer
• 17 LCD panel with opening supports 1280 x 1024 resolution
• Full control via easy-to-use OSD interface
• Adjustable - for rack cabinets with depth à from 600 to 1000 mm
• Robust 100 keyboard keys included
• Ergonomic structure not to tire your hand
• Extremely durable rear brackets and expansion design
• Control and adjustment of OSD
• Auto-scan to automatically select computers in sequence
• Supports both PS/ 2 and USB mouse
• Independent and transparent operating system for all applications

Standards

• PS/ 2
• USB
• Compatible with Windows, Mac and Unix

• PC Connections: Depending on the KVM module purchased together
• Computer selection:

• Sì
• FCC Class B, CE, RoHS

• Current input (AC): approximately 100 - 240 V

• Active display area: 337,9 x 270,3 mm
• Pixel size: 0.264 (A) x 0.264 (P)
• Resolution: 1280 x 1024 at 60 Hz
• Luminosità: 250 (Typ)
• Contrast ratio: 1000: 1 (Tip)
• Display colors: 16.7 M colors
• User control: OSD control (car rescue)
• Backlighting: LED
• MTBF: 100,000 hours

• Ultra-thin keyboard 100 - keys, italian, stand-alone, removable (optional keyboard language format)
• Microsoft Windows 9 , Me/NT/ 2000 /XP, WIN 7 , Server 2003 , WIN 8 , WIN 10
• Duration > 1.000 . 000 times

• Mouse touch
• 1000 points / inches (40 x 40 mm)
• Duration > 1.000 . 000 times

• Working temperatures: 0 – 50 °C
• Storage temperature: - 20 - 60 °C

• LCD console from 17
• Rear bracket with stretch kit
• Power supply
• User manual
