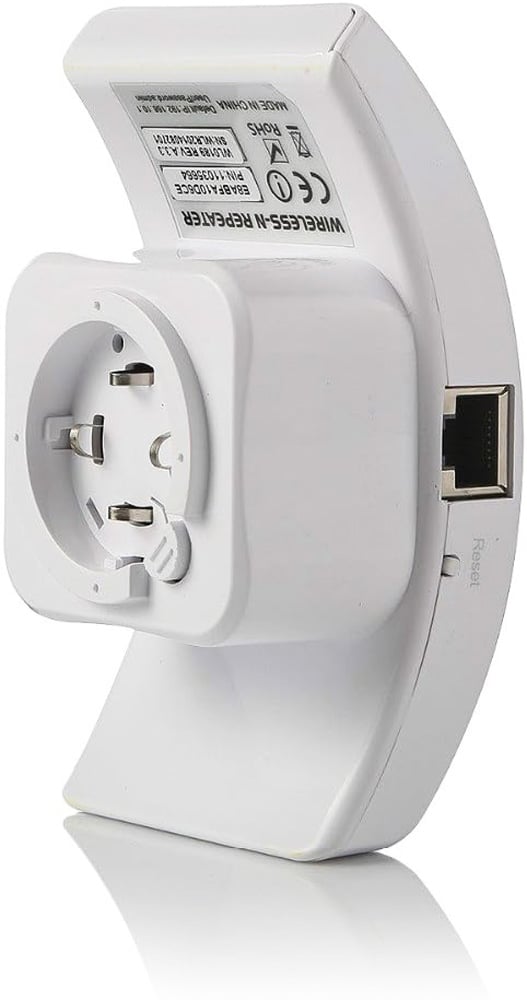

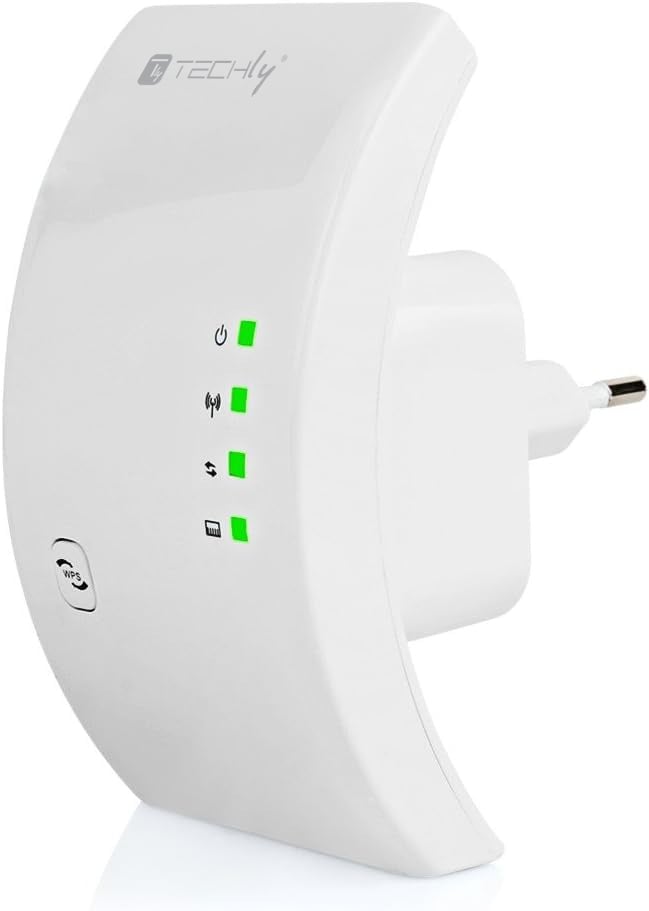

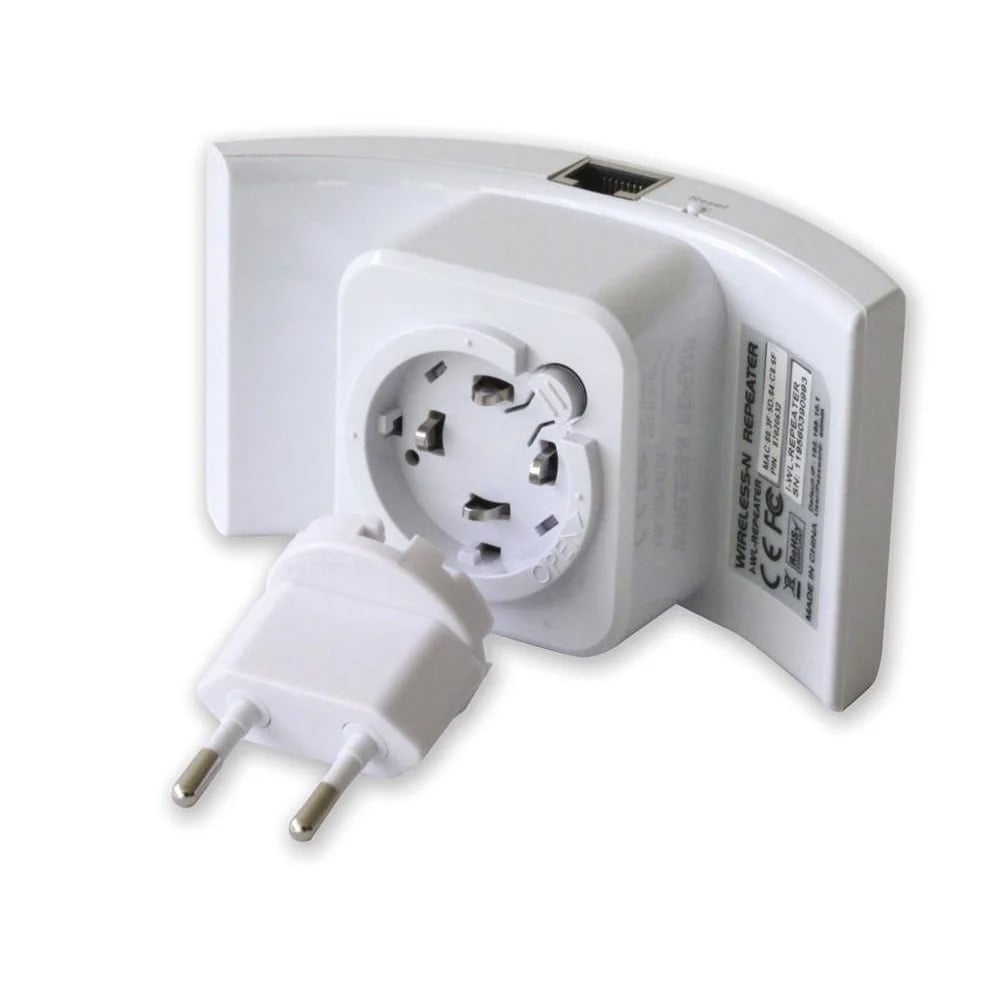

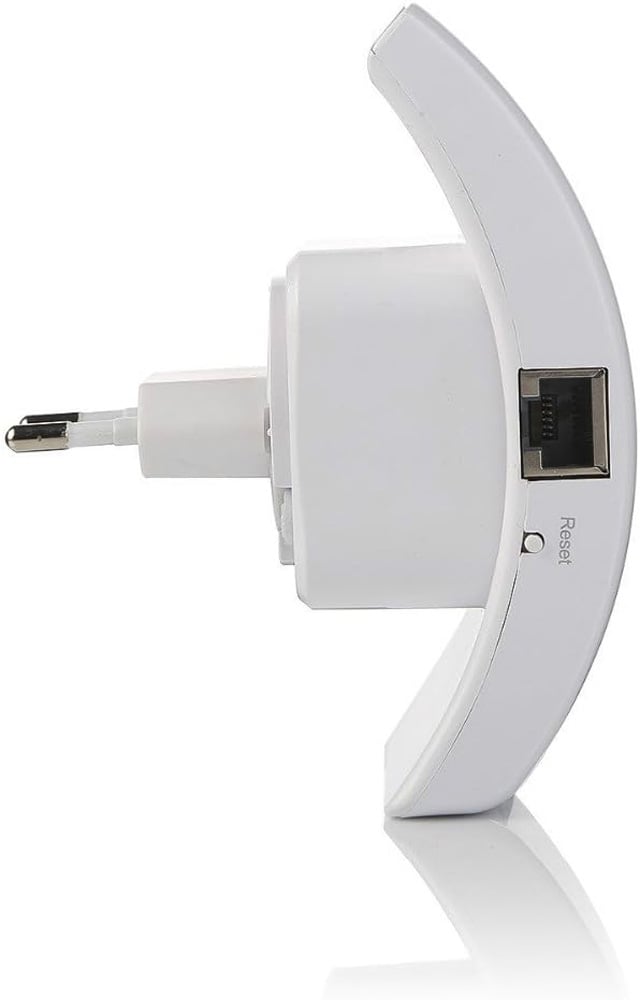

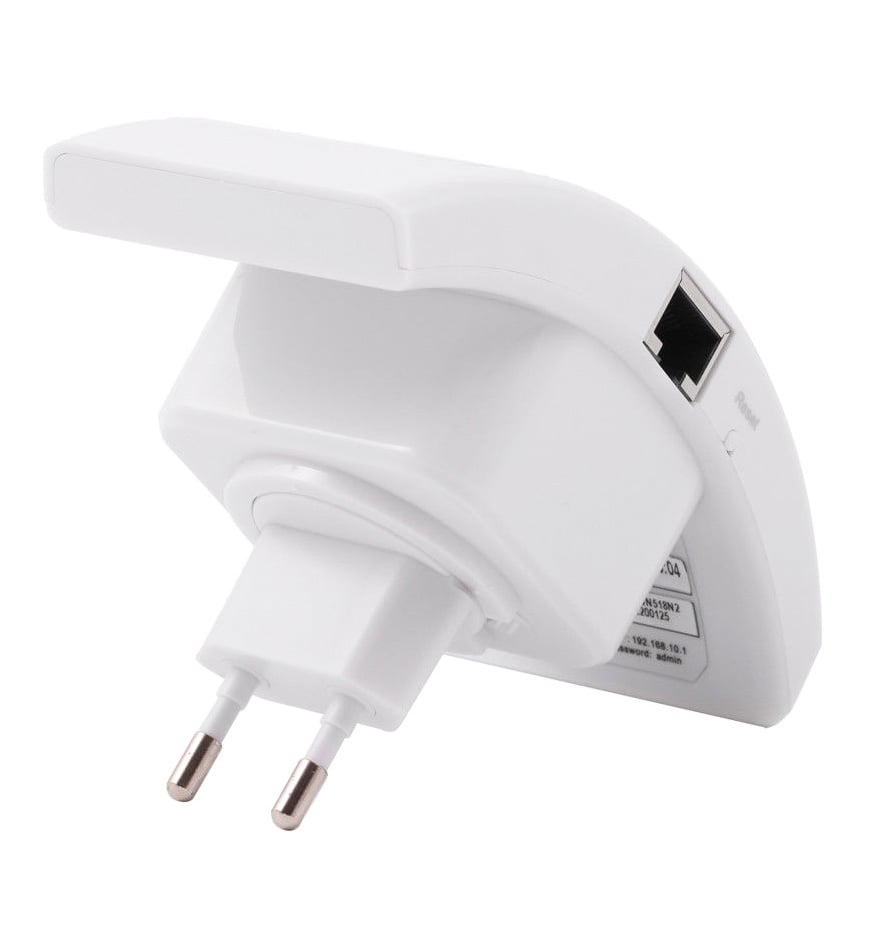

Wireless Repeater 300N Range Extender with WPS - Techly I-WL-REPEATER

Wireless repeater with 300 N technology (Draft 2.0) mainly used to easily provide Wi-Fi signal extension, even in large areas such as warehouses, large communities, wide homes, or, for example, when the signal coverage does not reach the 300 meters.

With the addition of more repeaters, the signal coverage becomes practically infinite.

Compliant with IEEE 802.11n standard with maximum wireless transmission range up to 300 Mt.

Includes 2dBi ceramic antennas that ensure better wireless signal performance.

Transmission speed, stability technology that automatically avoids channel conflicts using its channel selection function, ensures efficient operation in any condition and with any router.



Features

• Compact design with wall socket installation


• Supports all WIFI networks to extend their range


• Compliant with IEEE 802.11n, IEEE 802.11g (54Mbit/s), IEEE 802.11b (11Mbit/s) standards


• Supports Repeater mode and AP mode


• Includes Ethernet port 10/100Mbps with Auto-negotiation


• Natively supports IP firewall, MAC, URL Filtering features with full configuration control via web interface


• Support: WMM and WMM-APSD


• Supports transmission speeds up to 300 Mbps


• Support WEP, TKIP and AES encryption


• Supports WEP at 64/128/152-bit, compliant with WPA 128 bit (TKIP / AES)


• Supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X


• Web user interface with update support


• Supports backup and restore configuration files


• WPS button: allows establishing the connection between the repeater and another WPS-enabled device by simply pressing the appropriate button.



Technical specifications

• Power LED, LAN activity, wireless activity


• Standards: IEEE 802.11n (Draft 2.0), IEEE 802.11g, IEEE 802.11b.



Wireless signal speed

• Automatic Settings: 11n: up to 300Mbps (dynamic); 11g: up to 54Mbps (dynamic); 11b: up to 11Mbps (dynamic)


• Frequency range: 2.4-2.485 GHz


• Wireless transmission power: 14 ~ 17 dBm (typical)


• Modulation technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM.


• Receiver sensitivity: 270M:-68dBm @ 10% PER



130M:-68dBm @ 10% PER

108M:-68dBm @ 10% PER

54M:-68dBm @ 10% PER

11M:-85dBm @ 8% PER

6M:-88dBm @ 10% PER

1M:-90dBm @ 8% PER

• Antenna: two omnidirectional antennas 2dBi


• Power supply: 100V-240V AC.


• Operating temperature: 0 C°-40 C°


• Storage temperature: -40 C°- 70 C°


• Relative humidity: 10% - 90%, non-condensing


• Detachable European plug



Certifications

• CE


• RoHS


• RAEE

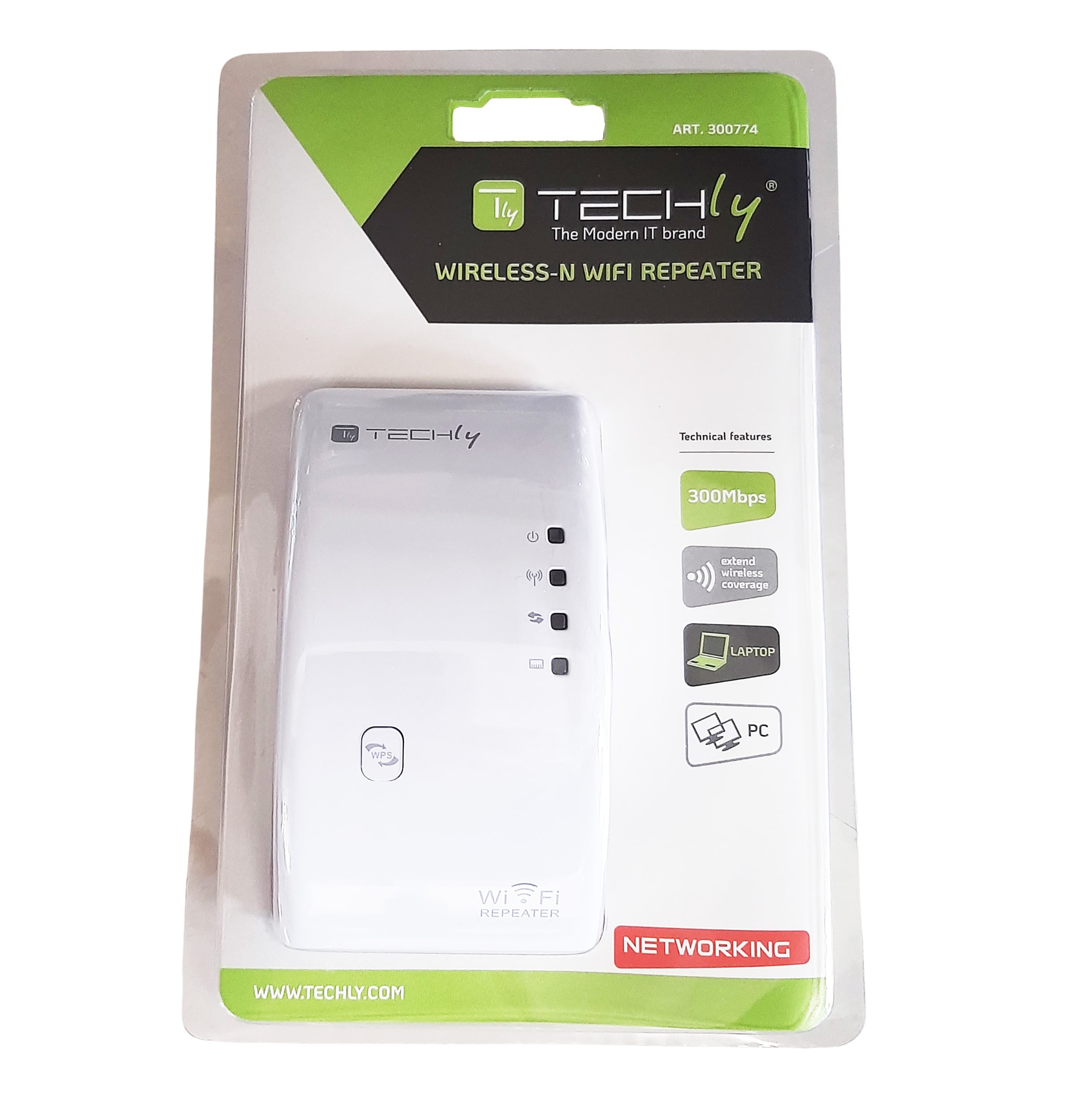

The package includes

• 1 Wireless-N Wi-Fi repeater


• 1 Ethernet cable RJ45


• 1 User manual in Italian
