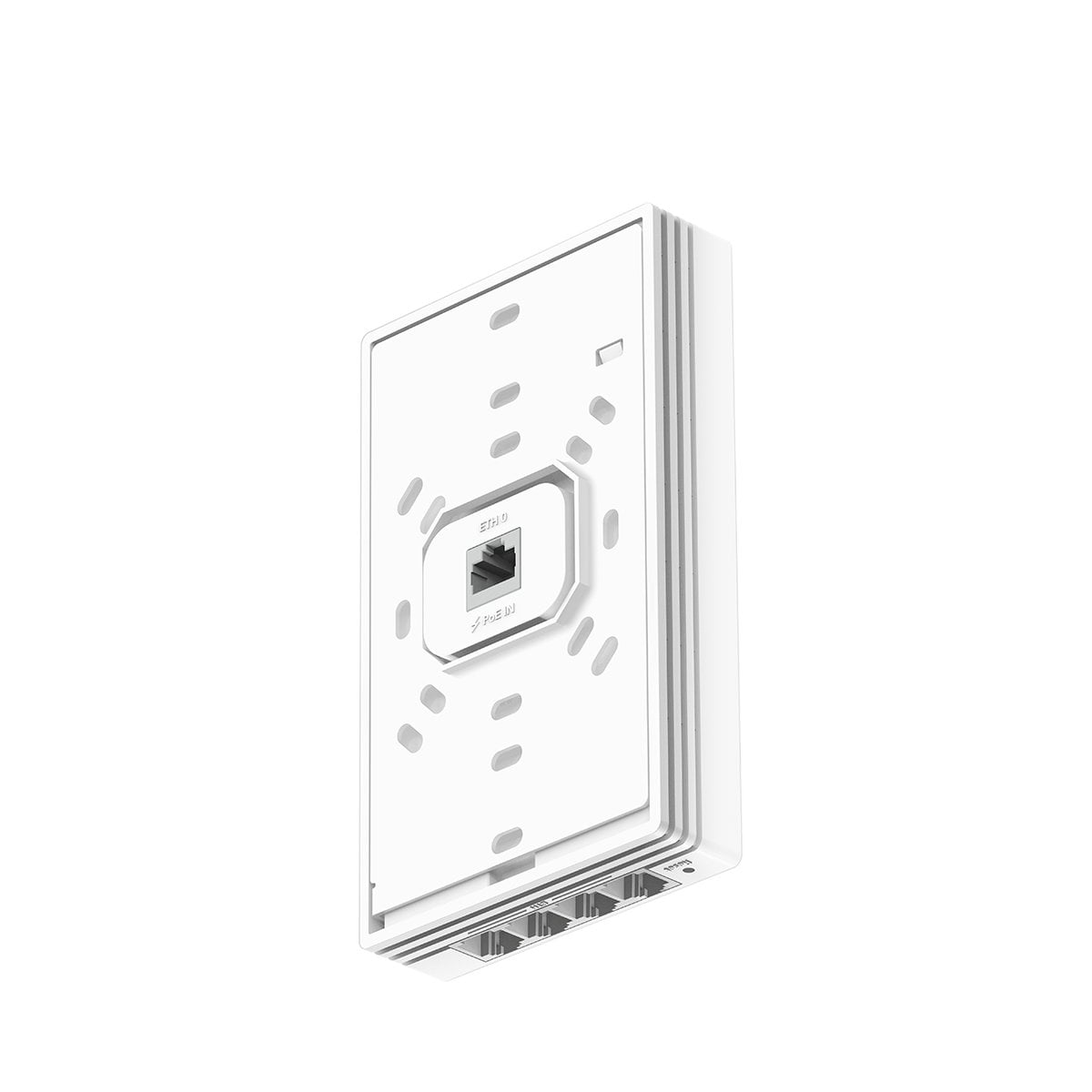

Wireless WiFi access point 5 Gigabit Dual Band AC 1200 Poe con Supporto Mesh, a Muro, AP 1300 W - Cudy ICU-AP 1300 W

•

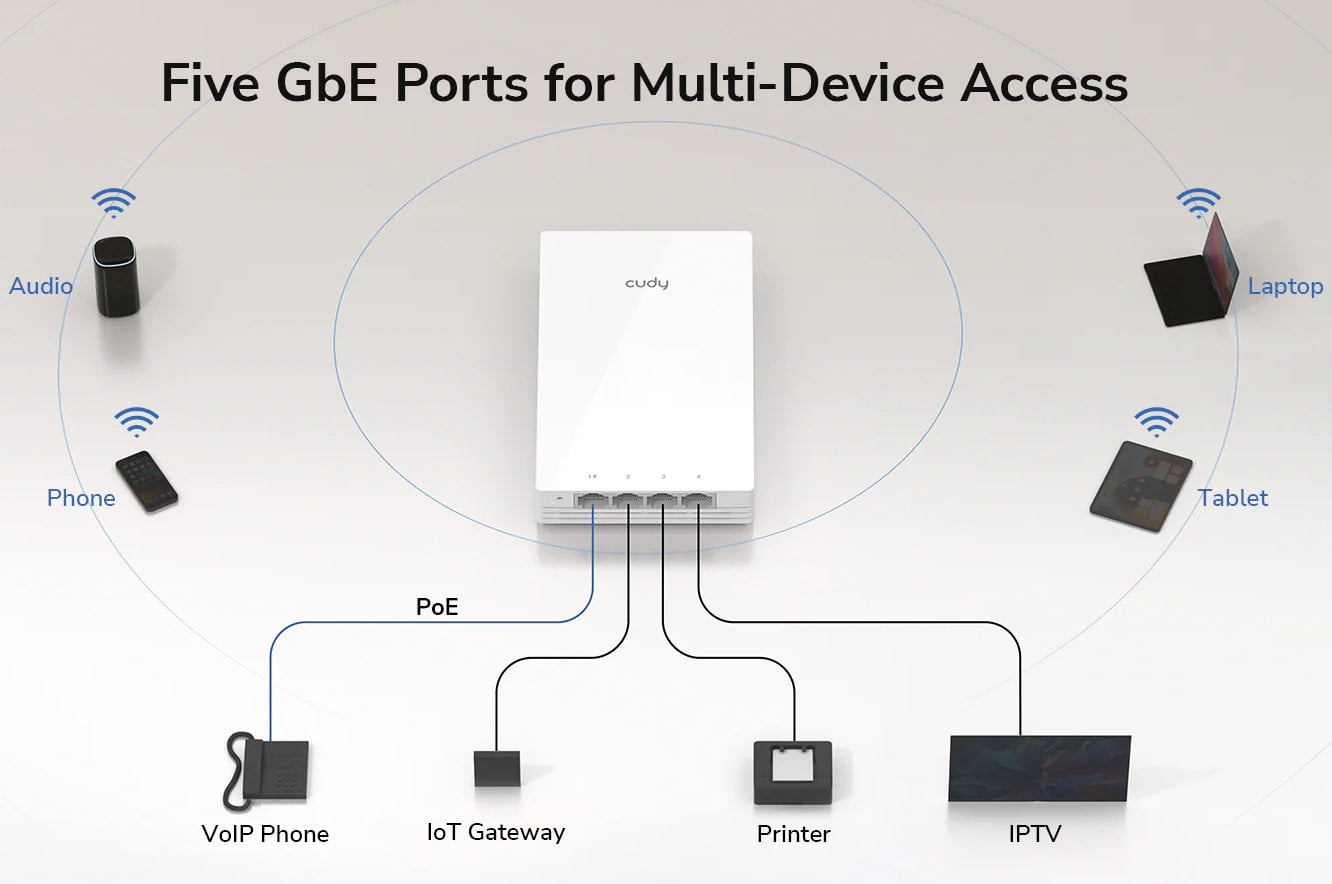

• A Dual-Band AP AC 1200 WiFi 5 mounted on the wall with 5 Gigabit Ethernet ports for Voip phones, IPTV and other wired connections

• 867 Mbps on 5 GHz, 300 Mbps on 2,4 GHz

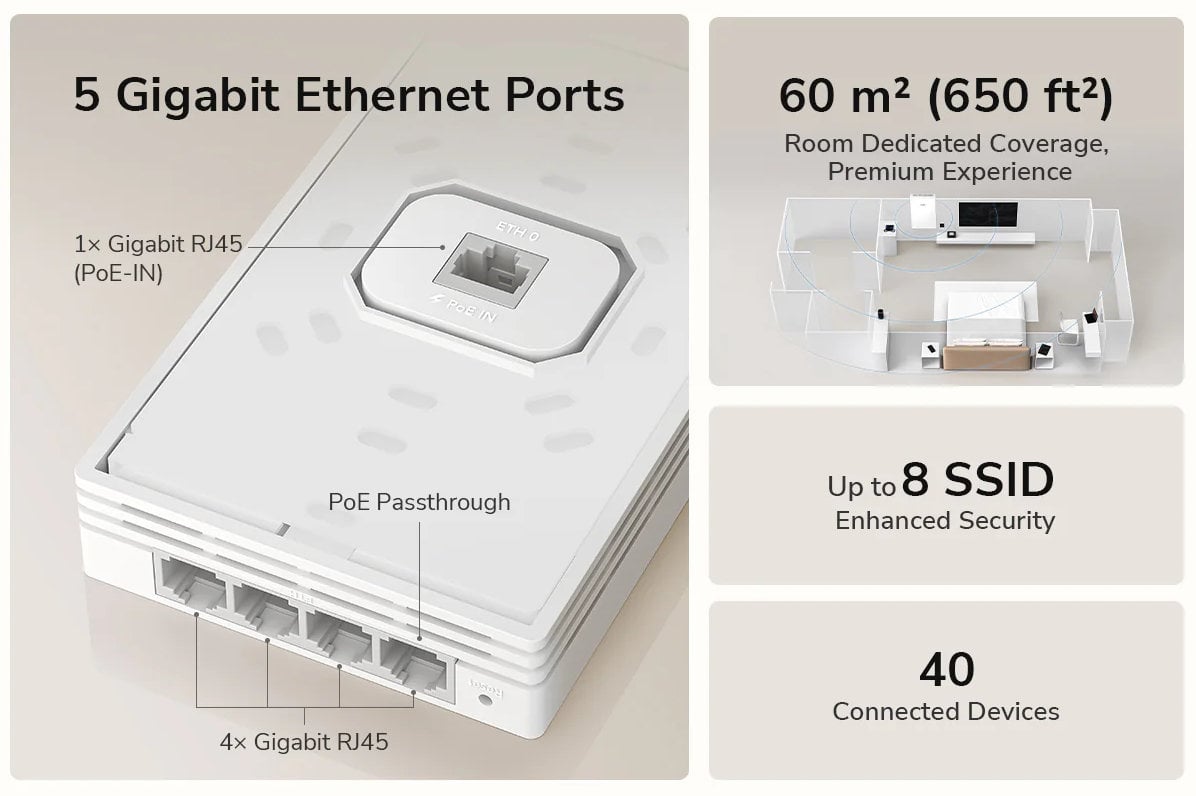

• 5 doors RJ 45 : 1 door Gigabit PoE-IN, 3 doors LAN Gigabit, 1 door LAN Gigabit with PoE Passthrough

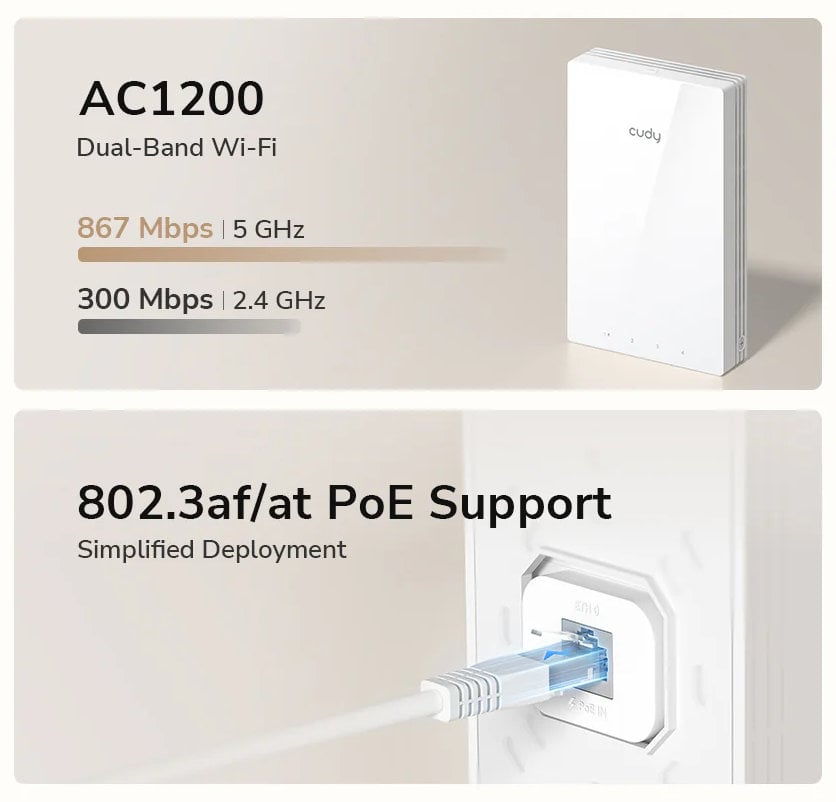

• Simplify installation with Power over Ethernet (PoE): transmit data and power via a single cable. Powered via PoE 802.3 at/af, supports PoE passthrough for downstream IP phones or other devices

• The PoE-out port ensures wired connection for PoE devices and gigabit ports offer more ù options and versatilityà for connectivityà

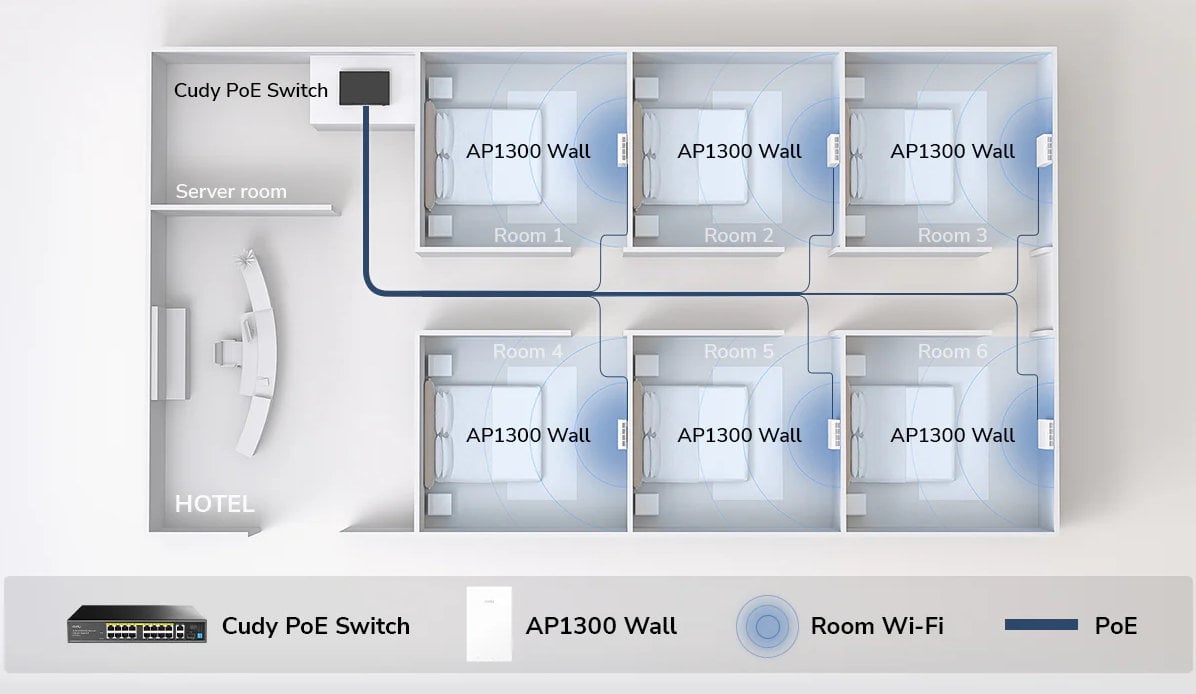

• Dedicated Wi-Fi in each room: designed for cubic offices, hotels and family rooms, allowing users to enjoy their own private Wi-Fi network

• The dual-band functionality allows devices to use the less crowded 5 GHz band, allowing more ù speed than double and greater reactivityà

• Flexible power supply: supports 802.3 at/af or PoE passive 48 V

• 8 SSID (up to 4 SSID on each band)

• MU-MIMO technology that ensures a stable connection even with multiple; connected devices

• Watchdog hardware: automatically restarts the AP when the software freezes

• Reboot Planning

• Cudy Mesh, with automatic mesh optimization: automatically creates backhaul mesh via less congested paths

• Up to 40 connected devices

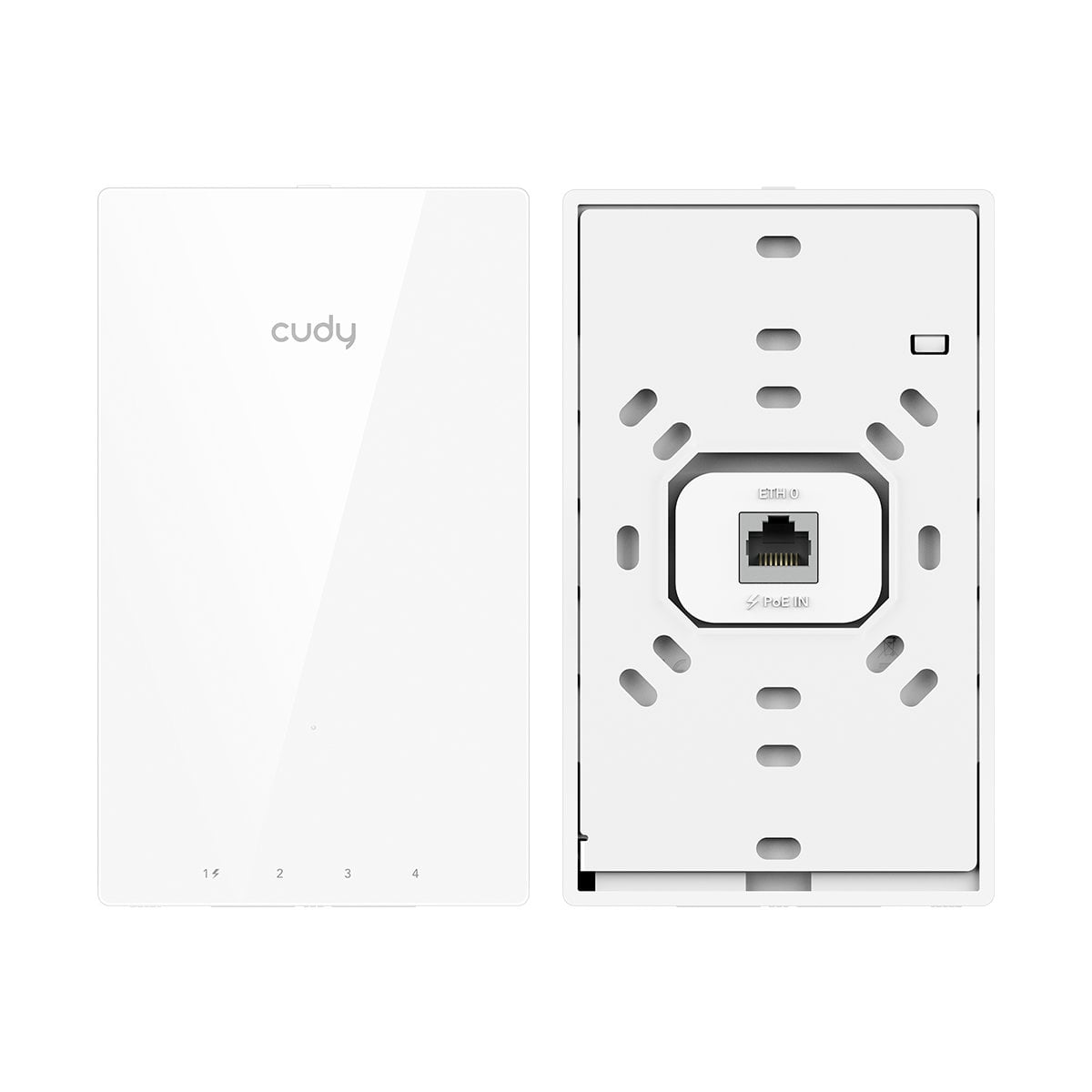

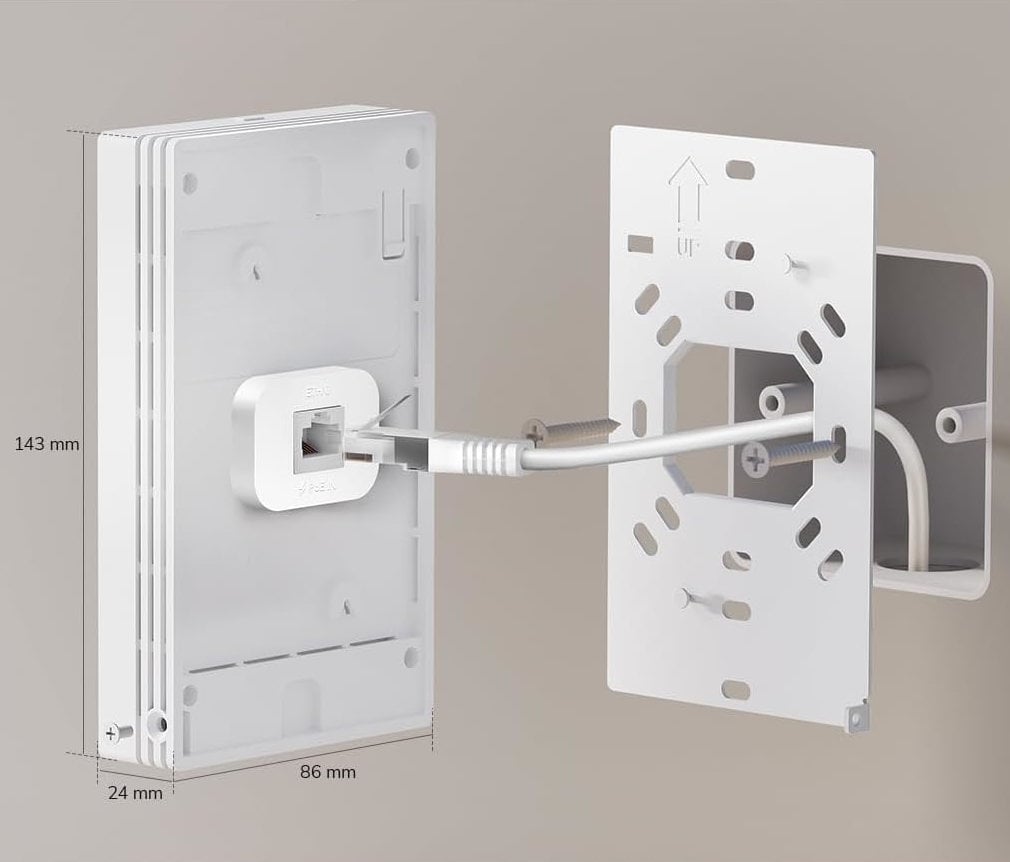

• It fits perfectly with a standard electrical box; it simplifies configuration by eliminating the need for complex wiring or additional equipment

• Elegant built-in design (directly in the wall-mounted electric box, without visible cables)

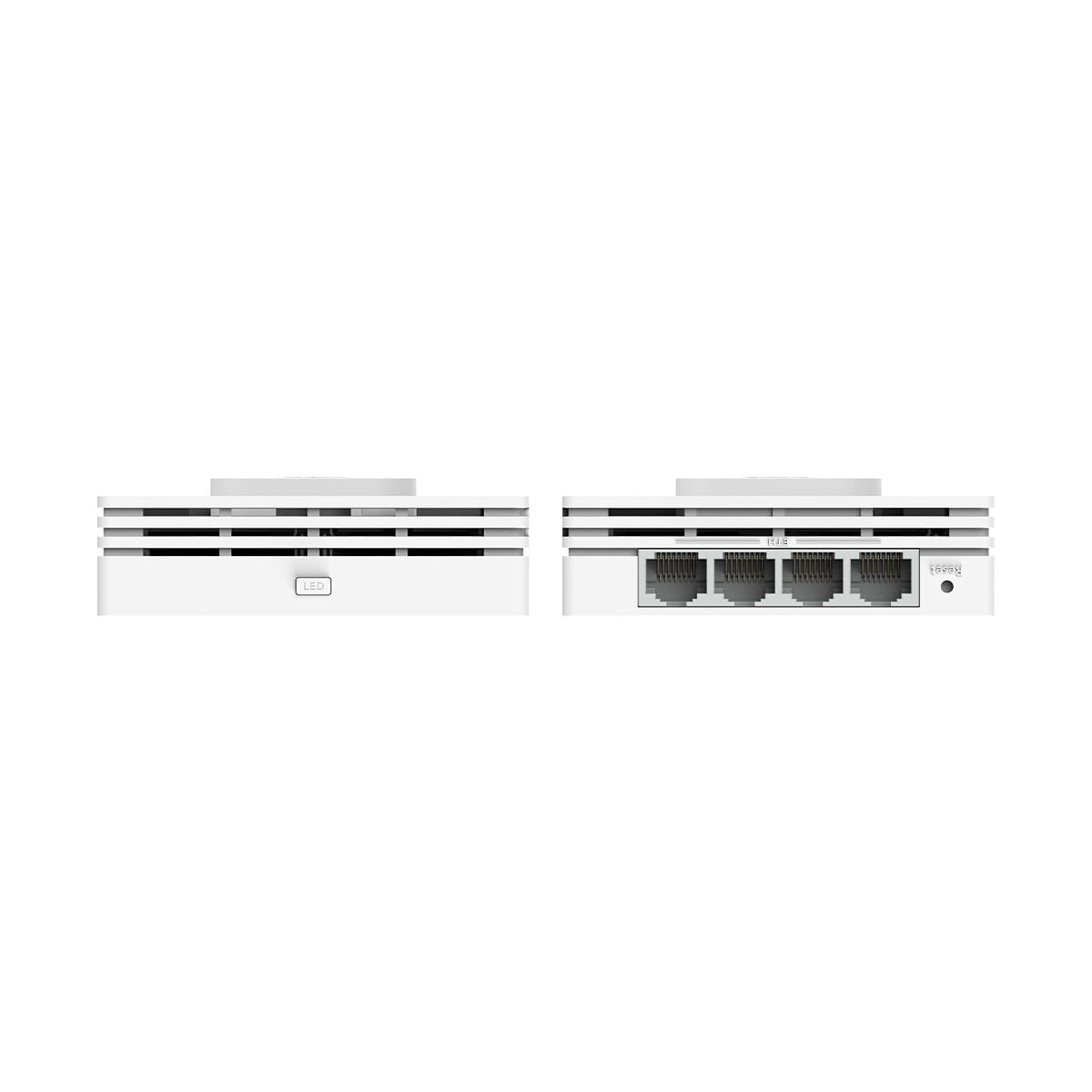

• Cooling air intakes for efficient heat dissipation

• Color: white


Technical specifications

•

• Wi-Fi 5

• Maximum Wi-Fi Modulation: 256 -QAM

• 867 Mbps on 5 GHz, 300 Mbps on 2,4 GHz

• Maximum Wi-Fi channel width: 80 MHz

• CPU: 880 MHz Dual-Core

• Flash/ROM: 16 MB (128 Mbit) NOR

• DDR/RAM: 128 MB (1 Gbit) DDR 3

• Wi-Fi flows at 5 GHz: 2 T 2 R (2 × 2 MIMO)

• 2,4 GHz Wi-Fi Flows: 2 T 2 R (2 × 2 MIMO)

• 2 internal antennas

• Maximum antenna gain 5 GHz: 5,6 dBi

• Maximum antenna gain 2,4 GHz: 5,0 dBi

• Autonomy performance: max: 80 m (tested in open environments with minimal interference; the actual WiFi flow can & grave; vary depending on the layout and materials of the walls. Refer to the specifications on the performance of the walls for positioning tips)

• Wall performance: two wooden walls with thickness < 10 cm (4); one concrete wall with thickness < 20 cm (7)

• Maximum energy consumption: 12 W; Inactive energy consumption: 4 W

• Covers 60 m²

• ESD: contact: 4 kV; air: 8 kV


Wireless functions

•

• MU-MIMO

• Watchdog

• Reboot Planning


Wireless Encryption

•

• WPA

• WPA 2

• WPA 3


Environmental features

•

• Operating temperature: 0 ~ 40 °C

• Storage temperature: - 40 ~ 70 °C

• Humidità operating: 10 ~ 90 % without condensation

• Storage humidità 5 ~ 95 % without condensation


Dimensions

•

• Depthà: 143 mm

• Width: 86 mm

• Height: 27,6 mm


Package contents

•

• Wireless wall access point ICU-AP 1300 W

• Assembly kit

• Installation Guide
