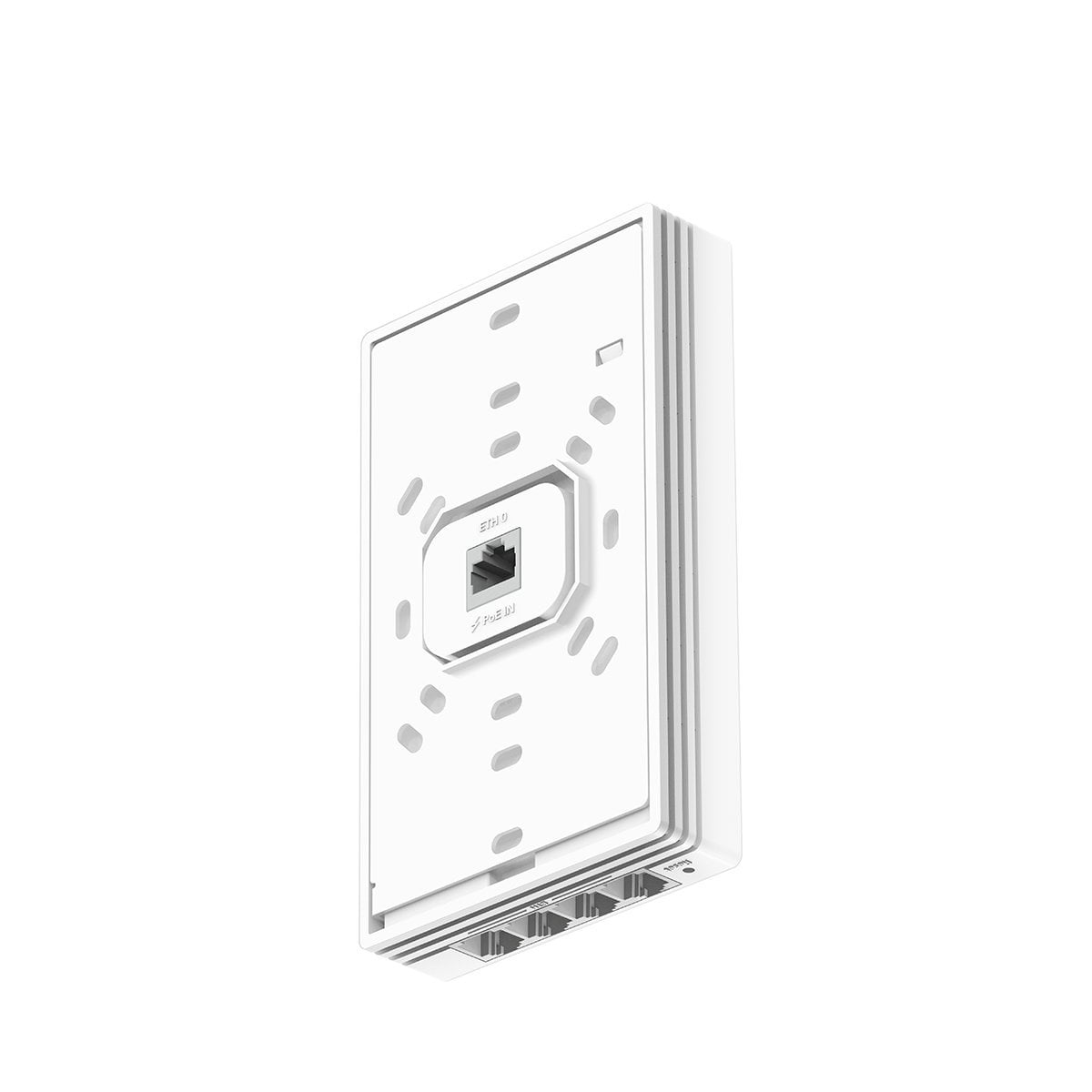

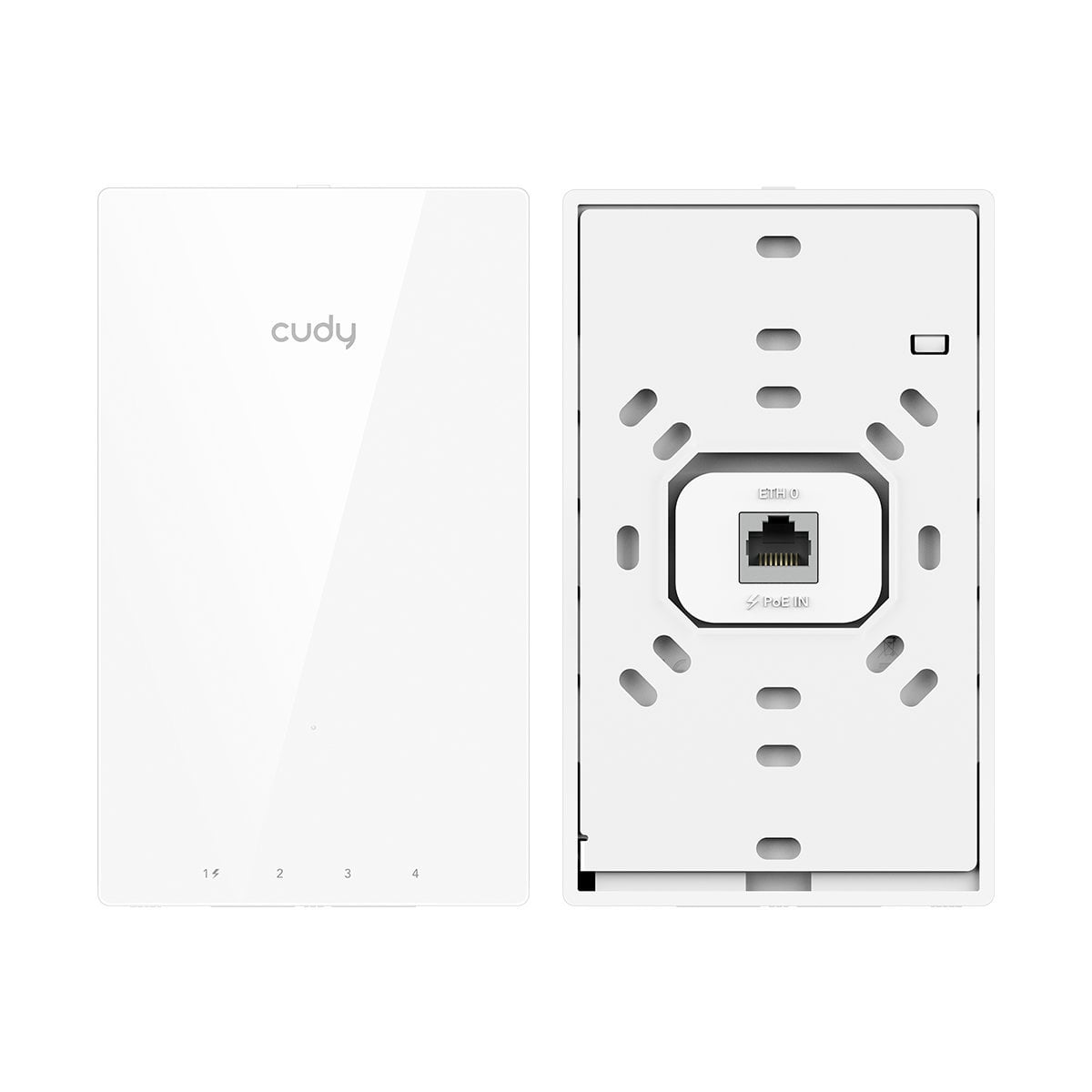

Wireless WiFi access point 6 Gigabit Dual Band AX 3000 Poe with Mesh Support, Wall, AP 3000 W - Cudy ICU-AP 3000 W

•

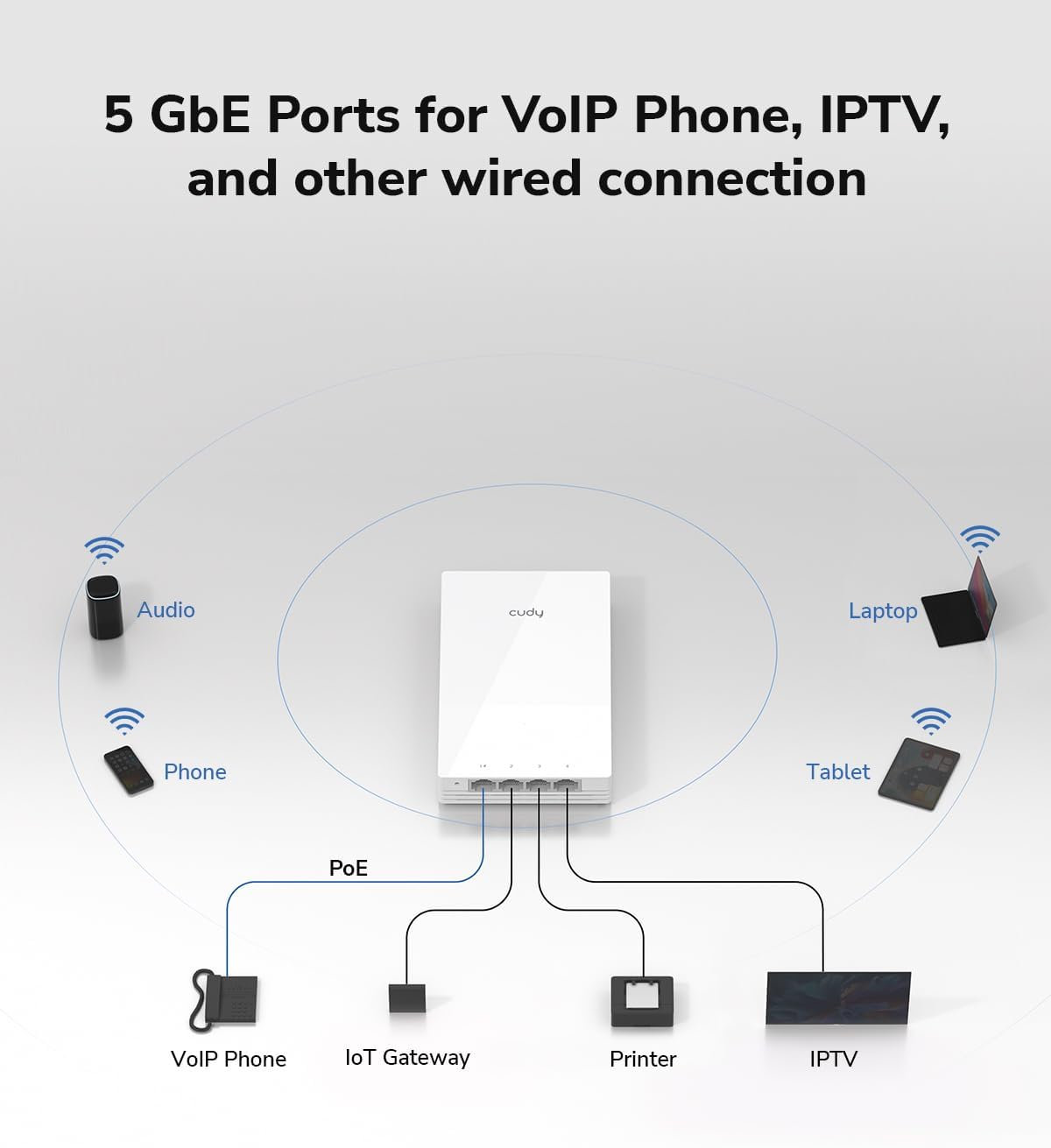

• A AP AX 3000 Dual-Band WiFi 6 wall mounted with 5 Gigabit Ethernet ports for Voip phones, IPTV and other wired connections

• 2402 Mbps on 5 GHz, 574 Mbps on 2,4 GHz

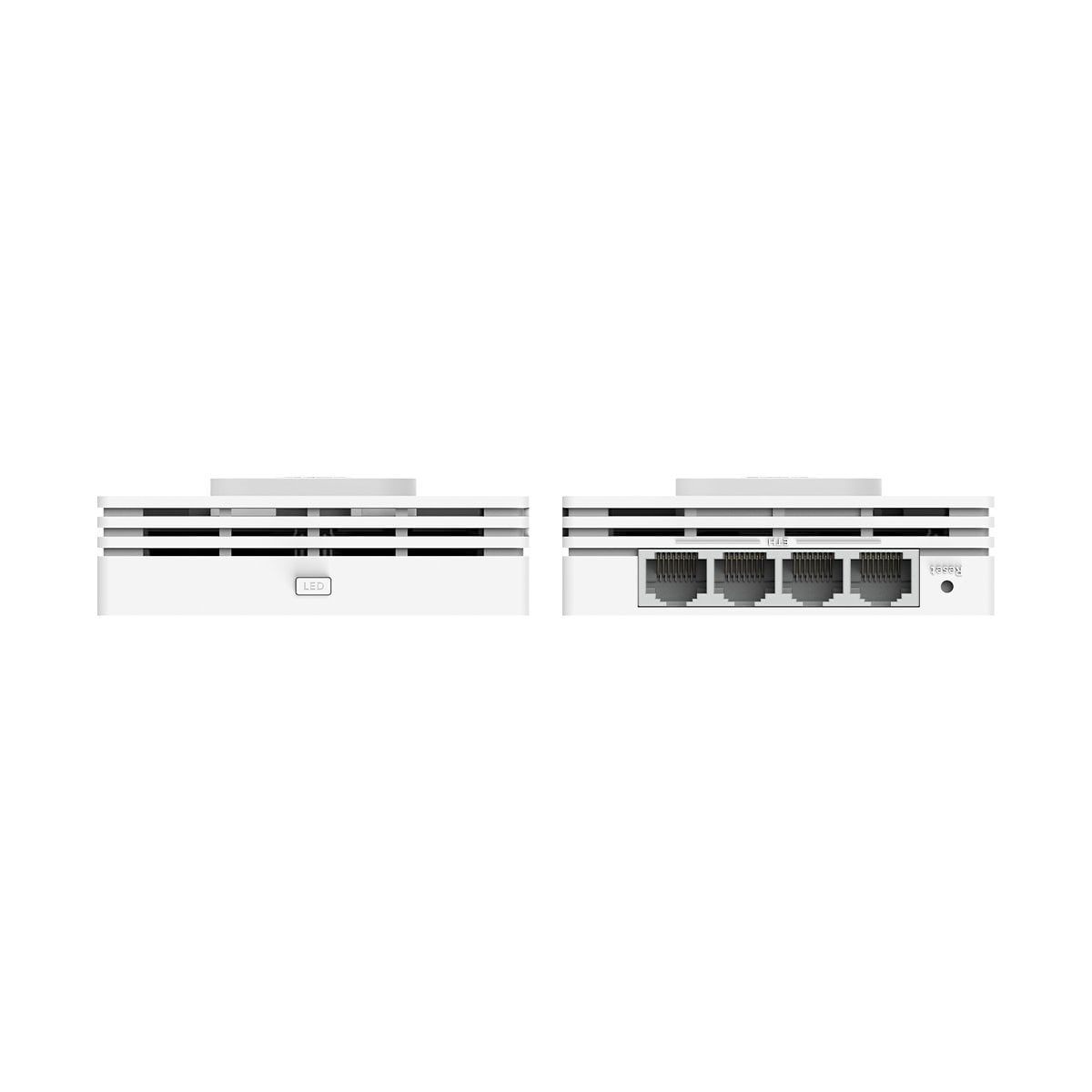

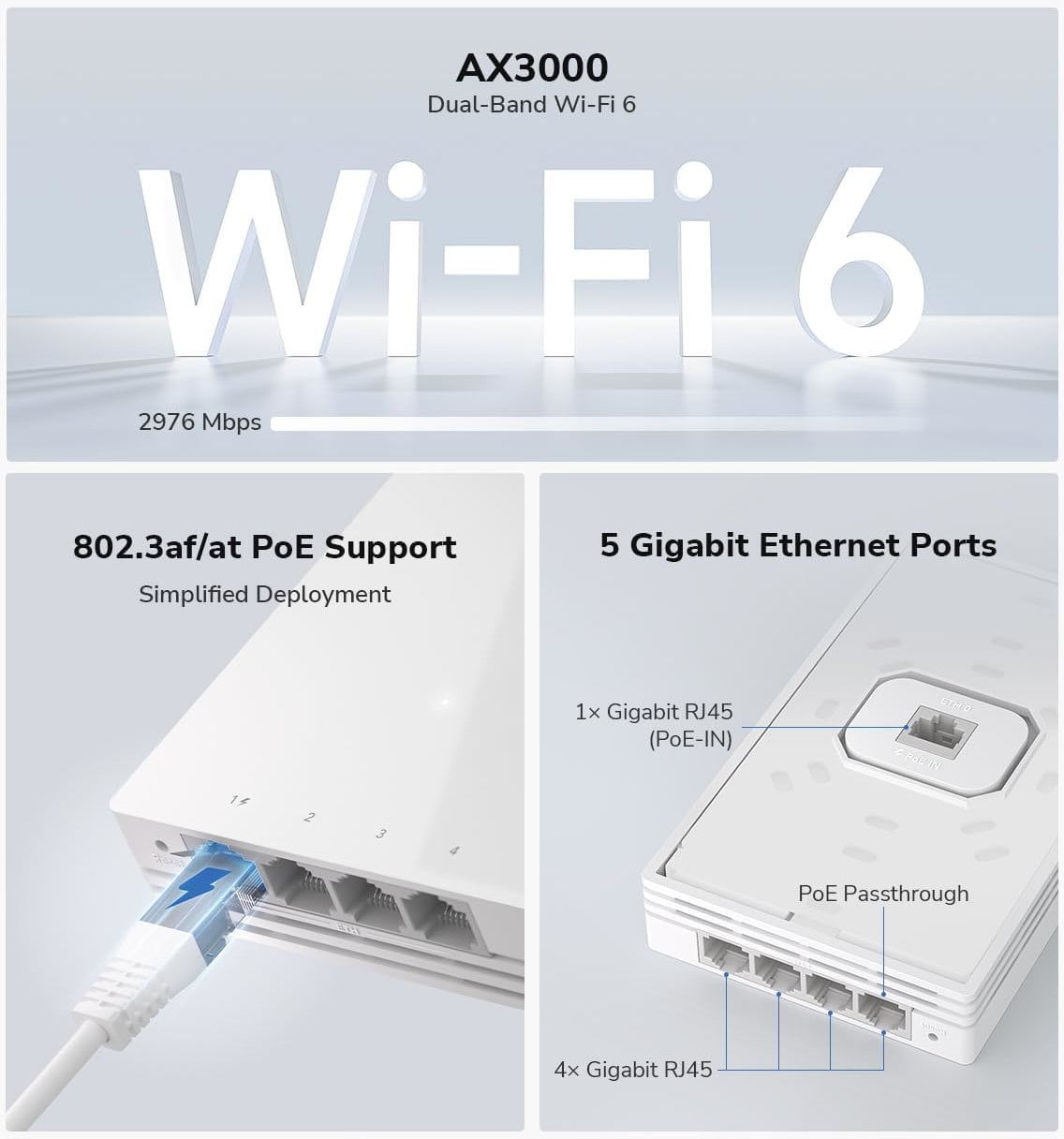

• 5 doors RJ 45 : 1 door Gigabit PoE-IN, 3 doors LAN Gigabit, 1 door LAN Gigabit with PoE Passthrough

• Simplify installation with Power over Ethernet (PoE): transmit data and power via a single cable. Powered via PoE 802.3 at/af, supports PoE passthrough for downstream IP phones or other devices

• The PoE-out port ensures wired connection for PoE devices and gigabit ports offer more ù options and versatilityà for connectivityà

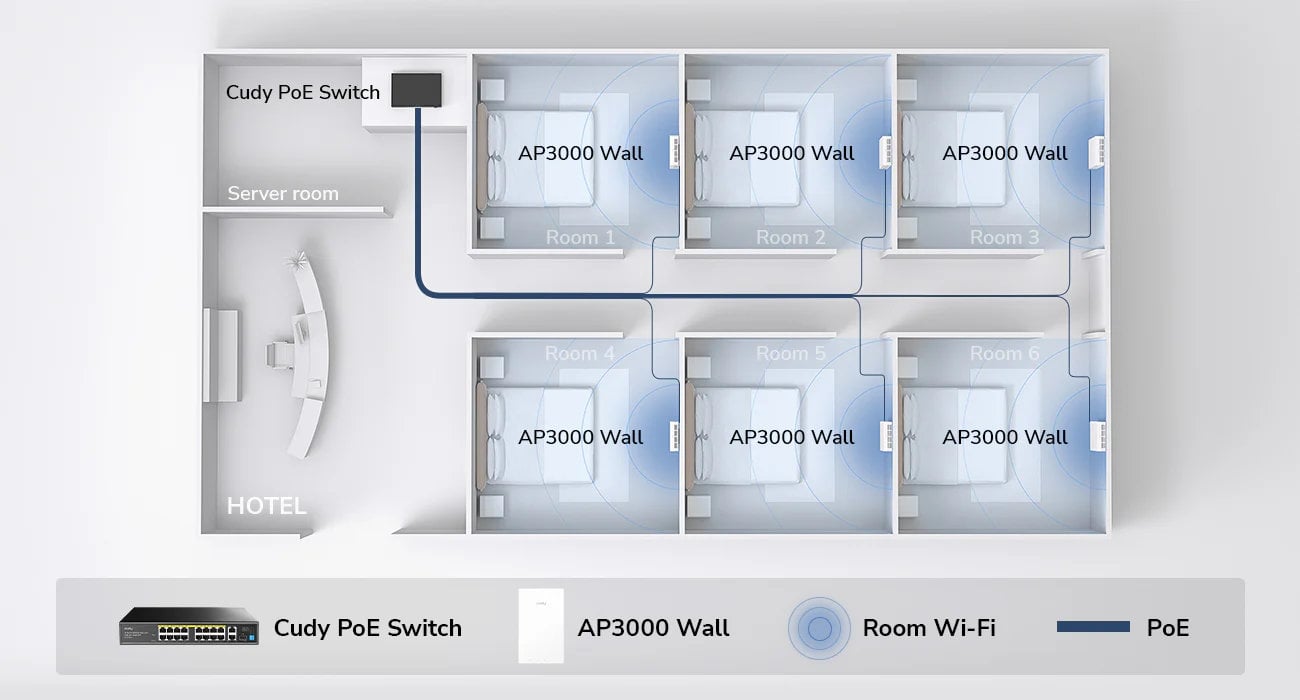

• Dedicated Wi-Fi in each room: designed for cubic offices, hotels and family rooms, allowing users to enjoy their own private Wi-Fi network

• The dual-band functionality allows devices to use the less crowded 5 GHz band, allowing more ù speed than double and greater reactivityà

• Power supply: supports 802.3 at/af or PoE passive 48 V

• 8 SSID (up to 4 SSID on each band)

• MU-MIMO technology that ensures a stable connection even with multiple; connected devices

• Watchdog hardware: automatically restarts the AP when the software freezes

• Reboot Planning

• Beamforming

• Cudy Mesh, with automatic mesh optimization: automatically creates backhaul mesh via less congested paths

• Up to 60 connected devices

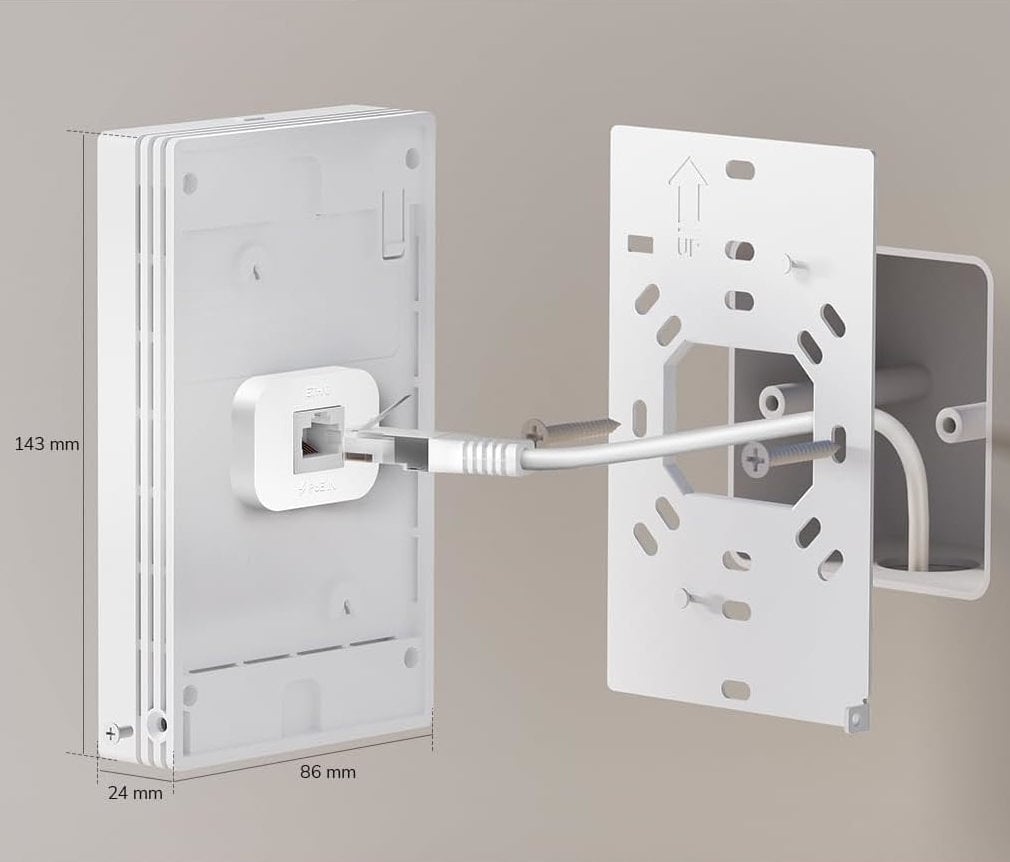

• It fits perfectly with a standard electrical box; it simplifies configuration by eliminating the need for complex wiring or additional equipment

• Elegant built-in design (directly in the wall-mounted electric box, without visible cables)

• Cooling air intakes for efficient heat dissipation


•

• Color: white


Technical specifications

•

• Wi-Fi 6

• Maximum Wi-Fi Modulation: 1024 -QAM

• 2402 Mbps on 5 GHz, 574 Mbps on 2,4 GHz

• Maximum Wi-Fi channel width: 160 MHz

• CPU: 1,3 GHz Dual-Core

• Flash/ROM: 128 MB (1 Gbit) NAND

• DDR/RAM: 256 MB (2 Gbit) DDR 3

• Wi-Fi flows at 5 GHz: 2 T 2 R (2 × 2 MIMO)

• 2,4 GHz Wi-Fi Flows: 2 T 2 R (2 × 2 MIMO)

• 3 internal antennas

• Maximum antenna gain 5 GHz: 6,52 dBi

• Maximum antenna gain 2,4 GHz: 3,17 dBi

• Autonomy performance: max: 80 m (tested in open environments with minimal interference; the actual WiFi flow can & grave; vary depending on the layout and materials of the walls. Refer to the specifications on the performance of the walls for positioning tips)

• Wall performance: two wooden walls with thickness < 10 cm (4); one concrete wall with thickness < 20 cm (7)

• Maximum energy consumption: 12 W (48 V PoE); inactive energy consumption: 5 W (48 V PoE)

• Covers 60 m²

• ESD: contact: 4 kV; air: 8 kV


Wireless functions

•

• OFDMA

• MU-MIMO

• BSS Color

• Watchdog

• Reboot Planning


Wireless Encryption

•

• WPA

• WPA 2

• WPA 3


Environmental features

•

• Operating temperature: 0 ~ 40 °C

• Storage temperature: - 40 ~ 70 °C

• Humidità operating: 10 ~ 90 % without condensation

• Storage humidità 5 ~ 95 % without condensation


Dimensions

•

• Depthà: 143 mm

• Width: 86 mm

• Height: 27,6 mm


Package contents

•

• Wireless wall access point AX 3000 ICU-AP 3000 W

• Assembly kit

• Installation Guide
