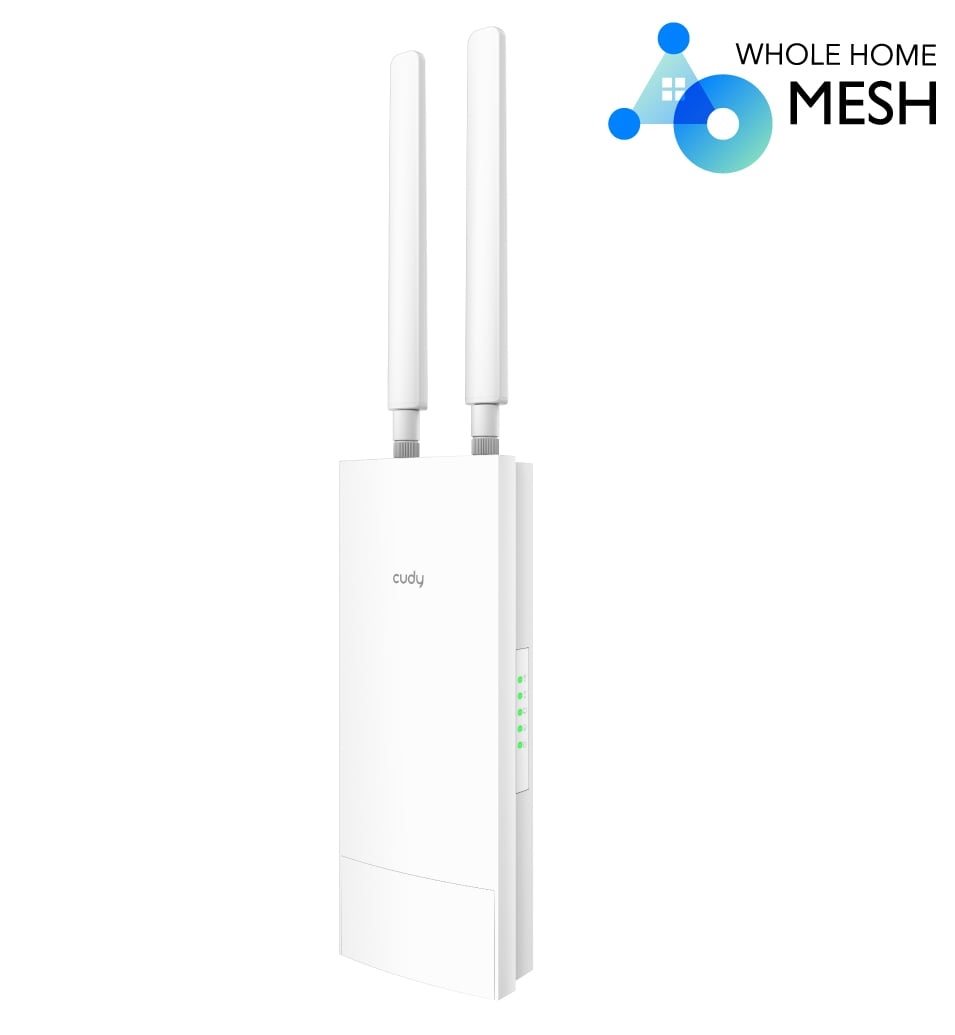

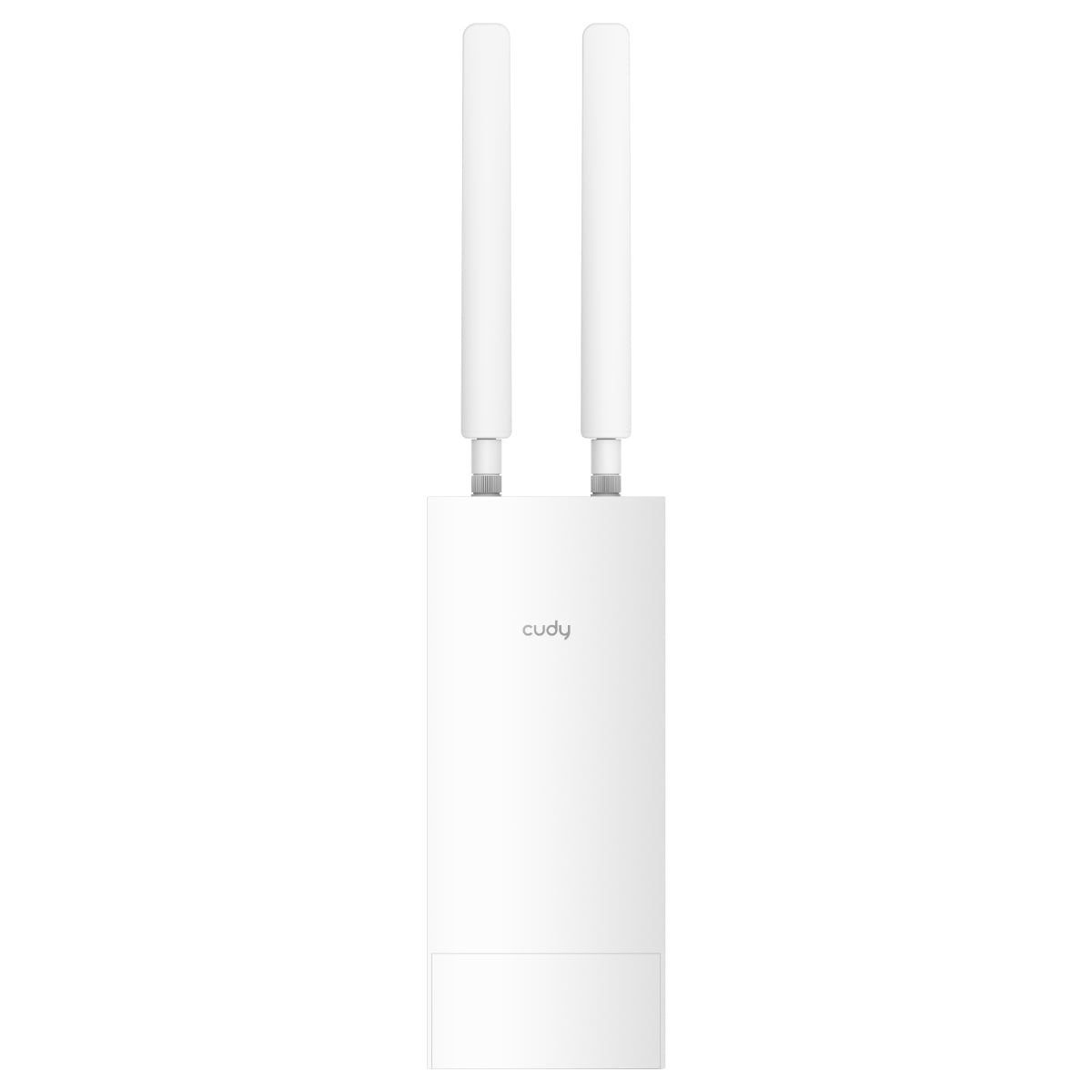

Wireless Access Point Gigabit AC 1200 for Outdoors IP 65 , AP 1300 Outdoor - Cudy ICU-AP 1300 OUT

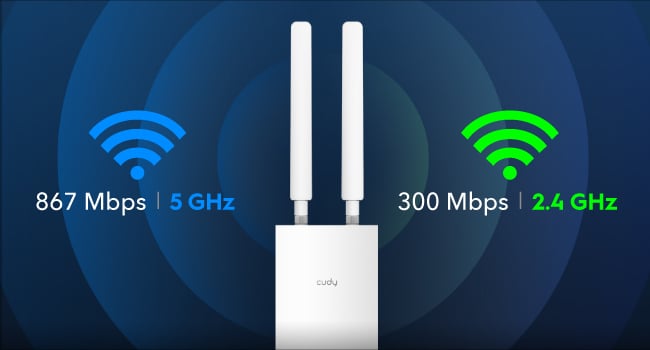

With MU-MIMO and dual-band functionality, the AP Wi-Fi AC 1200 can connect to more than 30 devices by minimizing latency. The maximum number of simultaneous connections for AP è of 128 devices.

The access point è protected by a standard IP 65 case, which protects it from rain and dust when installed vertically.

It also has 4 kV lighting/overvoltage protection and ESD protection from 8 kV for greater reliability à in case of storms.

Its operating temperatures range from - 20 °C to 60 °C.



Technical specifications

• Highlights:



- CPU: dual-core processor from 880 MHz

- Flash: 16 MB (128 Mbit)

- DDR memory: 128 MB (1 Gbit)

• Interfaces:

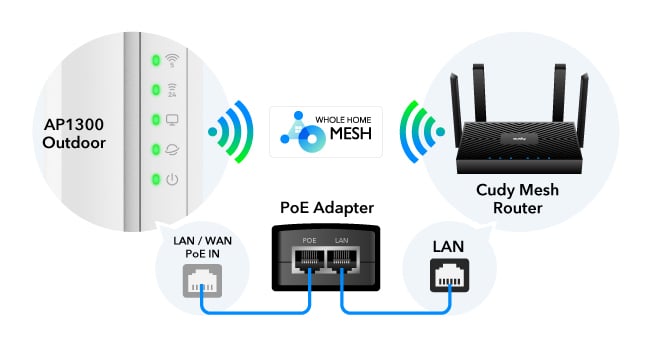

- 1 x Gigabit Ethernet port (RJ- 45) (supports IEEE 802.3 af PoE and PoE passive)

- 1 x restore button

• Feeding:



- 802.3 af/a PoE

- PoE passive 24 - 57 V (+ 4,5 pin; - 7,8 pin)

• Type of antenna:



- 2 removable omnidirectional antennas

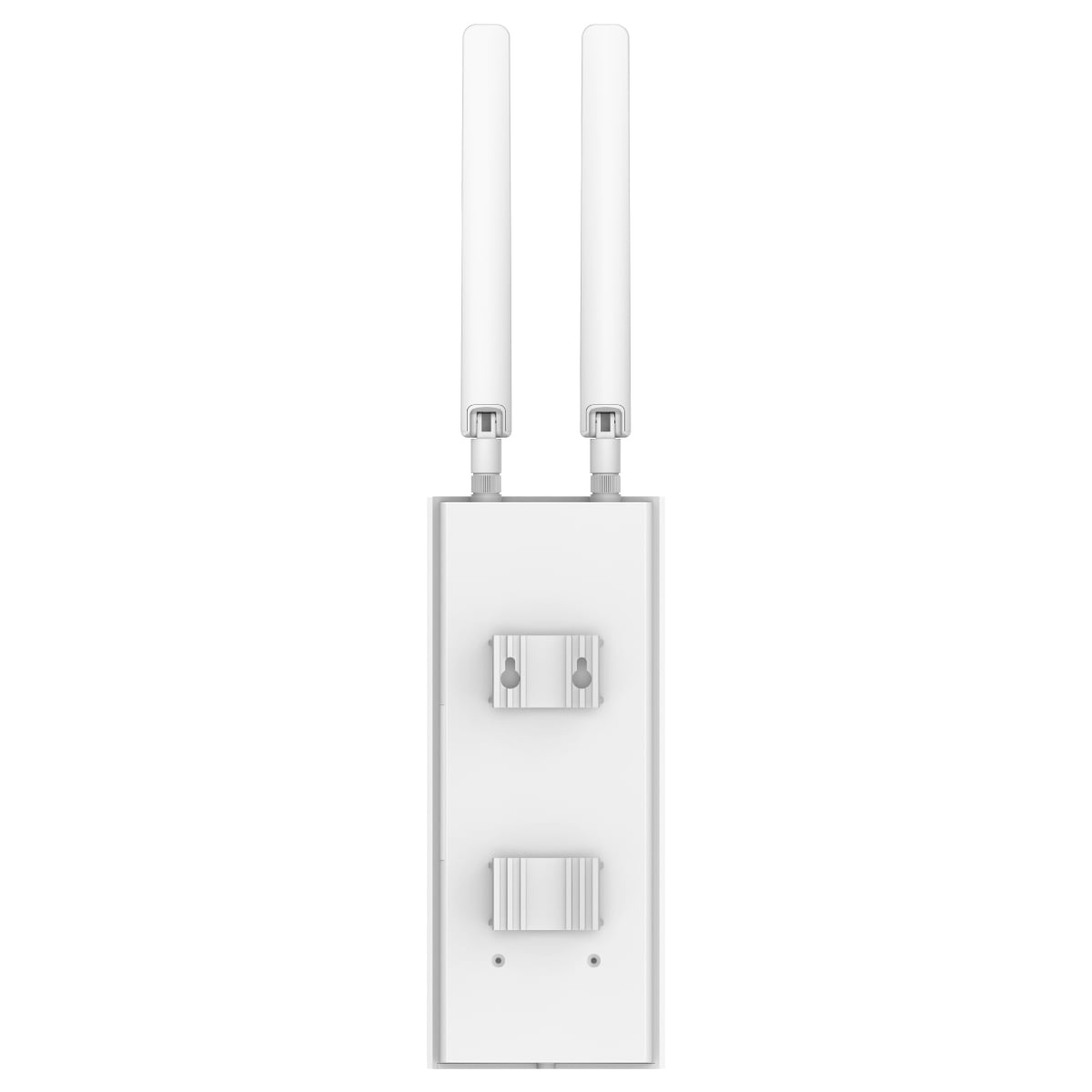

- mounting on pole/wall mounting (kit included)



Wireless

• Functions:



- Multiple SSIDs

- Doorway bound

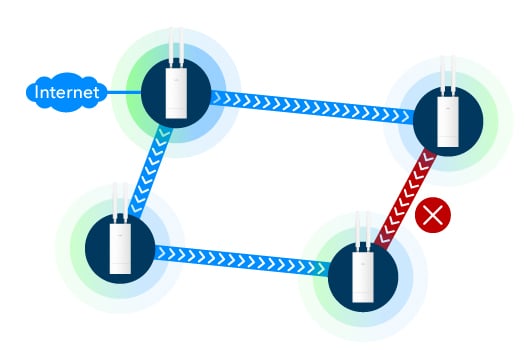

- Mesh roaming without continuity solution;

- Self-organizing Mesh

- Band management

- Automatic channel optimization

- Enable/disable wireless function

- Transmission of power control

- QoS (WMM)

- MU-MIMO

- Beamforming

- Speed limit;

- Reboot planning

- Wireless programming

• Encryption:



- WPA-PSK

- WPA 2 -PSK

- WPA-PSK/WPA 2 -PSK

• Security:



- Access control

- Mac filtering

- Wireless isolation client

• IP protection degree 65 (protection against dust and low pressure water from any direction)


• Lightning protection: lightning protection / overvoltage from 4 KV on the Ethernet port


• ESD: ESD protection from 8 KV contact / 15 KV air


• Modelità operating:



- Access Point

- Wi-Fi Router

- Range Extender.

- WISP

- Mesh



Dimensions

• Width: 100 mm


• Depthà: 53.7 mm


• Height: 240 mm



Compatibilityà

• Windows


• Android


• MacOS


• iOS


• Linux



Environmental features

• Operating temperatures: - 20 ~ 60 °C east. - 40 ~ 65 °C


• Storage temperature: - 40 – 70 °C


• Operating Humidit à 10 – 90 % RH without condensation


• Storage humidit à: 5 – 90 % RH without condensation

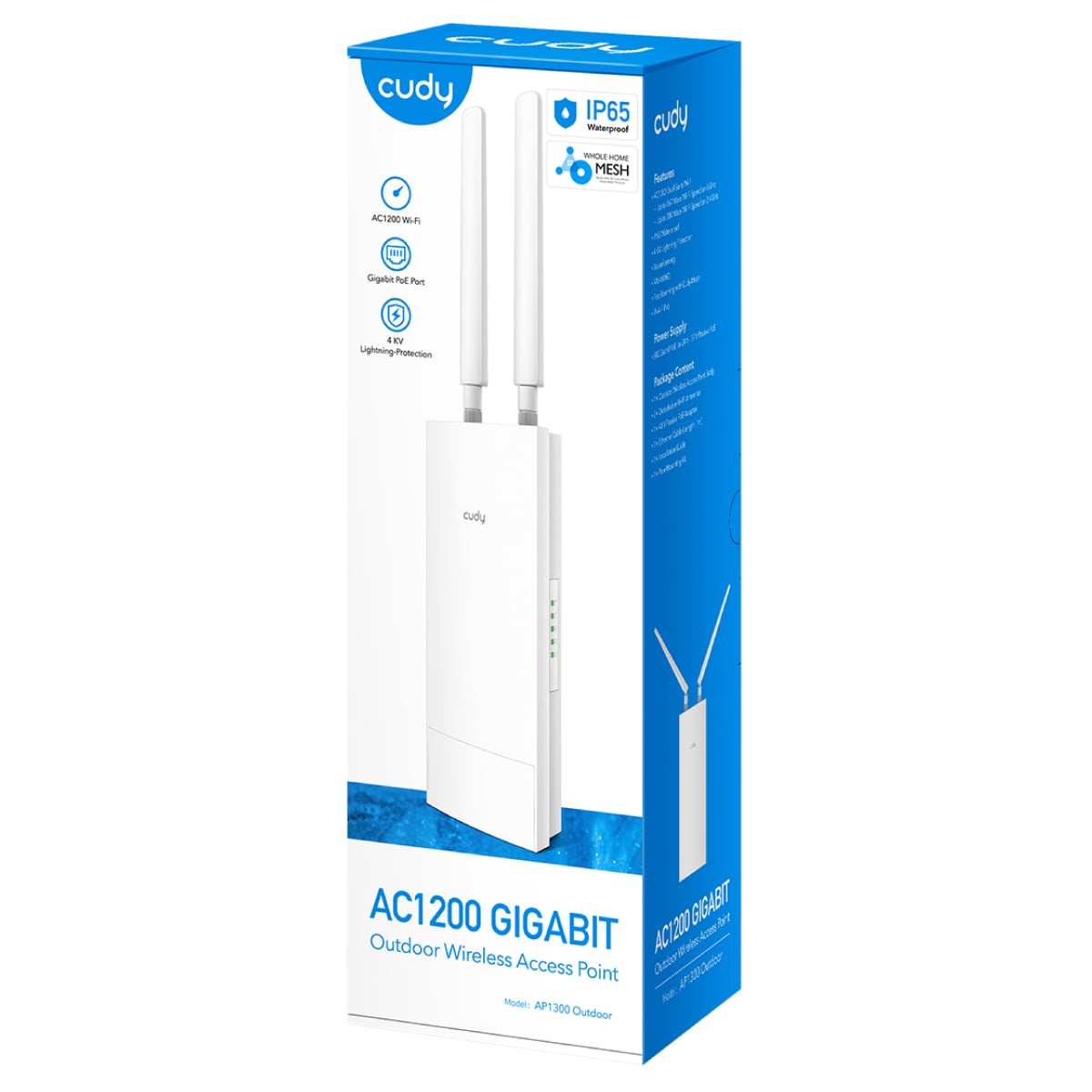

Package contents

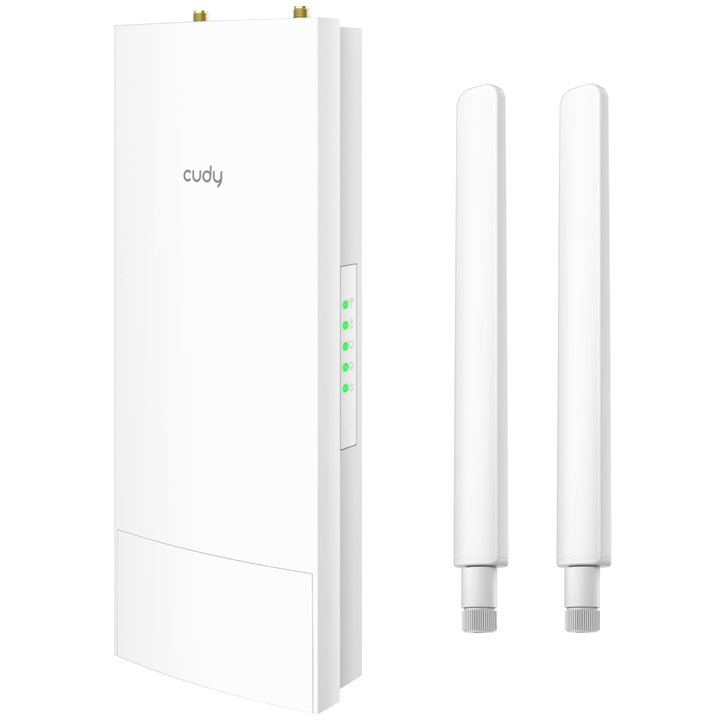

• Wireless outdoor access point


• 2 removable Wi-Fi antennas


• PoE passive adapter from 48 V/ 0,3 A


• Assembly kit


• Installation Guide
