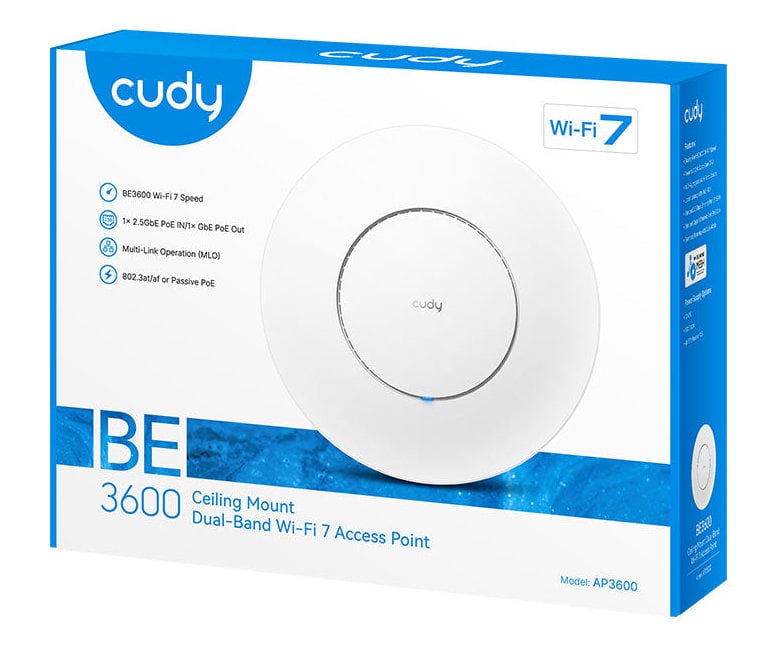

Wireless WiFi access point 7 BE 3600 , 2.5 G port, Mesh, Wall/Suffering, AP 3600 - Cudy ICU-AP 3600

•

• Access Point 4 -Stream Dual-Band Wi-Fi 7

• 688 Mbps simultaneous on 2,4 GHz and 2882 Mbps on 5 GHz for a total of speed à 3570 Mbps Wi-Fi (the actual speed à of the wireless data varierà based on the network conditions, client limitations and environmental factors including building layout, obstacles and client position)

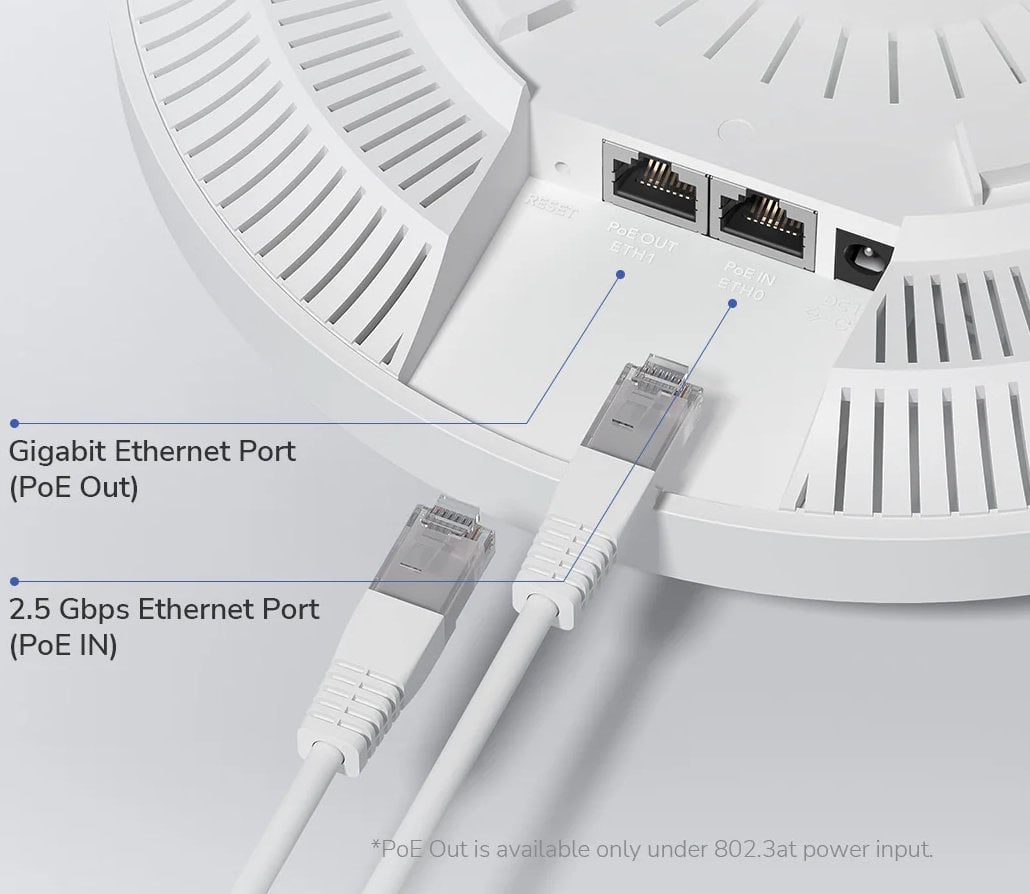

• Ethernet port from 2,5 Gbps screen offering high speed à and interference-resistant multi-device streaming without interruption

• A Gigabit Ethernet port supports PoE Out to easily power connected devices (the PoE-Out port provides power only when the PoE-In è port connected to a 802.3 at power source)

• Flexible power supply: 802.3 support at/af, passive PoE 48 - 57 V or 12 V DC

• Advanced wireless technology: optimizes network performance with MLO, MRU, Puncturing, OFDMA, MU-MIMO, BSS Color; Beamforming technologies

• Watchdog hardware: automatically restarts the AP when the software freezes

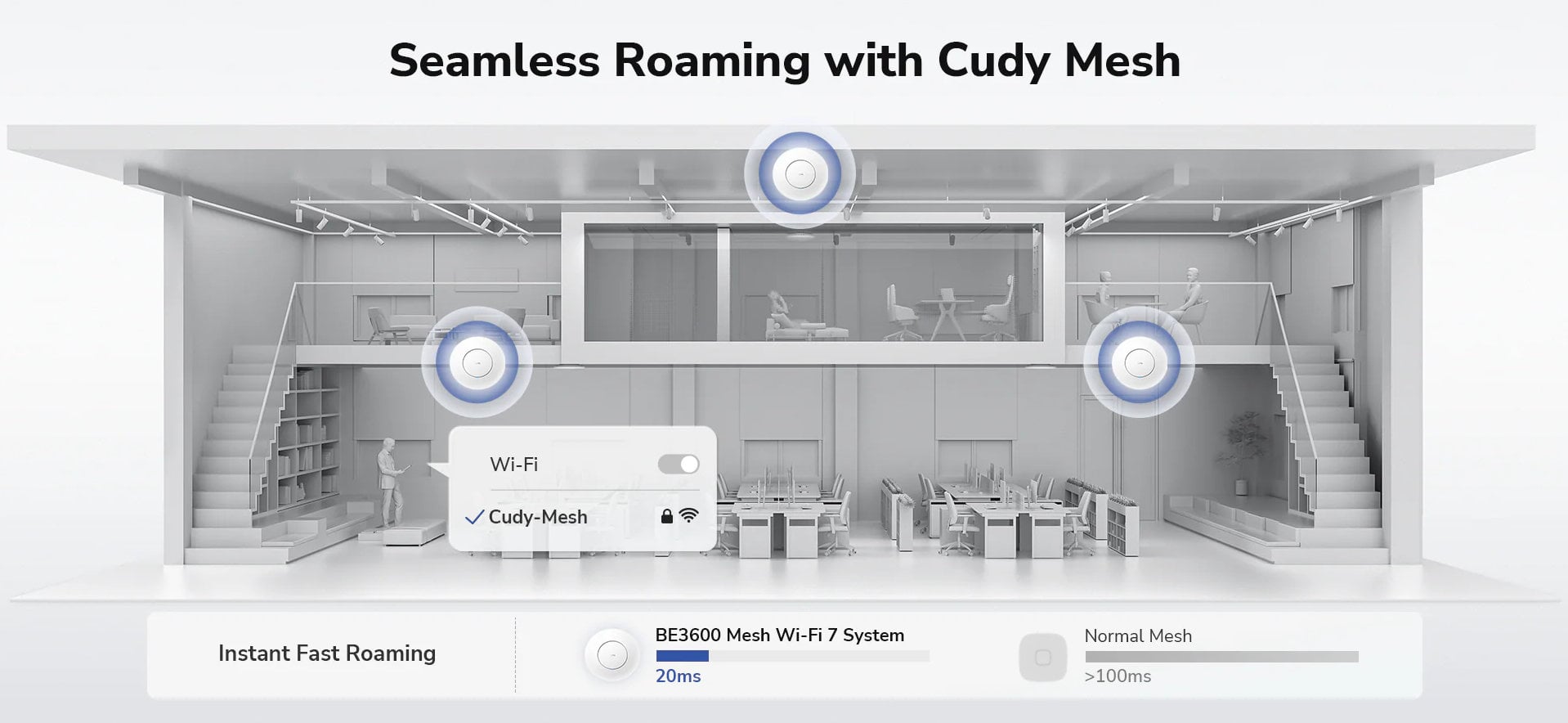

• Cudy Mesh: connect with Cudy Mesh/AP Controller to enable fast roaming; up to 200 connected devices

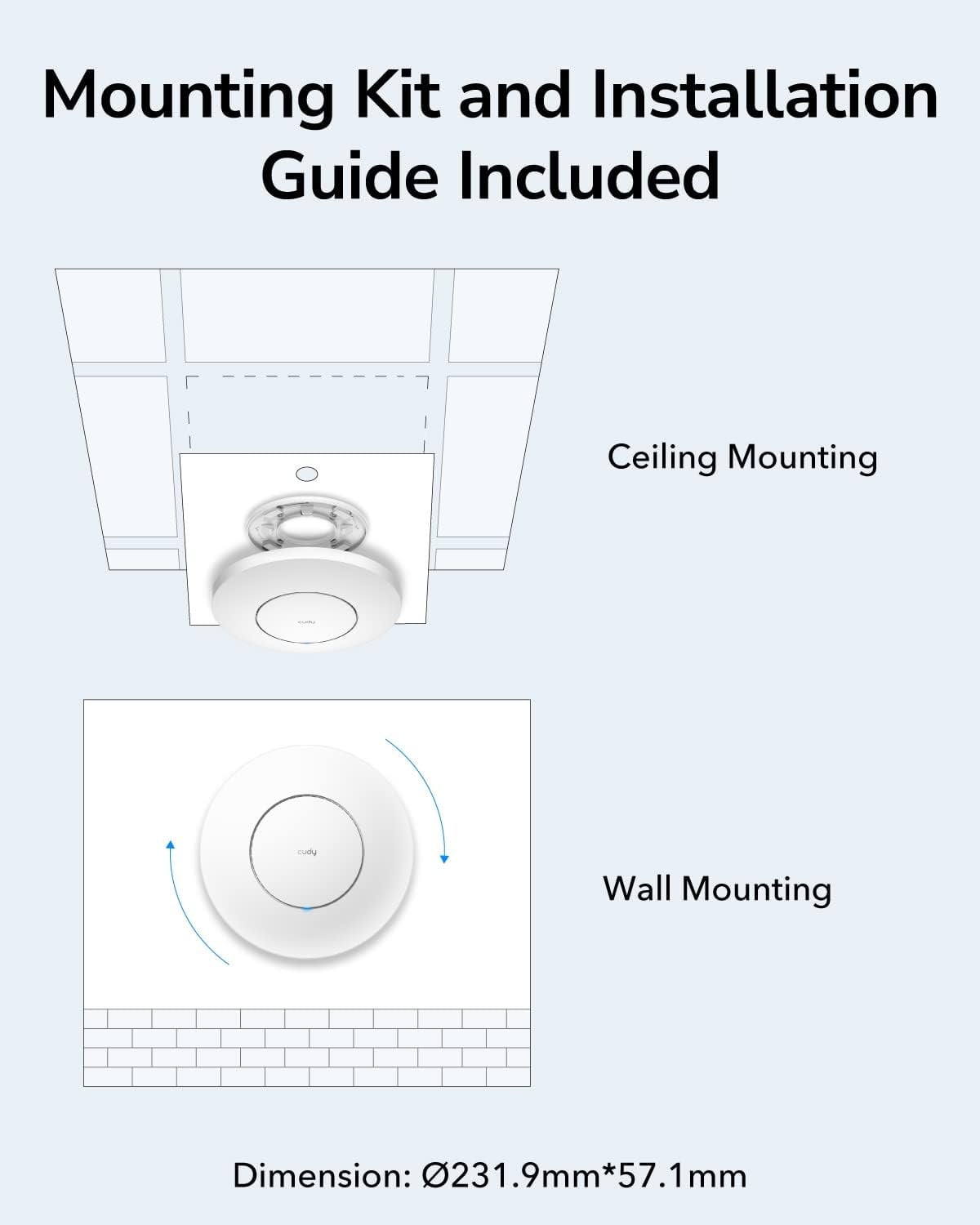

• Ceiling/wall mounting (kit included)

• Color: white


Technical specifications

•

• Wi-Fi 7

• Maximum Wi-Fi Modulation: 4 K-QAM

• Frequency: 2.4 GHz and 5 GHz

• 5 GHz: up to 2882 Mbps; 2,4 GHz: up to 688 Mbps

• Maximum Wi-Fi channel width: 160 MHz

• CPU: Quad-Core from 2,0 GHz, ARM Cortex-A 7

• Flash/ROM: NAND from 128 MB (1 Gbit)

• DDR/RAM: 512 MB (4 Gbit) DDR 3 L

• 5 GHz Wi-Fi flows 2 T 2 R (2 × 2 MIMO)

• 2,4 GHz Wi-Fi flows 2 T 2 R (2 × 2 MIMO)

• 4 internal antennas

• Maximum antenna gain 5 GHz: 5,5 dBi

• Maximum antenna gain 2,4 GHz: 5,4 dBi

• Autonomy performance: max: 220 m (tested in open environments with minimal interference; the actual WiFi flow can & grave; vary depending on the layout and materials of the walls. Refer to the specifications on the performance of the walls for positioning suggestions)

• Wall performance: two wooden walls with thickness < 10 cm (4); one concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)

• ESD: Contact: 4 kV; Air: 8 kV

• Maximum power consumption: 10 W


Wireless functions

•

• Fast Roaming

• Transmission of power control

• MLO

• MRU

• Puncturing

• OFDMA

• MU-MIMO

• BSS Color

• Reboot Planning

• Wireless programming


Wireless Encryption

•

• WPA

• WPA 2

• WPA 3


Modelità operational

•

• Modelità Wi-Fi router

• Modelità access point

• Wireless Extension Modelità

• Automatic mesh optimization: automatically create backhaul mesh via less congested paths


Environmental features

•

• Operating temperature: 0 ~ 40 °C

• Storage temperature: - 40 ~ 70 °C

• Humidità operating: 10 ~ 90 % without condensation

• Storage humidità 5 ~ 95 % without condensation


Dimensions

•

• Width: 231,9 mm

• Depthà: 231,9 mm

• Height: 57,1 mm


Package contents

•

• Wireless Access Point BE 3600 WiFi 7 ICU-AP 3600

• Power adapter

• Assembly kit

• Ethernet cable

• Installation Guide
