KVM Switch 8 Combo USB + PS 2 - Aten IDATA CS- 1308

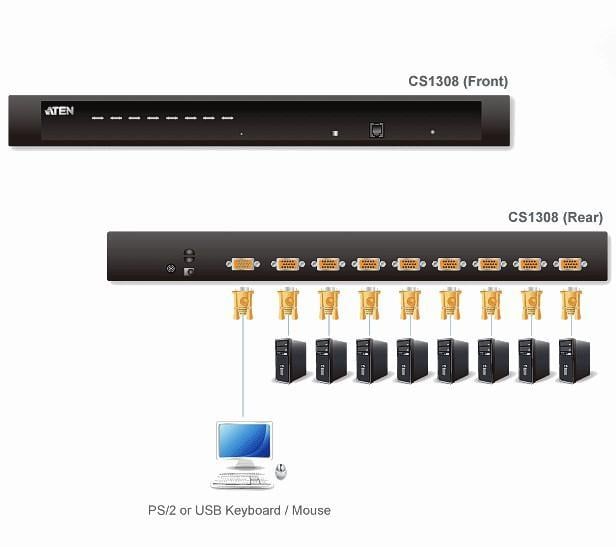

IDATA CS- 1308 è a KVM USB-PS 2 switch to 8 ports (double interface). It allows you to control up to 64 computers with a single keyboard, one screen and one mouse (i.e. from a single console).

You can connect 8 additional switches (fall to 2 levels). In this way the total number of computers connected è 64 , controlled by a single keyboard-monitor-mouse console. The switch supports connections both USB and PS 2 for the console and computer/PC/server (double interface).



Features

• A USB-PS 2 console controls 8 computer


• Waterfall connection up to 2 levels to control 64 computer


• Double interface: supports PS 2 or USB keyboard and mouse computers


• Support for different platforms - Windows 2000 /XP/Vista, Linux, Mac and Sun


• DynaSync Video: ATEN's exclusive technology that eliminates visualization problems at startup and optimizes resolution when switching from door to door


• Supports USB keyboards for PC, Mac and Sun


• Automatic detection of PS 2 and USB interfaces


• Emulation of USB mouse and keyboards or PS 2: computers start even when the control of the è console elsewhere


• Superior video quality: up to 2048 x 1536 ; DDC 2 B


• Computer selection via front panel buttons, multilingual OSD and shortcut keys


• Two-level password security: only authorized users can view and control computers, up to four users and one administrator each with their own profile


• Modelità automatic switching for monitoring of computer selected by the user


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Updated Firmware


• No è software needed to be installed


• Designed for desk or rack mounting (1 U format)



Technical specifications

• Computer connections: 8 direct, 64 in cascade


• Port Selection: OSD, shortcut keys, buttons

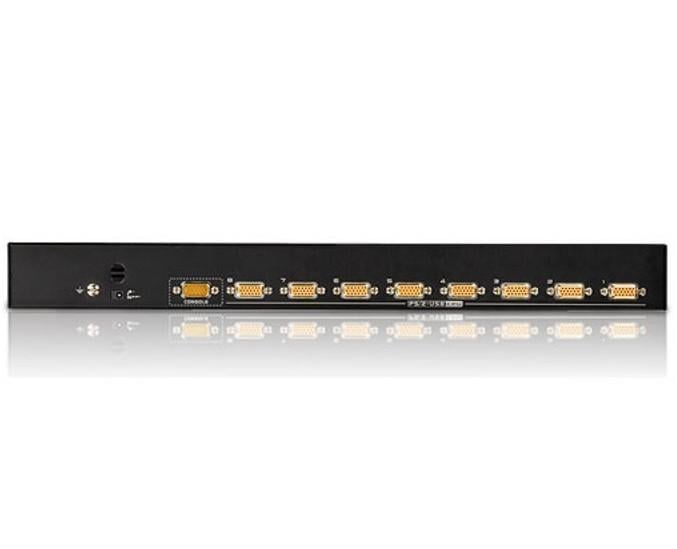

• Connectors:



- Connection door to the console: keyboard, video and mouse 1 SPHD- 18 male (yellow)

- KVM doors: keyboard, video and mouse 8 SPHD- 15 female (yellow)

- Update FW 1 RJ- 11 female (black)

- Power supply: 1 DC connector

• Switches:



- 8 button port

- Update FW 1 sliding switch

• LED



- On Line 8 (orange)

- Selected 8 (green)

- Power supply 1 (dark green)

• Mouse emulation and keyboard PS 2 and USB


• Video: 2048 x 1536 ; DDC 2 B


• Switching interval: 1 - 255 seconds


• Power consumption: DC 5,3 V; 5 W


• Housing material: metal



Environmental features

• Operating temperature from 0 to 50 °C


• Storage temperature from - 20 to 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 16.13 cm


• Height: 4.40 cm



Package contents

• Switch IDATA CS- 1308


• Cable for Firmware Update


• Console cable


• Power supply


• Set 4 leveling feet


• Assembly kit


• User guide
