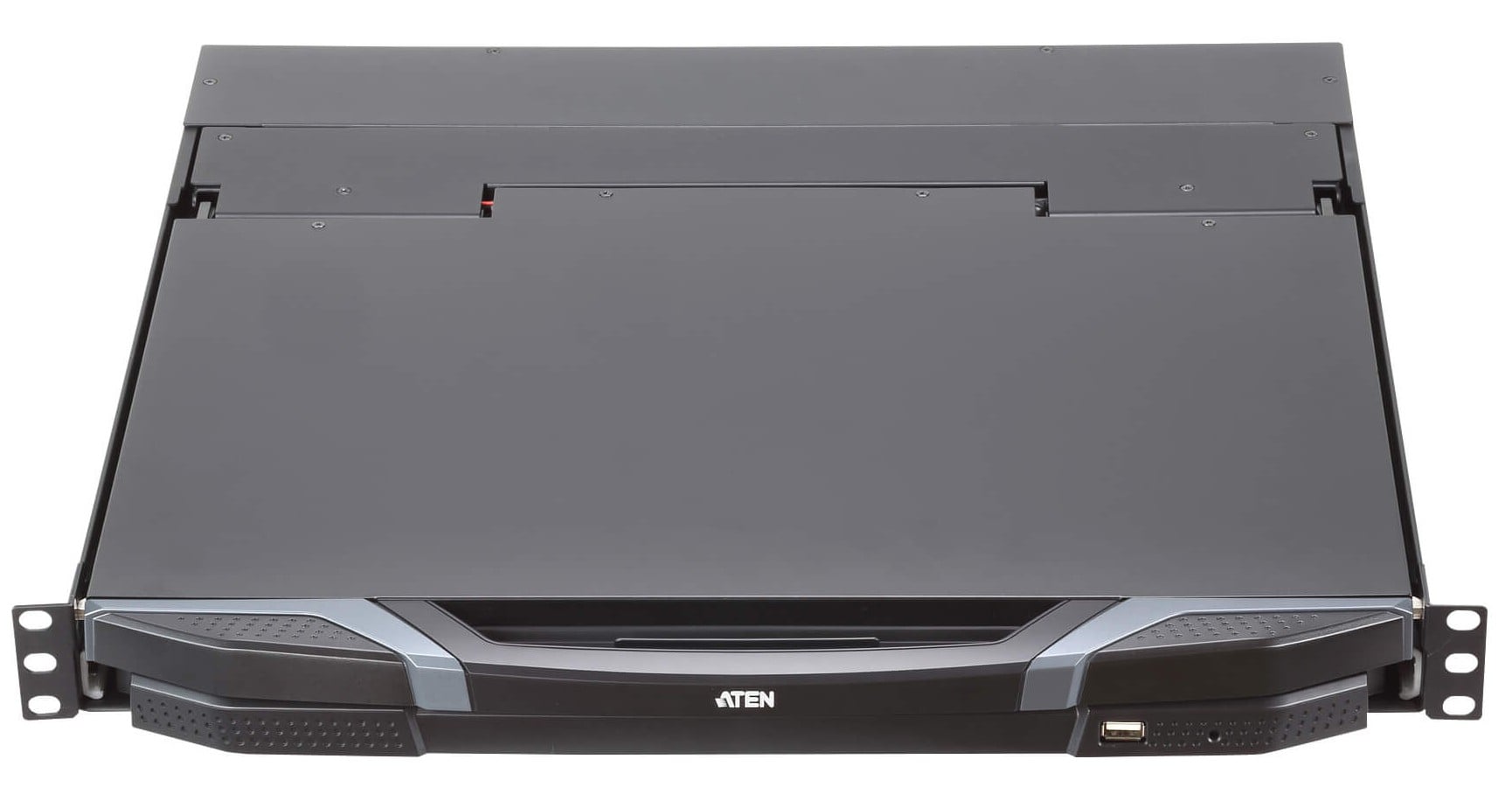

KVM USB HDMI DVI VGA console with LCD 19 " - Aten IDATA CL- 3800 NW

The USB HDMI DVI LCD console VGA CL 3800 è a two-track LCD console and low depth à with widescreen LCD monitors with 18,5 LED backlights and integrated keyboard and touchpads. The deep à reduced design adapts to all 19 equipment frames, in particular it adapts to shallow racks. In addition to saving important space on the rack, the CL 3800 offers a space-saving solution for special environments, such as external camera compartments (OBvans) and compact control rooms.



The CL 3800 supports three types of video input – HDMI, DVI and VGA and offers a high flexibilityà installation allowing users to connect the console and the computer via one of the three types of video source. The widescreen HD LCD monitor of CL 3800 NW

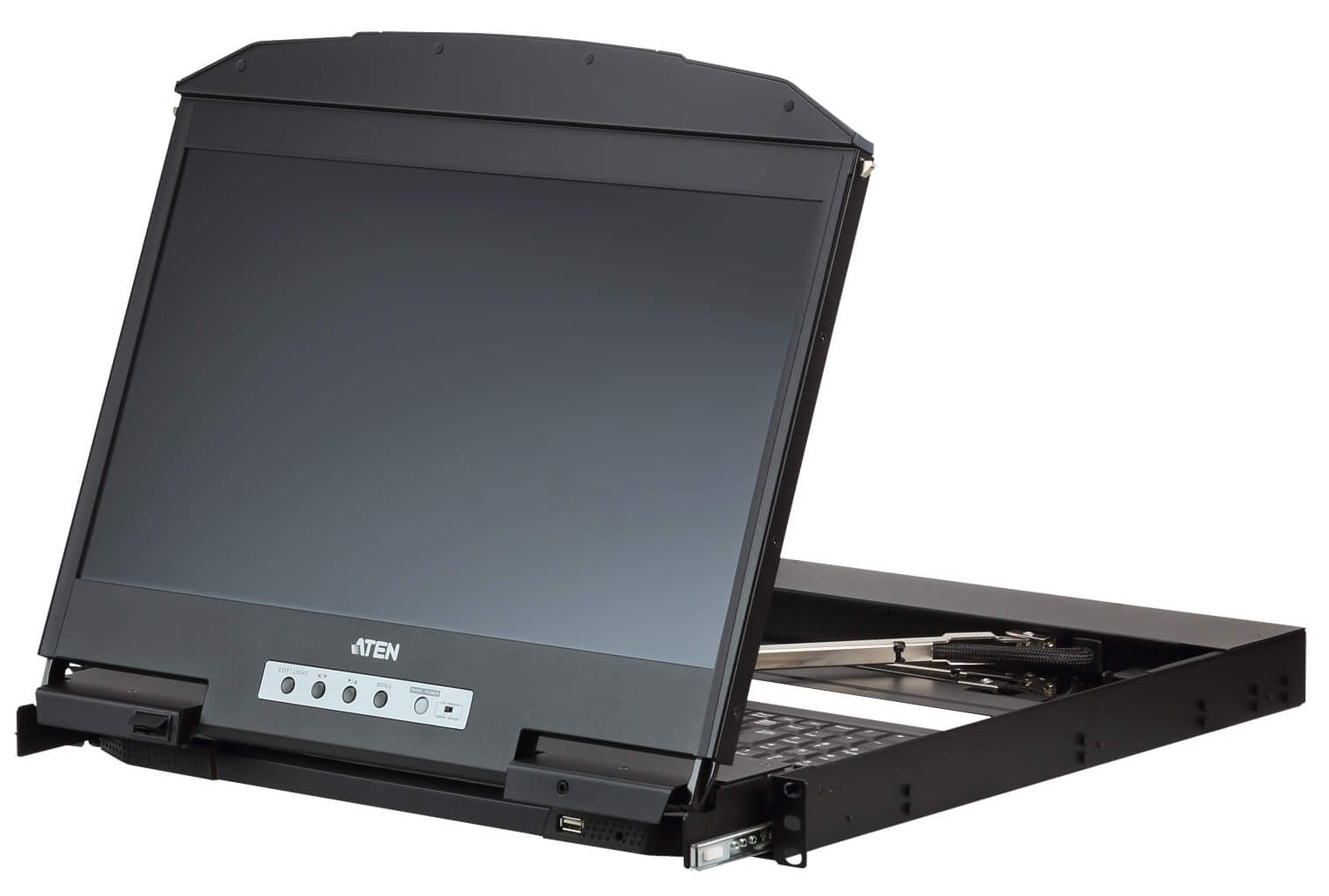

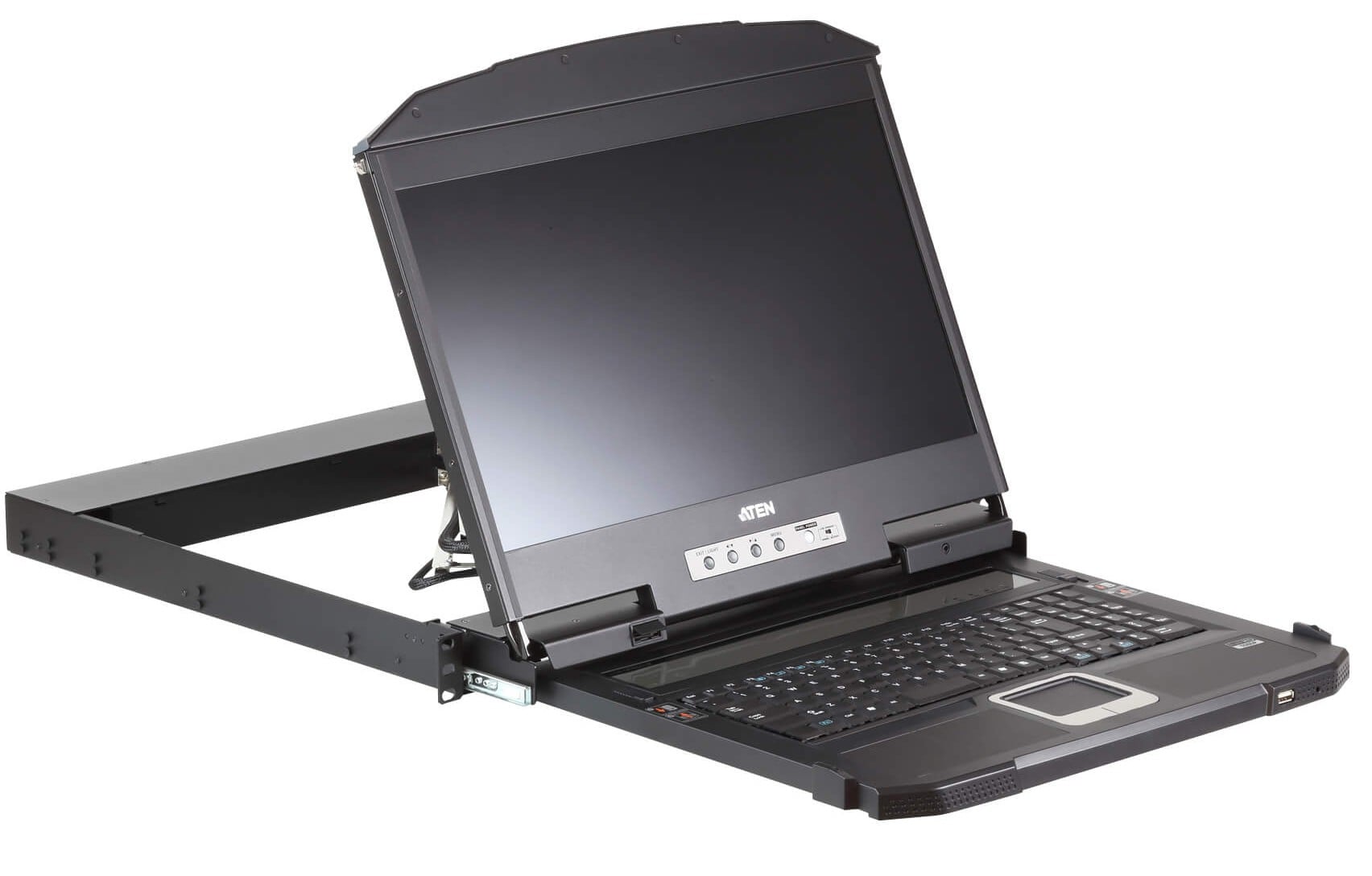

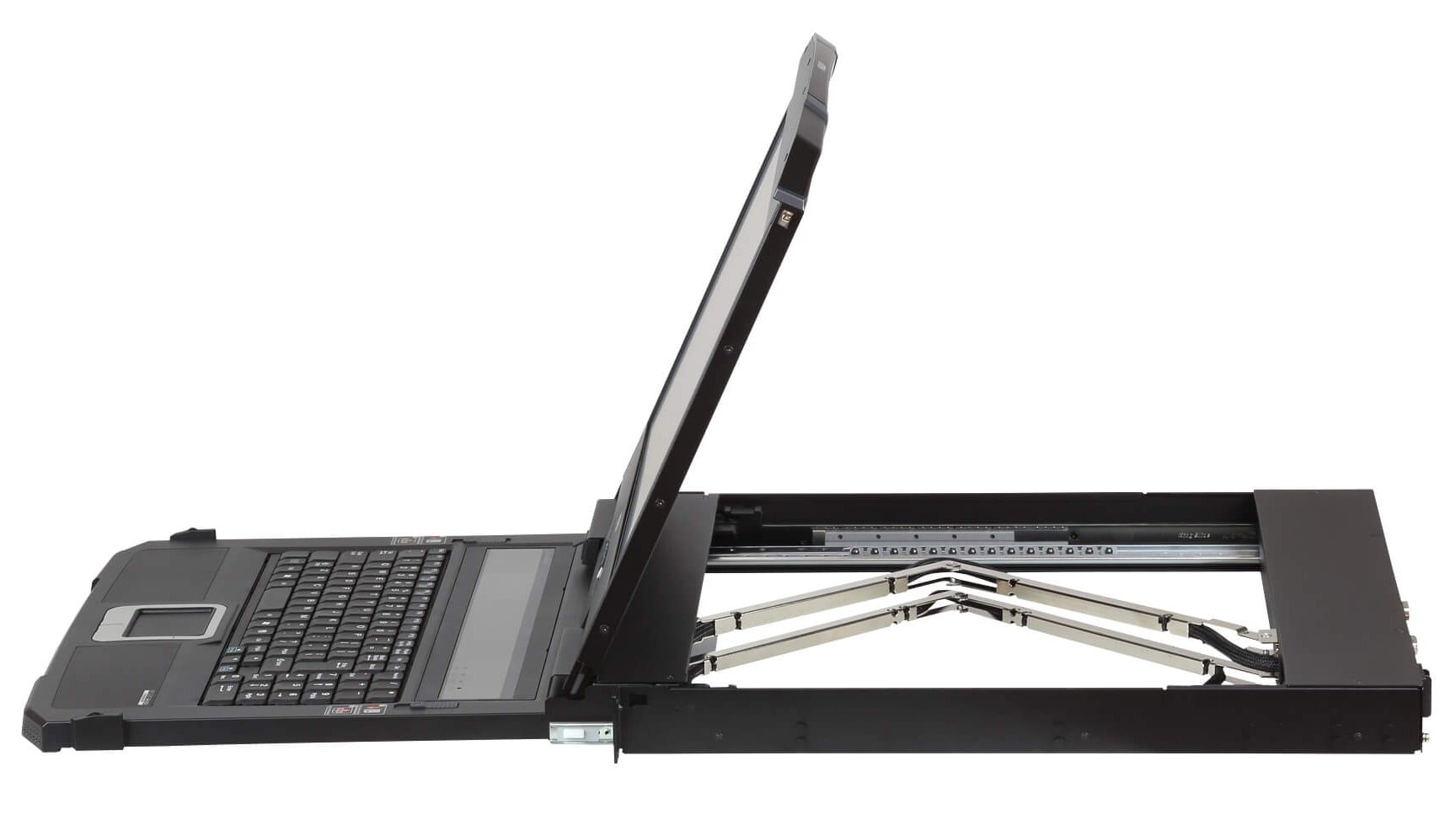

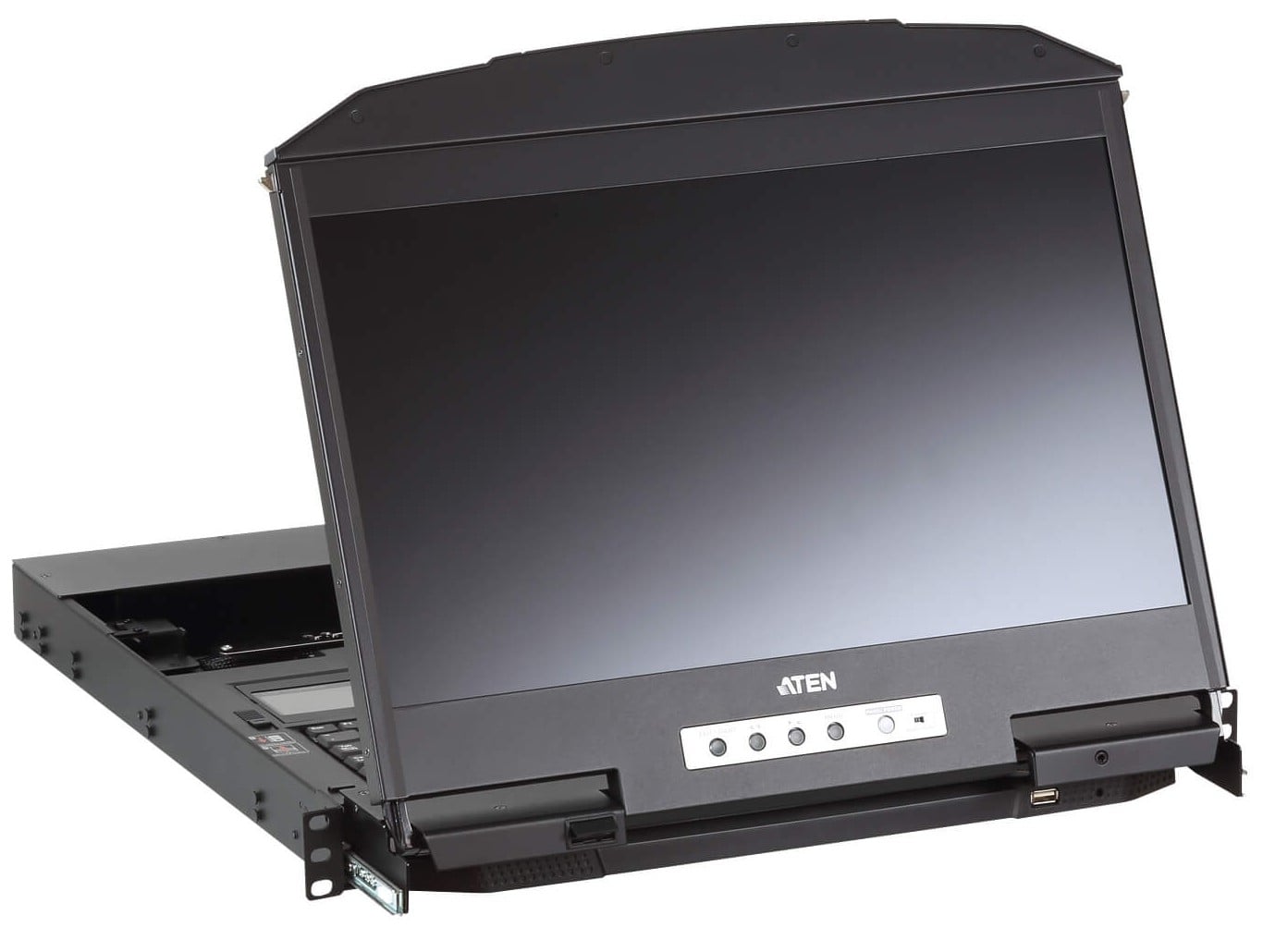

In addition, the two-track design allows the LCD monitor, keyboard and touchpad to be used independently of each other. To maximize the use of space, keyboard and touchpad modules can be repositioned and hidden when not used, while the thin profile LCD monitor can rotate back and line up to the rack to allow monitoring of the computer's activity.

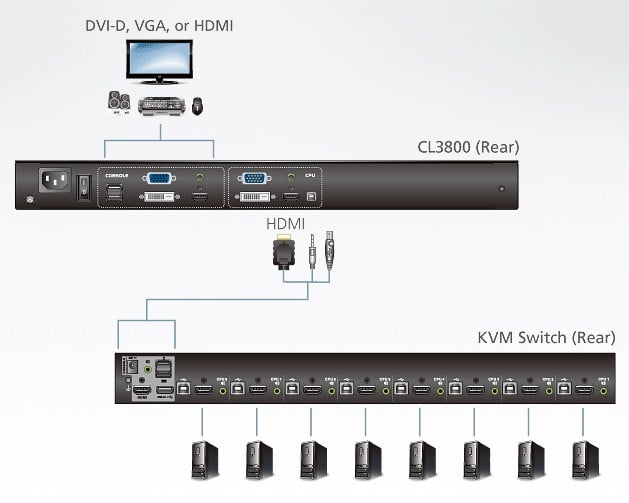

For further convenience à, users can choose to manage the computer from an external console. CL 3800 has an external USB mouse port on the front panel of the unità, while ports for a second KVM console (USB keyboard/mouse and HDMI, DVI or VGA monitors) are located on the back panel. CL 3800 also includes two mini stereo ports for connecting external speakers.



With a rich set of functions, the CL 3800 è designed to exceed space-use optimization requirements, superior quality à video, adaptive and versatile implementation à operational, and è ideal for applications such as mobile live streaming in the transmission industry or control rooms with limited space in any sector.



Optimization of space use

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• KVM LCD console integrated with widescreen LCD monitor with 18,5 LED backlight in a two-track case with space at the top and bottom to ensure trouble-free operation in a high 1 U rack system


• Depth design à reduced for use with rack mounting equipment in confined spaces


• Two-track design for independent use of LCD monitors and keyboard/touchpad modules


• – console lock allows the console tray to stay completely locked in position when not used



Exceptional audio/video experience

• Support for three types of video inputs – HDMI, DVI and VGA


• The 18,5 LCD screen supports the Full HD resolution of 1920 x 1080 to 60 Hz (CL 3800 NW); the 18,5 LCD screen supports 1366 x 768 to 60 Hz (CL 3800 NX) resolution


• External console supports video resolutions up to 1920 x 1200 at 60 Hz


• Audio support for connecting speakers



Installation flexibility

• Kit for mounting on standard rack included


• An easy-to-install Rack Mounting Kit** is available


• No software needed


• Updated Firmware


• Supports hot link



Versatilità operational

• Supports an external console with USB/HDMI/DVI/VGA connectors


• Additional hot-plug USB mouse port on the front panel (it also works as a USB peripheral port)


• Console selection with shortcut key


• Standard keyboard with 105 keys


• Keyboard language support: English (USA), English (GB), French, German, German (Switzerland), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish.

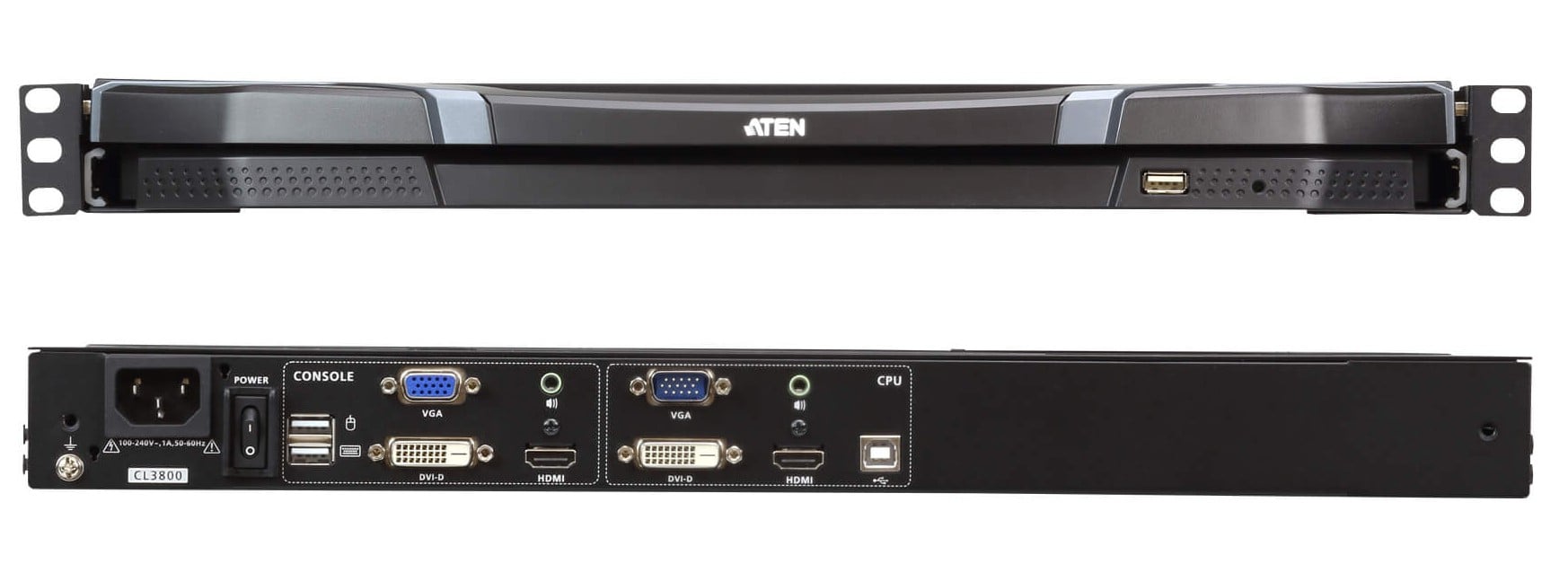

External console doors

• 1 x female HDMI


• 1 x DVI-D female (white)


• 1 x HDB- 15 female (blue)


• 2 x USB type A female


• 1 x Female audio connector from 3,5 mm (green)



KVM Doors 

• 1 x female HDMI


• 1 x DVI-D female (white)


• 1 x HDB- 15 male (blue)


• 1 x female type B USB


• 1 x Female audio connector from 3,5 mm (green)



USB port 

• 1 x USB type A female



Firmware Update 

• 1 x Female audio connector from 3,5 mm (black)



Feeding 

• 1 x Tripolar AC sockets



Switches

• Restore: 1 x semi-collected push button


• Firmware update: 1 x Scrolling


• Power supply: 1 x Balancer


• LCD power supply: 1 x Push button


• LCD adjustment: 4 x Push button



LED

• Power supply: 



1 x KVM console (dark green)

1 x LCD (orange)

• Block:



1 x Block numbers (green)

1 x Case lock (green)

1 x Scrolling block (green)



Video

• Video input resolution: 1920 x 1200 at 60 Hz, DDC 2 B



Panel Specifications

• LCD module: LCD TFT from 18,5


• Resolution: 1920 x 1080 at 60 Hz


• Pixel size: 0,213 mm x 0,213 mm


• Response time: 20 ms


• Viewing angle: 178 ° (O), 178 ° (V)


• Contrast ratio: 1000 : 1


• Supported colors: 16,77 M colors


• Brightness: 350 cd/m²



Emulation

• Keyboard / Mouse: USB


• Input power load: 100 – 240 V CA; 50 – 60 Hz; 1 A



Consumption

• 110 V CA, 26,6 W, 140 BTU


• 220 V CA, 26,8 W, 141 BTU



Environment

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Proprietà physical

• Structure: Metal


• Weight: 9,61 kg


• Dimensions (L x P x A): 48,06 x 51,42 x 4,28 cm



Package contents

• 1 x KVM LCD CL 3800 console with standard rack mounting kit


• 1 x LIN 5 - 28 V 1 -V 11 G cable KVM HDMI USB (HDMI, USB, Audio; 1,8 m/ 6 feet)


• 1 x cable for firmware update


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x user instructions
