Switch KVM PS/ 2 -USB VGA LCD 16 -porte, CL 1316 N - Aten IDATA CL 1316 N

With more and more space being reduced in the server room and increased maintenance costs, network administrators are more ù than ever in search of solutions that reduce costs and needà space. KVM switches with ATEN LCD monitors save space thanks to their approach to KVM switching technology, integrating an LCD screen, full keyboard and touchpad into a single 1 U housing.

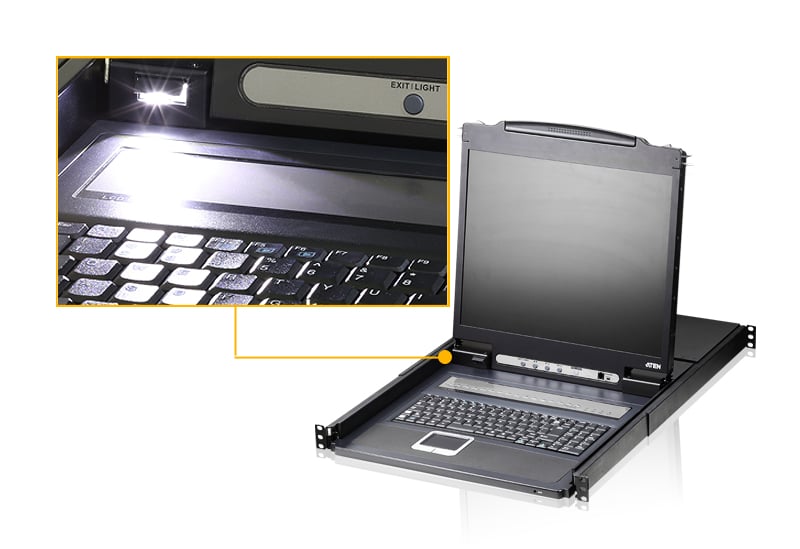

The CL1316 features a built-in 19” LCD monitor with LED backlight and allows controlling up to 16 computers with a single keyboard, monitor and mouse (i.e., from a single console). It is possible to daisy-chain up to 16 additional switches, bringing the total number of computers controllable from a single keyboard-monitor-mouse console to 256.

Easy and quick installation: è Simply connect the cables to the relevant ports. The switch supports both USB and PS/ 2 connections for computers. The CL 1316 directly intercepts the keyboard input, thus avoiding having to configure any software. Switching from one computer to another is done simply by pressing the buttons on the front panel corresponding to the LEDs of the ports, by combining keyboard shortcut keys or via the multilingual OSD menu.



Features

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• A single console controls up to 256 computer by cascade connection to 2 levels and connects up to 16 switch.


• Integrated KVM console with 19 LCD screen with LED backlight


• Mountable to rack


• Double interface: supports computers with PS/ 2 or USB keyboards and mouse


• Support for different platforms - Windows 2000 /XP/Vista, Linux, Mac and Sun


• Supports USB keyboards for PC, Mac and Sun


• Automatic detection of PS/ 2 and USB interfaces


• Emulation of USB or PS/ 2 mouse and keyboards: computers start even when the control of the è console elsewhere


• Qualityà higher video: up to 1280 x 1024 @ 75 Hz; DDC 2 B


• Comfortable computer selection via front panel buttons, multilingual OSD and shortcut keys.


• Two-level password security: only authorized users can view and control computers, up to four users and one administrator, each with their own profile


• Modelità automatic switching for monitoring of computer selected by the user


• Modelità transmission: simultaneous execution of operations on selected computers


• Hot connection: you can add and remove computers without having to turn off the switch


• Activation/deactivation of the acoustic signal via shortcut and OSD


• Keyboard language support: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



Technical, physical and environmental data

• Operating temperature  0 - 50 °C


• Storage temperature - 20 - 60 °C


• Humidità  0 - 80 % relative humidity, without condensation


• Structure: Metal + plastic


• Weight: 12.77 kg (28.13 lb)


• Dimensions (L x P x A)  48.30 x 68.92 x 4.40 cm


• Scan interval:   1 – 255


• Input power load: 100 - 240 V AC; 50 / 60 Hz; 1 A



Package contents

• 1 x CL 1316 KVM switch with rack mounting kit


• 2 x 2 L- 5202 U custom KVM cable set (1.8 m)


• 1 x LIN 5 - 04 A 2 -J 11 G cable for firmware upgrade


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x user guide
