Light USB-PS 2 console with LCD LED 19 " - Aten IDATA CL- 3000 N

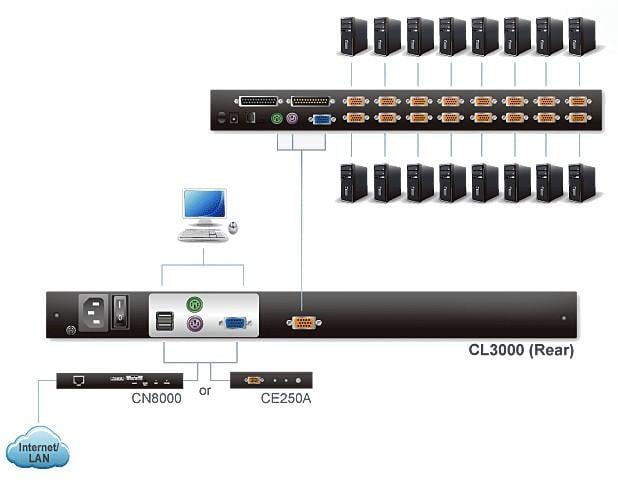

The PS/ 2 -USB IDATA CL- 3000 N light console with an LCD screen è an LCD KVM console that acts as a front end console for compatible KVM switches.

Lightweight and with an 19 inch LCD screen with LED backlight for energy saving, CL 3000 saves space and offers an optimized approach to KVM switches by integrating a keyboard, an LCD monitor with LED backlight and a touchpad into a 1 U housing.



For vibration certification, the MIL-STD- 810 G* test is performed (514.6 Method , 1 Procedure , 4 Common Vehicle Category). The MIL-STD- 810 G test consists of submitting the CL 3000 to difficult environments, using advanced tests to test the environmental resistance of the equipment in real conditions of use such as operation on a moving vehicle or on the floor of a factory, environments often subjected to strong vibrations.



*MIL-STD- 810 G Method 514.6 , Procedure I, Category 4

(Common vehicle, truck vibration exposure on US highway)

Exposure to random vibration tests at different levels and on different axes from 5 to 500 Hz, one hour per axis. The total levels applied are 1,07 Grms for vertical axis, 0,76 Grms for transverse axis and 0,76 Grms for longitudinal axis.



Features

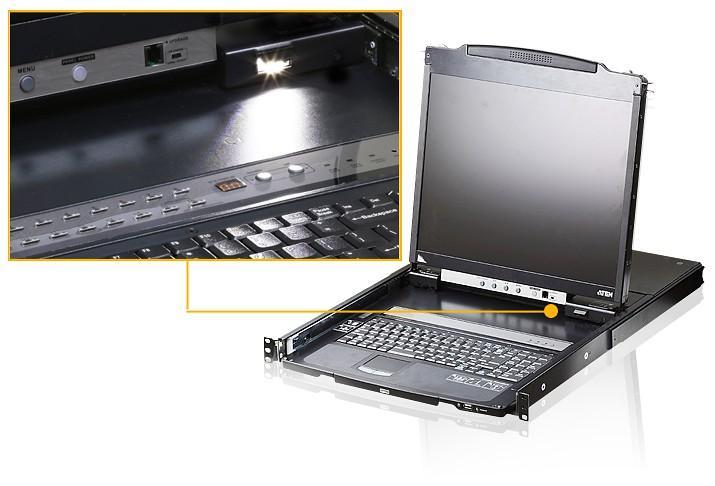

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• Integrated KVM console with 19 inch LCD monitor


• The eco-friendly LED backlight LCD monitors save energy


• Light design for easy installation


• Advanced random vibration resistance test – MIL-STD- 810 G certification


• Double Interface: Supports PS 2 or USB keyboard and mouse computers


• Door for an additional hot-connected USB mouse on the front panel (also serves as a door for USB devices)


• Multiplatform support: Windows, Linux, Mac and Sun


• Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC 2 B


• Updated Firmware


• Extra console port: to manage computers from an external console (monitor, USB keyboard or PS/ 2 and USB mouse or PS/ 2)


• Console lock: allows you to retract and lock the console drawer when not used


• The Slideway housing è slightly smaller than the 1 U with space on the upper and lower sides to allow freedom à movement in the 1 U rack space


• DDC Emulation: The video settings of each computer are automatically adjusted for optimal output on the monitor


• Depthà adjustable to enter the rack


• Standard keyboard with 105 keys


• Keyboard language support: Supported keyboard languages: English (US), English (UK), French, German, German (Switzerland), Greek, Italian, Japanese, Hungarian, Korean, Spanish, Swedish, Traditional Chinese, Russian



Technical specifications

• Computer connections: 1


• Console selection: shortcut


• External console port &



- Keyboard 1 Mini-DIN to 6 pin female (purple); 1 USB Type A female (black)

- Video 1 HDB- 15 female (blue)

- Mouse 1 Mini-DIN to 6 pin female (green); 1 USB Type A female (black)

• Doors KVM 1 SPHD- 18 male (yellow)


• USB 1 USB Type A female port (black)


• Power supply: 1 AC socket 3 poles


• Keyboard emulation/Mouse PS/ 2 and USB


• Video 1280 x 1024 @ 75 Hz, DDC 2 B


• Input from 100 to 240 V~, 50560 Hz, 1 A


• Power consumption: 120 V, 21,4 W/ 230 V, 22,7 W



Switches

• Restore: 1 button slightly recessed


• Power supply: 1 rocker


• Update F/W: 1 sliding switch


• LCD monitor power supply: 1 button


• LCD monitor adjustment: 4 buttons



LED

• Power supply   1 (green)


• Bloc 



- Num  1 (green)

- Maiuscole  1 (green)

- Scorr  1 (green)



Random vibration resistance tests

- MIL-STD test certification conditions- 810 G:

• Frequency range: 5 to 500 Hz


• Grms: X axis value, Y 0,76 Grms, Z axis 1,07 Grms


• Duration of test: 1 hour per axle



Environmental features

• Operating temperature: 0–40°C


• Storage temperature: - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Depthà: 48.00 cm


• Width: 58.92 cm


• Height: 4.40 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x PS/ 2 -USB CL 3000 light console with LCD screen


• 1 x Standard rack mounting kit


• 1 x KVM PS/ 2 -USB 2 L- 5302 UP


• 1 x Power cable 1 ADP- 0005 - 005 G


• 1x User guide
