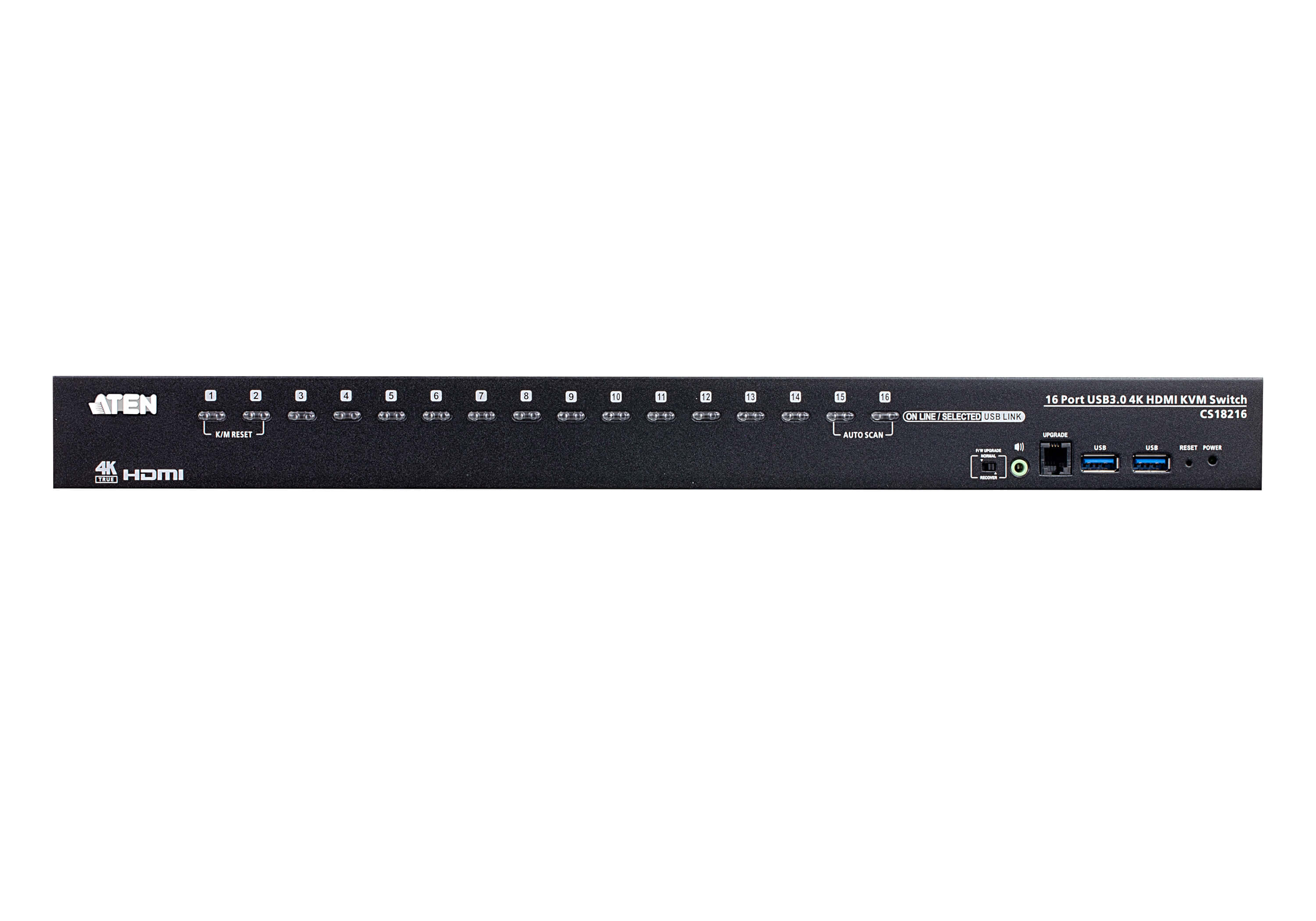

Switch KVM HDMI 4 K USB 3.0 to 16 ports - Aten IDATA CS- 18216

This KVM HDMI 4 K USB 3.0 switch to 16 ports è can effectively access and control up to 16 HDMI computers from a single console with USB keyboard, USB mouse and HDMI monitor. It supports high quality à video up to 4 K DCI (4096 x 2160 at 60 Hz), presenting sharp images.

To meet the needs of easy expansion and flexibility, è can control up to 256 computers with a two-level cascade for a single console. In addition, it supports multiple-screen function by stacking up to eight unitsà to compare and analyze information on 8 monitors at most, which substantially simplifies the work environment.

With two patented ATEN – Video DynaSync™ and EDID Expert™ technologies, è can optimize screen resolution, accelerate switching between ports and switch on smoothly, eliminating display problems at startup.

In addition, è equipped with an integrated 3.1 Gen 1 USB hub that offers speed à data transfer up to 5 Gbps, allowing users to accelerate operations and share USB devices instantly. To offer user-friendly port selection methods, è equipped with buttons, shortcut keys, RS- 232 and OSD commands with a newly designed user interface for intuitive and effortless operations.

To eliminate any security-related problems, è a two-level authorisation password is available that improves security protection for computer access and control. By consolidating these advantageous functionalityà, IDATA CS- 18216 è ideal for managing the server room or computer room applied in sectors with high quality image requirementsà and multitasking, such as companies, governments, production, telecommunications, finance, media, content provider, video surveillance, etc.



Features

• A USB console controls up to 16 computers with HDMI interface and two additional 3.1 Gen 1 USB devices


• Cascading up to two levels – controls up to 256 computer


• Multiple – screen function stacks up to eight units à CS 18216 and displays the video from a maximum of 8 monitors (double screen / triple screen / quadruple screen / multiple screens)


• DynaSync video ™ – an exclusive ATEN technology that eliminates visualization problems at startup and optimizes resolution when switching from source to source


• EDID Expert™ – selects the optimal modeà EDID for smooth ignition and high quality display;


• Superior video quality – up to 4 K DCI (4096 x 2160 at 60 Hz)


• 2 integrated hub USB ports 3.1 Gen 1 with speed à SuperSpeed data transfer 5 Gbps


• Audio enabled – full bass response provides a rich experience for stereo sound to 2.1 channels


• Supports HD audio (HD audio via HDMI channel cannot be switched independently)


• Computer selection via buttons, hotkeys, OSD and RS- 232 commands


• Independent focus switching (independent è switching supported only in mouse emulation mode) of KVM and USB peripherals


• Two-level password permission (administrator/user) for increased security protection


• Modelità – command propagation operations can be performed simultaneously on all selected computers, such as software installation and update, whole system shutdown, etc.


• Modelità automatic scanning for monitoring all computers


• The emulation/bypass function of the console mouse port supports most mouse drivers and multifunction mouse


• Multilingual keyboard map – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Simplified Chinese


• Support and emulation (PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards only work with their respective computers) Mac/Sun keyboard


• Supports hot-plugging


• Compatible with HDMI; compatible with HDCP 2.2


• Multiplatform – Windows, Linux, Mac and Sun support


• Updated Firmware


• Supports wireless multimedia, keyboards and mouse



Technical specifications

• Computer connections: 16 direct and maximum 256 in cascade


• Port Selection: OSD, shortcut keys, buttons, RS- 232 commands


• Compatibilityà: Windows / Mac / Linux


• LED Indicators: Online/Selected, Power Supply, USB Connection


• Keyboard emulation / mouse: USB


• Maximum video resolution: 4096 x 2160 Pixel 


• Scan interval: 0 - 255 seconds (default: 5 sec)


• DC input voltage: 12 V


• Consumption: DC 12 V: 13.12 W: 104 BTU


• Video bandwidth: 60 Hz


• HD type: 4 K Ultra HD


• Metal shell


• Color: Black

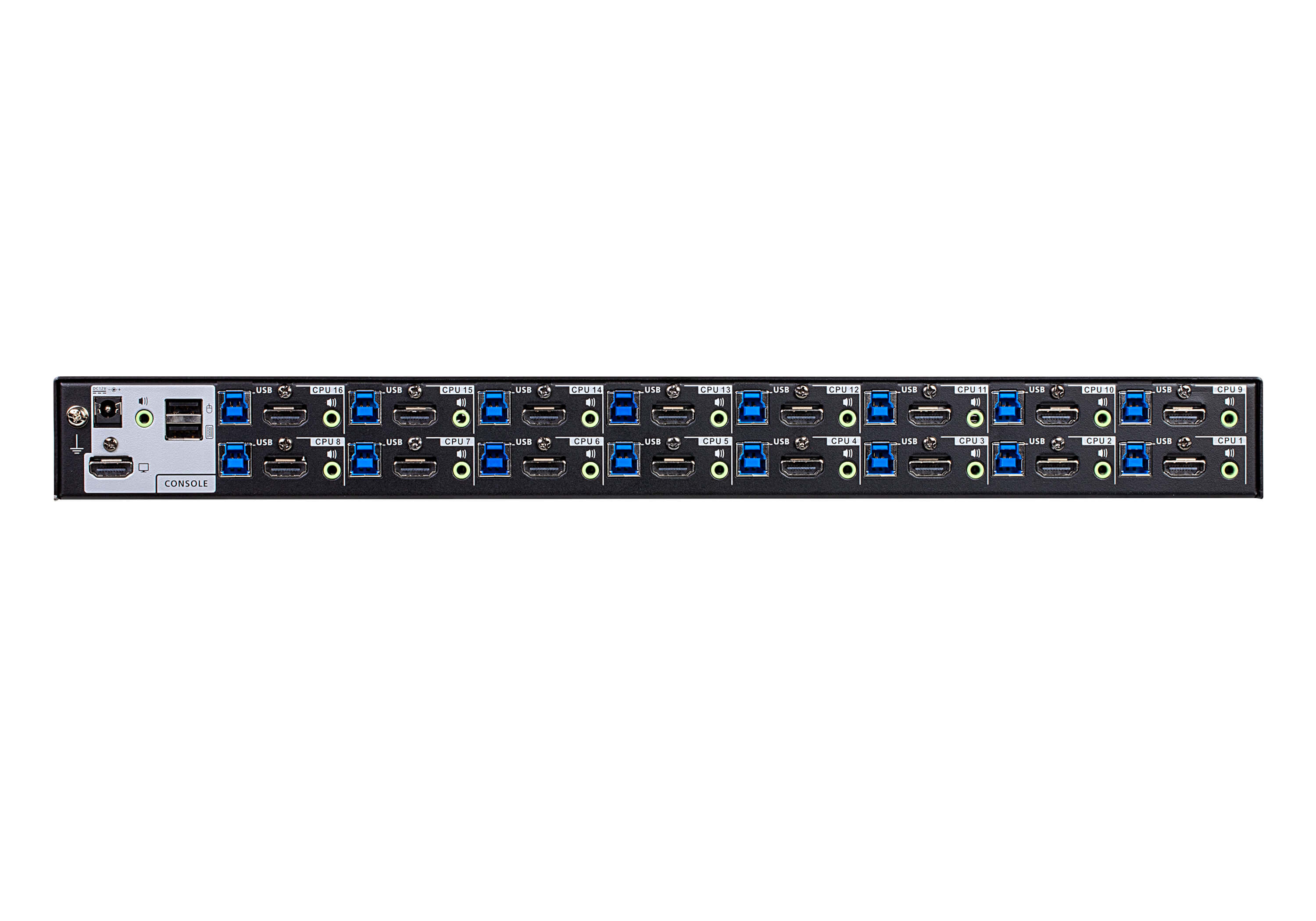

Connections

• Console doors: 1 x HDMI female (black) / 2 x USB-A female / 2 x 3.5 mm female audio jack (green; 1 front and 1 back)


• KVM ports: 16 x HDMI female / 16 x USB 3.1 Gen 1 Type B female (blue) / 16 x 3.5 mm female audio jack (green)


• Firmware Update: 1 x RJ- 11 female (black)


• Power supply: 1 x Jack DC


• USB Hub: 2 x USB 3.1 Gen 1 Type A female (blue; 2 front)



Switch

• Select port: 16 x buttons


• Restore: 1 x semi-collected button


• Firmware update recovery: 1 x slide switch



Environmental information

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 – 80 % RH, without condensation



Dimensions

• Height 44 mm


• Width 432,4 mm


• Depthà 214,3 mm



Package contents

• 1 x Switch IDATA CS- 18216 KVM HDMI 4 K USB 3.0 to 16 ports CS 18216 with installation kit on rack


• 2 x HDMI cables


• 2 x USB cables 3.0


• 2 x Audio cables


• 1 x Firmware update cable


• 1 x Set of feet (4 pcs.)


• 1 x Power adapter


• 1 x User instructions
