Switch KVM 19 " over IP LCD VGA PS/ 2 -USB 16 Doors with USB - ATEN IDATA CL- 5716 IN

The KVM LCD Slideaway ™ CL 5716 I è a control unit that allows you to access multiple computers from a single PS/ 2 or USB console (keyboard, video and mouse). A single CL 5716 I can ` control up to 16 computers. They can be connected to Daisy-chain to CL 5716 I up to 15 additional KVM switches so you can control up to 256 computer from a single KVM console.



The KVM LCD CL 5716 I è switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users can access switches via the Internet via the web browser using TCP/IP as a remote communication protocol. The CL 5716 I supports up to 32 simultaneous user accesses for single-bus computer access. The integrated function that re-assembles the Internet chat program, Message Wall, allows for mutual communication. The ability to exchange information in real time allows you to collaborate in the management of the installation in a fluid and efficient way.

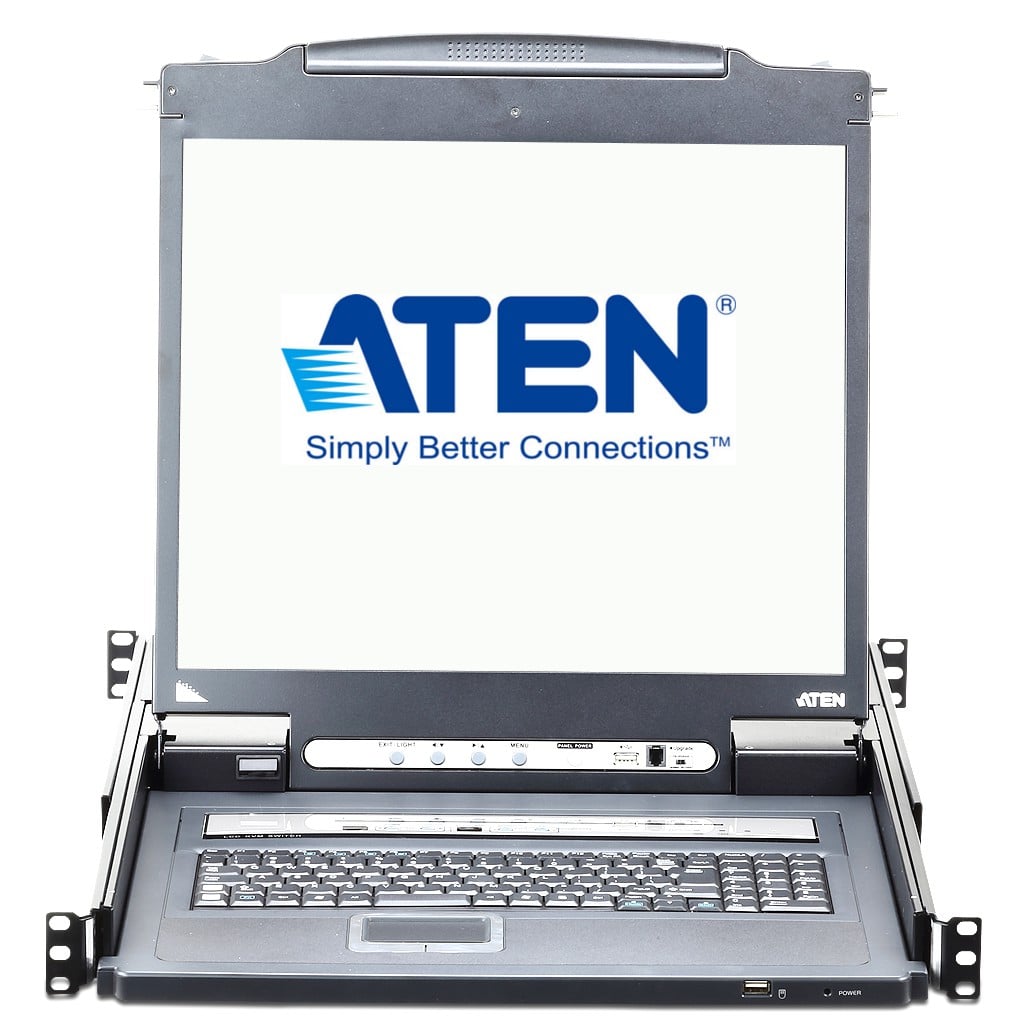

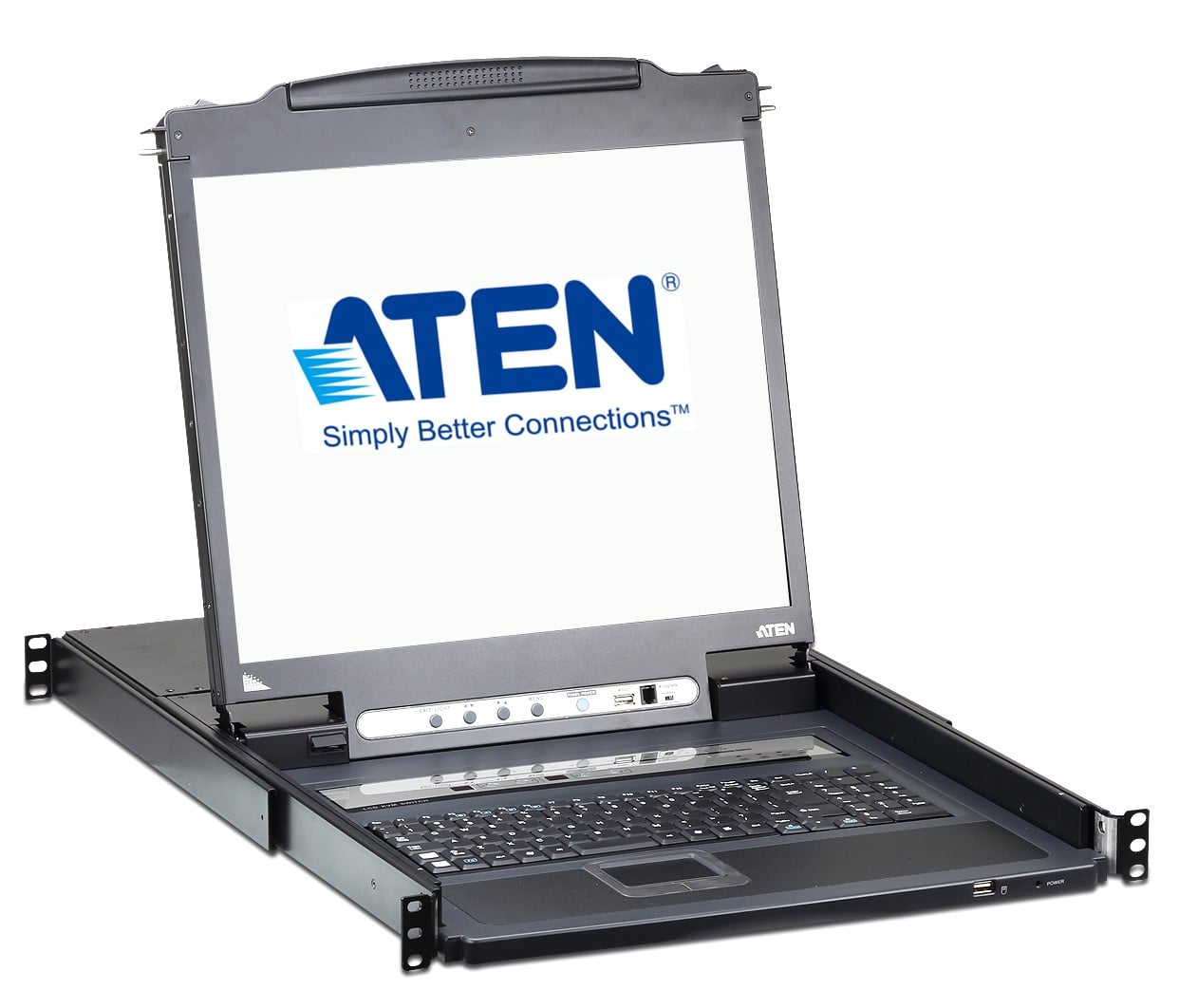

CL 5716 I offers an optimized approach and saves space for the KVM switch technology by integrating a keyboard, an LED backlight LCD monitor from 17 or 19 and a touchpad in a sliding case for mounting on 1 U racks. In addition, since it is CL 5716 I ` integrated in a modular design, the KVM section can be removed from the switch section to perform maintenance and repair in a convenient way.



Among other great functions of CL 5716 I, the Modalità Panel Array offers the possibility to monitor the video output of servers during installation; while the Mouse DynaSync™ automatically synchronizes the movements of the local and remote mouse pointer for perfect alignment without considering the mouse acceleration settings on the server.



CL 5716 I supports the most high security protocols, e.g. TLS 1.2 encryption for the browser, and RC 4 encryption for secure transmission of keyboard, mouse and video data. To make user management integration more simple and efficient, CL 5716 I also supports authentication and permission through authorized third-party servers such as RADIUS, LDAP, LDAPS and MS Active Directory.



Hardware

• Exclusive LED lighting designed by ATEN to illuminate the keyboard and touchpad and allows better visibility; in case of poor lighting


• Integrated KVM console with LCD monitor with 17 or 19 LED backlight in Slideway™


• Space saving technology, up to two consoles (one bus) to control up to 16 computer

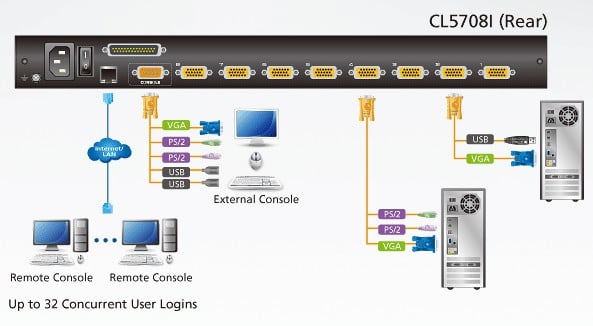

• Connection to Daisy-chain up to 15 unità additional, control up to 256 computer from a single console (with KVM switch compatible: ACS 1208 A, ACS 1216 A, CS 1708 A, CS 1716 A)


• Additional console port for managing computers from an external console (VGA monitor, USB keyboard and mouse or PS/ 2)


• Qualityà higher video, up to 1280 x 1024 at 75 Hz; DDC 2 B for the local console; up to 1920 x 1200 at 60 Hz/deep; 24 bit color for remote sessions


• Double interface, supports computers and consoles with PS/ 2 or USB keyboards and mouse


• The USB port of the LCD module allows connected computers to access USB devices*


• Automatic detection of station position in installation with connection to Daisy-chain; not required for manual dip switch setting; front panel LED indicates station position


• Hot-connected, add or remove computers without turning off the switch


• Keyboard and mouse emulation (PS/ 2 and USB) for switching and simultaneously booting more ù computers even when the console points elsewhere


• Supports multimedia USB keyboards for Windows, Mac and Sun


• Supports external USB mouse


• DynaSync™ video, stores the Extended Display Identification Data (EDID) of the console monitor to optimize screen resolution


• Mountable on rack in a 1 U system rack


• The LCD module rotates up to 115 degrees for a comfortable viewing angle



* The USB peripheral function only works with the connection of a set of USB cables. It does not work with the connection of a set of PS/ 2 cables.



Management

• Computer choice via push buttons on the front panel, shortcut keys and multilingual OSD menu


• Up to 32 simultaneous accesses


• Support for multilingual web interface with local and remote OSD with tree structure


• Qualità adjustable video to adapt it flexibly to different network environments


• Modelità automatic search for continuous monitoring of computer selected by user


• Modelità Transmission: Keyboard operations can be performed simultaneously on all selected computers during installation (software installation, system shutdown, etc.)


• Firmware updates simultaneously for all KVM switches connected to Daisy-chain (CS 1708 A, CS 1716 A) via the connection cable to Daisy-chain


• Integration with centralized management software CC 2000


• Backup and restore configuration settings and user accounts


• Event log


• Compatible IPv 6



Easy-to-use interface

• The browser-based and AP-based graphical user interface, together with the local console menu-managed OSD, offers a powerful, intuitive, user-friendly, multi-language interface to reduce the user's training period and increase productivityà


• Multiplatform – Windows, Linux, Mac and Sun support


• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)


• The Modalità Panel Array allows the user to simultaneously monitor more ù servers from a single screen, each video output of the selected server è displayed in a separate panel, users can easily select the number of panels to display


• Support for Windows client software and Java client; Java client works with all operating systems


• Activation/deactivation of acoustic signal by combination of keys and OSD


• Support keyboard language: English (US), English (UK), French, German, German (Switzerland), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Chinese Traditional



Advanced security

• Secure keyboard/mouse/video transmission via 4 RC encryption to 128 bit


• Supports TLS 1.2 data encryption and 2048 bit RSA certificates to protect user access from browser


• Two levels of security with password, only authorized users can view and control computers; up to 64 user accounts with separate profiles for each


• External authentication support (remote): RADIUS, LDAP, LDAPS, MS Active Directory


• Support for IP/MAC filter


• Authenticated local and remote access



Virtual remote desktop

• Resizeable remote desktop window


• The Message Wall allows users who have accessed to communicate with others, it also allows the user to have sole control of KVM functions


• Mouse DynaSync™


• On-screen keyboard with multi-language support


• BIOS level access



Computer Links

• Direct: 16


• Maximum: 256 (via waterfall connection)



Select Port 

• OSD, shortcut, Buttons

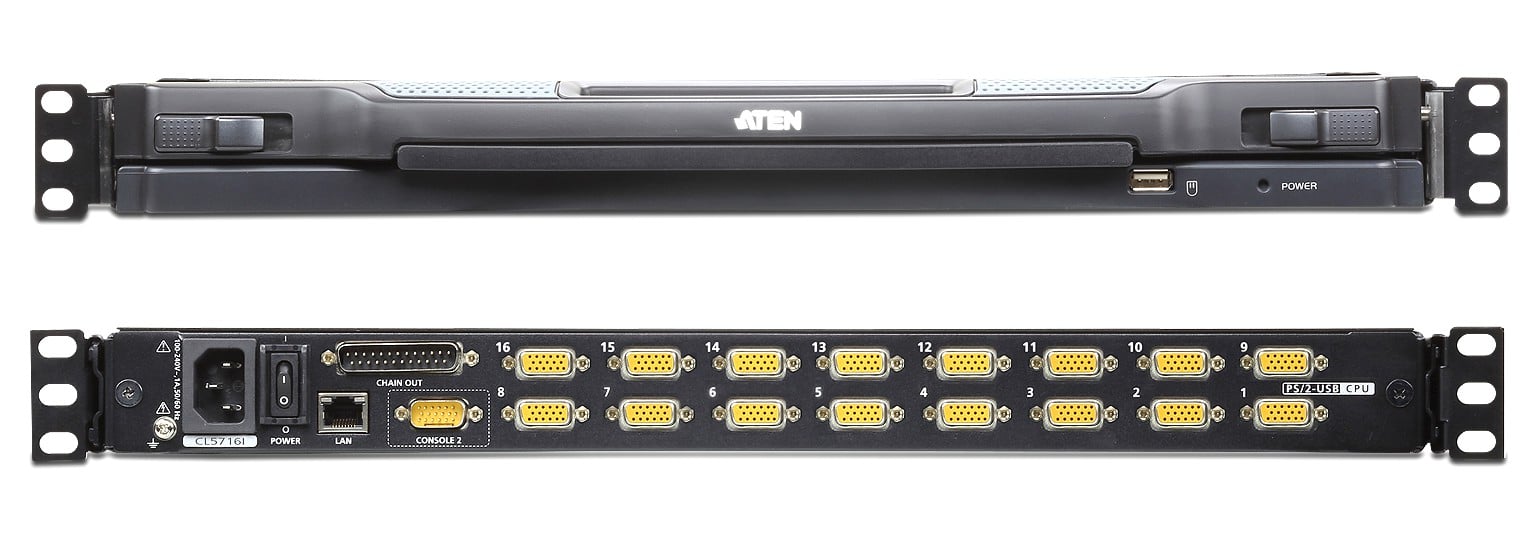

Connectors

• External console doors: 1 x SPHD- 18 male (yellow) 


• External mouse port: 1 x USB type A female 


• KVM Doors: 16 x SPHD- 17 female (yellow) 


• Interconnect doors: 1 x DB- 25 male (black) 


• Firmware update: 1 x RJ- 11 female 


• Power supply: 1 x Tripolar AC sockets  


• USB port: 1 x USB type A female 


• LAN doors: 1 x RJ- 45 female



Switches

• Restore: 1 x semi-recovered button 


• Power supply: 1 x Swing switches  


• Firmware update: 1 x Switch


• LCD adjustment: 4 x Push button  


• On/Off LCD: 1 x LED button (orange) 


• Select port: 2 x Push button  


• Station Selection: 2 x Push Button



LED

• Door ID: 2 x LED display 7 segments (yellow) 


• Station ID: 2 x LED display 7 segments (yellow) 


• Power supply: 1 (dark green) 


• Block:



- 1 x Block numbers (green)

- 1 x Capital block (green)

- 1 x Scrolling block (green) 

• Online: 16 x (orange)


• 10 / 100 Mbps: 1 (orange/green)



Panel Specifications

• LCD module: LCD TFT from 19  


• Response time: 5 ms 


• Vision angle: 170 ° (O), 160 ° (V) 


• Pixel size: 0,294 mm x 0,294 mm 


• Supported colors: 16,7 million colors  


• Contrast ratio: 41.66736111111111  


• Brightness: 250 cd/m²



Emulation

• Keyboard / Mouse: PS/ 2 , USB 



Video

• Local: 1280 x 1024 at 75 Hz; DDC 2 B 


• Remote: 1920 x 1200 at 60 Hz 


• Scan interval: 1 - 255 seconds



Input power load 

• 100 - 240 V AC, 50 - 60 Hz, 1 A 



Consumption 

• 120 V/ 26 W; 230 V/ 26,8 W



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità  0 - 80 % relative humidity, without condensation



Dimensions

• Width: 48,00 cm


• Depthà: 68,92 cm


• Height: 4,40 cm



Package contents

• 1 x Switch KVM over IP LCD CL 5716 I with standard rack mounting kit


• 2 x 2 L- 5202 U custom KVM cable (VGA, USB; 1,8 m/ 6 feet)


• 1 x LIN 5 - 27 X 6 -U 22 G custom console cable (VGA, USB, PS/ 2 ; 27 m/ 0.88 feet)


• 1 x LIN 5 - 04 A 2 -J 11 G cable for firmware update


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x user instructions
