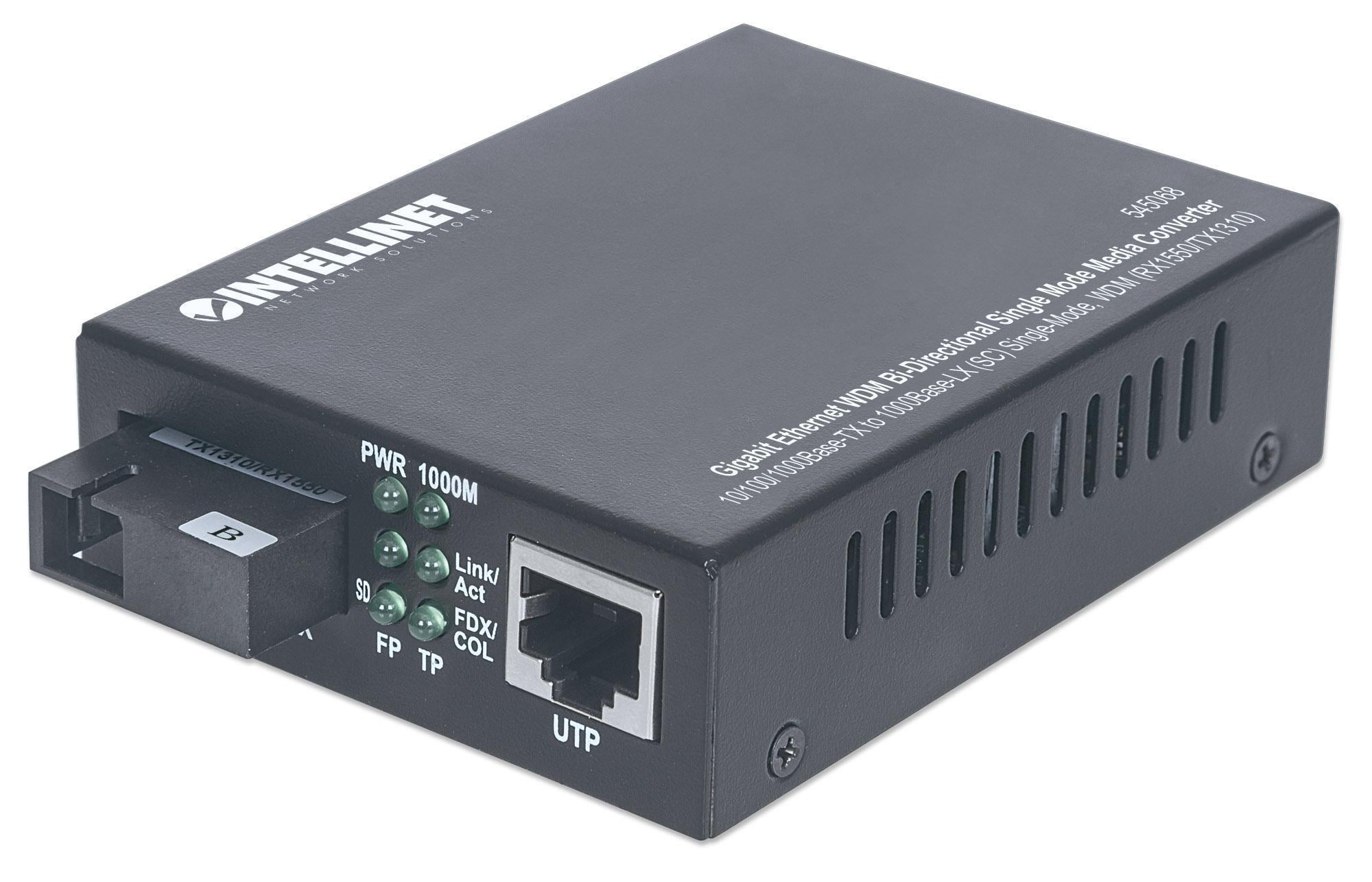

Gigabit Ethernet WDM Bidirectional Single Mode Media Converter RX1550/TX1310 - Intellinet I-ET LX-WDM1

€64.03
Tax included €52.50 excl. VAT

Gigabit Ethernet 10/100/1000 Mbps WDM bidirectional media converter with SC single-mode port and RJ-45 port. Uses wavelengths RX 1550 nm and TX 1310 nm for distances over 20 km.



Return policy



Delivery policy



Direct contact for info



Secure Payment

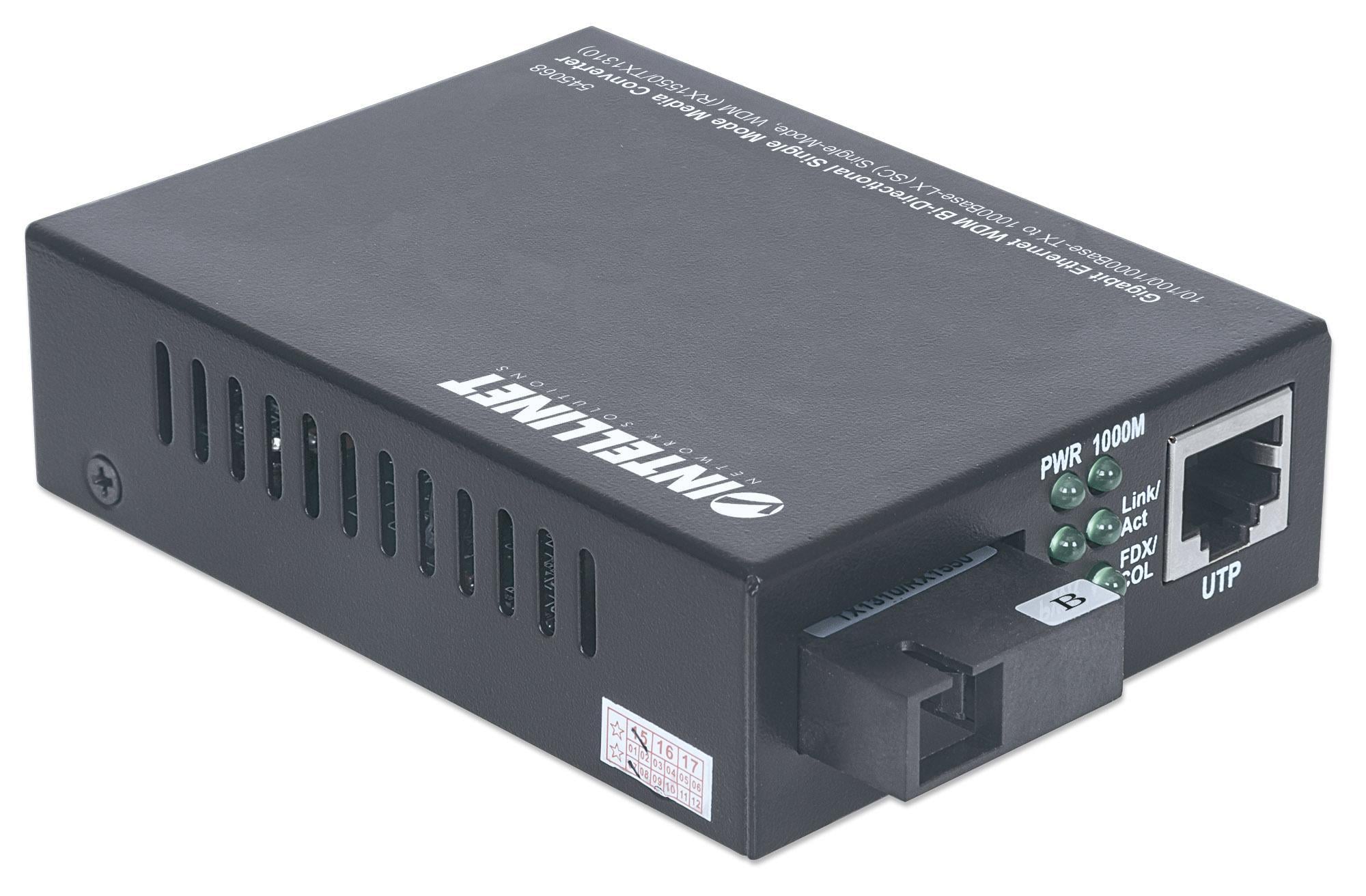

  • SC type single-mode dual-wavelength fiber port for connecting distances greater than 20 km

  • Must be used with Gigabit Ethernet WDM bidirectional Single Mode media converter, model 545075

  • Data transfer rate: 10/100/1000 Mbps

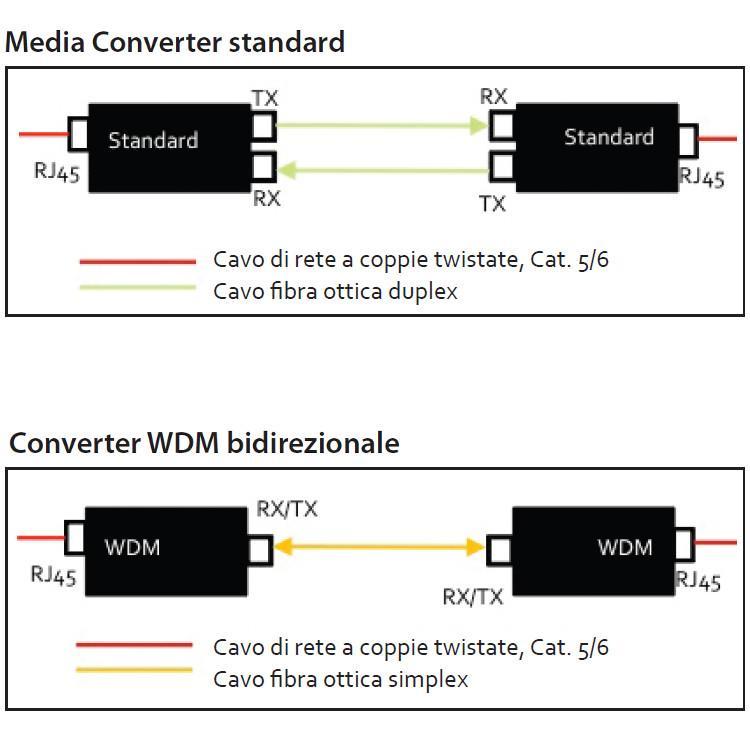

  • WDM (Wavelength Division Multiplexing) technology uses a single fiber optic link for data transmission on distinct wavelengths for transmission and reception

  • Wavelengths: reception (RX), 1550 nm; transmission (TX), 1310 nm

  • An RJ45 10/100/1000 Base-TX port, maximum distance of 100m

  • RJ45 port with auto MDI/MDI-X support

  • Status LED to monitor data traffic

  • Works individually as a converter or can be used together with the 14-slot media converter chassis, model 507356

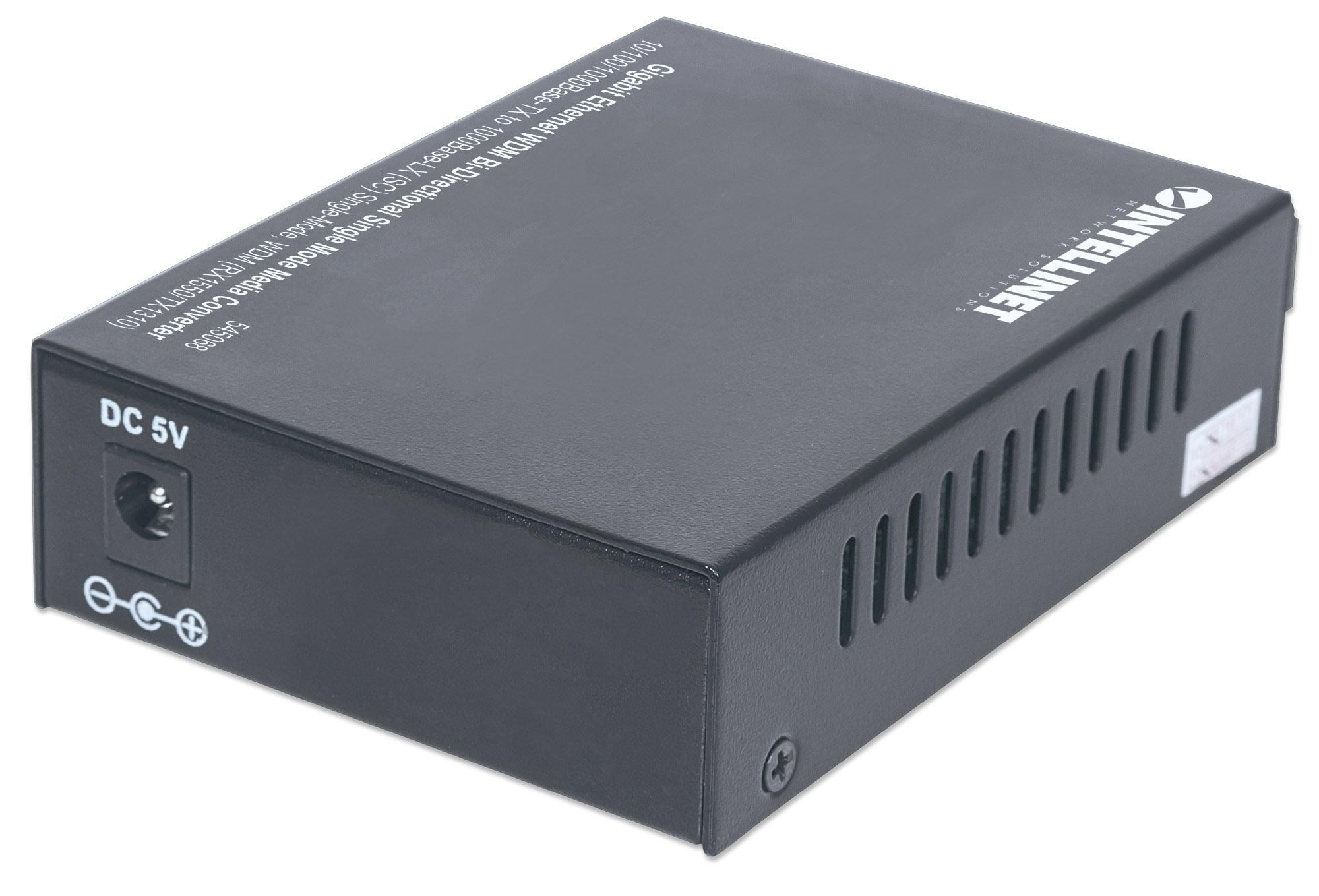

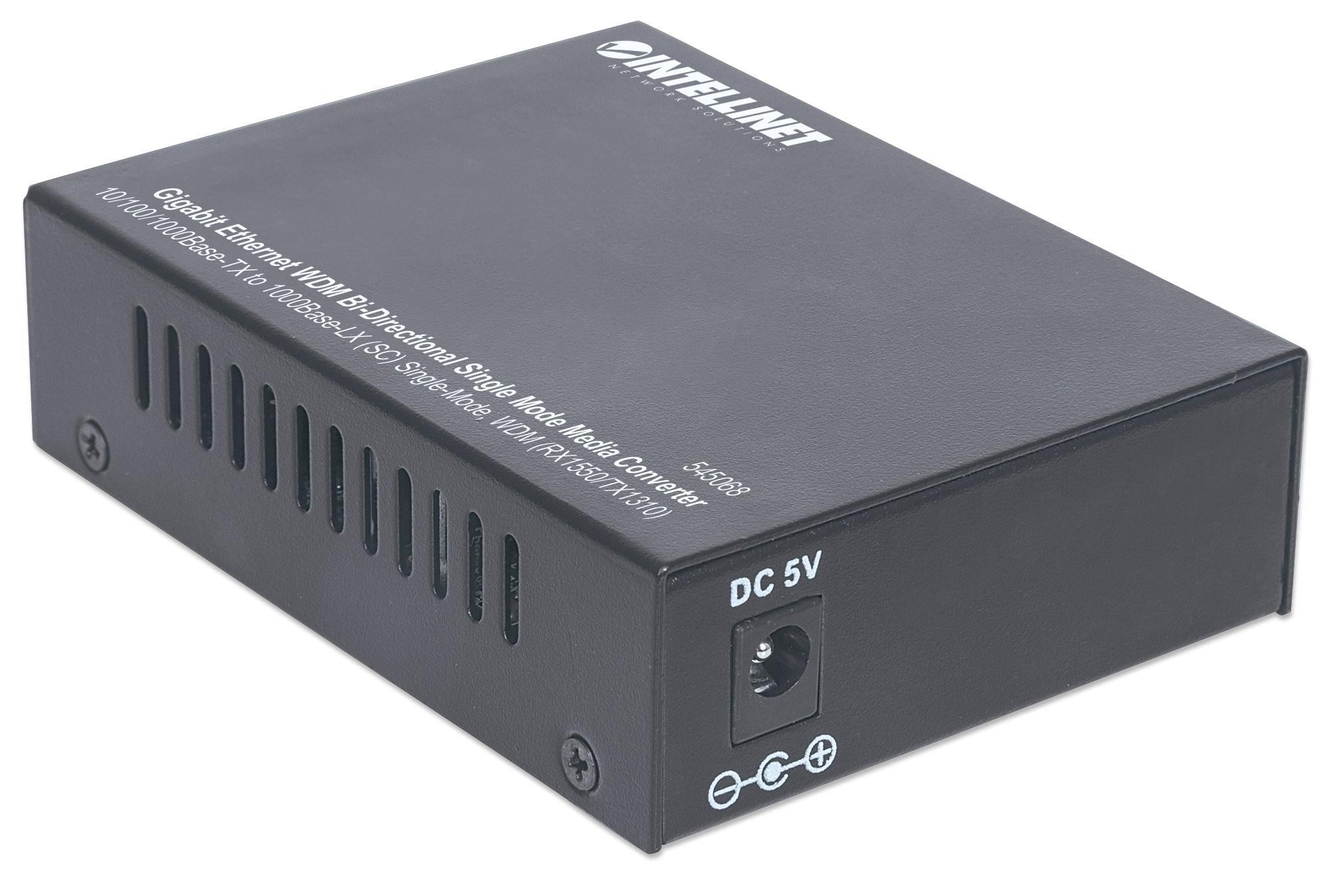

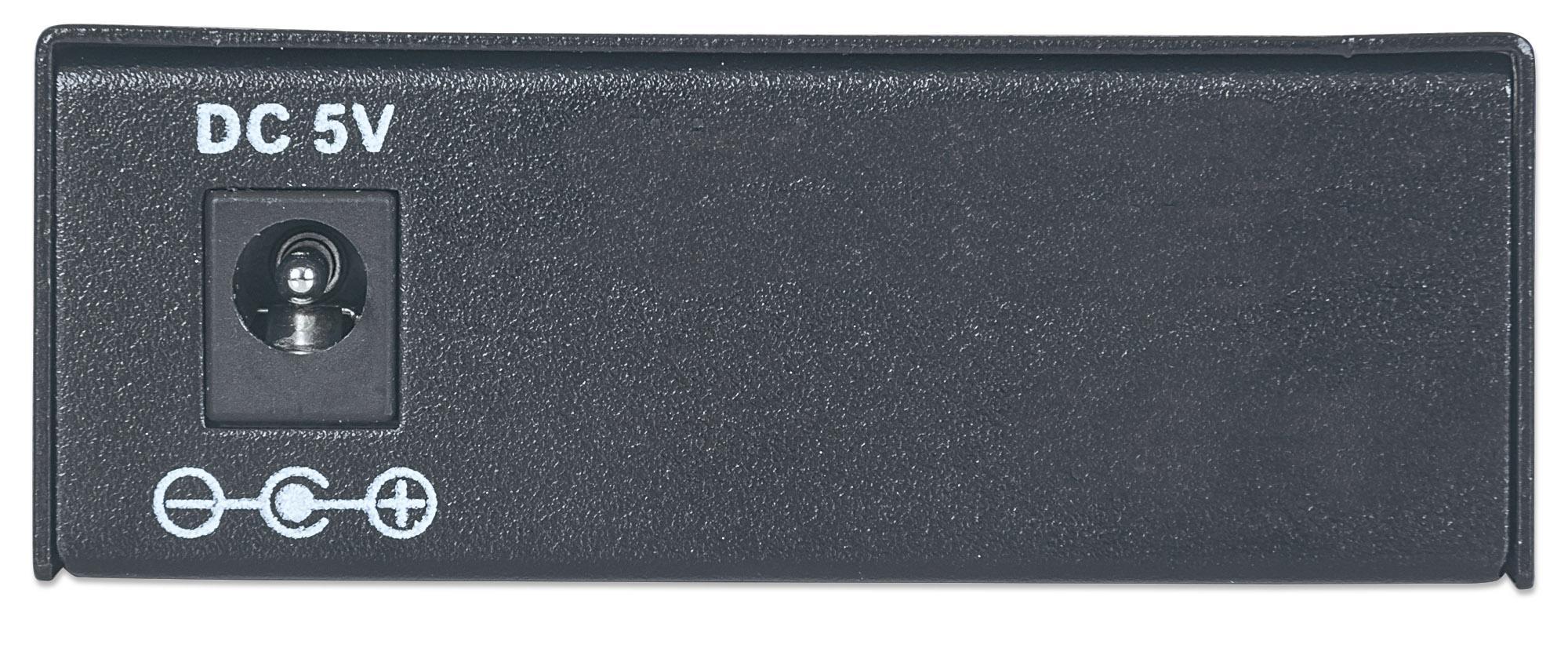

  • External power supply, 5V DC



Standards

  • IEEE 802.3 (Twisted Pair Ethernet)

  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)

  • IEEE 802.3u (Twisted Pair / Fiber Optic Fast Ethernet)

  • IEEE 802.3z (Gigabit Fiber Optic)



General information

  • Supports:


- 1000Base-T Cat5 or higher UTP/STP RJ45, EIA/TIA 568

- 1000Base-LX single-mode 8.3/125 µm or 8.7/125 µm or 8/125 µm or 10/125 µm

  • Connections:


- Port RJ45 10/100/1000Base-TX

- SC fiber port 1000Base-LX

  • Distances:


- 20 km (fiber optic cable)

- 100 m (RJ45 cable)

  • Wavelengths:


- Receiver (RX): 1550 nm

- Transmitter (TX): 1310 nm

  • Output current: -8 – -3 dBm

  • RX sensitivity: ≤-22 dBm

  • Signal loss: 0,2 dB/km

  • MTBF > 100,000 hours

  • Certifications: FCC Class A, CE

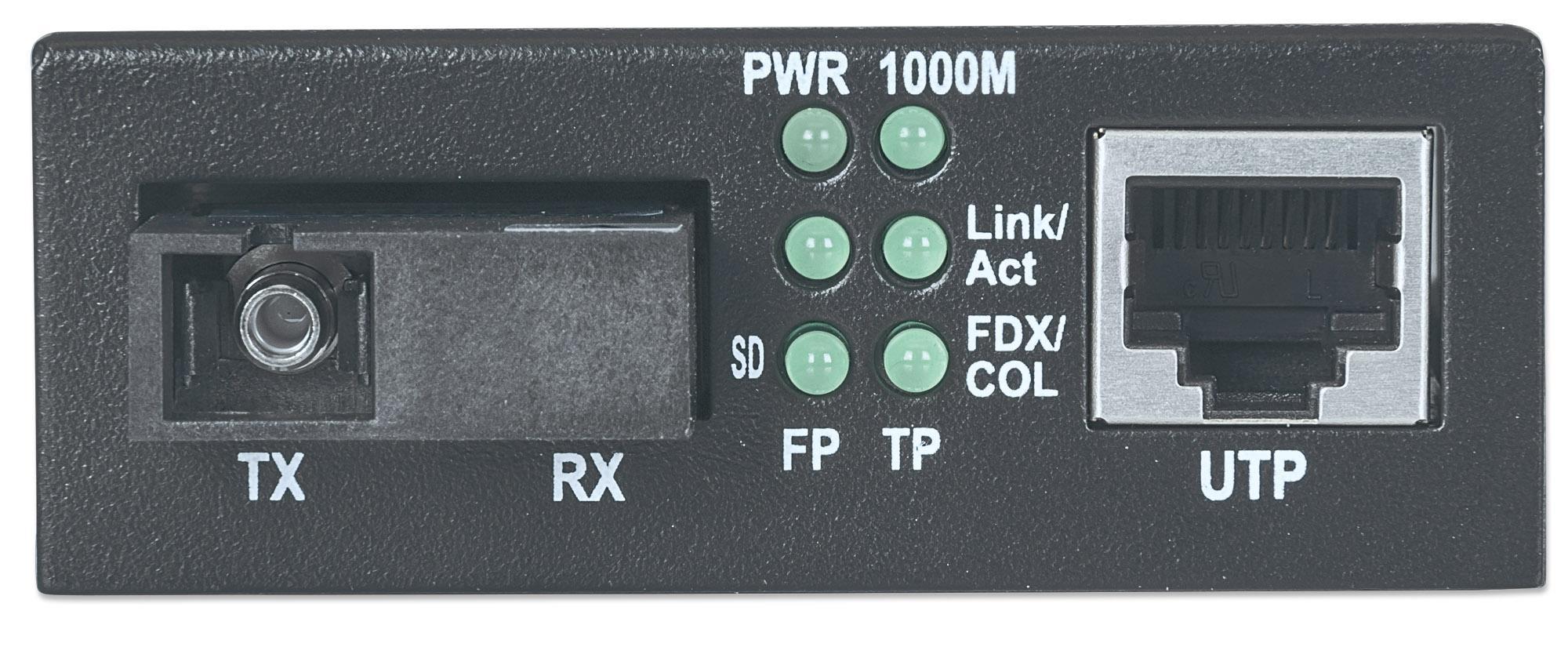

LED

  • Power

  • Connection/activity

  • Full Duplex / Collision

  • Link indicator at 1000 Mbps for RJ45 port

  • Link indicator for the fiber optic port



Power

  • External power supply: 12V DC, 1.2A

  • Current consumption: 5 watt (maximum)



Physical characteristics

  • Metal chassis

  • Dimensions: 105 (L) x 69 (W) x 25 (H) mm

  • Weight: 180 g

  • Operating temperature: 0 – 50°C

  • Operating humidity: 10 – 80% RH, non-condensing

  • Storage temperature: -20 – 70°C



Package contents

  • Media converter Gigabit Ethernet WDM bidirectional Single Mode

  • External power supply

  • Instructions

  • Brand
  • Reference
    I-ET LX-WDM1
  • In stock
    12 Items
  • EAN13
    0766623545068
