Media Converter Gigabit Ethernet WDM Bidirectional Single Mode RX1310/TX1550 - Intellinet I-ET LX-WDM2

€57.12
Tax included €46.80 excl. VAT

Media converter Gigabit Ethernet 10/100/1000 Mbps WDM bidirectional with SC single-mode port and RJ-45 port. Uses RX 1310 nm and TX 1550 nm wavelengths for distances greater than 20 km.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • SC type single-mode dual-wavelength fiber port for connecting distances greater than 20 km

  • Must be used with Media Converter Gigabit Ethernet WDM bidirectional single mode, model 545068

  • Data transfer rate: 10/100/1000 Mbps

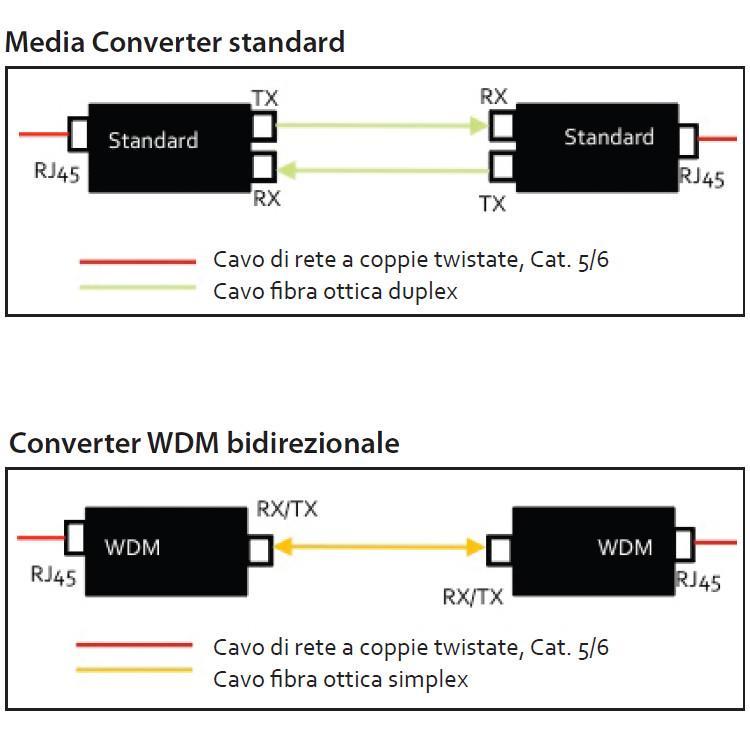

  • WDM (Wavelength Division Multiplexing) technology uses a single fiber optic link for data transmission on distinct wavelengths for transmission and reception

  • Wavelengths: reception (RX), 1310 nm; transmission (TX), 1550 nm

  • An RJ45 10/100/1000 Base-TX port, maximum distance of 100m

  • RJ45 port with auto MDI/MDI-X support

  • Status LED to monitor data traffic

  • Works individually as a converter or can be used together with a 14-slot media converter chassis, model 507356

  • External power supply, 5V DC



Standard

  • IEEE 802.3 (Twisted-pair network cable)

  • IEEE 802.3ab (Gigabit twisted-pair network cable)

  • IEEE 802.3u (twisted pair cable / fiber optic network)

  • IEEE 802.3 (Gigabit fiber optic)



General information

  • Supports:


- 1000Base-T Cat5 or higher UTP/STP RJ45, EIA/TIA 568

- Single-mode 1000Base-LX 8.3/125 micron or 8.7/125 micron or 8/125 micron or 10/125 micron

  • Connector:


- Port RJ45, 10/100/1000Base-TX

- SC fiber port, 1000Base-LX

  • Distance:


- 20 km (fiber optic cable)

- 100 m (RJ45 cable)

  • Wavelengths:


- Reception (RX): 1310 nm

- Transmission (TX): 1550 nm

  • Output power: -8 – -3 dBm

  • Receiver sensitivity: ≤-22 dBm

  • Signal loss: 0,2 dB/km

  • MTBF > 100.000 hours

  • Certifications: FCC Class A, CE, RoHS

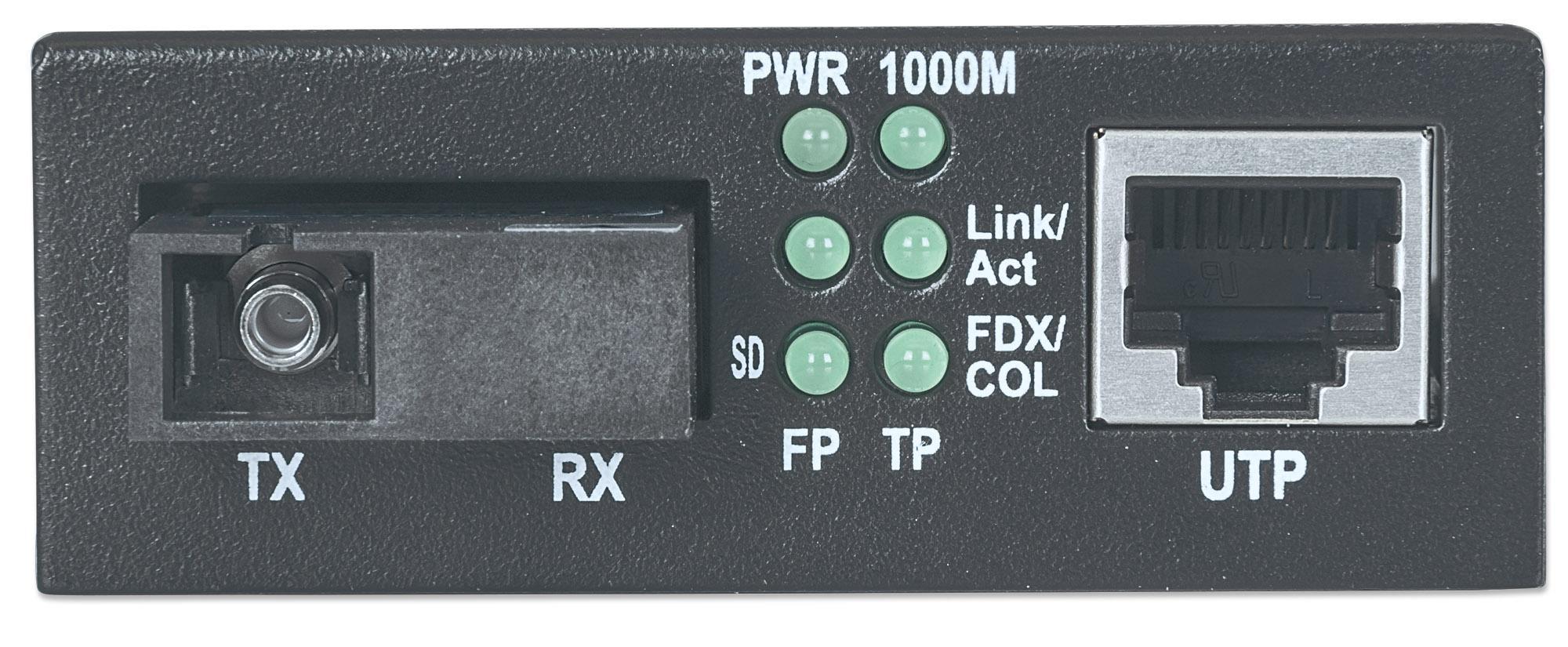

LED

  • Power

  • Link/Activity

  • Full Duplex/Collision

  • Link speed indicator 1000 Mbps for RJ45 port

  • Link indicator for fiber optic port



Power

  • External power supply: 12V DC, 1.2A

  • Power consumption: 5 Watts (maximum)



Environmental features

  • Metal housing

  • Dimensions: 105 (L) x 69 (D) x 25 (H) mm

  • Weight: 180 g

  • Operating temperature: 0 – 50°C

  • Operating humidity: 10 – 80% RH, non-condensing

  • Storage temperature: -20 – 70°C



Package contents

  • Gigabit Ethernet SFP Mini-GBIC Transceiver WDM

  • External power supply

  • Instructions for use

  • Brand
  • Reference
    I-ET LX-WDM2
  • In stock
    39 Items
  • EAN13
    0766623545075
