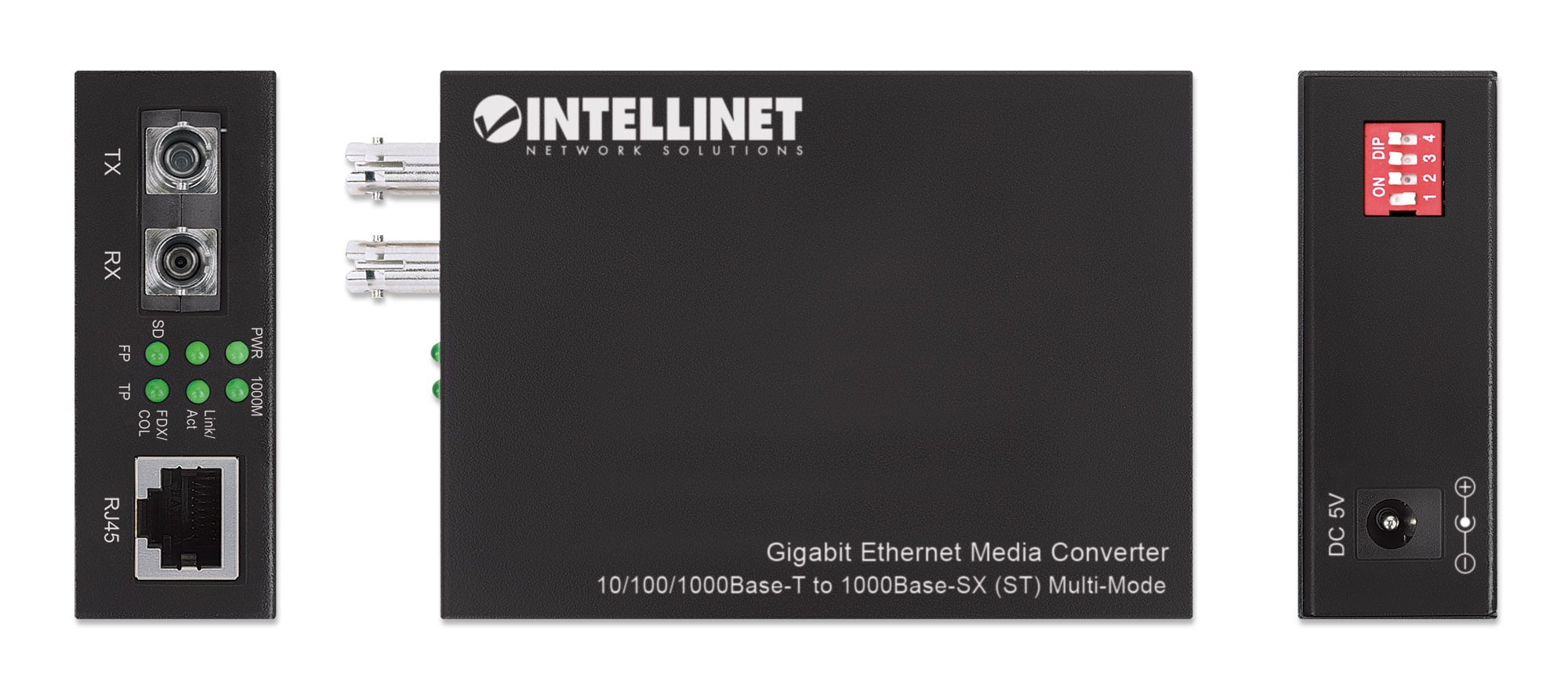

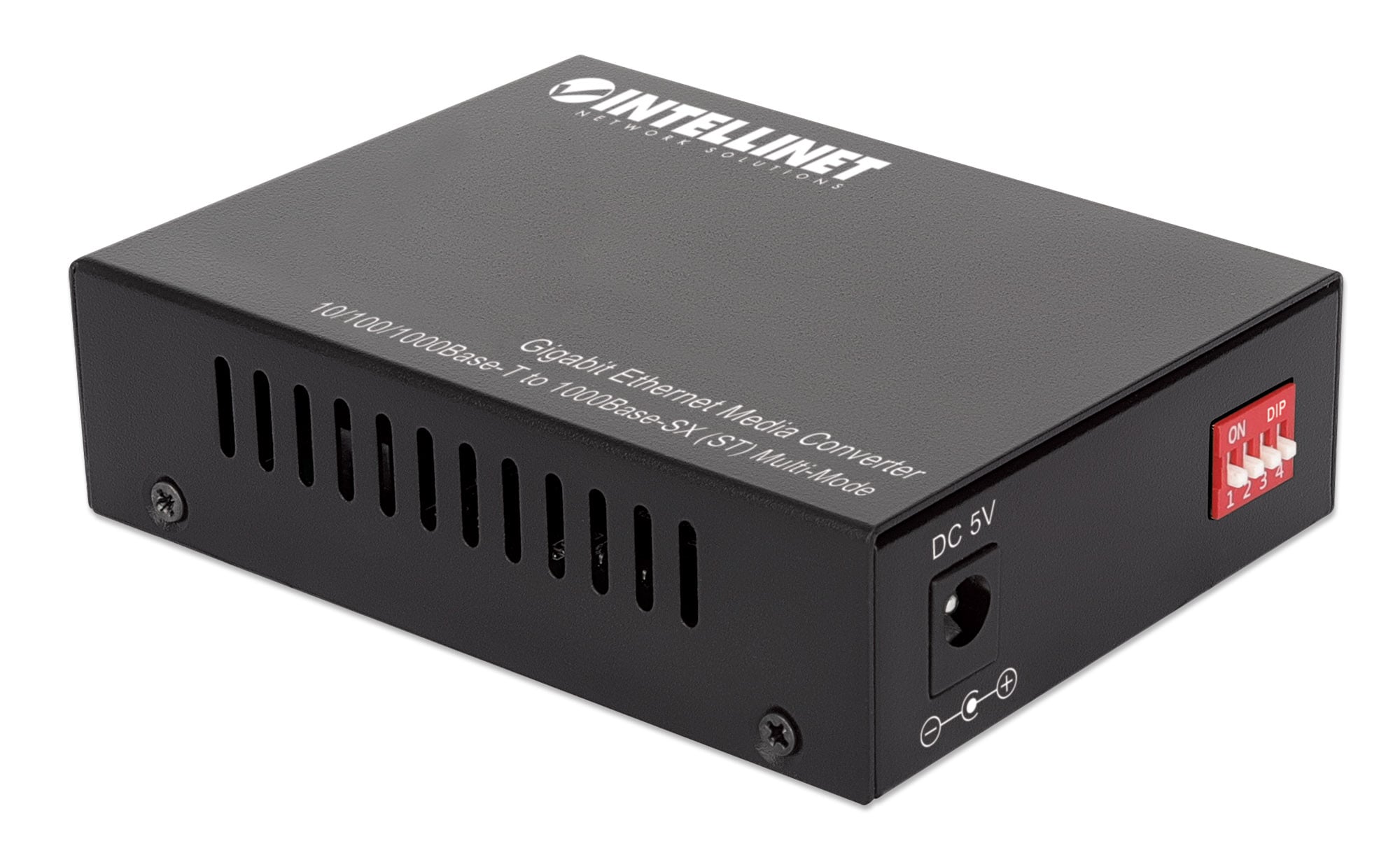

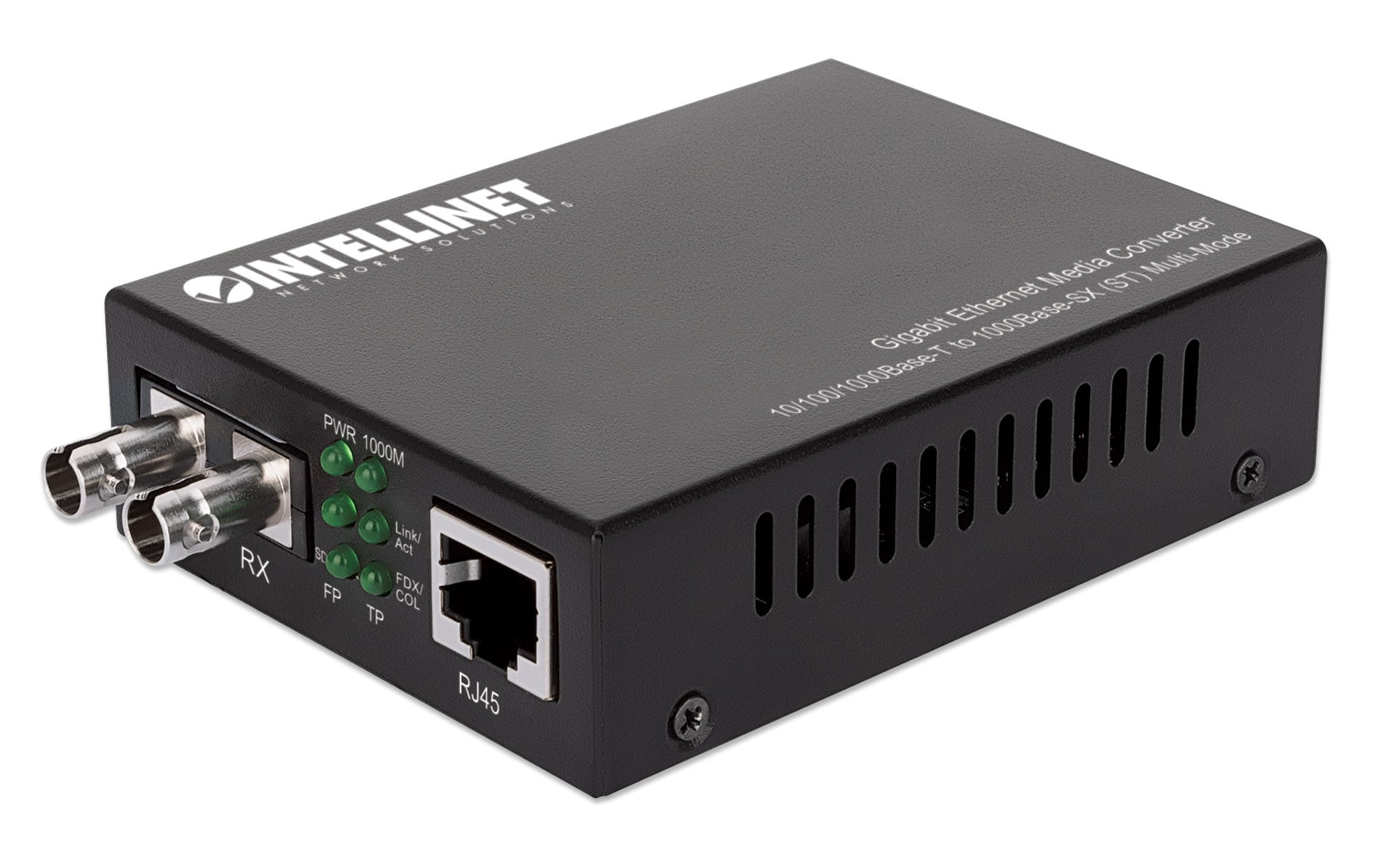

Gigabit Ethernet media converter ST multimode fiber - Intellinet I-ET ST-GIGA

• One RJ45 10/100/1000 port supports maximum distance of 100 m

• One ST multimode fiber 1000Base-SX port supports a maximum distance of 550 m

• Supports full-duplex and half-duplex modes with auto-negotiation

• Link Fault Pass Through (LFP) function to simplify network maintenance

• Supports QoS (Quality of Service) bandwidth management

• Compliant with VLAN encoding IEEE 802.1Q

• Cut-through and store-and-forward switching architecture

• Wavelength: 850 nm

• Supports jumbo frames up to 9.2 kBytes

• Status LEDs for power and Link/TX on both ports

• External power adapter 5V DC

• Works individually as a converter or can be used together with a 14-slot media converter chassis, model 507356


Standard

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3z (1000BASE-X Gigabit Ethernet)

• IEEE 802.3ab (Twisted-pair Gigabit Ethernet)

• IEEE 802.1d (Spanning Tree Protocol)

• IEEE 802.1q (VLAN Tagging)

• IEEE 802.1p (Traffic prioritization)


General Information

• Supports:


- 10/100/1000Base-TX Cat5e or higher UTP/STP RJ45

- 1000Base-SX multimode 50/125 µm & 62.5/125 µm

• Connectors:


- One RJ45 port

- One ST duplex fiber port

• Distances:


- 220 m / 720 ft (fiber cable 62,5/125 µm)

- 550 m / 1.800 ft (fiber cable 50/125 µm)

- 100 m (RJ45 cable)

• Wavelength: 850 nm

• Min. TX Power: -9 dBm

• Max. TX Power: -3 dBm

• Certifications: FCC Class B, CE, RoHS

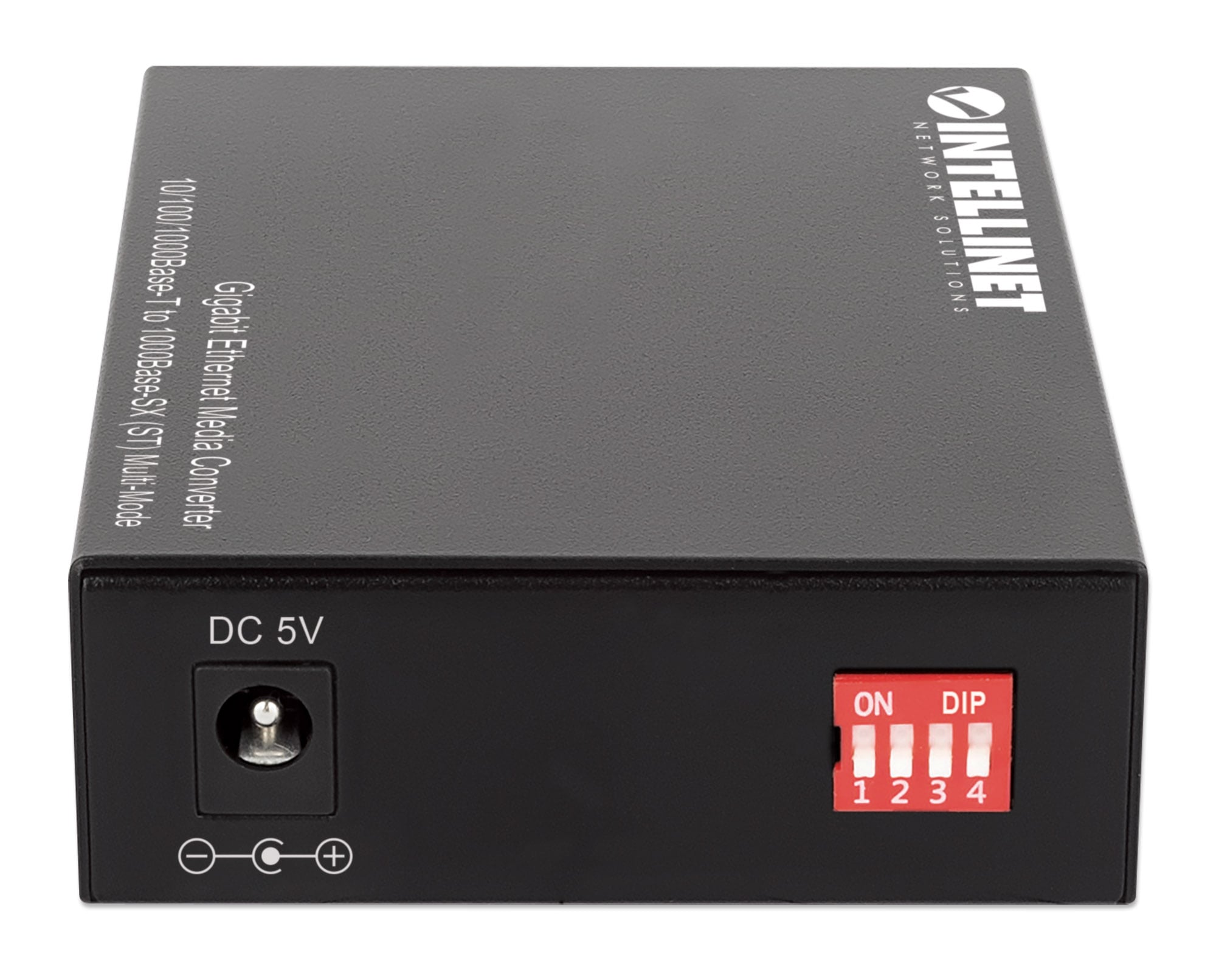

DIP switch description:

• 1


- ON: LFP enabled

- OFF: LFP disabled

• 2


- ON: no function

- OFF: no function

• 3


- ON: limits RJ45 port to 10 Mbps

- OFF: sets RJ45 to Auto-negotiation 10/100/1000 Mbps

• 4


- ON: no function

- OFF: no function

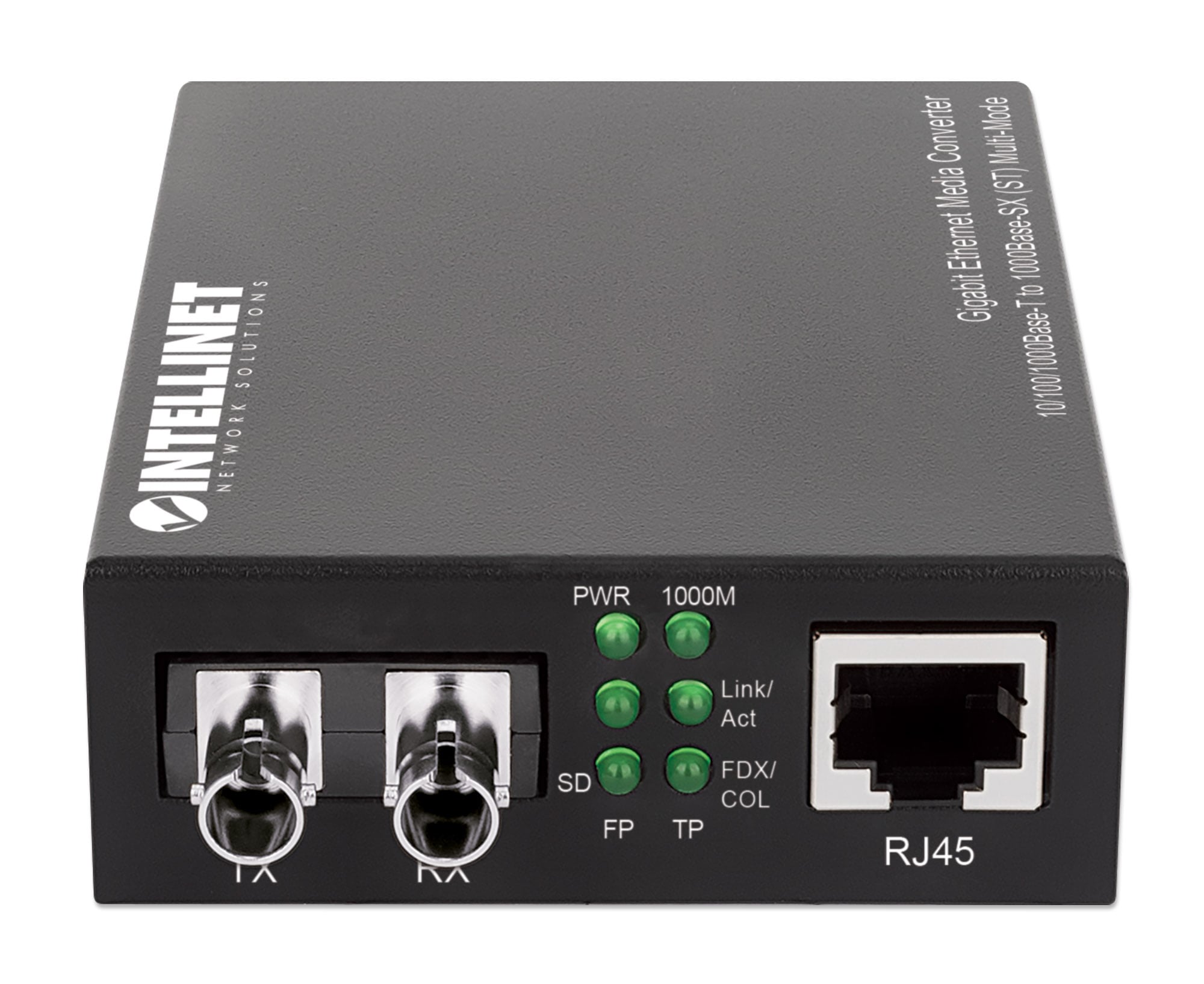

LED

• Power

• Connection/Activity for port RJ45

• Connection/Activity for fiber port

• Link speed indicator at 1000 Mbps for RJ45 port

• Link speed indicator at 100 Mbps for RJ45 port

• Optical signal input LED


Power

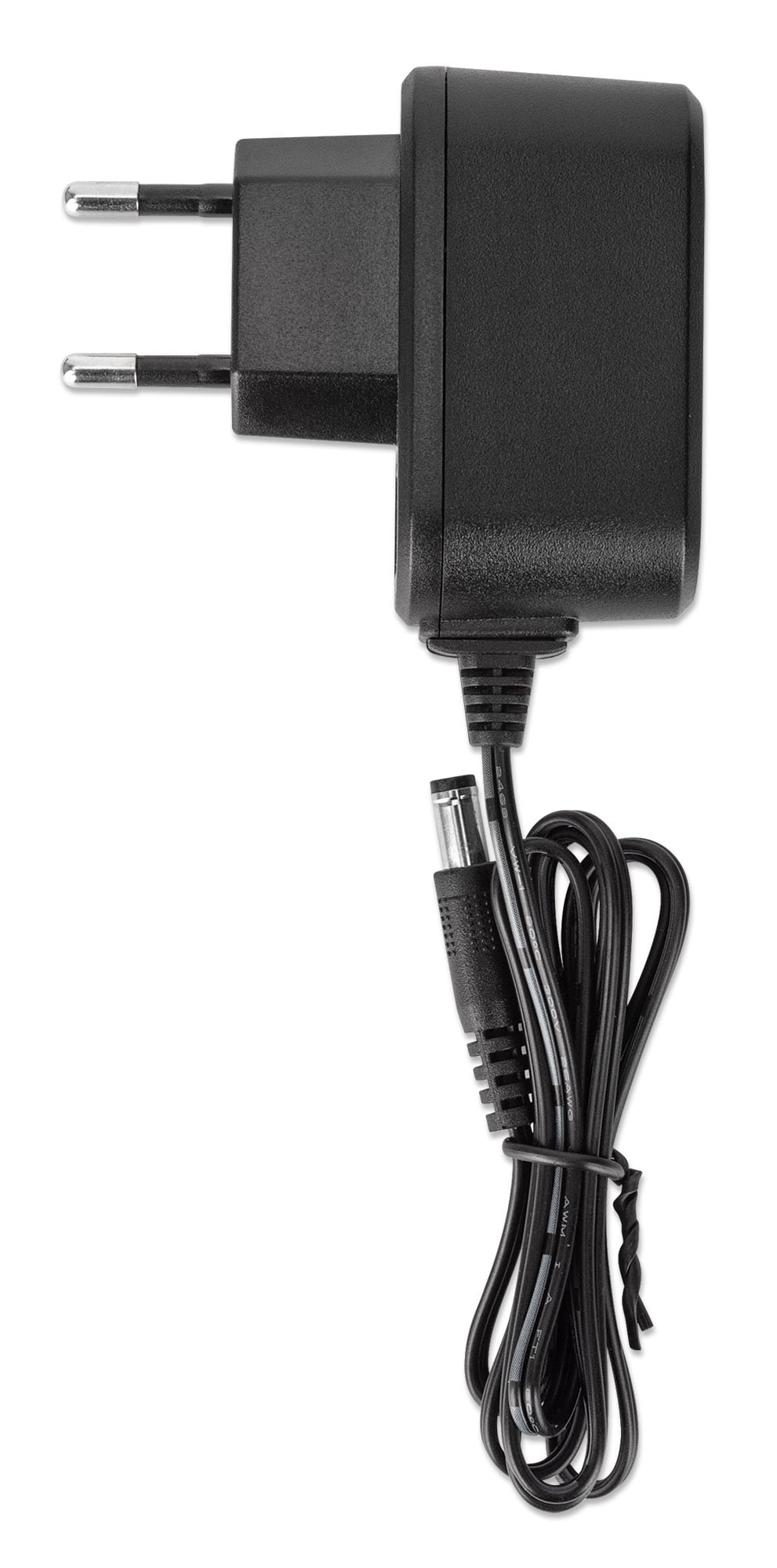

• External power supply, 5V DC, 1 A


General information

• Metal housing

• Dimensions: 94 x 70 x 26 mm (3.7 x 2.76 x 1.02 in.)

• Weight: 300 g (10.58 oz.)

• Operating temperature: -10 to 55°C (14 - 131°F)

• Storage temperature: -40 to 70°C (-40 - 158°F)

• Operating humidity: 5 - 90%

• Storage humidity: 5 - 90% RH, non-condensing


Package contents

• Gigabit Ethernet Media Converter

• External power supply

• Instructions
