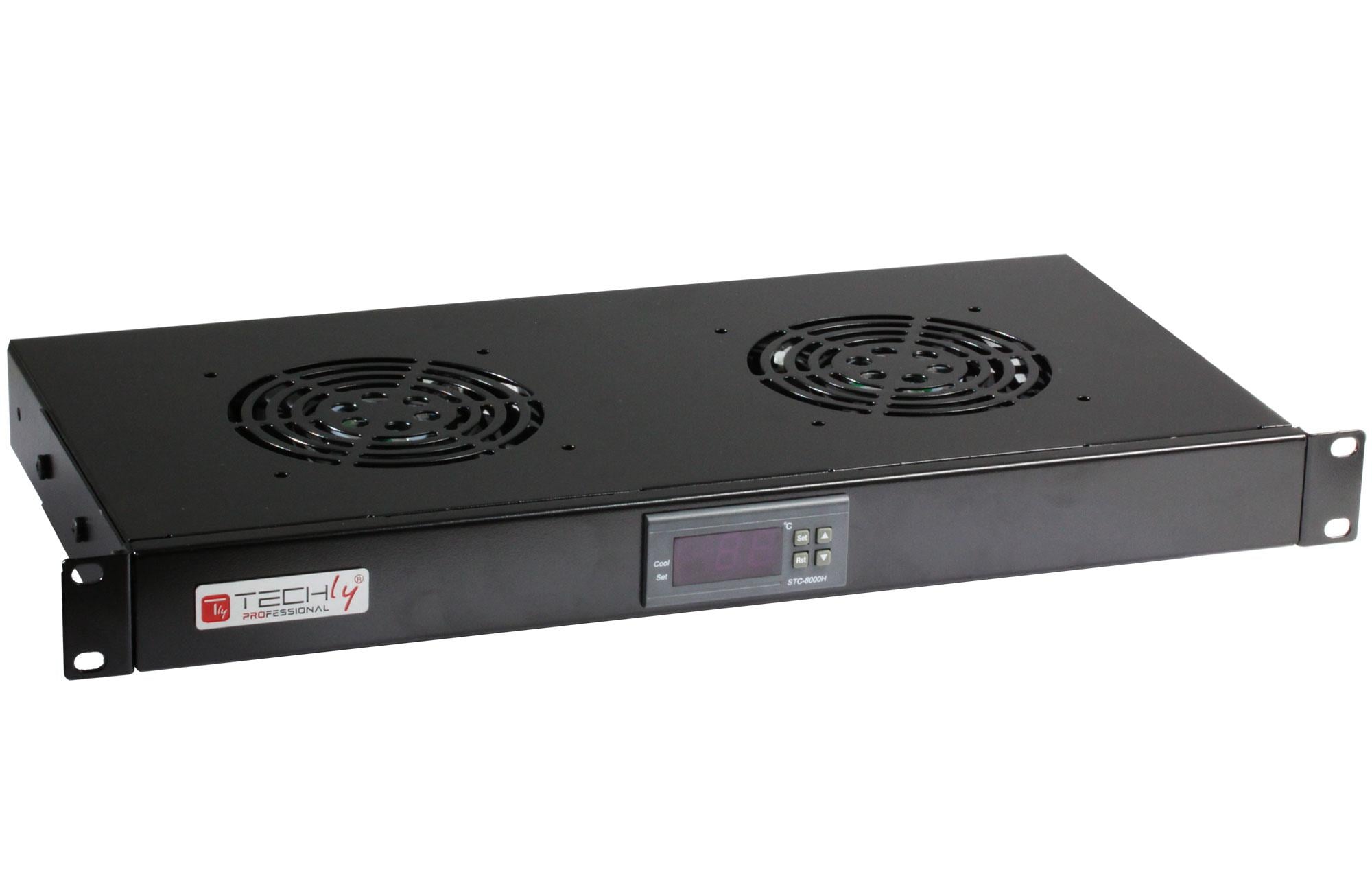

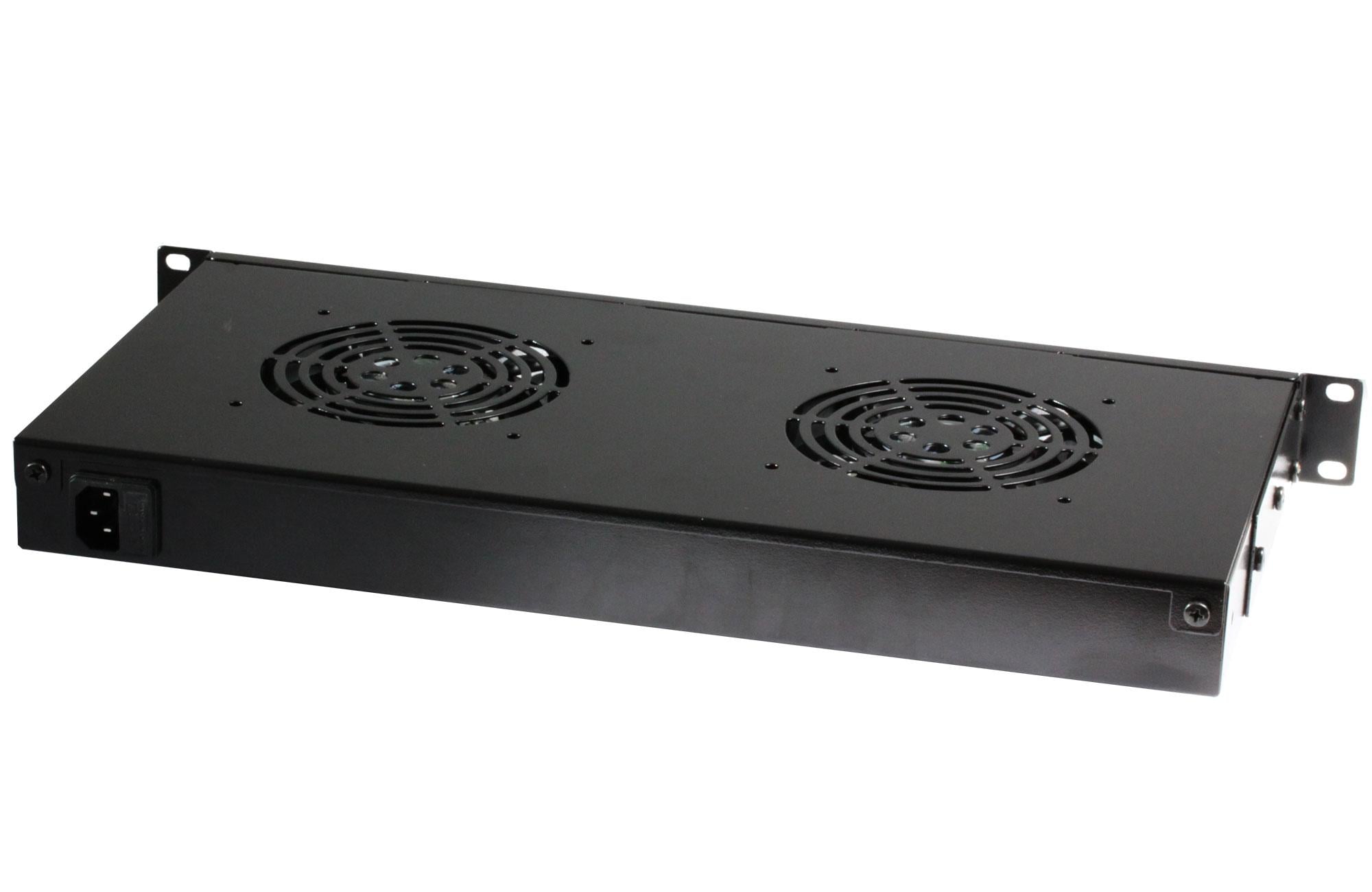

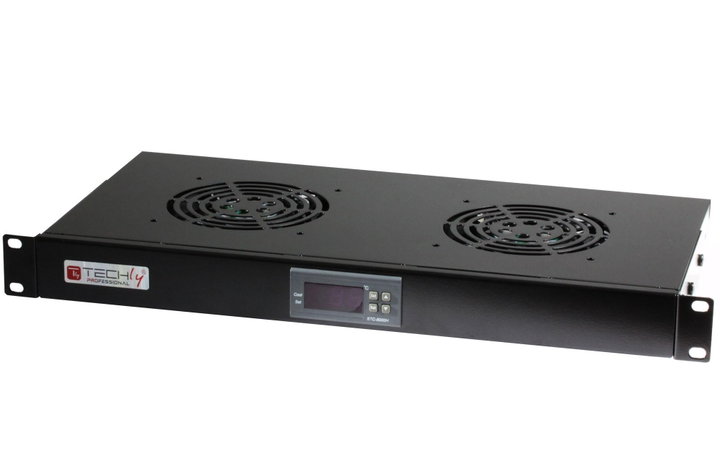

2-fan ventilation unit for 19” rack 1U. Includes LED thermostat.
Technical parameters of the ventilation system- Speed: 2700/3100 RPM
- Airflow: 95-115 CFM
- Noise level: 44-49 dbA per fan
- Power supply: 220-240V - 50/60Hz, 0,25A
- Fan consumption 23/25W
- Power cable: 1.8m

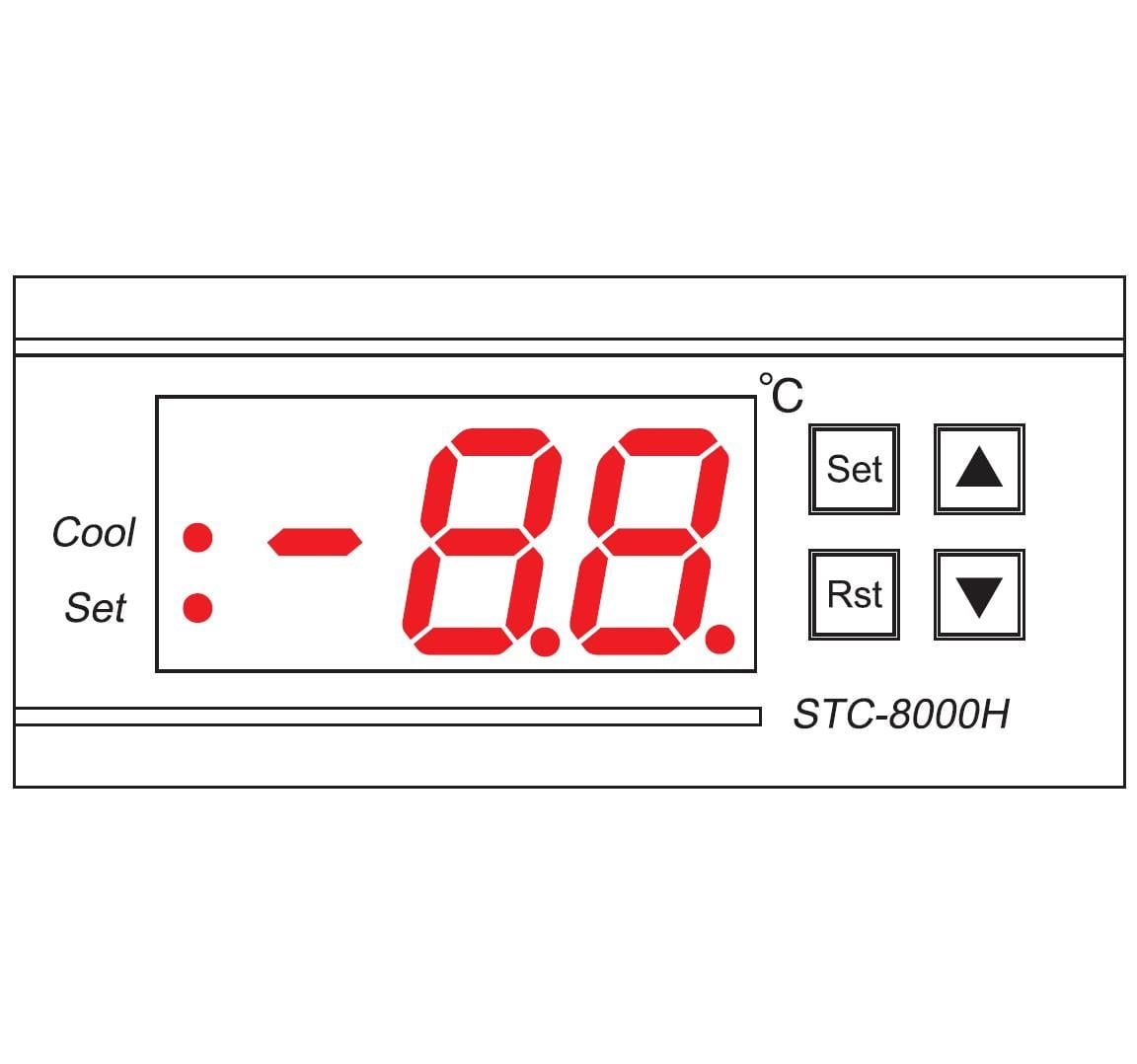

Thermostat descriptionUniversal controller with single temperature sensor, with cooling and alarm functions in case of temperature limit exceedance. Adjustable ventilation system delay and alarm adjustment for temperature limit exceedance.
Technical parameters of the thermostat- Power supply: 22OVAC+1O%/-15%, 50/6OHz
- Power consumption: ≤ 3W
- Measurement temperature range: 0~50°C
- Control temperature range: -10°C ~30°C
- Resolution: 1°C
- Accuracy: 0°C~50°C, +/-1°C, +/-2°C
- Cooling capacity output contact: 10A/277VAC, can drive single-phase compressor ≤1/2HP
- Sensor error delay time: 1min
- Sensor: NTC
- Protection level: lP65
Environmental characteristics- Operating temperature: 0°C~60°C
- Storage temperature: -30°C~75°C
- Operating humidity: 20~85% (non-condensing)

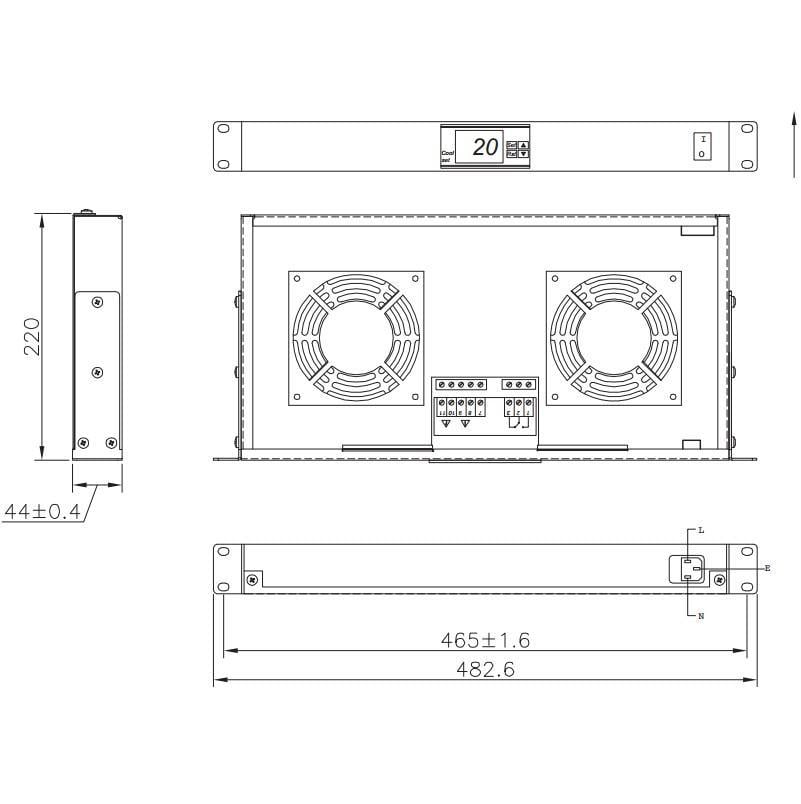

Dimensions- Width 483 mm
- Depth 220 mm
- Height 44 mm
CertificationsPackage contents- 2-fan unit I-CASE FAN-TC2B
