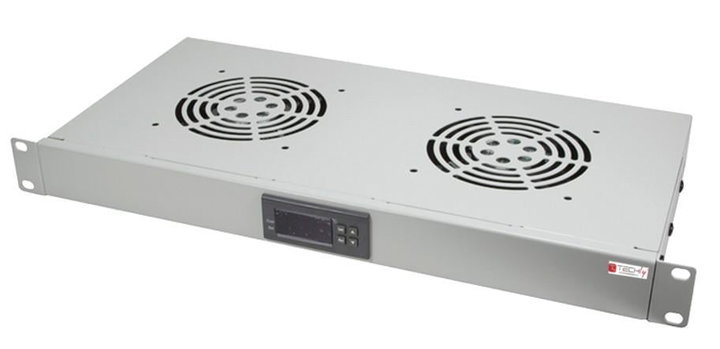

2-fan ventilation unit for 19” rack 1U. Includes LED thermostat.
Technical specifications of the ventilation system- Speed: 2700/3100 RPM
- Air flow: 95-115 CFM
- Noise level: 44-49 dbA per fan
- Power supply: 220-240V - 50/60Hz, 0,25A
- Fan power consumption 23/25W
- Power cable: 1.8m

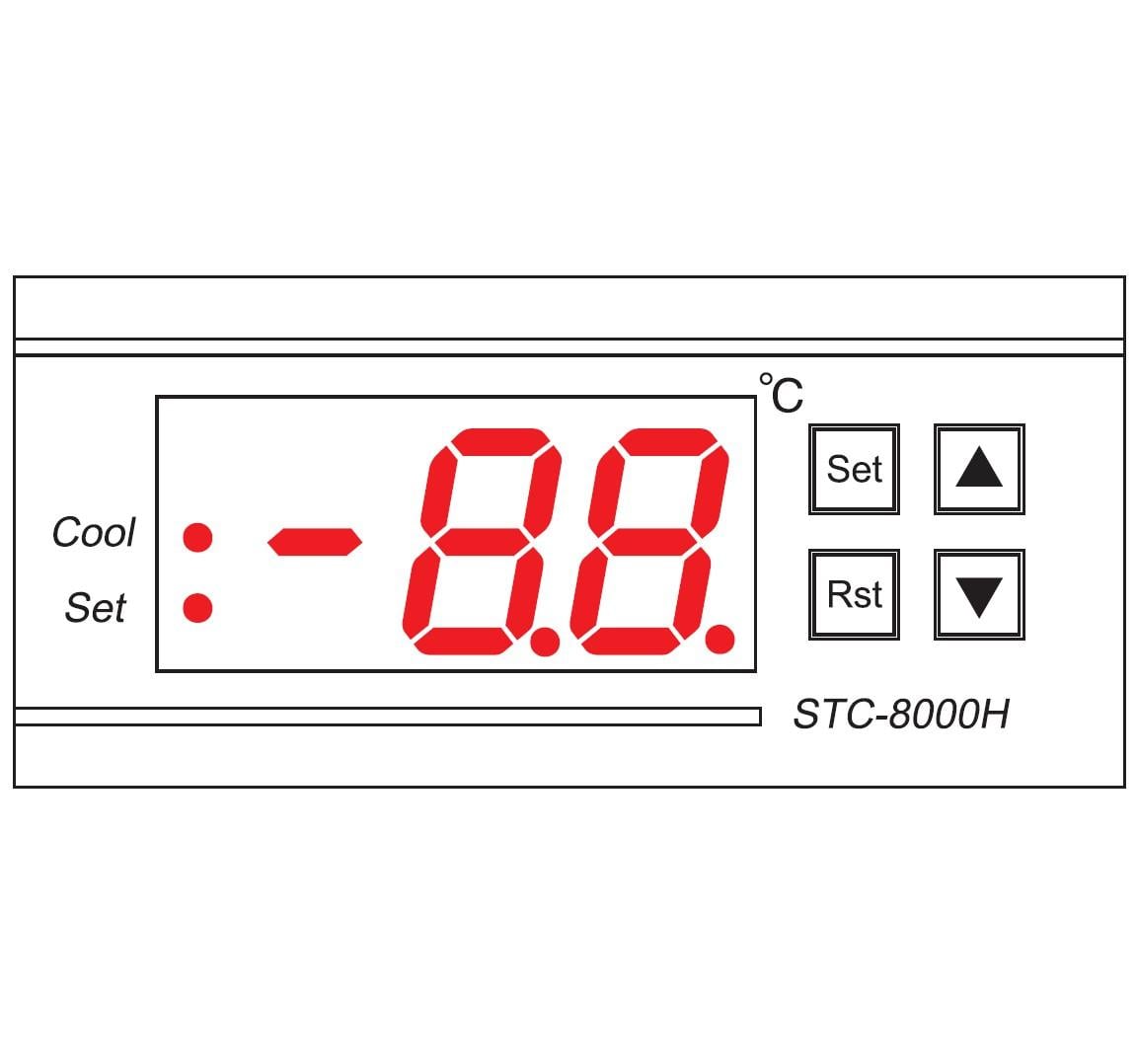

Thermostat descriptionUniversal controller with single temperature sensor, with cooling and alarm functions in case of exceeding temperature limits. Adjustable ventilation system delay and alarm adjustment for exceeding temperature limits.
Technical specifications of the thermostat- Power supply: 22OVAC+1O%/-15%, 50/6OHz
- Energy consumption: ≤ 3W
- Measurement temperature range: 0~50°C
- Control temperature range: -10°C ~30°C
- Resolution: 1°C
- Accuracy: 0°C~50°C, +/-1°C, +/-2°C
- Cooling capacity output contact: 10A/277VAC, can drive single-phase compressor ≤1/2HP
- Sensor error delay time: 1min
- Sensor: NTC
- Protection level: lP65
Environmental characteristics- Operating temperature: 0°C~60°C
- Storage temperature: -30°C~75°C
- Operating humidity: 20~85% (non-condensing)

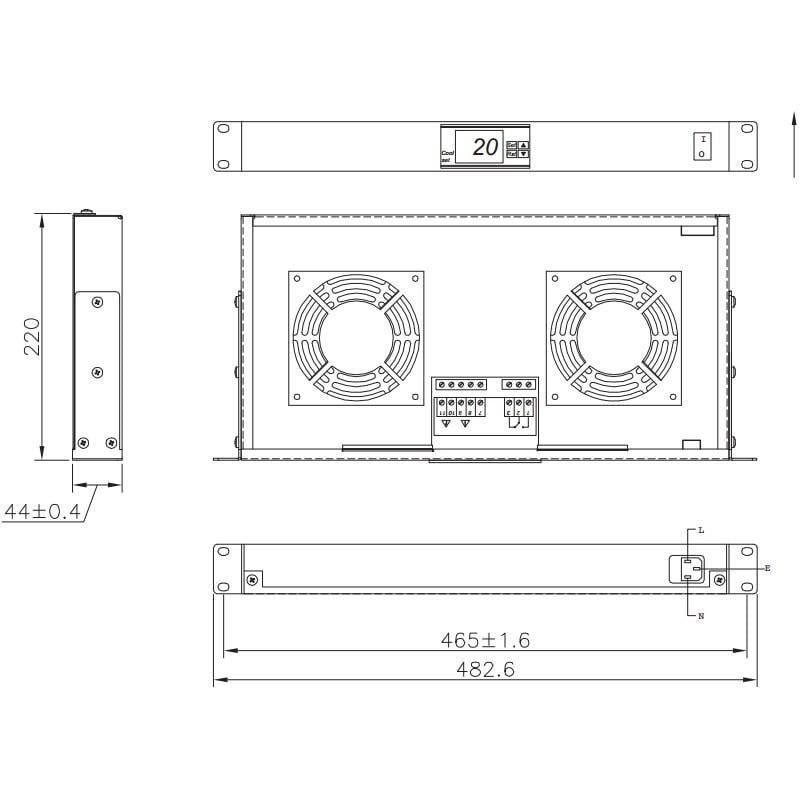

Dimensions- Width 483 mm
- Depth 220 mm
- Height 44 mm
CertificationsPackage contents- 2 Fan Unit I-CASE FAN-TC2B
