Humidity and Temperature Sensor - Aten I-CASE PE-EA1240

For environmental monitoring and management, ATEN provides probes that operate in tandem with the PDU, thus obtaining temperature and humidity measurement. It is possible to monitor environmental conditions with alarms based on custom minimum/maximum temperature and humidity thresholds.



*The sensor is an optional accessory. ATEN PDUs can be used without environmental sensors. However, for complete data center energy management and full use of ATEN solutions, sensor installation becomes necessary.



Features

• Measurement range: – °C (temperature); 30 – 80 % relative humidity


• Measurement accuracy: +/-1 °C (temperature); +/- 3 % relative humidity (humidity)


• Compact design, built-in 3m cable


• High sensitivity



Technical specifications

• Connector RJ-11 male


• Temperature measurement:



- Range 0 – 40°C

- Accuracy +/- 1°C

• Humidity measurement 



- Relative humidity range from 30– 80%

- Accuracy +/- 3 % relative humidity

• Supply voltage 5VCC (max.)


• Current consumption 5mA max: (2mA avg.)


• Cable length: 3m


• Material: plastic


• Color: black



Environmental features

• Operating temperature: 0 – 55°C


• Storage temperature: -20 – 70°C


• Humidity < 95% di umidità relativa



Certifications

• RoHS


• RAEE



Package contents

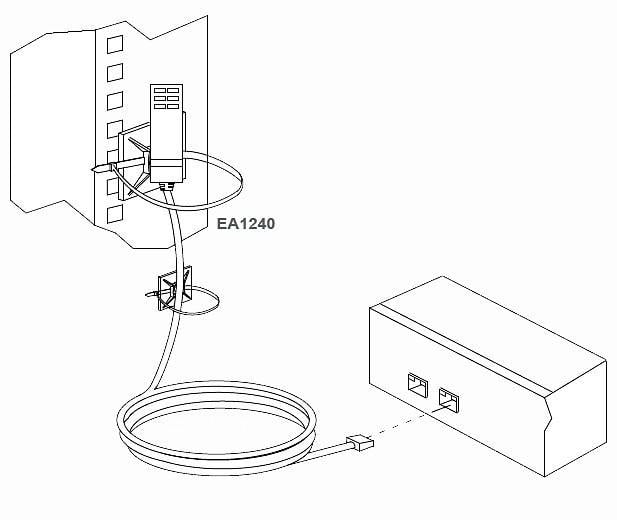

• 1 Temperature/humidity sensor EA1240


• 1 Sensor bracket


• 4 Cable ties


• 3 Adhesive cable ties
